15,000 LPH Tetra Pak Tetra Alex 30 (200 Bar) High Pressure Homogeniser
Request more information
25+ Years in business since 1999
100+ Countries supplied worldwide delivery
Detailed Photos and video see exactly what you're buying
Export Documentation full export sales invoicing customs
Servicing Servicing and upgrade options available
Expert After-sales support we're here to help after delivery
Description
A Used Tetra Pak Alex 30 machine for high-pressure homogenisation of emulsions and suspensions. The product is pumped under high pressure into the homogenising device. In the device the product is forced through a small annular gap where the pressure transform into high velocity. Extreme turbulence and cavitation effectively reduce the size of liquid droplets and solid particles. This used Tetra Pak Tetra Alex 30 Homogeniser has a capacity of approx 15,000 LPH at a maximum working pressure of 200 Bar (2900 PSI) and currently available for immediate sale.Features
- Manufacturer: Tetra Pak
- Model: Alex 30
- Serial Number: T5845531261
- Function: Homogeniser
- Capacity: Approx 15,000 litres/per hour
- Year of Manufacture: 2002
- Max. Working Pressure: 200 bar (2,900 PSI)
- Valve Design: Mushroom

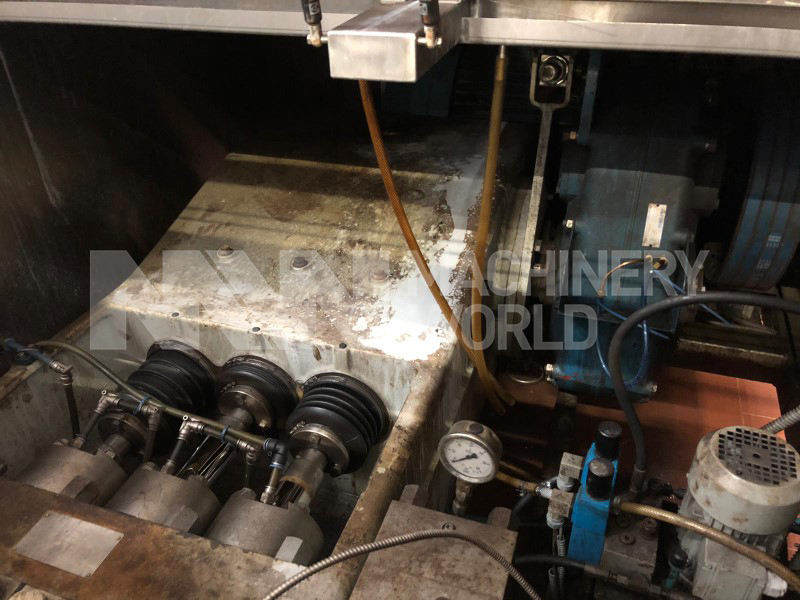

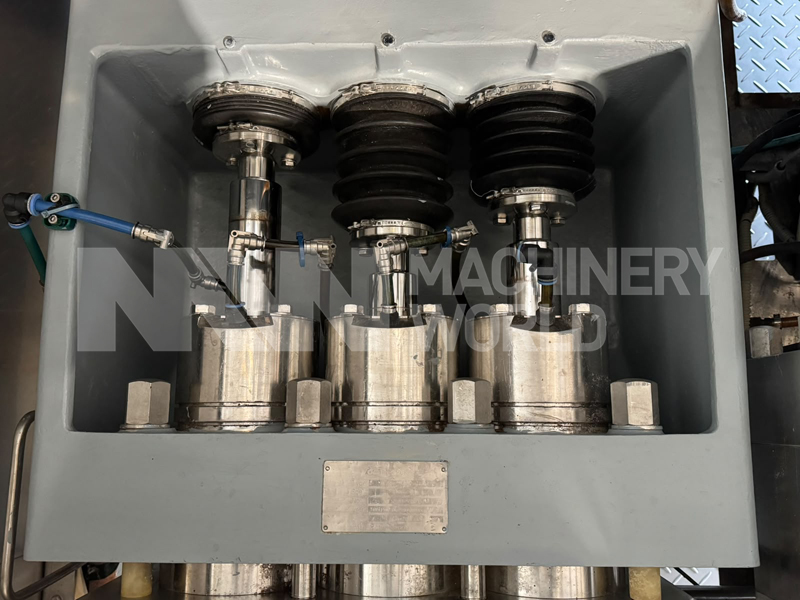

- Piston Diameter: 63mm
- Piston Design: Stainless steel
- Piston Packing: Grooved
- Total Installed Power: 110 kW (1487 r/min)
- Number of Stages: 2-Stage machine
- Electrics: 380V / 50 Hz / 3 Phase

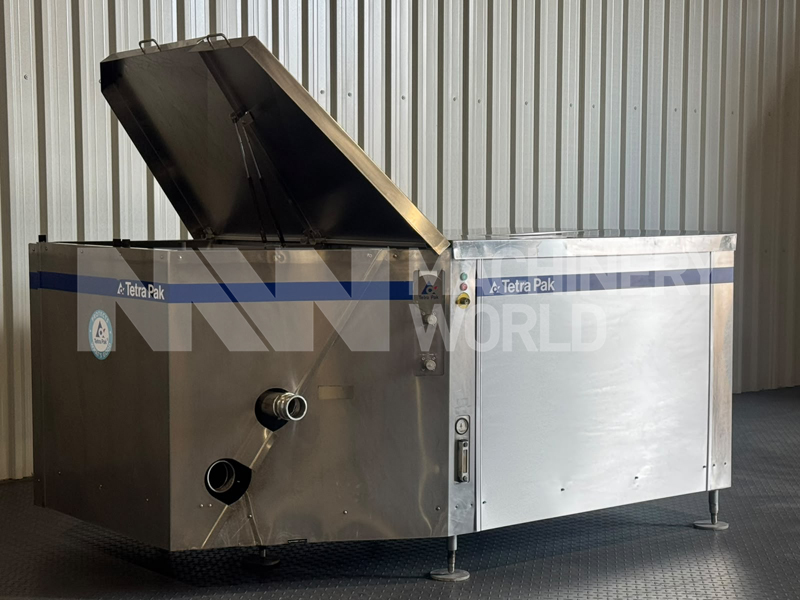

- Finish: Stainless steel covers
- Instruction manual included
- See 'Technical Doc' link for further details
Dimensions
- Length: 267 cms
- Width: 170 cms
- Height: 110 cms
- Weight: 3525 kgs
Country of Manufacture
SwedenWhy processors worldwide buy from us
