450kg per hour Water Evaporation – EPCON EPCOVAP-MVR-15C Skid-Mounted Evaporator Plant (Year 2018)

Used EPCON EPCOVAP-MVR-15C Skid-Mounted Evaporator Plant – 450 kg/h Water Evaporation

Description

Very sparingly used 2018 EPCON EPCOVAP-MVR-15C complete skid-mounted evaporator plant, available for immediate sale. This hygienic Mechanical Vapour Recompression (MVR) Evaporator was designed for concentrating berry extract and is nameplate-rated to evaporate 450 kg of water per hour at 58°C.

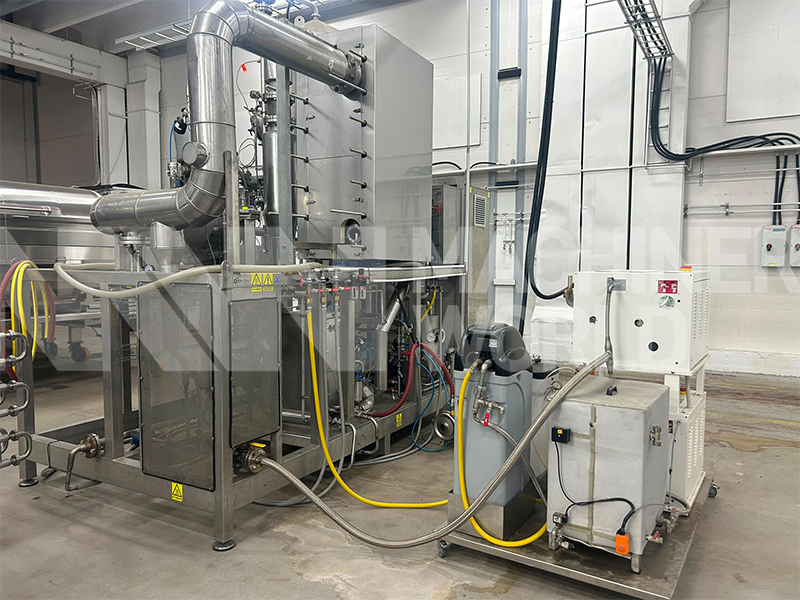

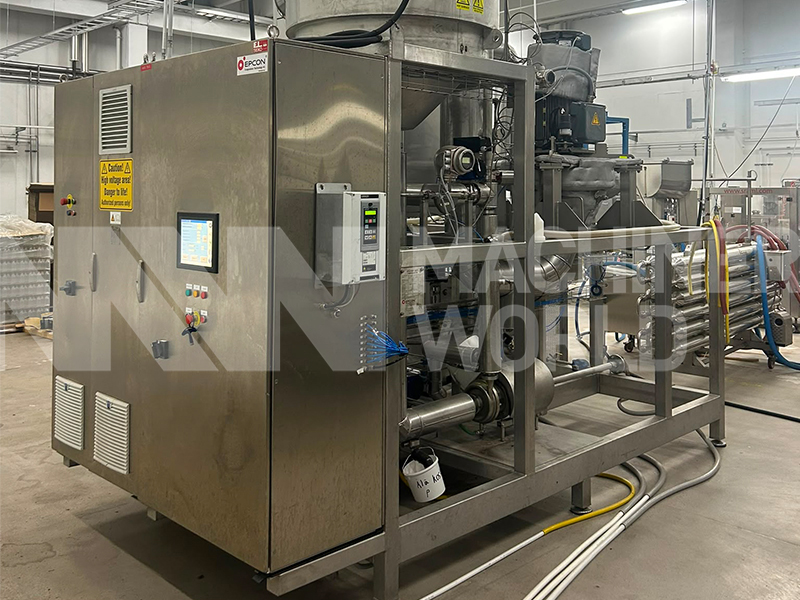

The MVR system recompresses vapour generated during evaporation and reuses it as a heat source, making it an energy-efficient option for concentrating liquid products. The plant features a stainless steel, skid-mounted process assembly, flash vessel, heat exchangers, circulation system and integrated control cabinet with touchscreen HMI.

This compact used evaporation plant is suited to buyers looking for a complete MVR evaporator for fruit extract or other compatible liquid concentration duties. It is available for immediate sale.

Key Application

• Concentration of berry extracts and fruit extracts
• Concentration of Milk, Whey, Buttermilk and other liquid dairy products
• Fruit juice and fruit ingredient concentration
• Removal of water from compatible liquid food and beverage products
• Production of liquid concentrates where low-temperature evaporation is beneficial
• Small scale Evaporator for New product development

Suitability and achievable throughput for products other than the original berry extract should be confirmed against the product’s characteristics and required inlet and outlet solids.

Specification

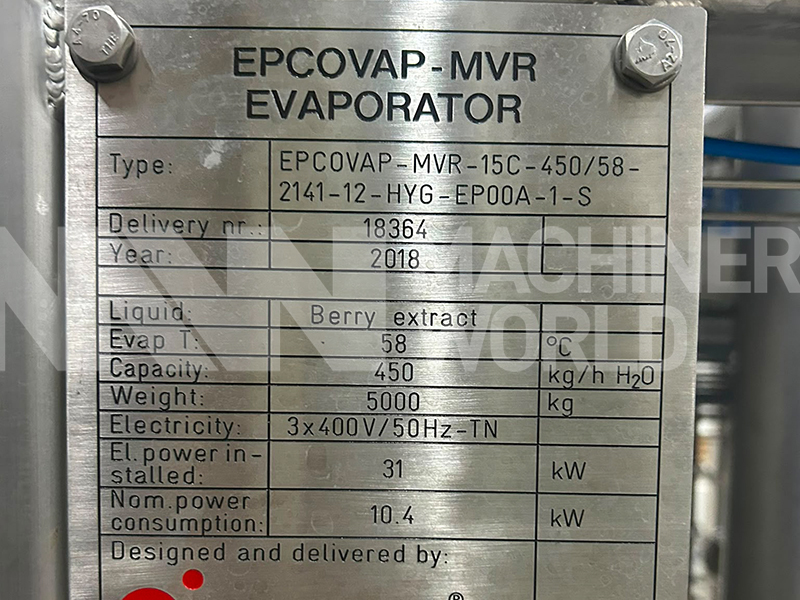

Evaporator

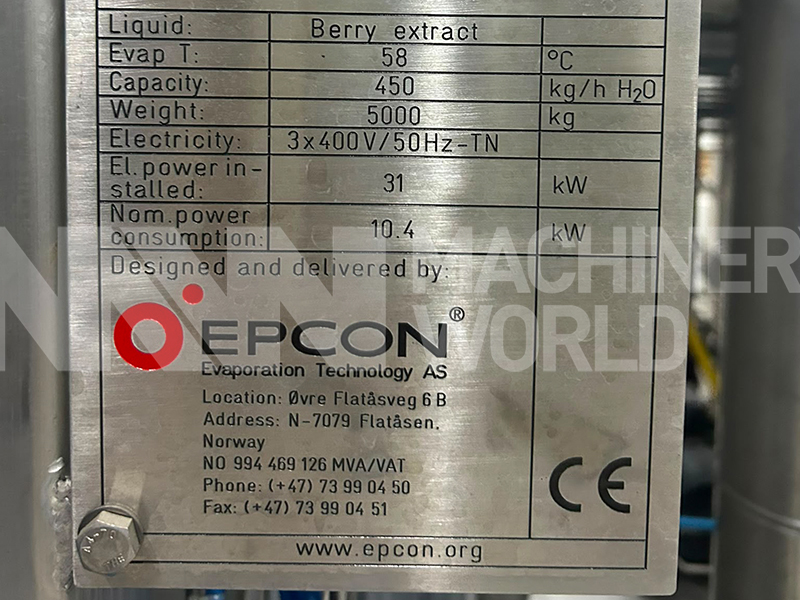

• Manufacturer: EPCON Evaporation Technology AS, Denmark
• Model: EPCOVAP-MVR-15C
• Year of Manufacture: 2018
• Plant type: Mechanical Vapour Recompression (MVR) Evaporator
• Configuration: Skid-mounted hygienic evaporator plant
• Original Design Liquid: Berry extract
• Rated Water Evaporation Capacity: 450 kg H₂O/hour
• Feed & Concentrate Rates: The 450 kg/hour rating is the quantity of water evaporated, not the feed inlet rate. Feed throughput and inlet/outlet total solids depend on the product and operating conditions.)
• Design Evaporation Temperature: 58°C
• Electrical Supply: 3 × 400 V / 50 Hz
• Installed Electrical power: 31 kW
• Nominal Electrical Power Consumption: 10.4kw
• Evaporator nameplate weight: 5,000 kg

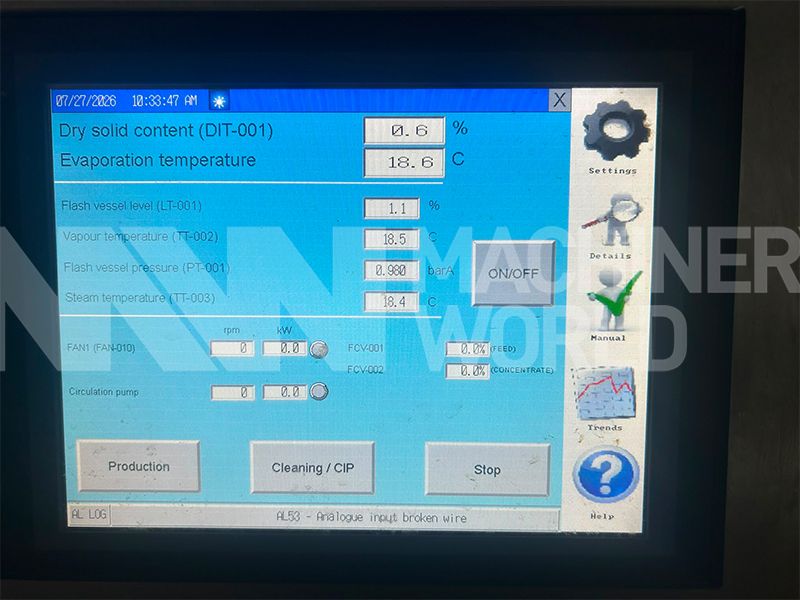

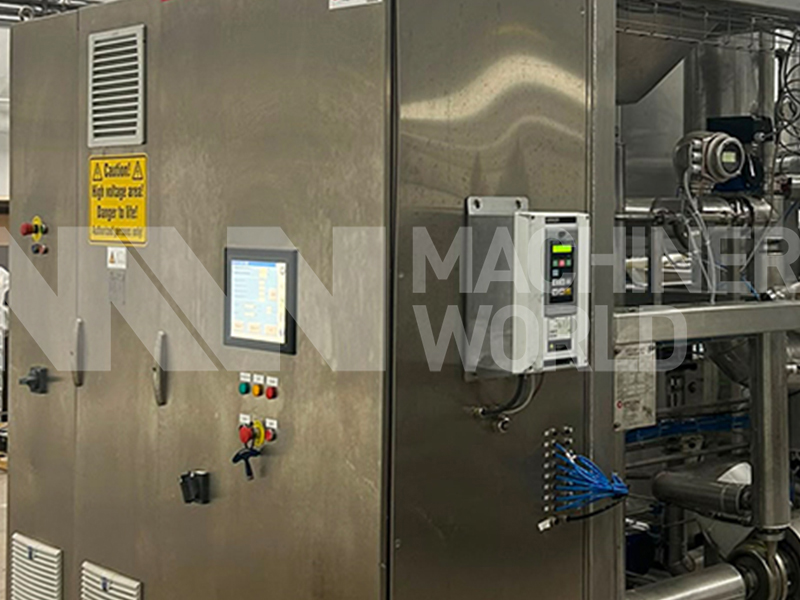

• Controls: Integrated Control Cabinet with PLC & Touchscreen HMI

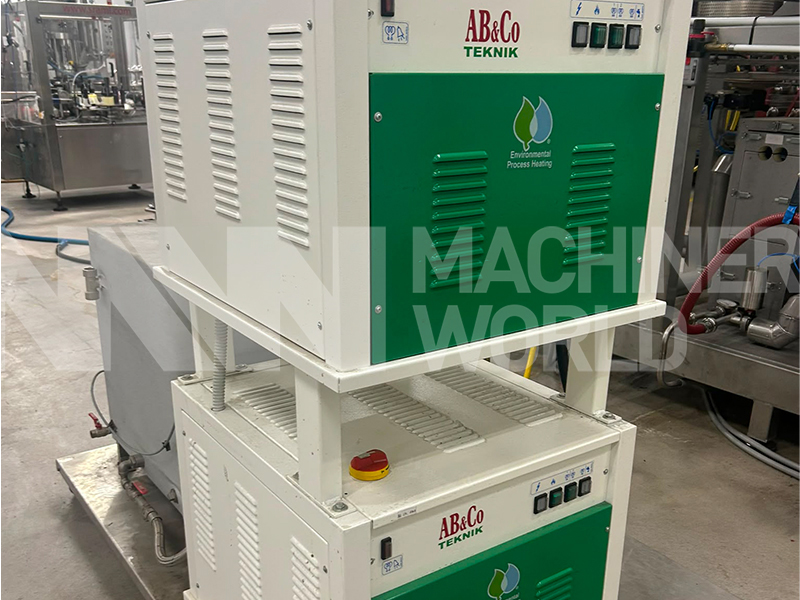

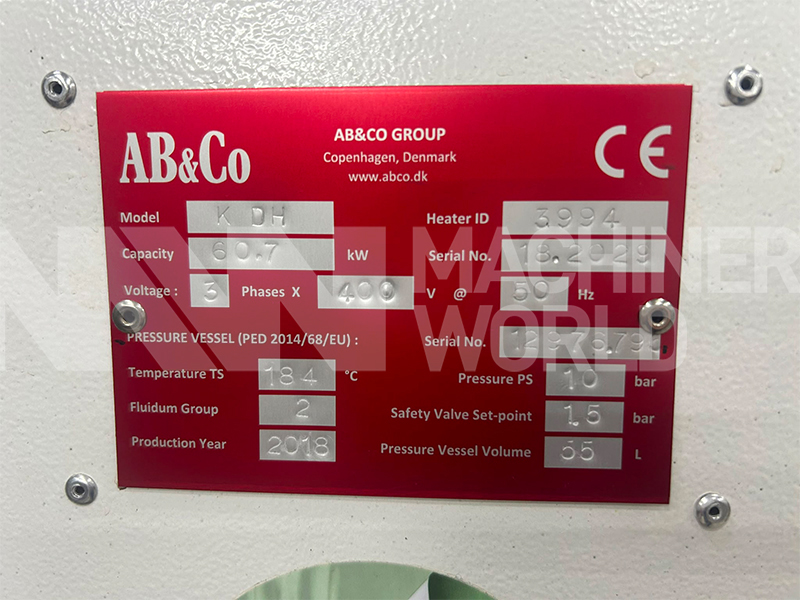

Heating Module

• Make: AB&Co Group, Denmark
• Model: K DH
• Serial Number: 18.2029
• Year of Manufacture: 2018
• Capacity: 60.7 kW rated capacity
• Voltage: 400V, 3-Ph & 50Hz
• Includes 55-litre pressure vessel volume.
• Working Pressure: 10 bar maximum allowable pressure (PS)

Country of Manufacture

• Denmark
