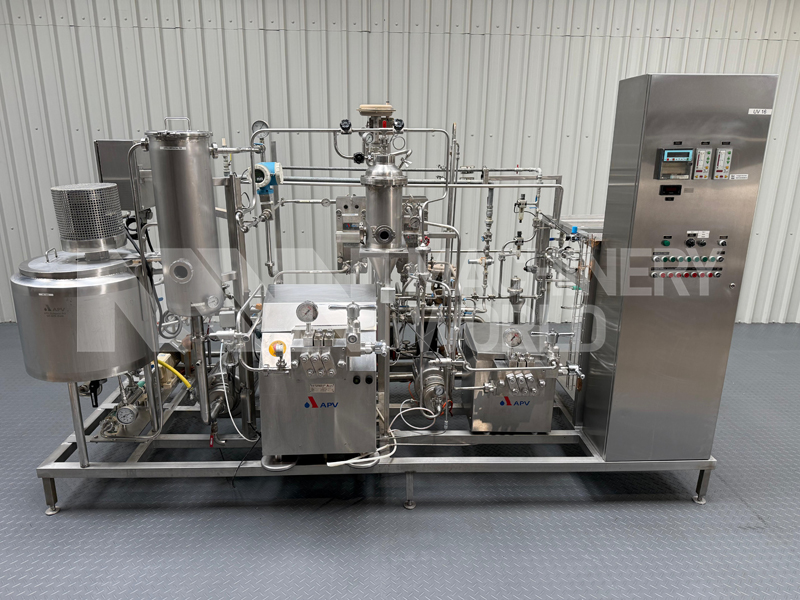

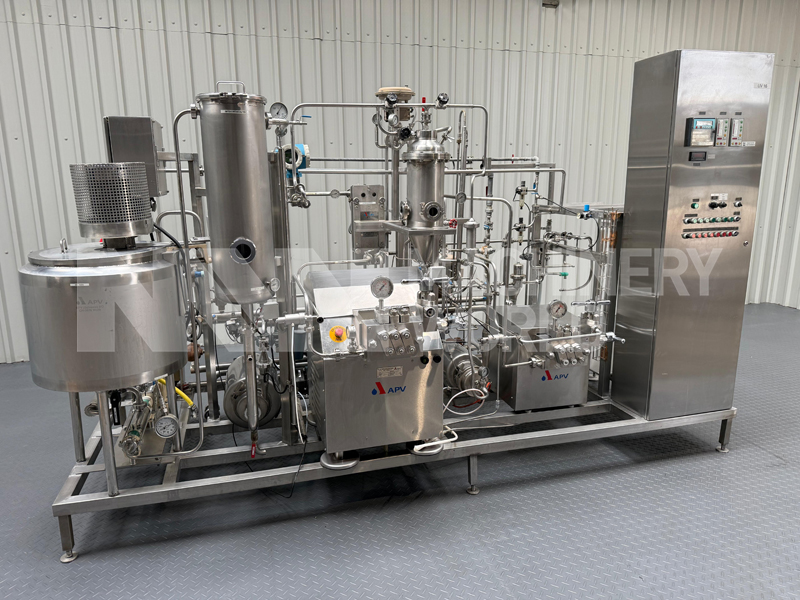

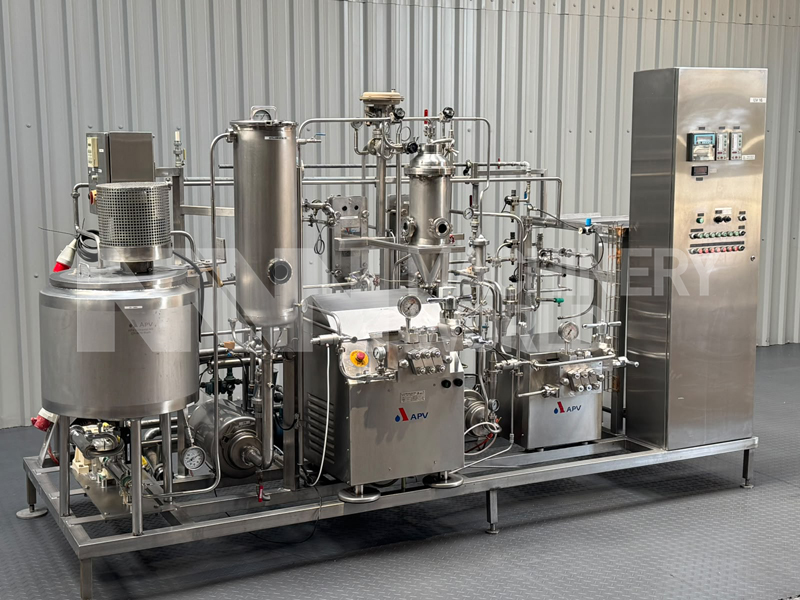

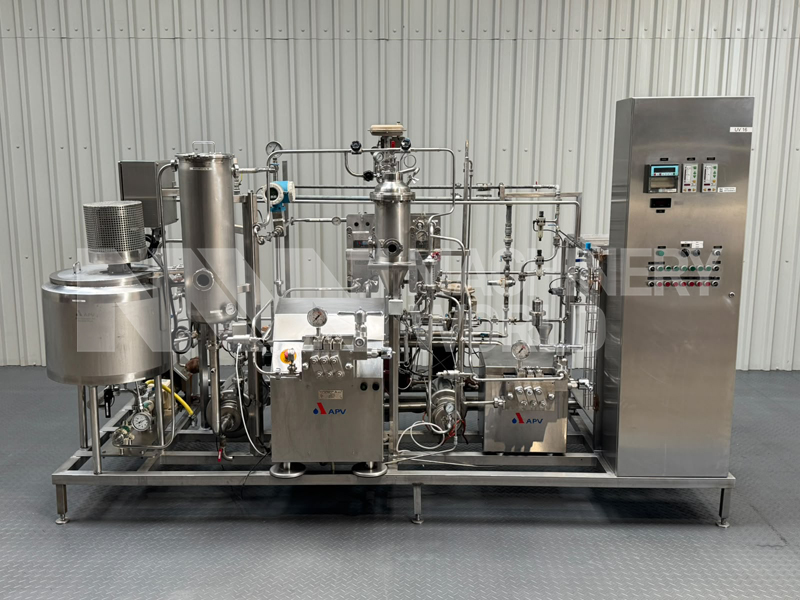

100 LPH APV Pilot UHT Plant with Plate Heat Exchanger, Direct Steam Injection & Twin 2-Stage Homogenisers

Description

This used APV Pilot UHT Plant is a rare opportunity to acquire a high-quality, skid-mounted Ultra High Temperature (UHT) processing system from one of the world's leading multinational manufacturers of health and nutritional beverages. Designed for pilot-scale production, product development and small batch commercial processing, this plant has been well maintained, very lightly used, and remains in excellent condition. The complete system is mounted on a single skid for straightforward installation and includes two APV 2-stage high-pressure homogenisers, a plate heat exchanger, direct steam injection (DSI), steam flash vessel with integrated vacuum system, and a fully integrated electrical control panel.

Ideal for processing dairy products, nutritional beverages, plant-based drinks, liquid foods, protein beverages, infant nutrition, pharmaceutical liquids and other heat-treated products requiring precise UHT processing.

Application

This APV UHT plant is suitable for processing:

• UHT milk
• Protein drinks
• Nutritional beverages
• Meal replacement drinks
• Functional beverages
• Dairy products
• Plant-based milk alternatives
• Coffee beverages
• Liquid food products
• Pharmaceutical liquids
• Cosmetic emulsions
• R&D and pilot plant production

Industries

Ideal for:

• Dairy processing
• Food manufacturing
• Nutraceutical production
• Beverage manufacturers
• Pharmaceutical processing
• Biotechnology
• Universities and research centres
• Pilot production facilities
• Contract manufacturing

Specification

• Manufacturer: APV, Germany
• Plant Type: Pilot UHT Processing Plant with Direct Steam Injection & Plate Heat Exchanger
• Configuration: Complete skid-mounted system
• Previous Application: Pilot production of health and nutritional beverages
• Construction: Hygienic stainless steel
• Heating System: Direct Steam Injection (DSI)
• Heating Recovery: Plate Heat Exchanger (PHE)

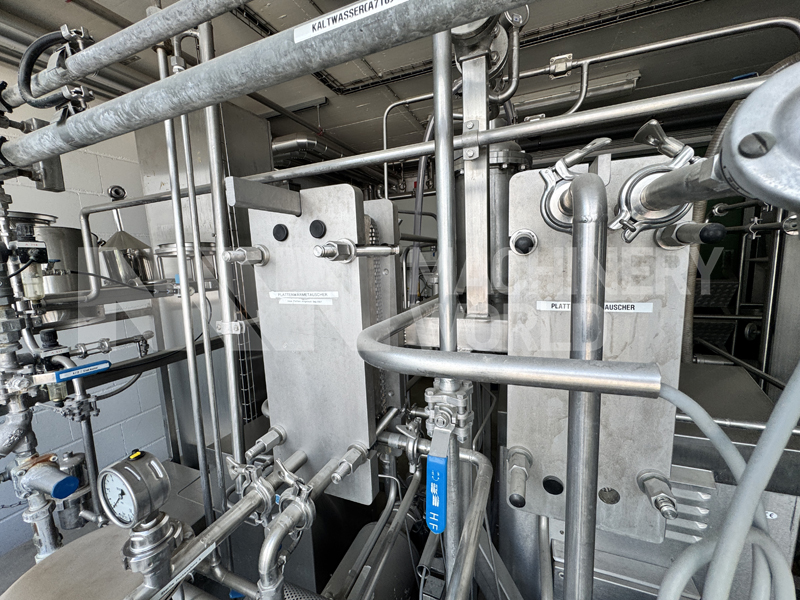

• Plate Heat Exchanger:
  • Plate Heat Exchanger - 1:
    • Make: APV, Germany
    • Construction: Stainless Steel
    • Number of Sections: 1-Section
  • Plate Heat Exchanger - 2:
    • Make: APV, Germany
    • Construction: Stainless Steel
    • Number of Sections: 2-Section

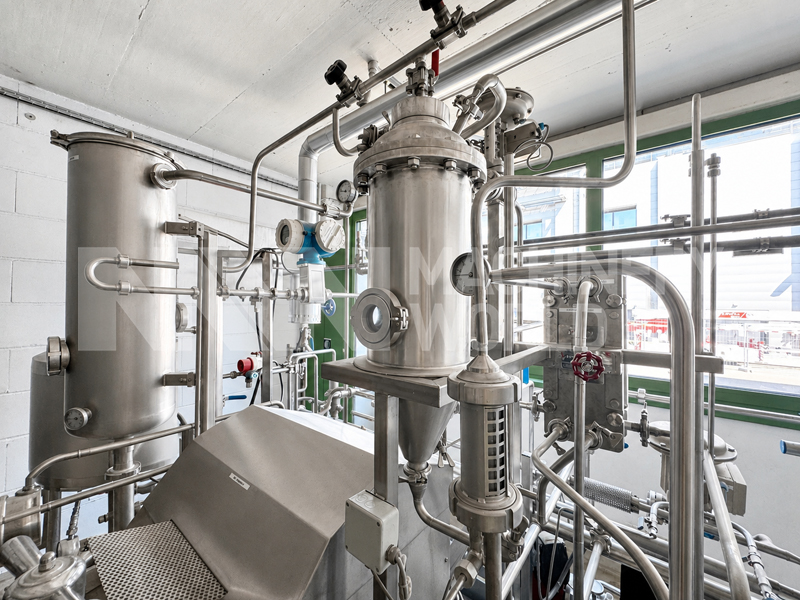

• Flash Heating: Steam Flash Vessel with Integrated Vacuum Pump

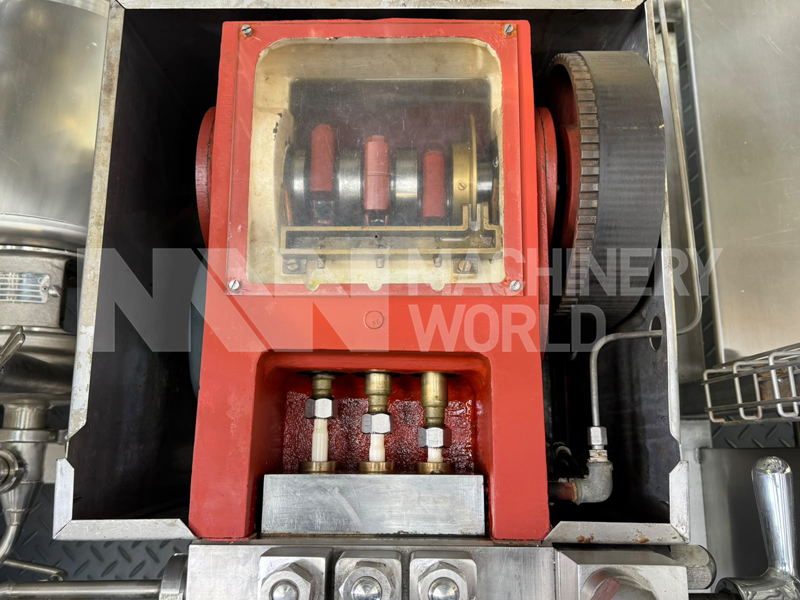

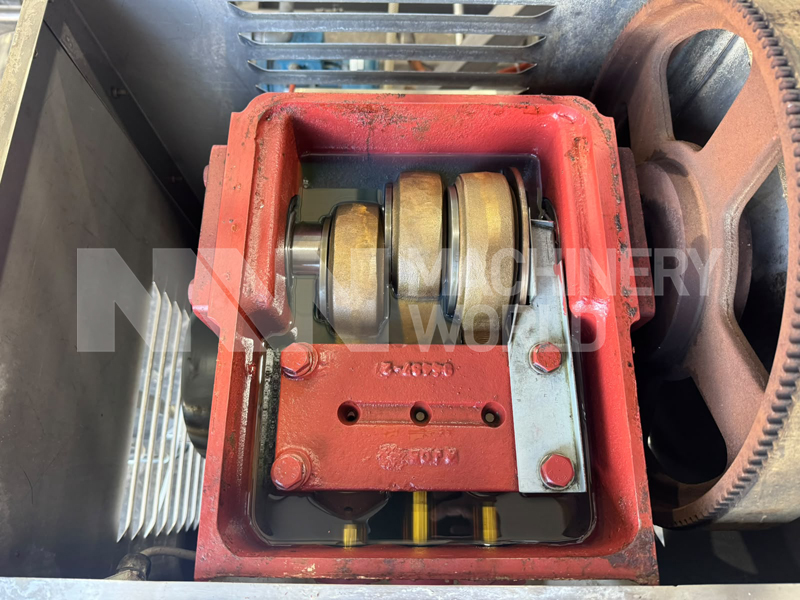

• Homogenisers:

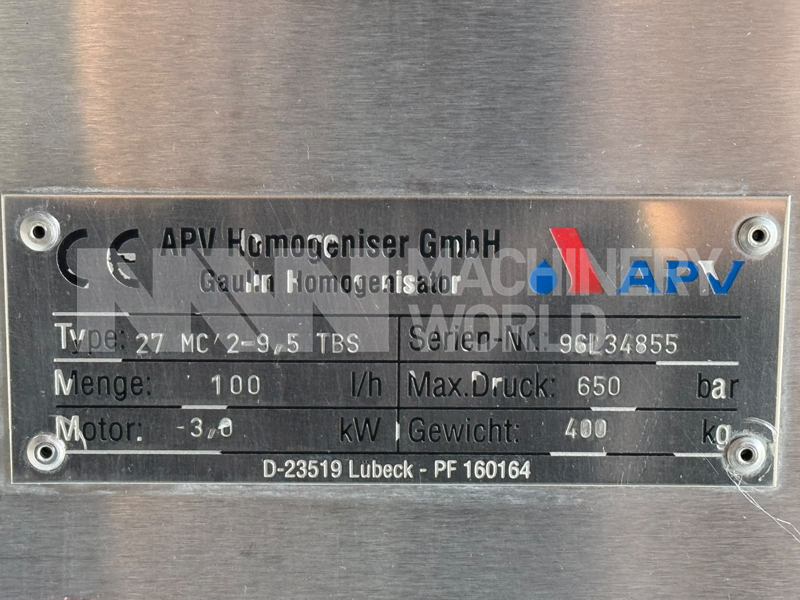

  • Homogeniser - 1:
    • Make: APV Gaulin, Germany
    • Model: MC2 9.5TBS
    • Serial No: 96L34855
    • Function: High Pressure Homogenisers
    • Capacity: Approx 100 LPH
    • Maximum Operating Pressure: 650 Bar (9,427 PSI)
    • Number of Stages: 2-Stage Homogeniser
    • Type of Homogenising Valve: Ball Valve

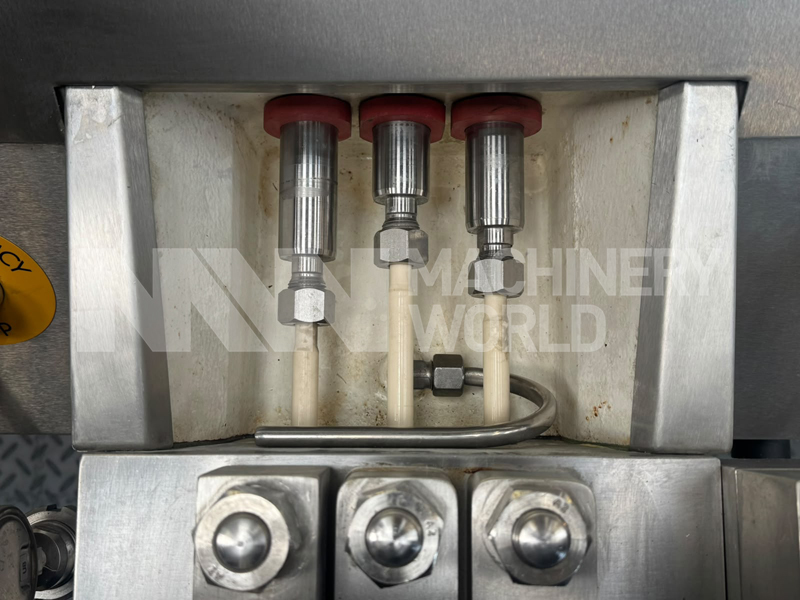

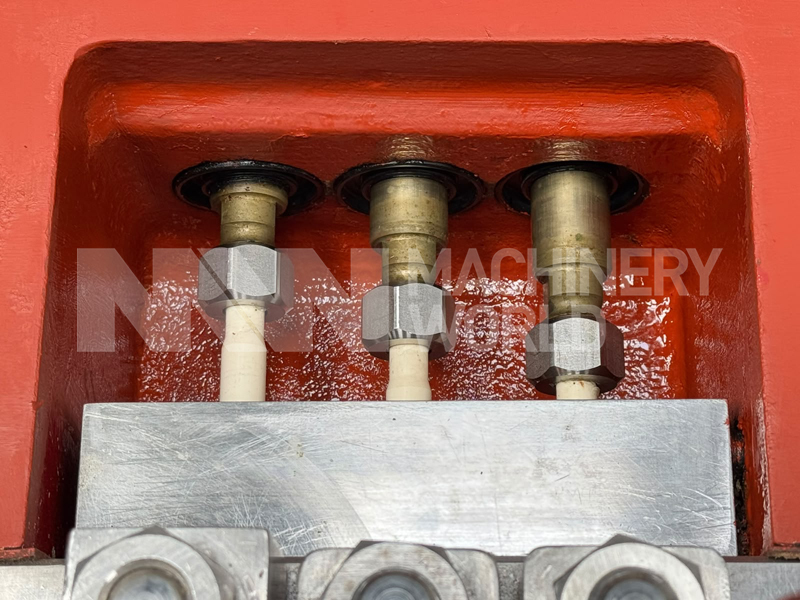

    • Number of Pistons: 3-Pistons
    • Finish: Stainless Steel Shrouds
  • Homogeniser - 2
    • Make: APV Gaulin, Germany
    • Function: High Pressure Homogenisers
    • Number of Stages: 2-Stage Homogeniser
    • Type of Homogenising Valve: Ball Valve
    • Number of Pistons: 3-Pistons
    • Finish: Stainless Steel Shrouds
• Product Feed: Hygienic Feed Pump

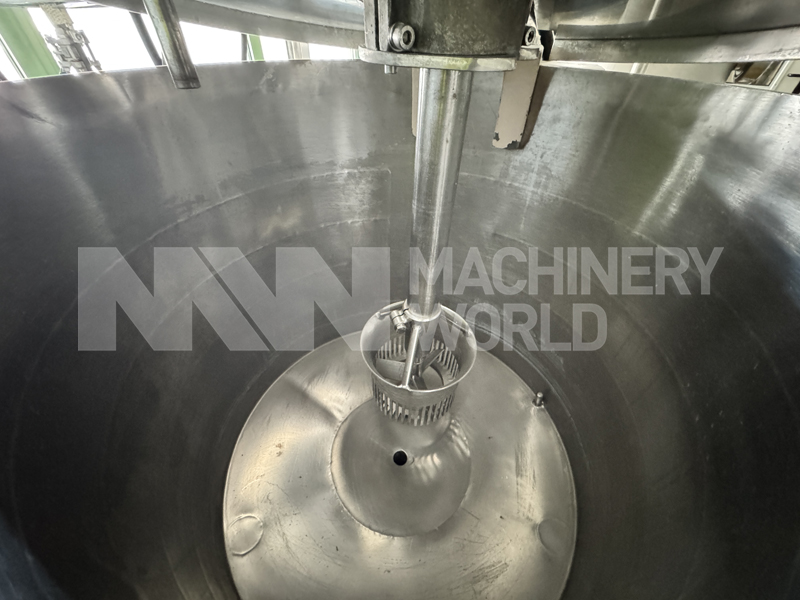

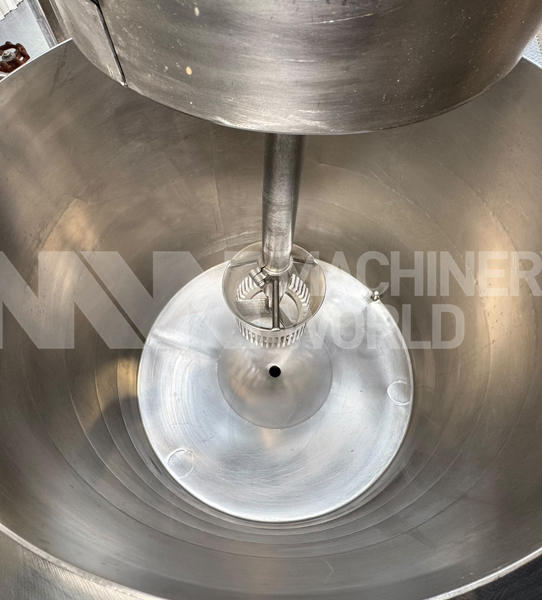

• Product Tank:
  • Construction: Stainless Steel Balance

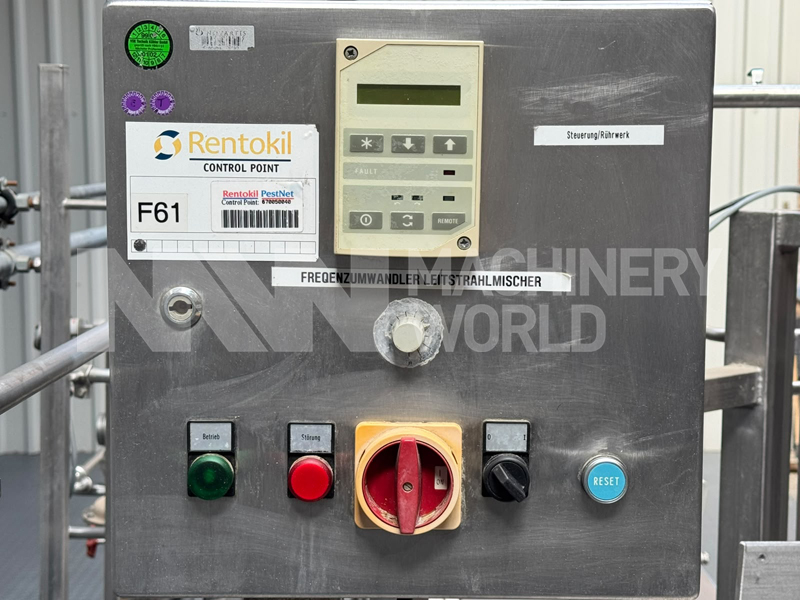

  • Mixer: Top Mounted
  • Mixer Type: High Speed Turbo Mixer
  • Mixing Tank with Agitator
  • Insulation: Yes, Insulated & Clad
  • Lid: Top open hinged lid.
• Instrumentation:
  • Pressure gauges
  • Transmitters
  • Process instrumentation
  • Endress & Hauser Flowmeter

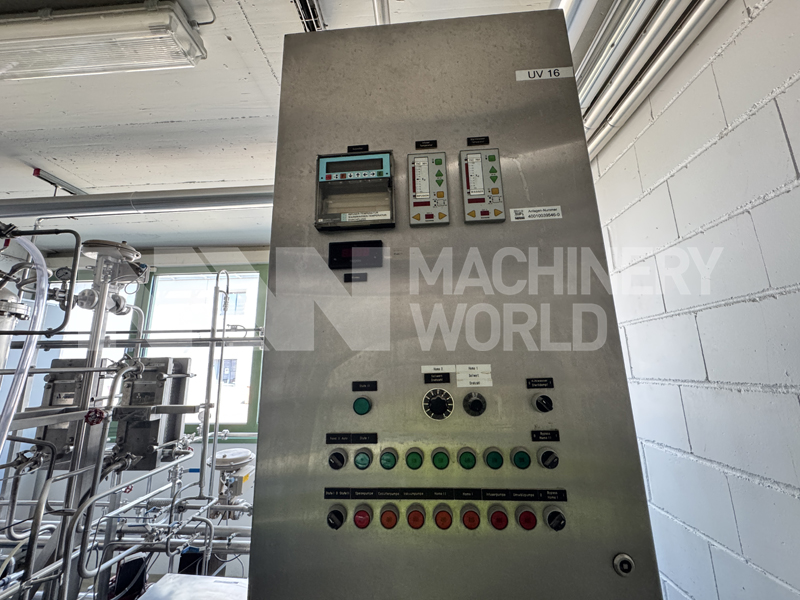

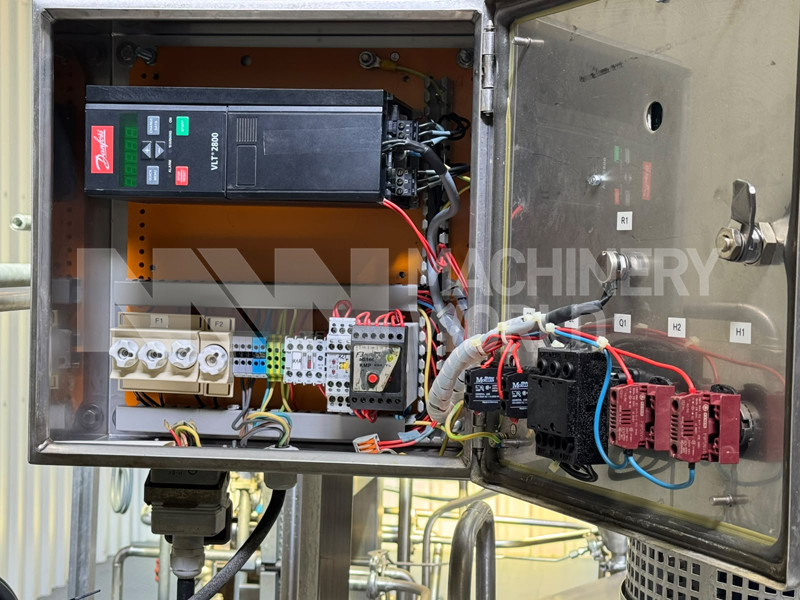

• Controls Fully integrated electrical control panel


  Included Equipment

• Stainless Steel product tank with Turbo Mixer
• Feed pump
• Plate Heat Exchanger (2x PHE included)
• Direct Steam Injection module with Steam Flash Vessel
• Vacuum Pump
• APV Gaulin 2-stage Homogenisers (2x Homogenisers included)
• Product circulation pump

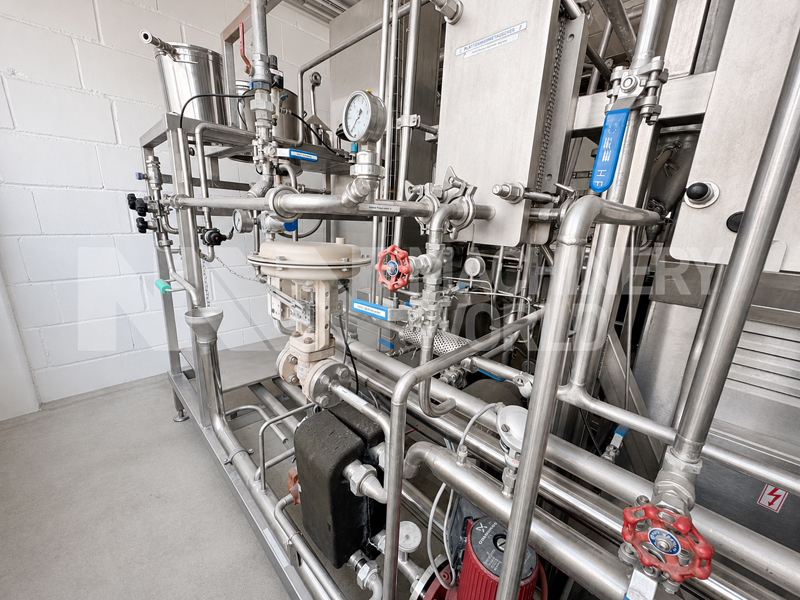

• Hygienic stainless steel pipework
• Process instrumentation
• Pneumatic Valves
• Steam Valves
• Integrated Instrumentation
• Endress & Hauser Flowmeter
• Integrated Electrical Control Panel
• Complete skid frame

Country of Manufacture

• Germany
