20,000 LPH Gemak 3-Tank (1,200L) 1-Channel Automatic CIP System Plant (Year 2023)

Description:

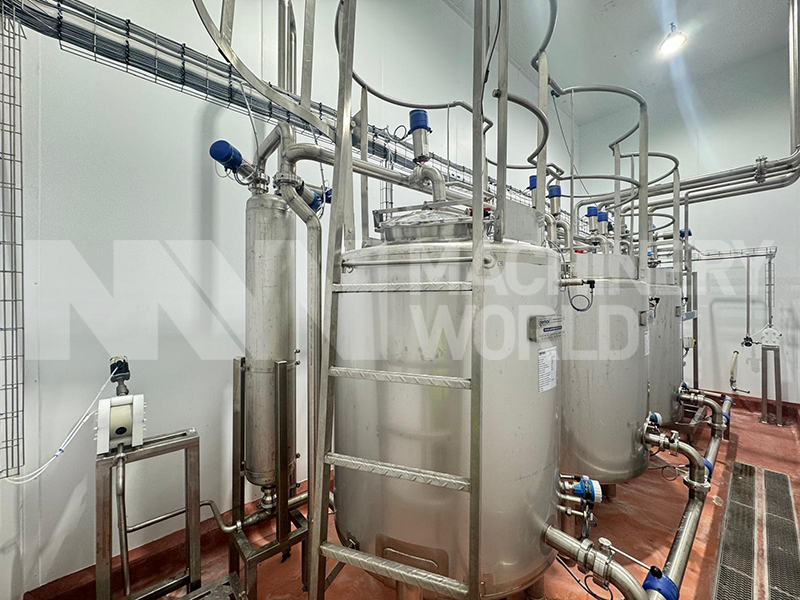

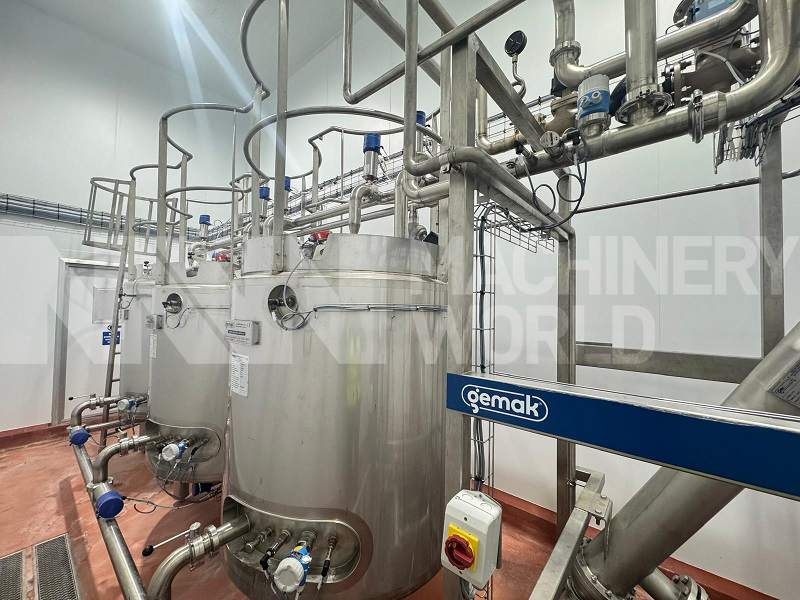

This is a very sparingly used Gemak 3-Tank & 1-Channel Automatic CIP System Plant. This Gemak 3-Tank & 1-Channel Automatic CIP System Plant is has a flow rate of approx 20,000 LPH and comprises of 3x 1,200 Ltr Tanks. Gemak CIP System is capable of cleaning Single Channel, at any given time and includes Tubular Heat Exchanger for heating up the CIP Solution. CIP System comes with Endress & Hauser Flow-meter, Conductivity & Temperature Probes and Control Panel with PLC and Touchscreen HDMI Display. This Gemak 3-Tank & 1-Channel Automatic CIP System Plant was very sparingly used at its previously installed facility and currently available for immediate sale.

Specification:

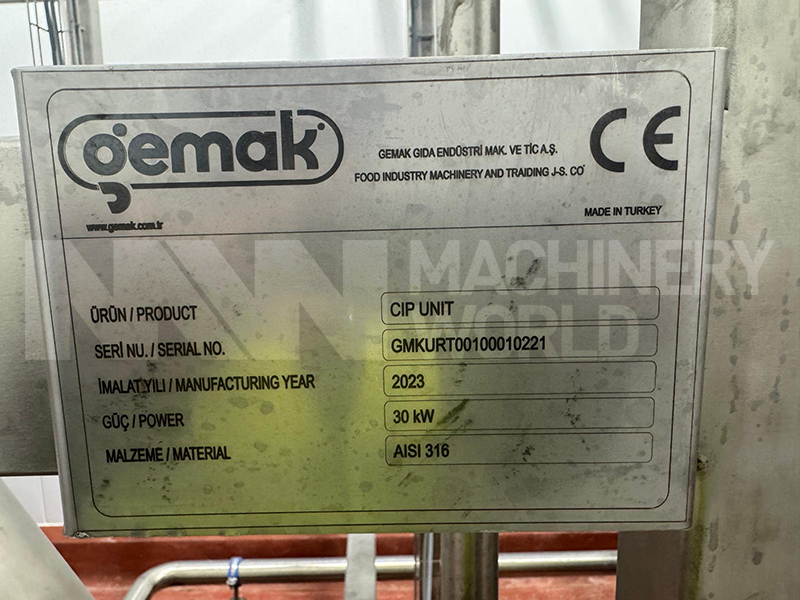

• Make: Gemak, Turkey
• Model: CIP Unit
• Serial Number: GMKURT00100010221
• Year of Build: November 2023
• Condition: Very Sparingly USED
• Flow Rate: Approx 20,000 LPH (Variable with Frequency Inverter)
• Type: 3-Tank & 1-Channel System
• Heat Exchanger Type: Tubular (Shell-In-Tube)
• Delivery Pipe Size: 2.5 inch

Tanks:

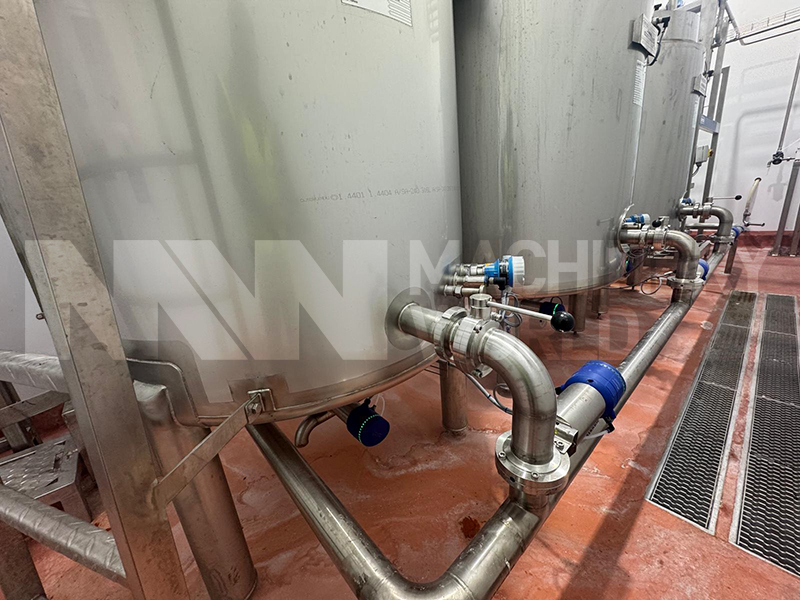

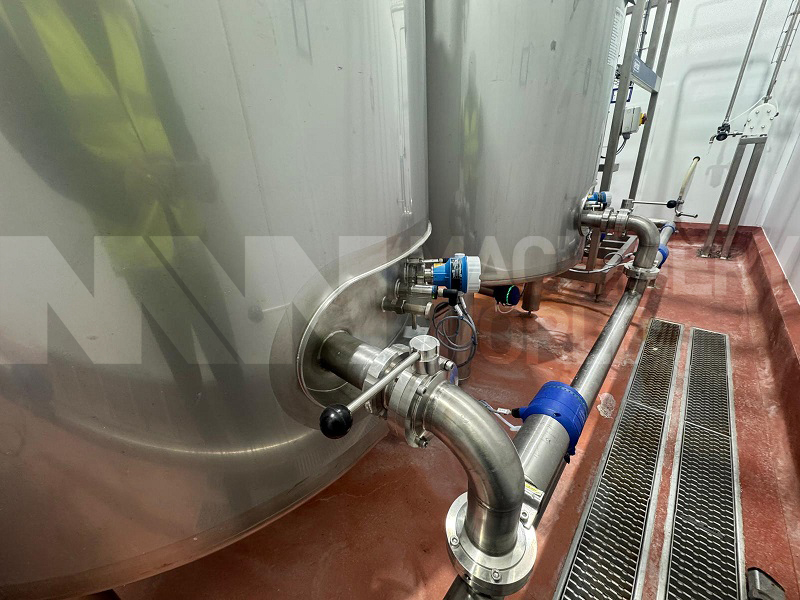

• Detergent Tank: Approx 1,200 Ltr, Insulated & Clad, 316 Grade Stainless Steel Construction.

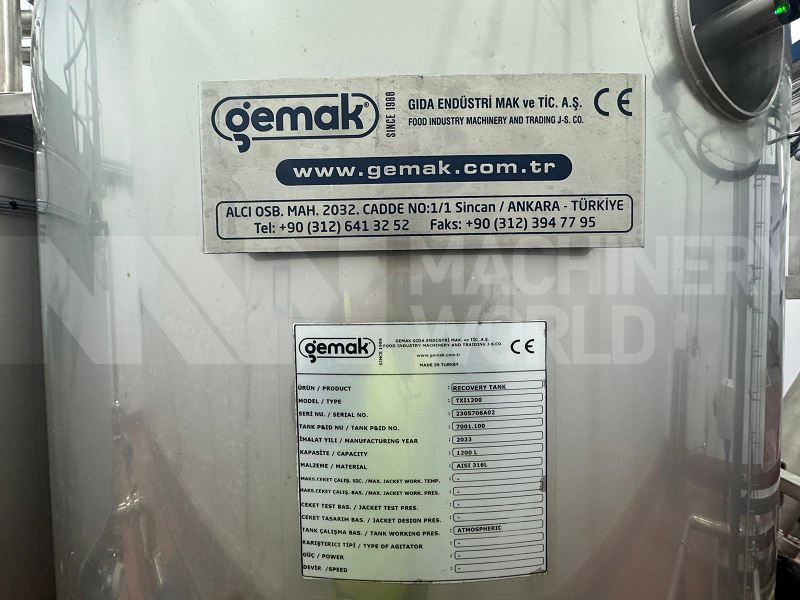

• Recovery Tank: Approx 1,200 Ltr, Insulated & Clad, 316 Grade Stainless Steel Construction.
• Fresh Water Tank: Approx 1,200 Ltr, 316 Grade Single Skin Stainless Steel Construction
• Construction: 316 Grade Stainless Steel
• All Tanks include Safety Handrails and CIP Cleaning Spray Heads
• Tank Diameter: 1300mm
• Height of Tank: 2250mm
• Overall Height including Safety Handrails on Top: 3150mm
• Top Manway with Safety Interlock on Lid

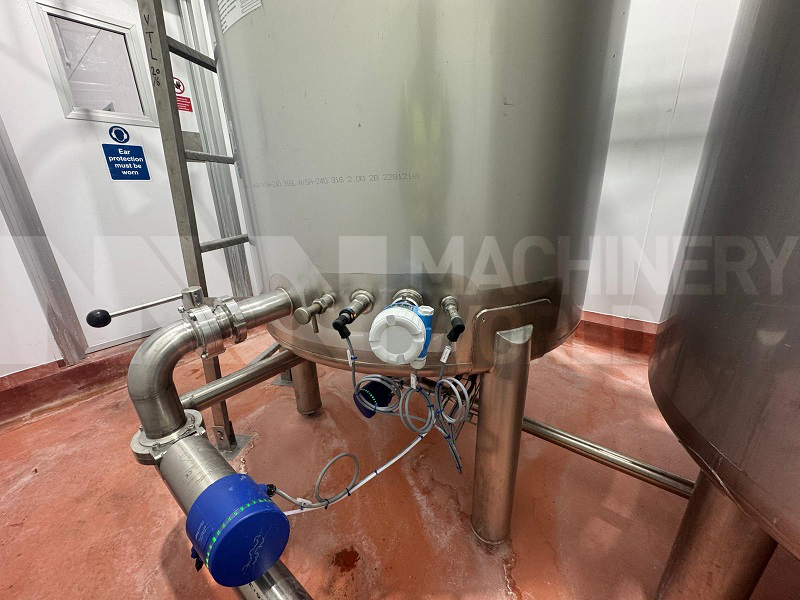

• High Level & Low Level Sensors installed on Tanks
• Endress & Hauser Diaphragm Pressure Transducer
• Sample Point

Pumps:

• Approx 20,000 LPH & 5.5kw Delivery Pump

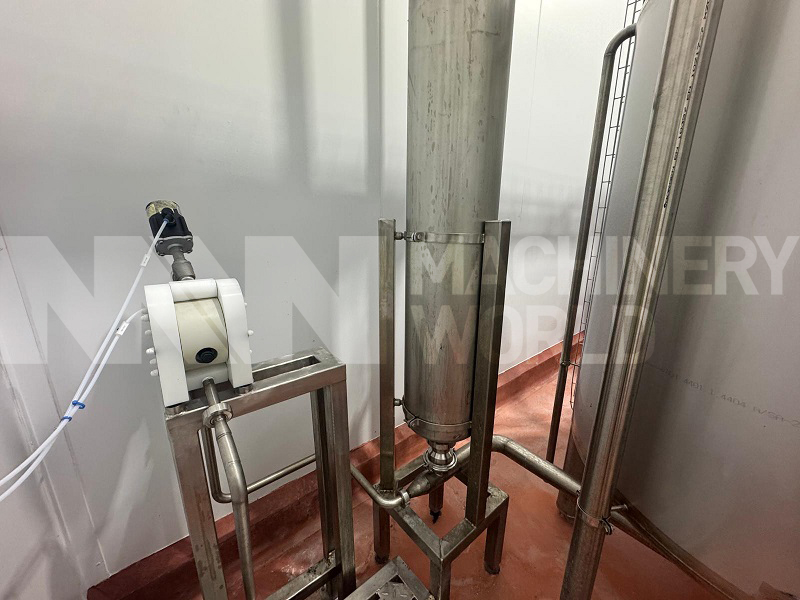

• Double Diaphragm Caustic Dosing Pump
• Double Diaphragm Acid Dosing Pump

Components Included:

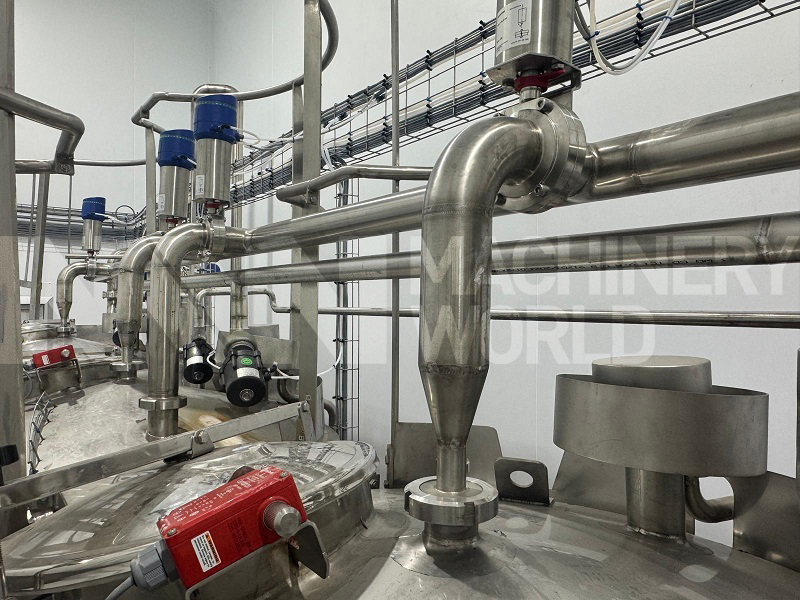

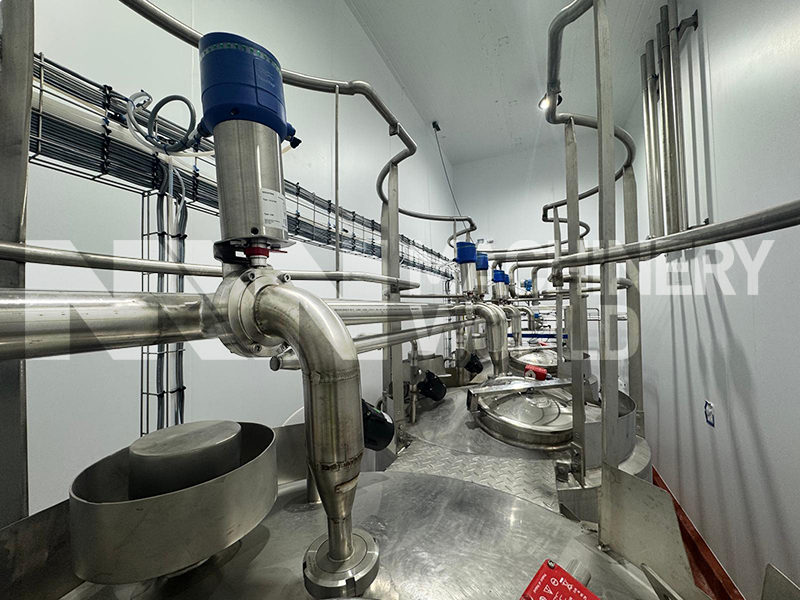

• 15x Alfa Laval LKLA ThinkTop Pneumatic Actuated Butterfly Valves with Feedback
• 1x Alfa Laval Unique SSV ThinkTop Pneumatic Actuated Divert Valve

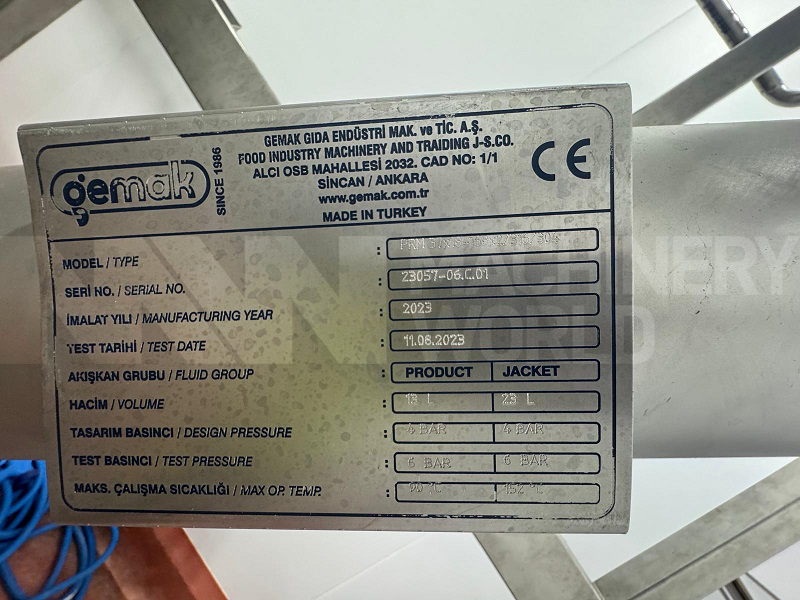

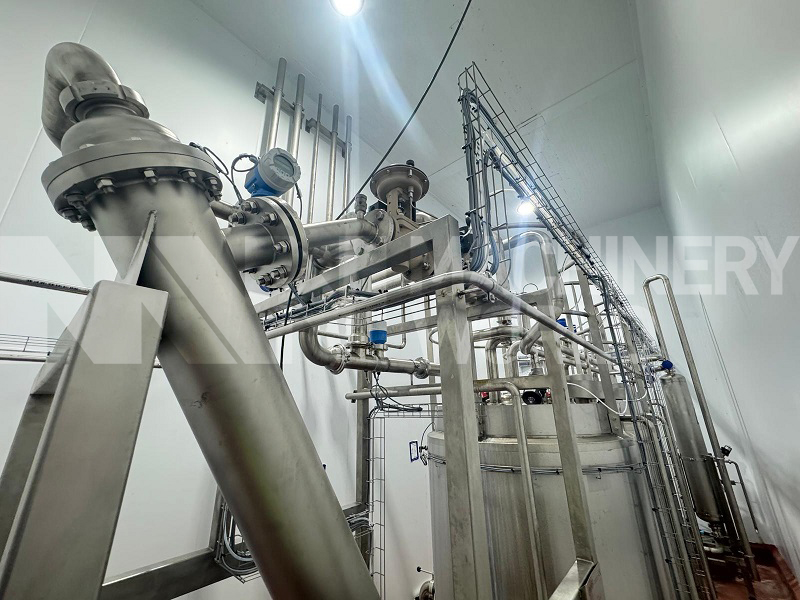

• Gemak PRM 37 Shell-In-Tube Tubular Heat Exchanger

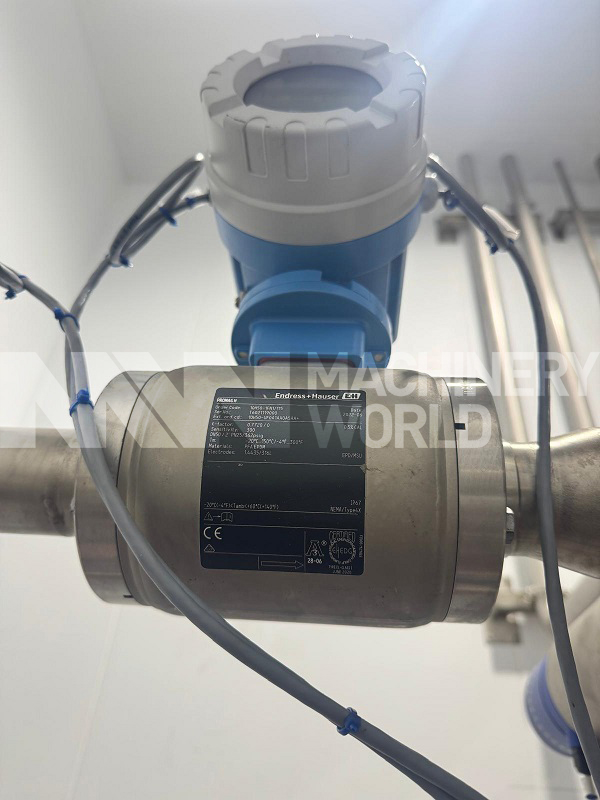

• Endress & Hauser Promag H Flow-meter
• Inline Filter on the Delivery Line
• Endress & Hauser Smartec CLD18 Compact Conductivity Probe
• Endress & Hauser Diaphragm Pressure Transducer
• High & Low Level Sensor for Tanks
• IFM Flow Switch

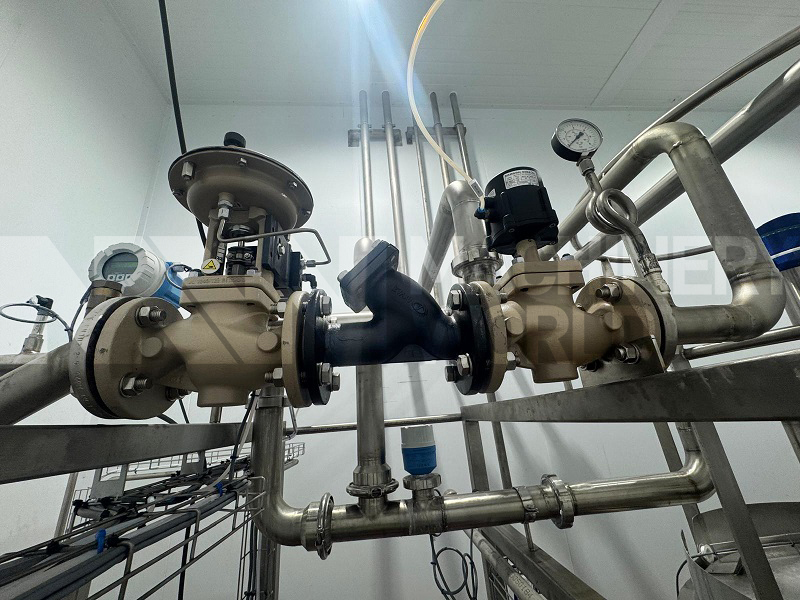

• Samson Steam Regulating Valve

Control Panel:

• Stainless Steel Construction
• Schneider Electric PLC

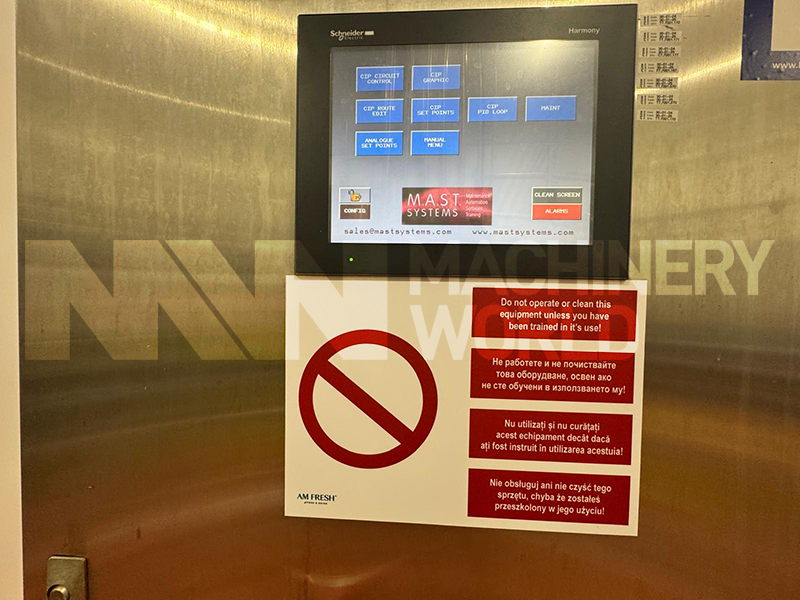

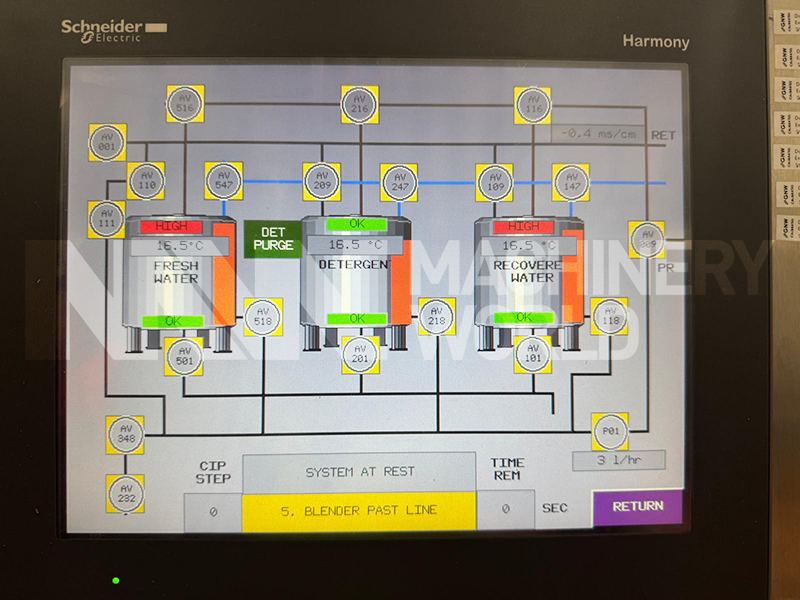

• Schneider Electric HMI140 Touchscreen HMI Display
• Schneider Electric Frequency Controlled Inverter for Pump

Overall Installed Dimensions

• Length: 7250mm
• Width: 2700mm
• Height: 3150mm

Country of Manufacture:

Turkey
