239kg per Hour & 150kw Fulton Europack EU150 Electric Steam Boiler Generator – YOM 2017

Description

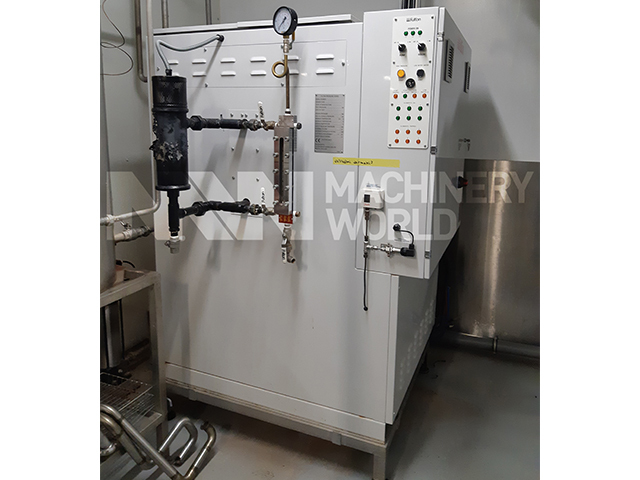

This is a very sparingly used 150kw Fulton Europack EU150 Electric Package Steam Boiler Generator with has a steam output capacity of approx 239kg per hour. This Fulton Europack EU150 Electric Package Steam Boiler Generator has a design pressure of 11.37 Bar with a Maximum Temperature rating of 200 deg C with an Internal Volume of 0.339 Cubic Meter. This Fulton Europack EU150 Electric Package Steam Boiler Generator was used at a major multinational dairy facility and currently available for immediate sale.

Features

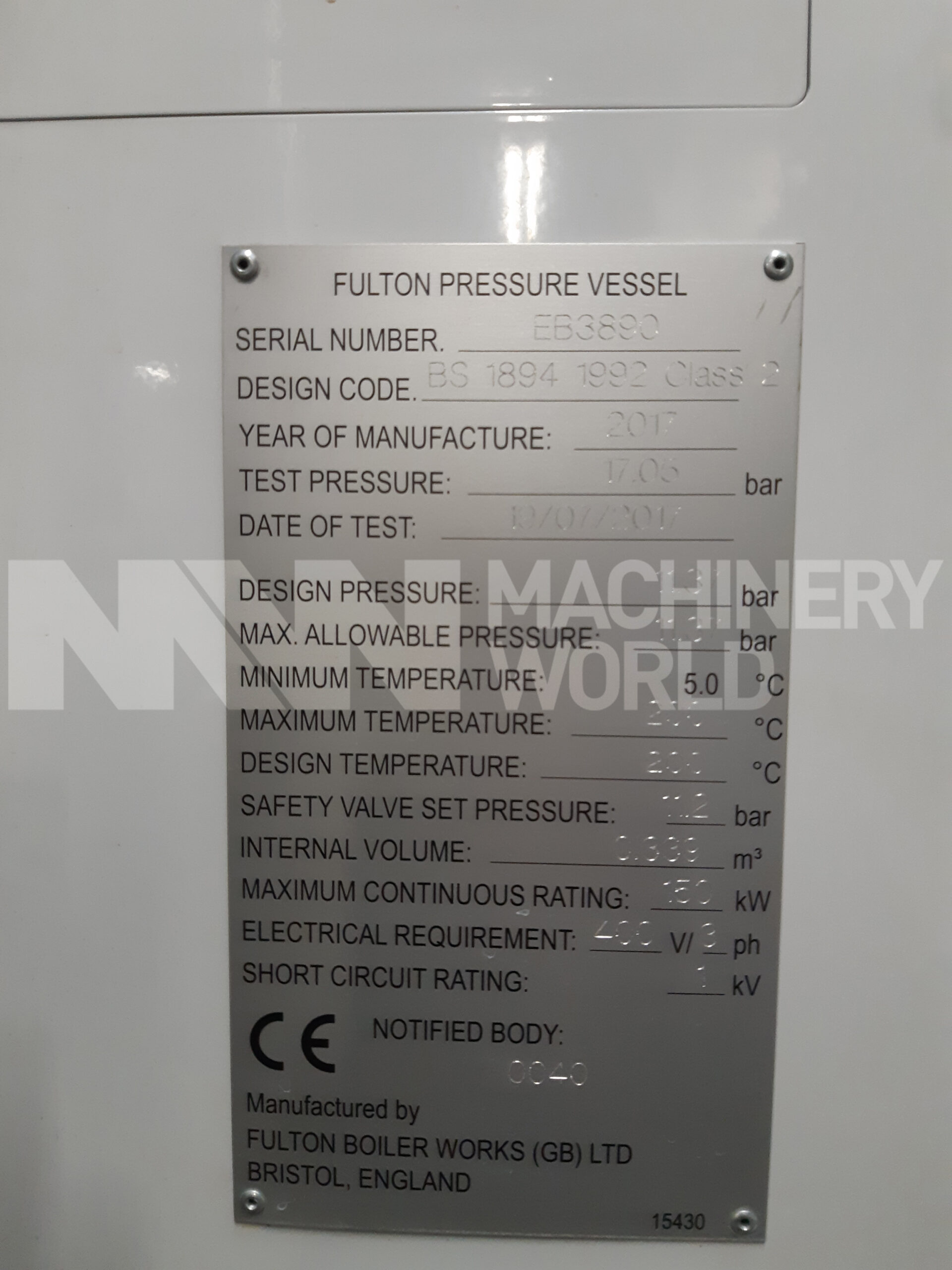

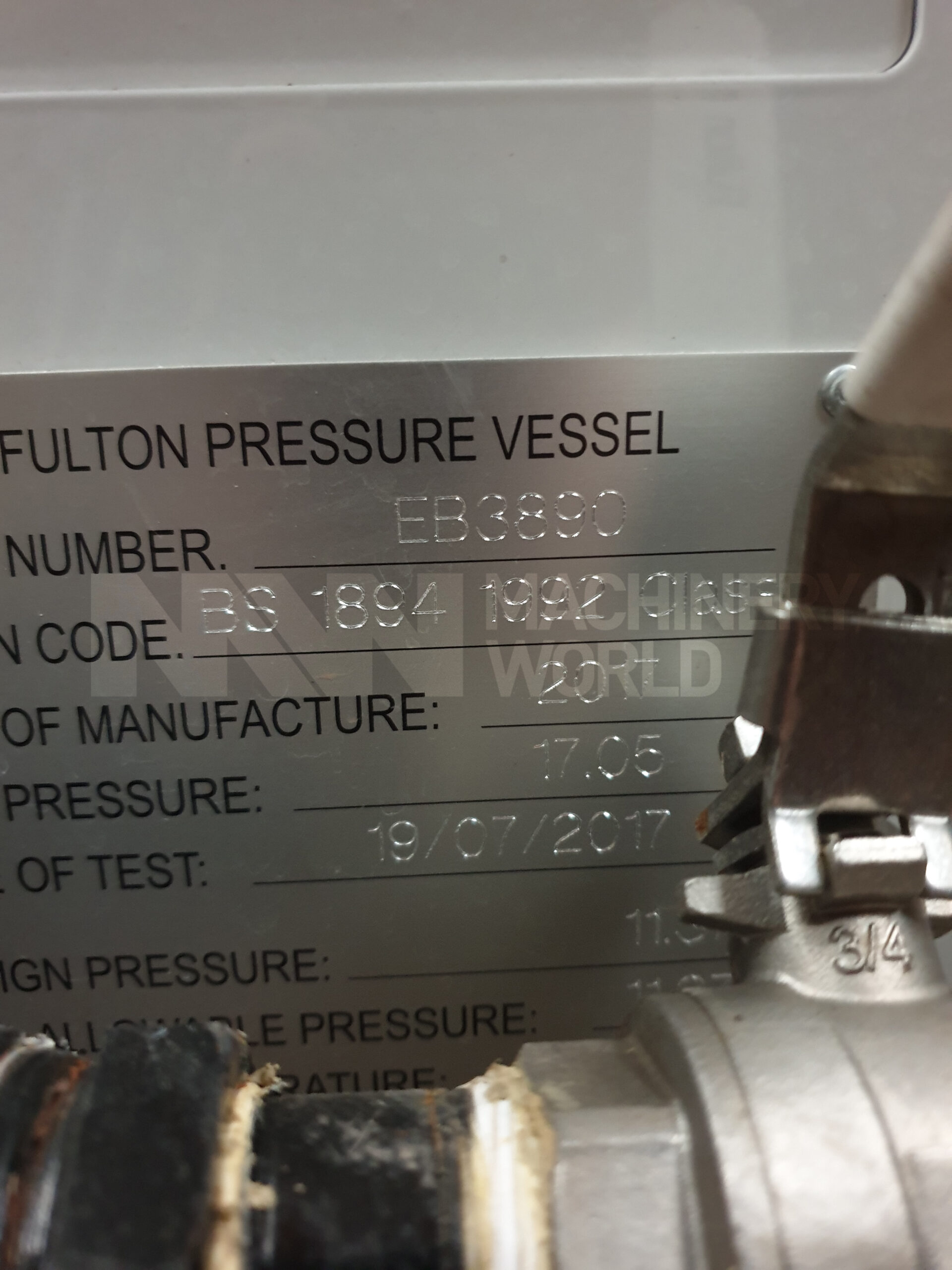

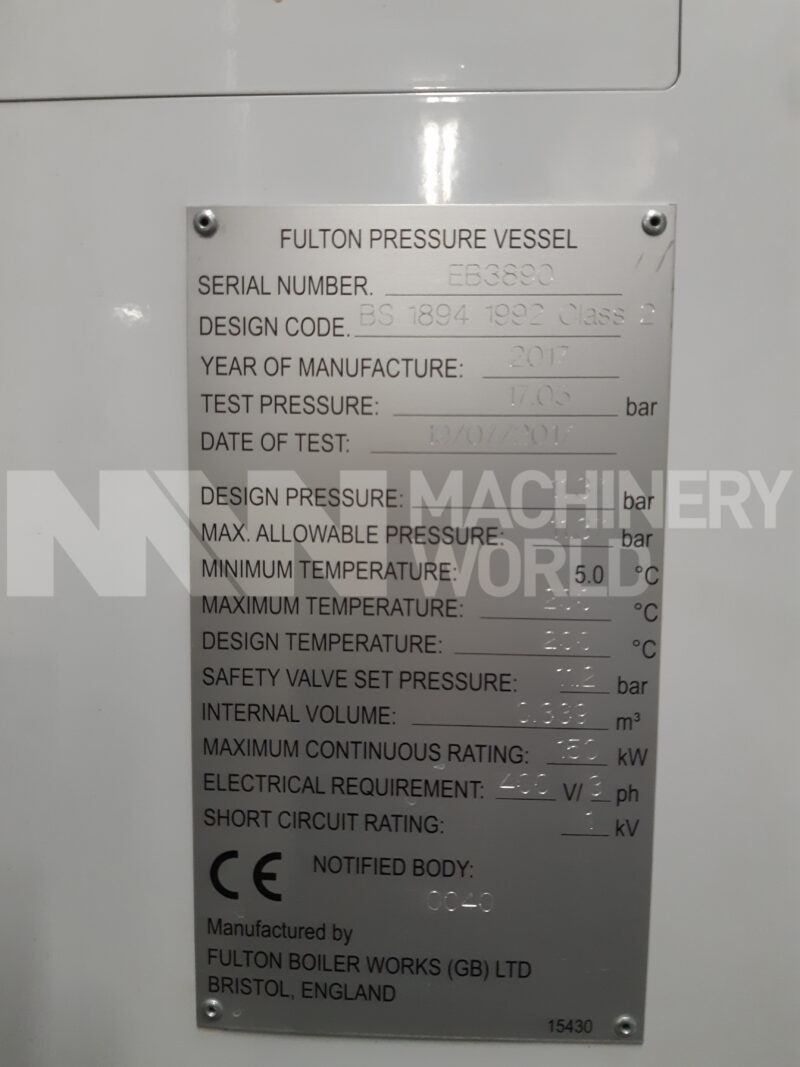

• Manufacturer: Fulton Boiler Works, England
• Model: Europack EU150
• Year of manufacture: 2017
• Steam Output: Approx 239kg per Hour
• Function: Industrial Electric Steam Boiler
• Serial Number: EB3890
• Design Code: BS 1894 1992 Class 2
• Test Pressure: 17.05 Bar
• Design Pressure: 11.37 Bar
• Maximum Allowable Pressure: 11.37 Bar
• Minimum Temperature: 5 deg C
• Maximum Temperature: 200 deg C
• Design Temperature: 200 deg C
• Safety Valve Set Pressure: 11.2 Bar
• Internal Volume: 0.339 Cu. M
• Maximum Continuous Rating: 150kW
• Electrical Requirement: 400 Volts & 3-Ph
• Full Load Current @ 400v, 3-Ph, 50Hz: 222 amps/ph
• Nominal heat output: 137.9 kW
• Water content: 270 litres

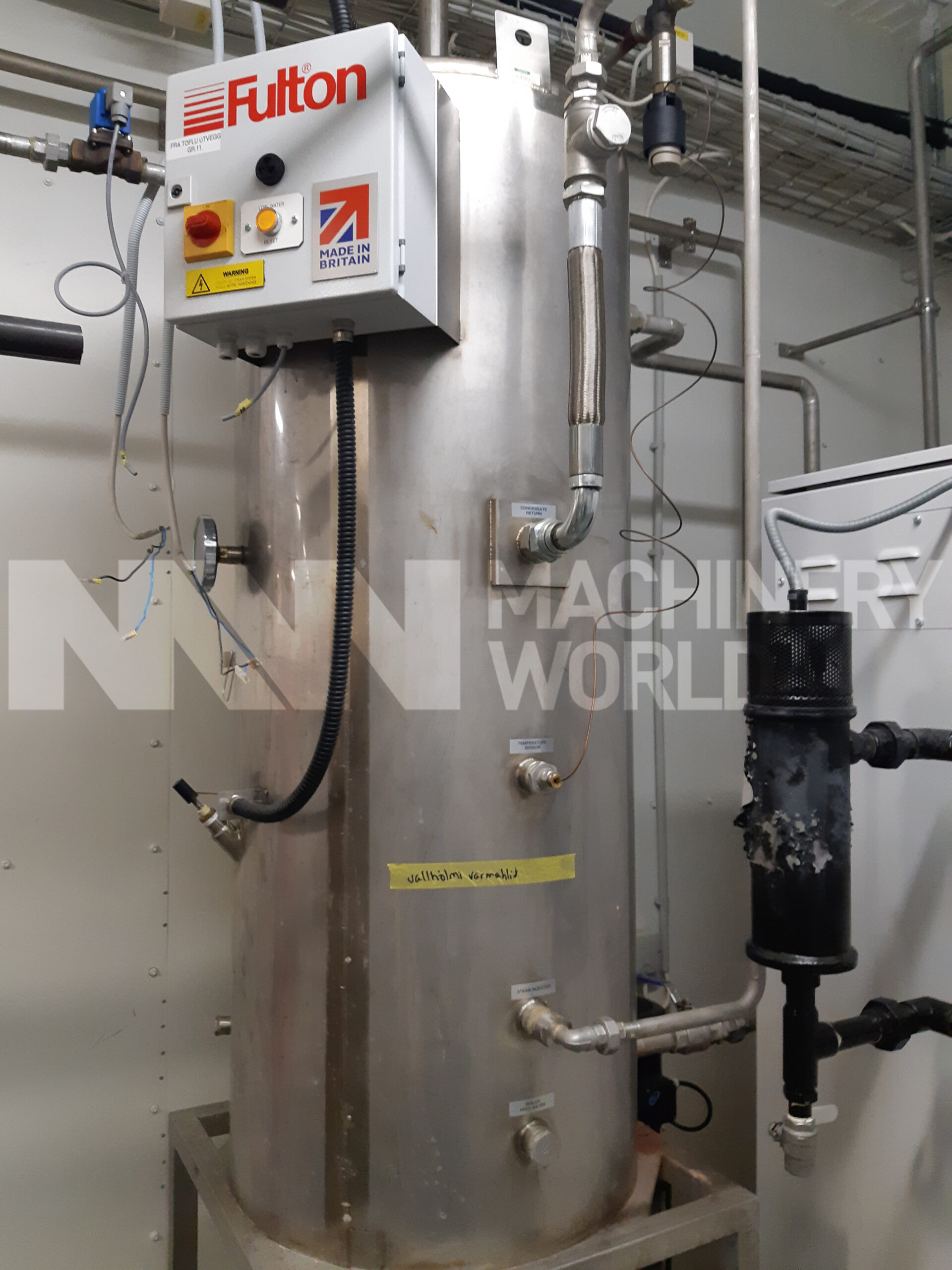

• Additional Information: Electric Steam Boiler supplied with Stainless Steel Condensate Recovery Vessel

Dimensions

• Length: 136.5 cms
• Width: 161 cms
• Height: 174 cms
• Weight: 600 kgs

Country of Manufacture

England, United Kingdom
