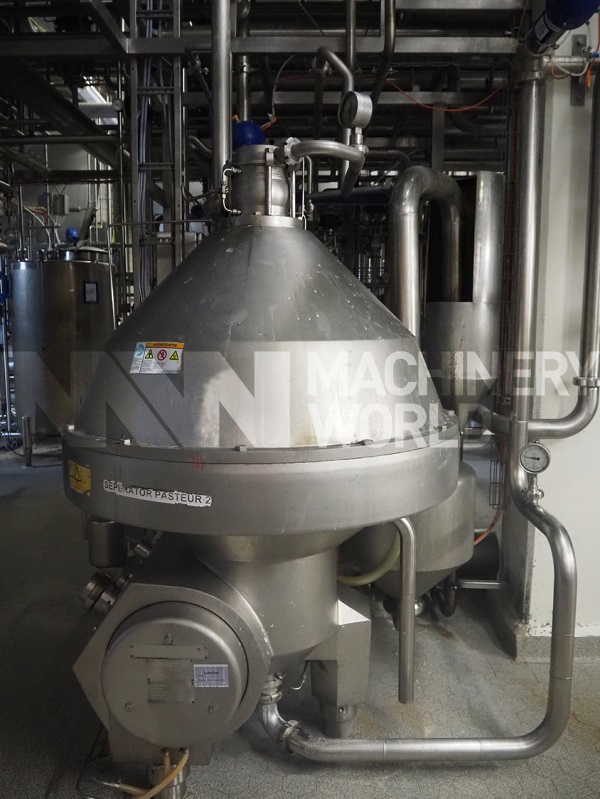

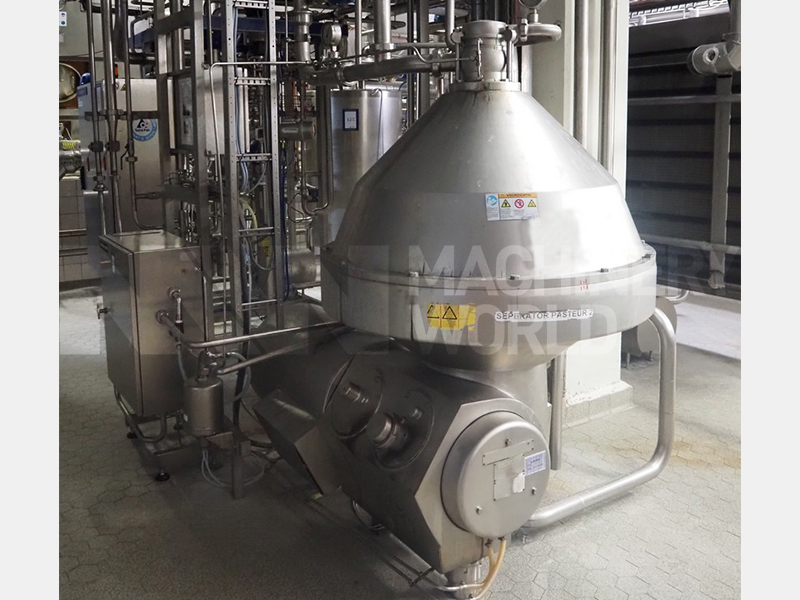

25,000 LPH Alfa Laval Tetra Pak HMRPX 518 HGV 74C 50 Milk Cream Separator

Description

This is an used Alfa Laval Tetra Pak HMRPX 518 HGV 74C Milk Cream Separator with a rated skimming capacity of approx 25,000 litres per hour and standardisation capacity of approx 35,000 litres per hour. Alfa Laval Tetra Pak HMRPX Separators are configured for Hot Milk, where centrifuge separation is performed in a closed air tight environment for optimised skimming efficiency while maintaining energy efficiency which accounts to increased profitability. This Alfa Laval Tetra Pak HMRPX 518 HGV 74C 50 Hot Milk Cream Separator was previously used at a major international dairy processing facility and is available for immediate sale.

Specification

• Manufacturer: Alfa Laval
• Model: HMRPX 518 HGV 74C 50
• Function: Milk Cream Separator

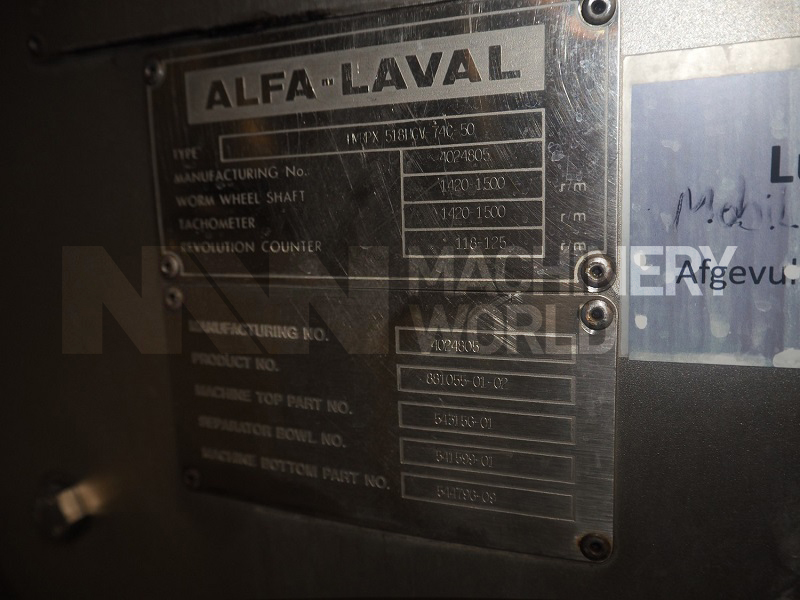

• Manufacturing Number: 4024805
• Separator Capacity:
  Skimming Capacity: Approx 25,000 LPH
  Standardisation Capacity: Approx 35,000 LPH
• Sediment Space: 17.2 L
• Total Installed Power: 22kw, 3-Ph & 50Hz
• Energy Consumption:
  At Skimming Capacity: 19kw
  At Standardising Capacity: 20kw
  kWh per 1,000 L Product (Std): 0.57
• Water Consumption:
  Per Discharge: 16 L
  Cooling: 150 LPH

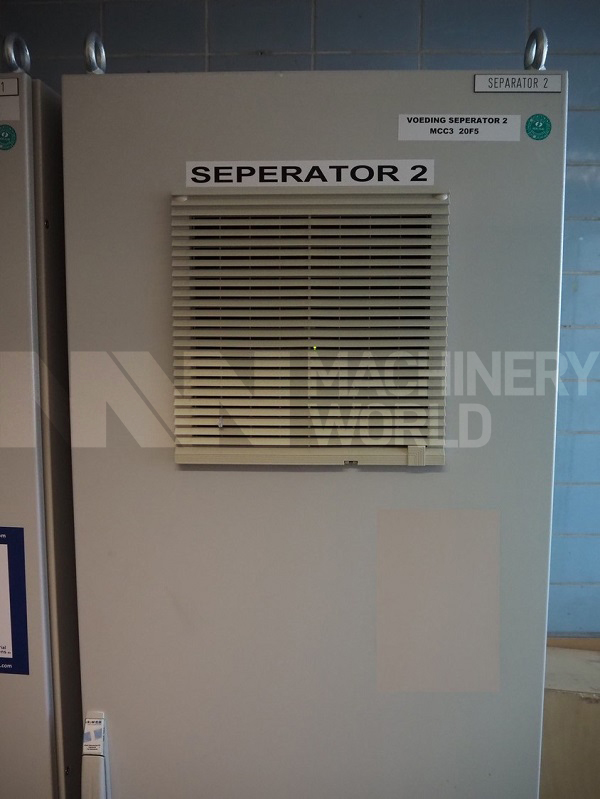

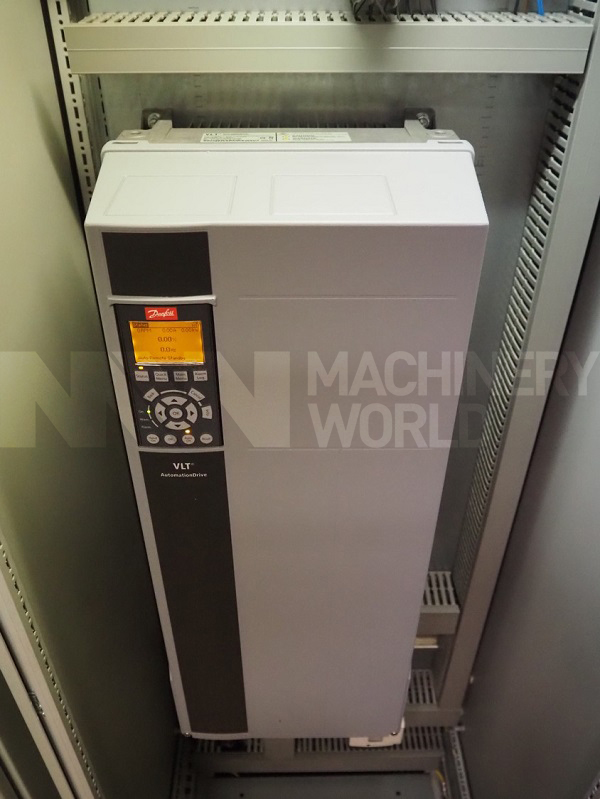

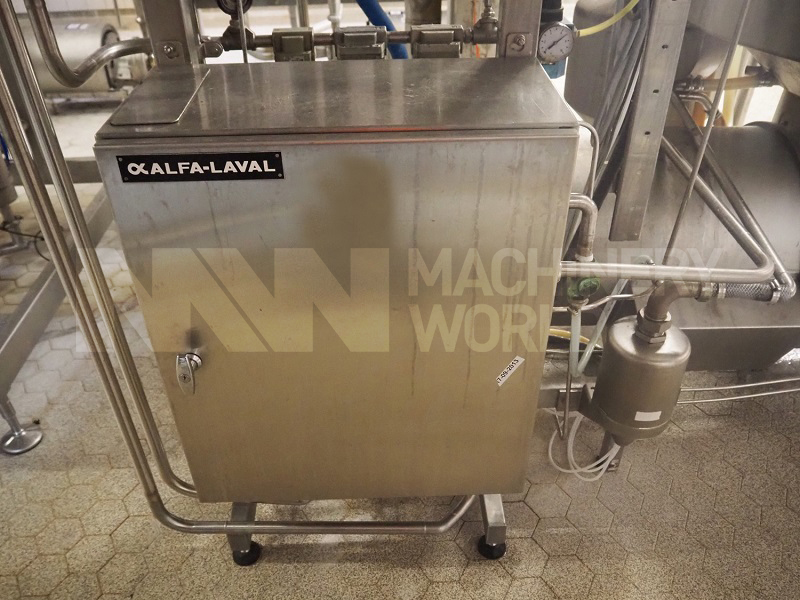

• Comes with Bowl, Inverter Panel & Water Panel
• Instruction manual supplied
• Not Included: PLC Control Panel (Optional: Brand New PLC Control Panel & Set of Tools)

Dimensions

• Length: 2600mm
• Width: 1305mm
• Height: 1850mm
• Weight: Approx. 2,800kgs

Country of Manufacture

Sweden
