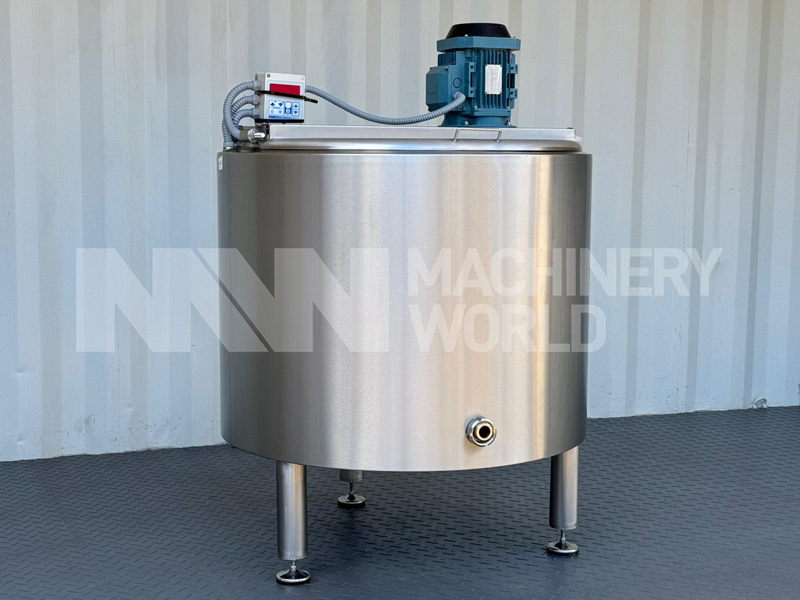

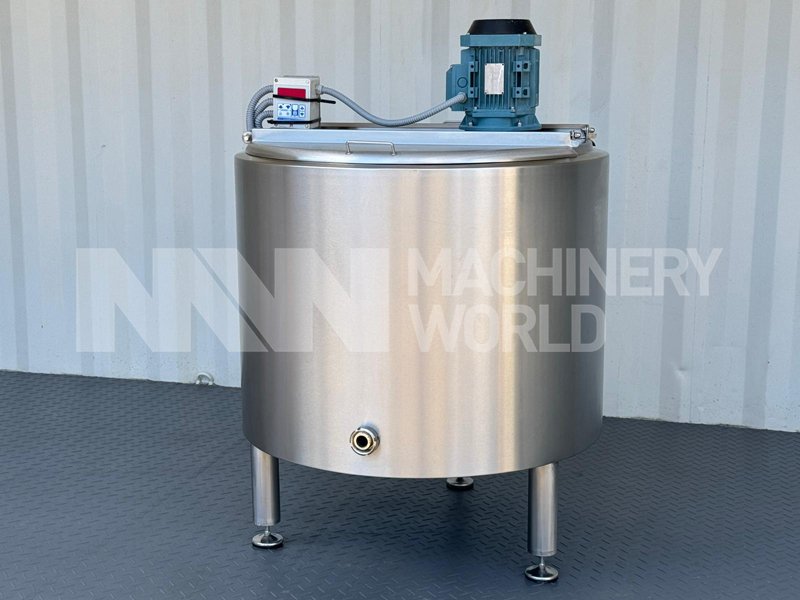

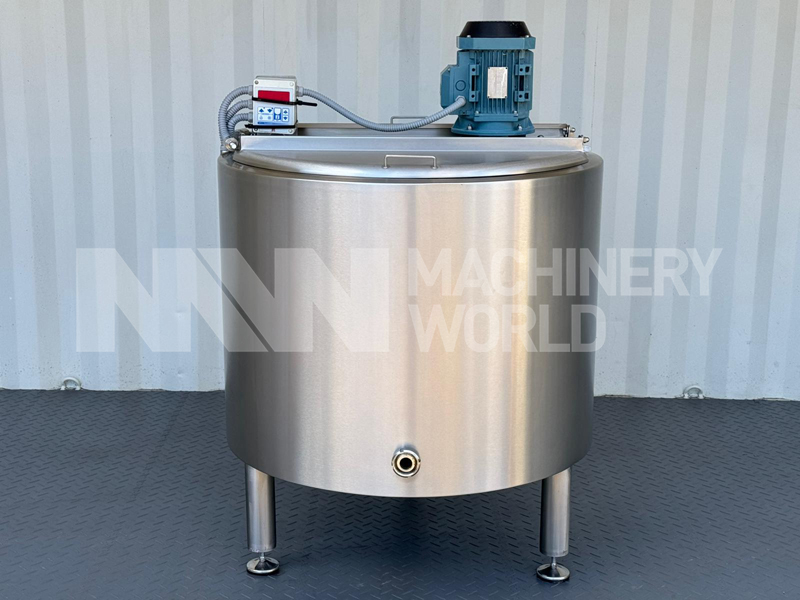

300 Ltr ROKK Jacketed Pasteurisation Tank with High Speed Mixer

Description

ROKK 600 litre pasteurisation tank, fitted with a high-speed agitator (2800 rpm), utilising hot water as a heat source. The heating medium flows into the jacket that is integrated into the wall and bottom of the pasteuriser.

The tank has an electronic controller with a large LED display; it can be supplied with twin lifting lids or manway.

Features

• Manufacturer: ROKK
• Function: Pasteurisation tank
• Capacity: 335 Litres
• Outlet connection: DN25
• The inner tank and outer casing made of AISI 304 stainless steel
• Orientation: Vertical
• Temperature controller and digital readout

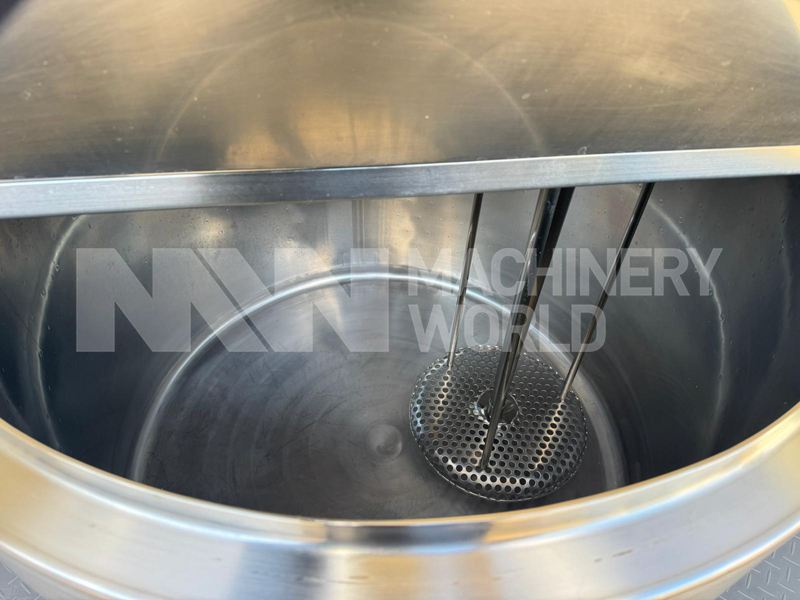

• Propeller type high-speed agitator (Approx 2800 RPM)
• Twin lifting lids
• 3x Adjustable legs
• Motor details: 2.2 kW
• Electrics: 400V / 50 Hz/ 3 Phase

Dimensions

• Diameter: 923 mm
• Height: 1310 mm
• Weight: 90 kgs
