3,500 Litre Koruma DISHO S180/3500 Jacketed Vacuum High Shear Scraped Surface Contra Rotating Mixer (Year 2000)

Description

Used Koruma DISHO S180/3500 (Fryma) Stainless Steel Industrial Vacuum High Shear Mixer and Jacketed Universal Cooker, manufactured in 2000, designed for industrial mixing, blending, emulsifying, homogenising, heating and processing liquid, semi-liquid and viscous products.

Manufactured by Koruma, Germany, this heavy-duty stainless steel processing vessel features a nominal capacity of 3,500 litres, jacketed heating system, high shear mixing arrangement, internal multi-blade contra rotating scraped surface mixer, vacuum processing capability and integrated stainless steel product handling pipework.

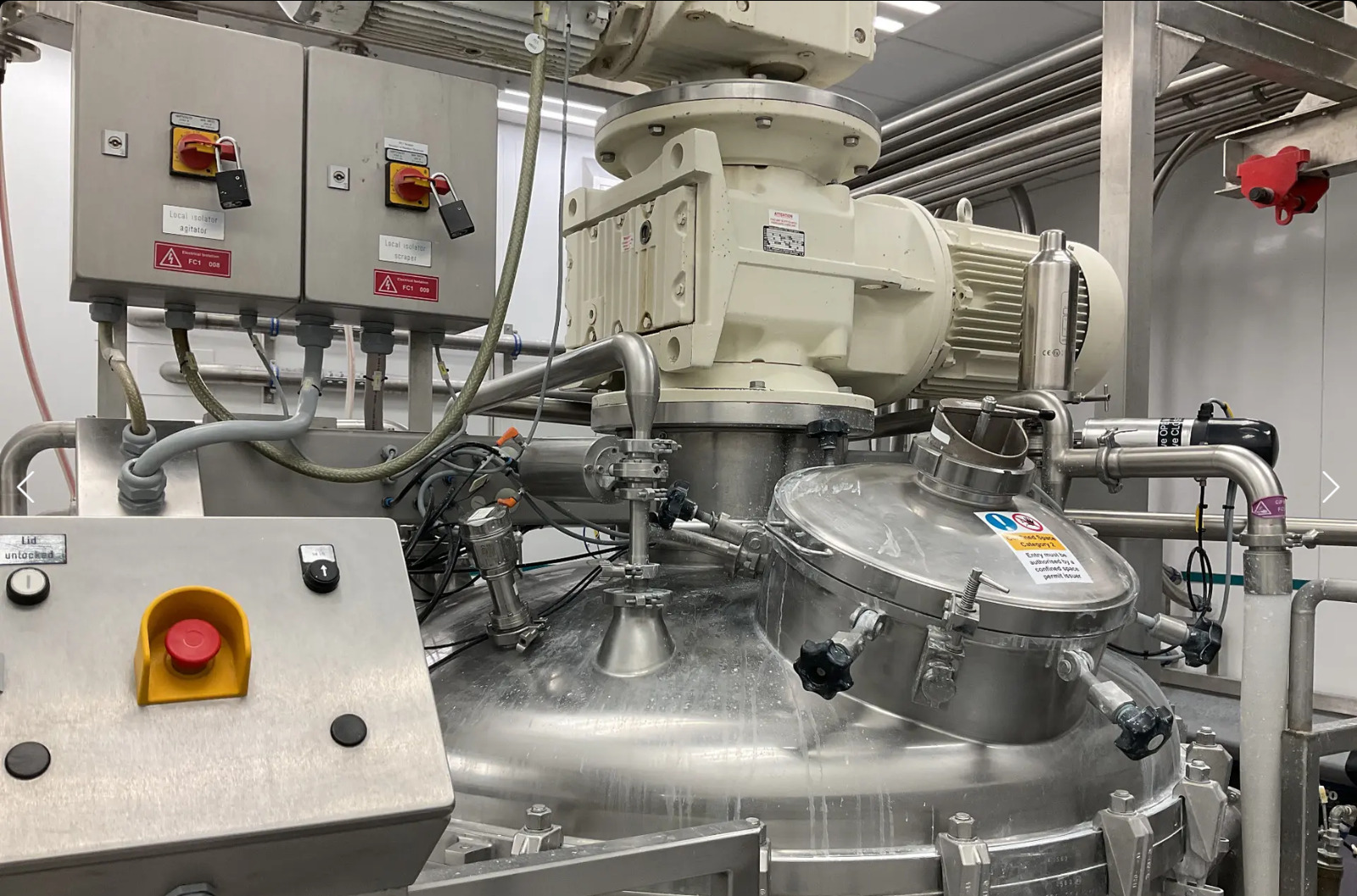

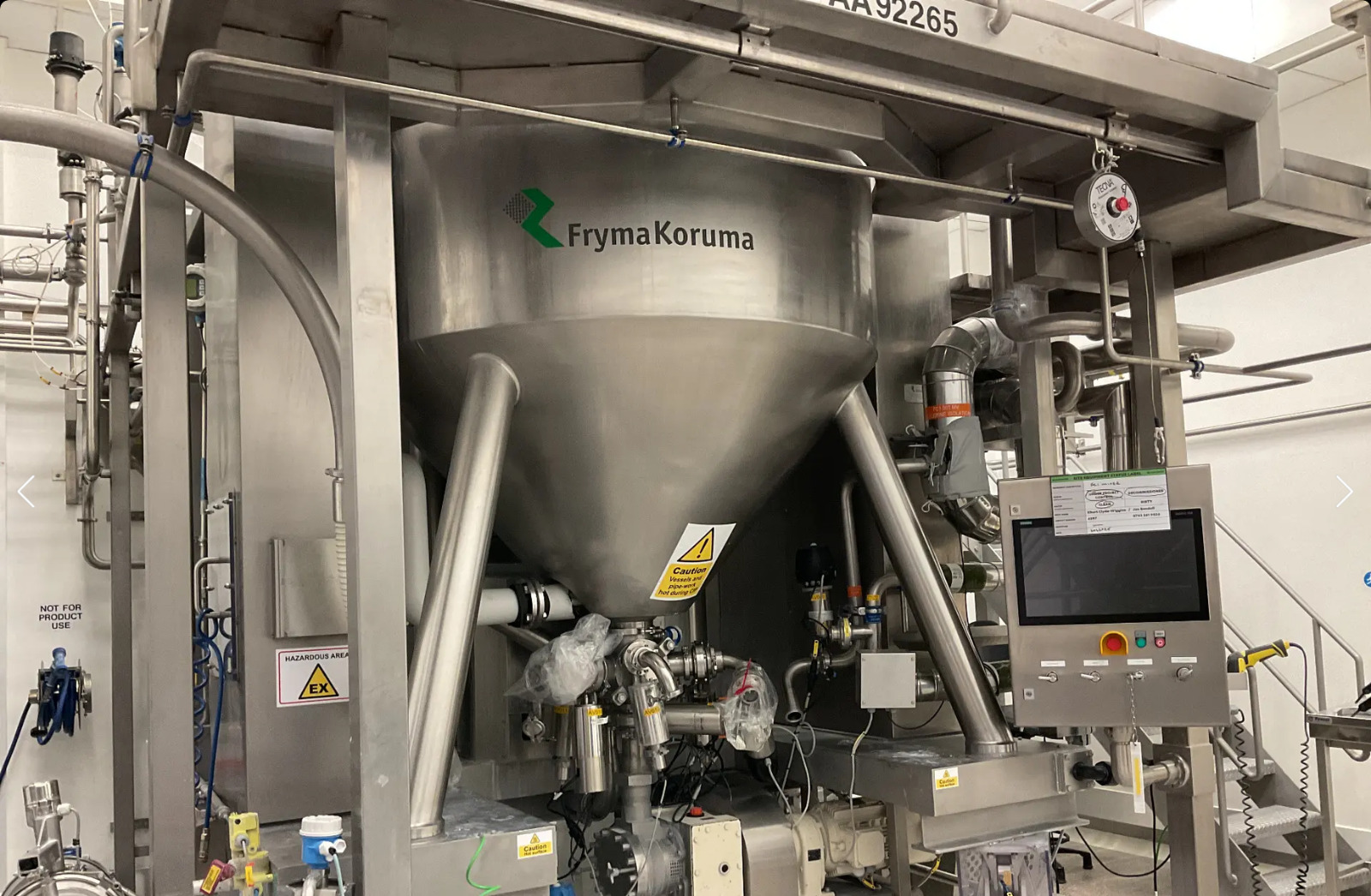

The plant is mounted within a heavy-duty stainless steel support structure with elevated access platform, mounted on load cells, stainless steel pipework, process instrumentation, pneumatic valves and touchscreen operator controls.

Designed for industrial batch processing applications requiring controlled mixing, heating, vacuum processing, emulsification and product discharge. Suitable for a wide range of food, dairy, confectionery, sauces, ready meals, cosmetics and other viscous product applications, subject to product suitability and processing requirements.

General Specification

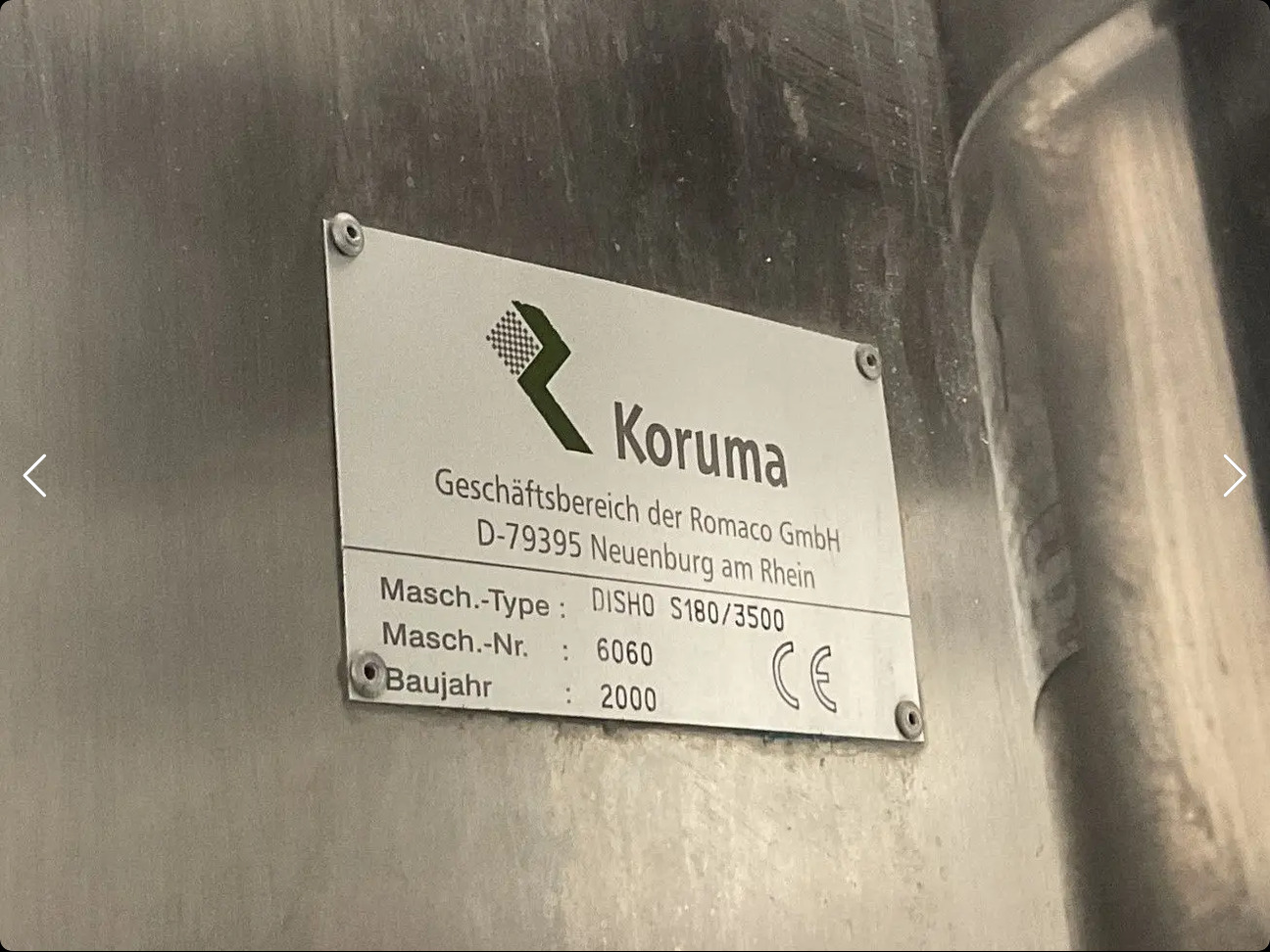

• Manufacturer: FrymaKoruma / Koruma, Germany
• Model: DISHO S180/3500
• Machine Type: Industrial Vacuum High Shear Mixer / Jacketed Universal Cooker
• Year of Manufacture: 2000
• Machine Serial Number: 6060
• Vessel Manufacturer: Hermann Waldner GmbH & Co., Germany
• Vessel Serial Number: 2563
• Nominal Vessel Volume: 3,660 Litres
• Capacity Class: 3,500 Litres
• Vessel Construction: 316 Grade Stainless Steel
• Heating System: External Heating Jacket
• Heating Medium: To Be Confirmed
• Internal Mixing System: Multi-Blade Perforated Contra Rotating Scraped Surface Mixer Assembly

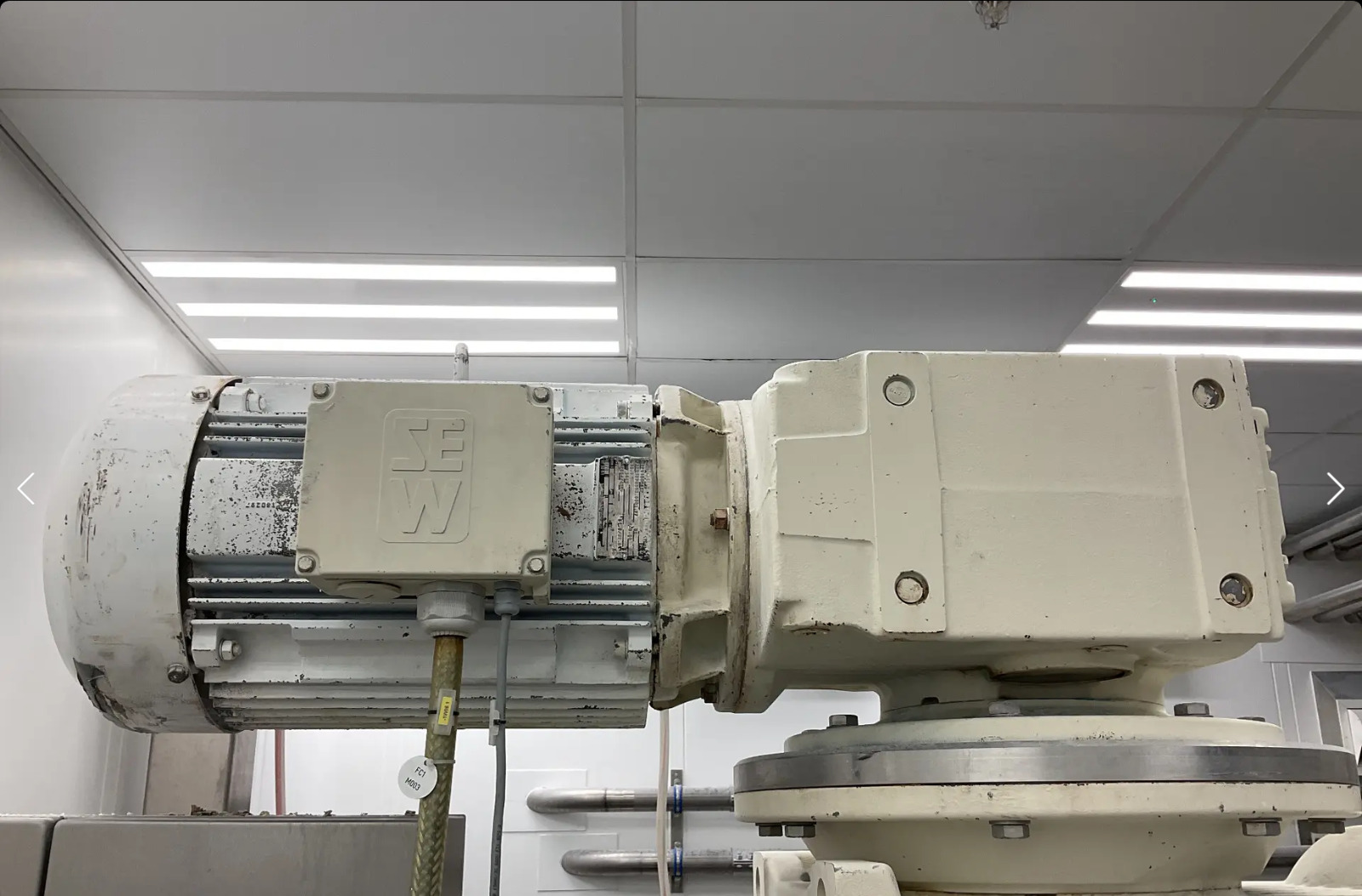

• Agitator Motor Power: 30kW
• Agitator Speed: Approximately 31 RPM
• High Shear Processing: DISHO High Shear Mixing / Homogenising System
• Product Handling: Integrated Stainless Steel Pipework and Discharge Connections
• Control System: Touchscreen HMI Operator Interface
• Electrical Equipment: Industrial Motor Drives and Electrical Control System

Vessel Technical Specification

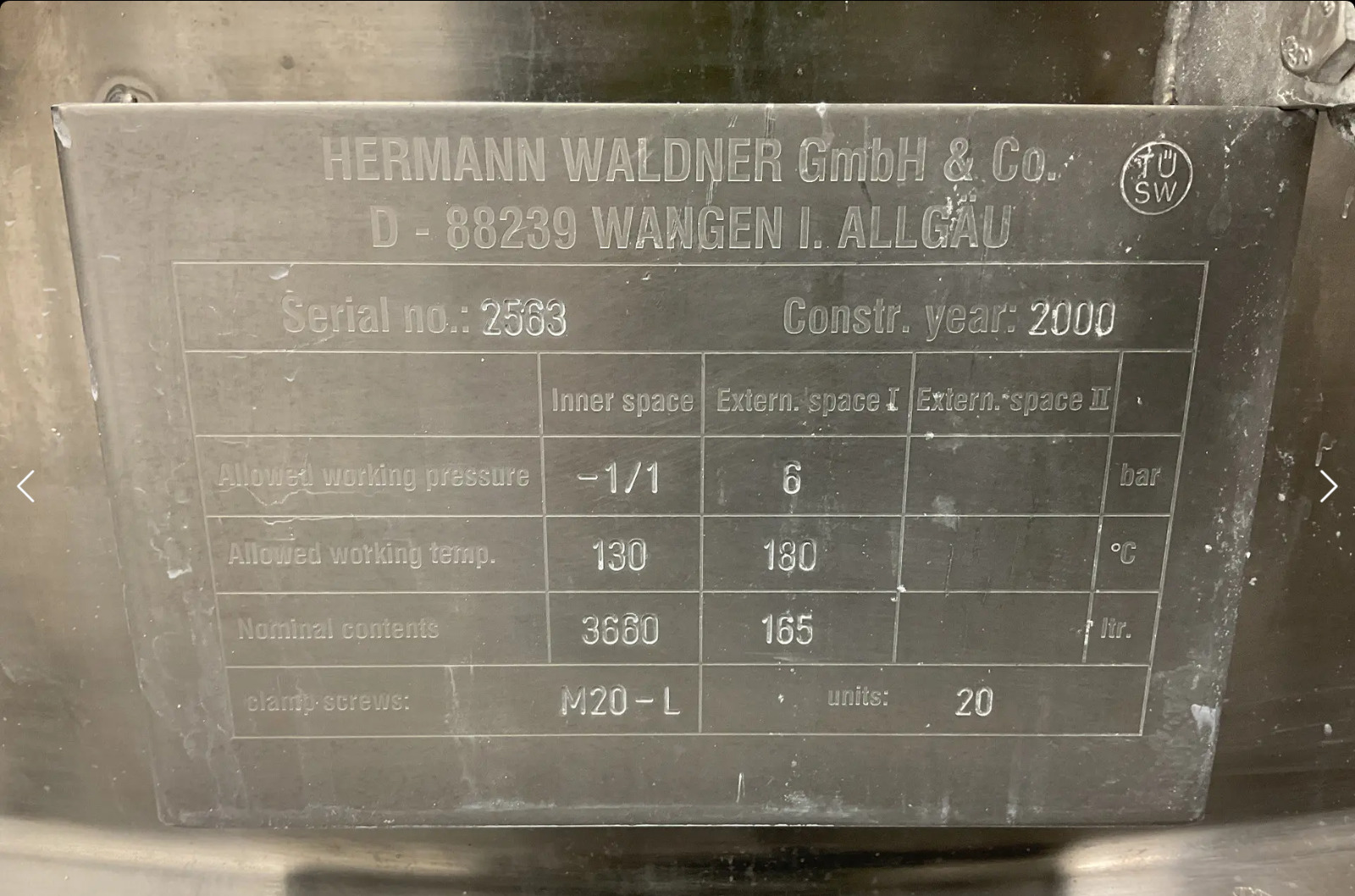

Main Processing Vessel

• Manufacturer: Hermann Waldner GmbH & Co.
• Year of Manufacture: 2000
• Serial Number: 2563
• Nominal Volume: 3,500 Litres
• Material of Construction: Stainless Steel
• Allowable Working Pressure: -1 / +1 Bar
• Maximum Allowable Working Temperature: 130°C
• Vacuum Capability: Full Vacuum (-1 Bar)

External Heating Jacket

• Jacket Type: External Heating Jacket
• Nominal Jacket Volume: 165 Litres
• Maximum Allowable Working Pressure: 6 Bar
• Maximum Allowable Working Temperature: 180°C
• Heating Arrangement: Indirect Product Heating
• Heating Medium: Steam (or) Hot Water

Mixing & Processing Features

• Large capacity 3,660 litre stainless steel batch processing vessel
• Fryma Koruma DISHO S180/3500 industrial vacuum mixing system
• High shear mixing and homogenising functionality with  recirculation
• High Shear Type: Rotor-Stator Inline High Shear

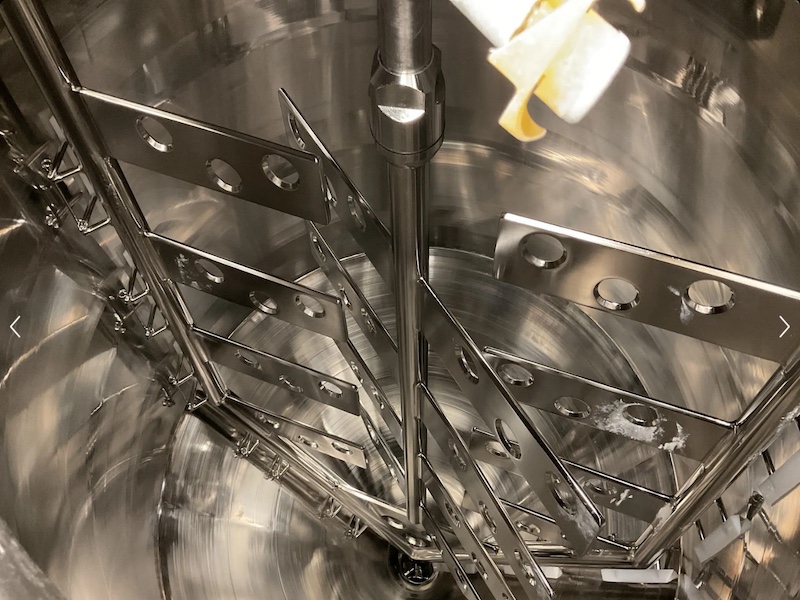

• Internal perforated multi-blade agitator for product mixing and blending
• Jacketed vessel for indirect product heating
• Vacuum-rated processing vessel for product deaeration
• Stainless steel product circulation and transfer pipework
• Integrated product discharge connections
• Pneumatically actuated process valves
• Touchscreen operator control interface
• Stainless steel support frame and elevated access platform
• Industrial process instrumentation and controls
• Heavy-duty industrial construction

Suitable Applications

This FrymaKoruma DISHO industrial vacuum high shear mixer and jacketed universal cooker may be suitable for processing a wide range of liquid, semi-liquid and viscous products, depending on product characteristics and operating requirements.

Food & Dairy Processing

• Sauces, gravies and dressings
• Mayonnaise and emulsified products
• Soups and ready meal preparations
• Custards and dairy desserts
• Cream-based products
• Cheese sauces and processed cheese products
• Fruit preparations, purées and fillings
• Confectionery fillings and sweet sauces
• Ketchup, condiments and dips
• Liquid and semi-viscous food products

Other Industrial Applications

• Cosmetic creams and lotions
• Personal care products
• Emulsions and pastes
• Industrial blending and homogenising applications
• Other compatible liquid and viscous product processing applications
