Description
This 3,760L stainless steel mixing tank is engineered for high-performance industrial processing in food, dairy, cosmetic, pharmaceutical, and chemical applications. Manufactured with AISI 316 stainless steel product-contact surfaces and AISI 304 external construction, the tank features an advanced anchor type mixer with scraper, a 30kW top-entry high shear mixer, and a serpentine jacket system for efficient heating (or) cooling. Designed for hygienic and reliable operation, with PT100 temperature probe, Rockwool insulation, safety interlock lid system, and a fully integrated control panel with frequency inverter. Built for durability, precision mixing, and sanitary production environments, this industrial stainless steel mixing vessel delivers exceptional efficiency, safety, and long-term performance.
Specification

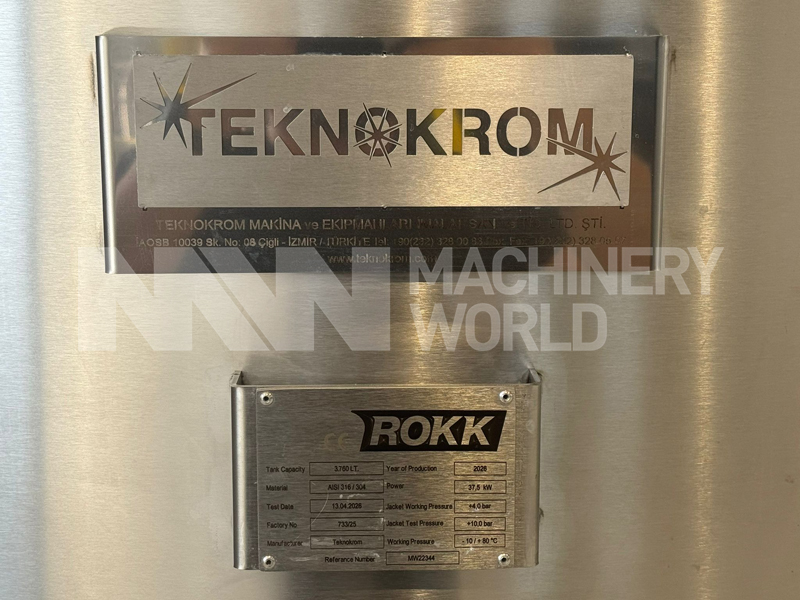

- Manufacturer: Teknokrom
- Internal Volume of Tank: Approx 3,760 Ltr
- Working Volume: Approx 90%
- Material: Surfaces in contact with the product is of AISI 316 grade stainless steel, while non-contact surfaces shall be made of AISI 304 grade stainless steel.

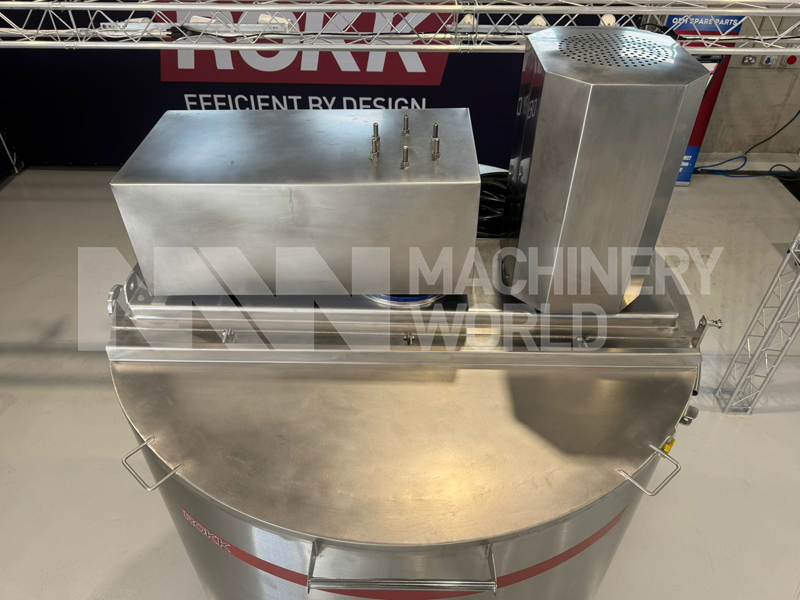

- Tank top flat / hinged lid, Safety Mesh with mechanical safety interlock, bottom will be dished.
- Magnetic Safety Interlock for Top Lid
- Feet: Total of 4, Adjustable legs, (AISI 304)

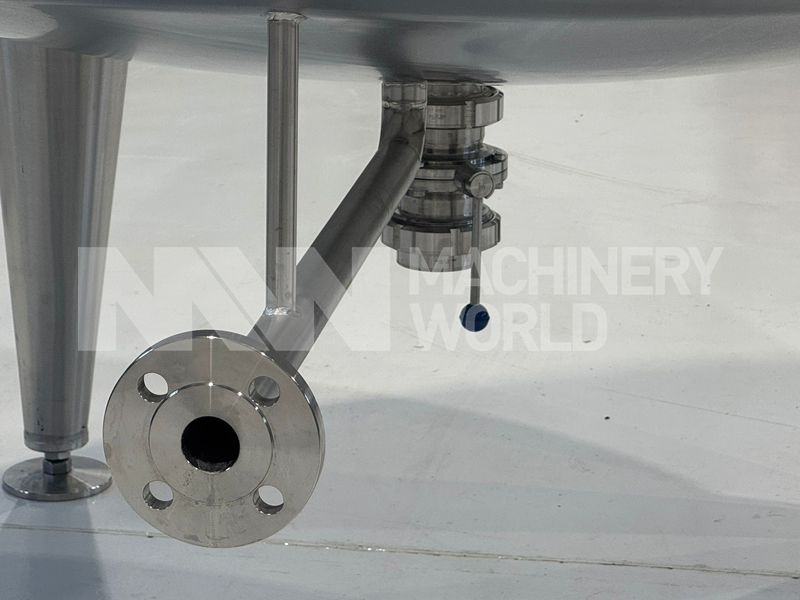

- Bottom discharge line: 3” Outlet with with Cr-Ni Butterfly valve for outlet.

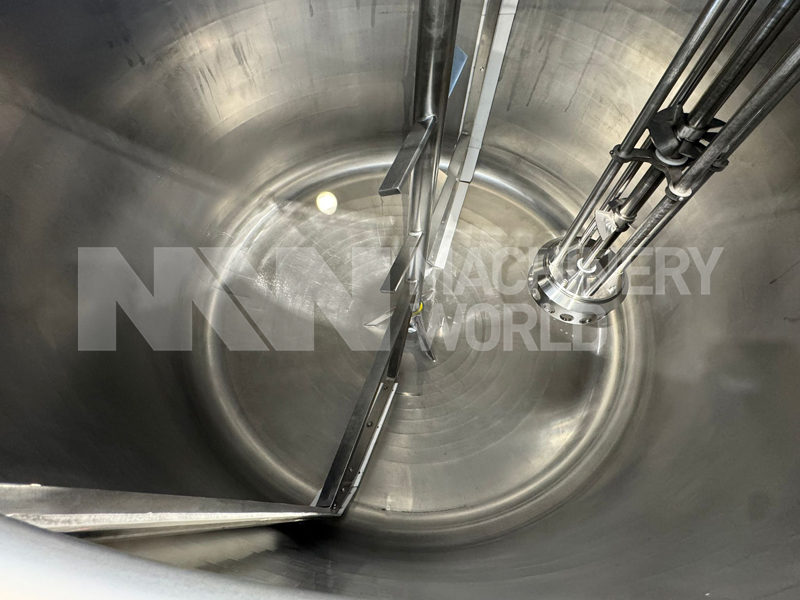

- Anchor Type Mixer: 7.5kw motor with 21 RPM gearbox reducer, anchor type mixer with scraper.

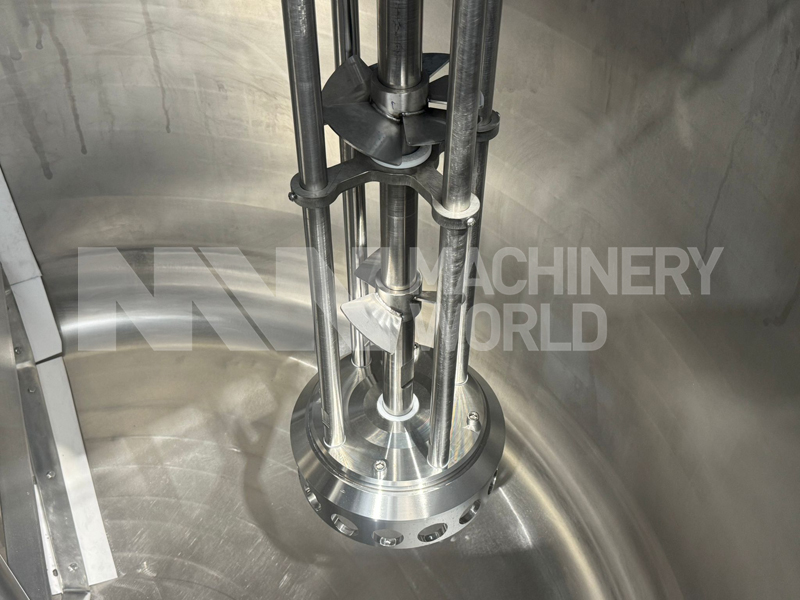

- High Shear Mixer: 30kw, 1500 RPM Hommak Milkotek Top Entry High Shear Mixer.
- Jacket: Serpentine jacket on the cylindrical body of the tank.
- Jacket Working Pressure: 6 Bar
- Internal Tank Working Pressure: Atmospheric
- Bottom of the tank will be equipped with a 2″ (Ø60.3 mm) half-pipe serpentine jacket.
- 3″ (Ø88,9 mm) Cr-Ni Air Ventilation.
- Insulation: 100mm Rockwool insulation on the cylindrical body of the tank.
- Cladding: Insulation protection sheet metal will be AISI 304 grade SS.
- Serpentine jacket inlet-outlet will be EN 1092-1 Type 11B PN10/16 1 1/4″ (Ø42,4 mm) Flange connection.

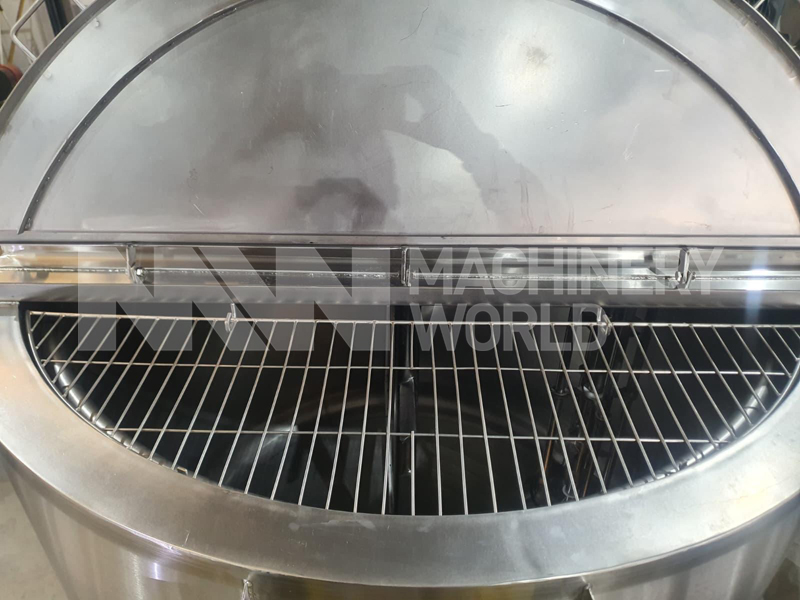

- Safety grid on the top.
- PT100 Temperature Probe for Product
- The working pressure of the tank is atmospheric.

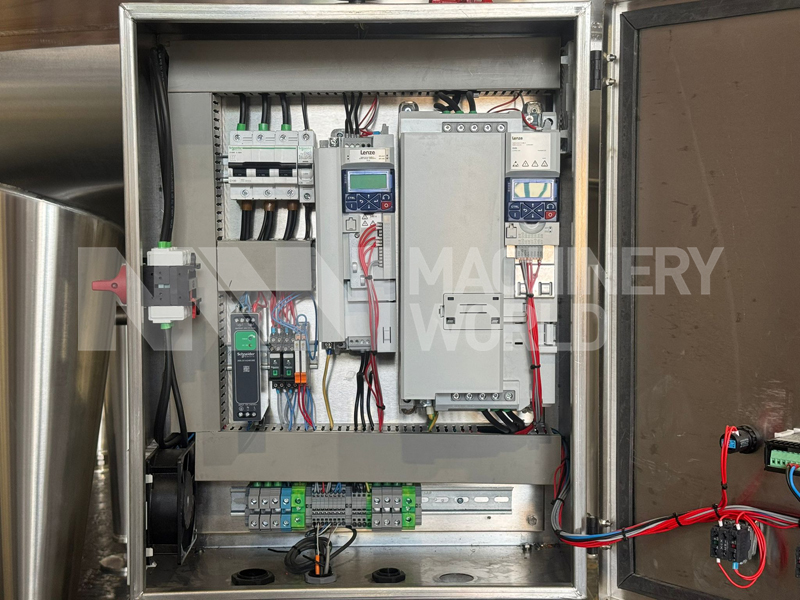

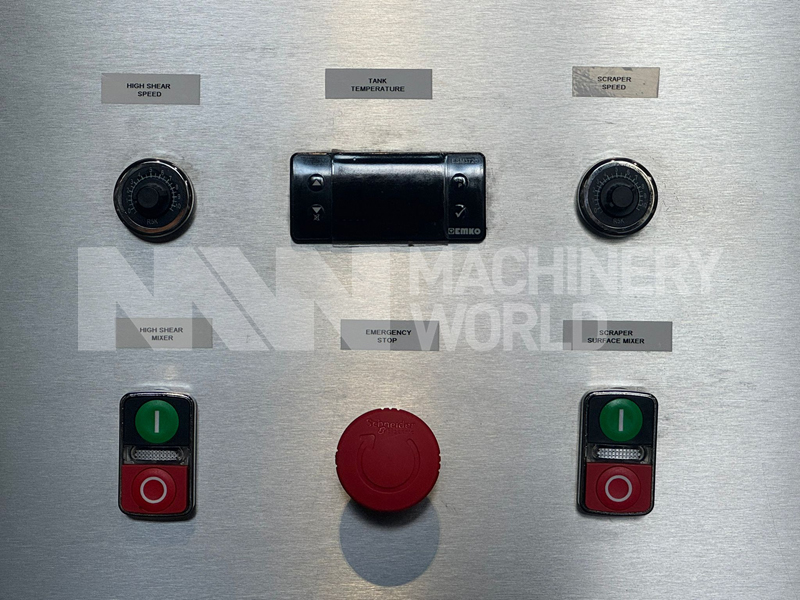

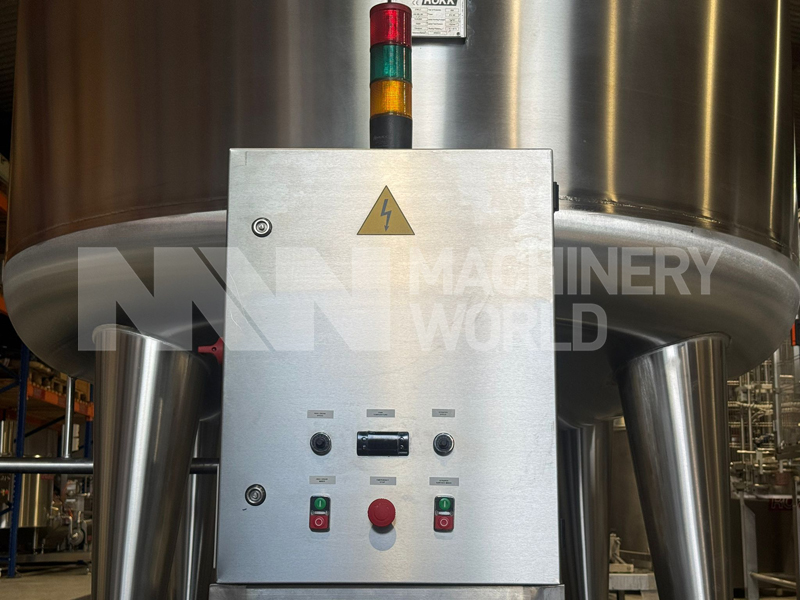

- Control Panel with:
- Frequency Inverter for High Shear Mixer
- Frequency Inverter for Scraped Surface Mixer
- Emergency Safety Switch
- Warning Light Beacon
- Digital Temperature Display for PT100
Dimensions:
- Internal Diameter : 1,800mm
- External Diameter: 2,000mm
- Cylindrical/Barrel Height: 1,250mm
- Discharge Height : 500mm from Finished Floor Level
- Total Height: 3,250mm
- Insulation Thickness: 100mm
- Material/Metal Tickness Top: 8mm
- Material/Metal Tickness Bottom: 5mm
- Material/Metal Tickness Cylindrical Body: 5mm
