500 LPH ROKK 3-Series (250 Bar) & 2-Stage Homogeniser (Year 2021)

Description

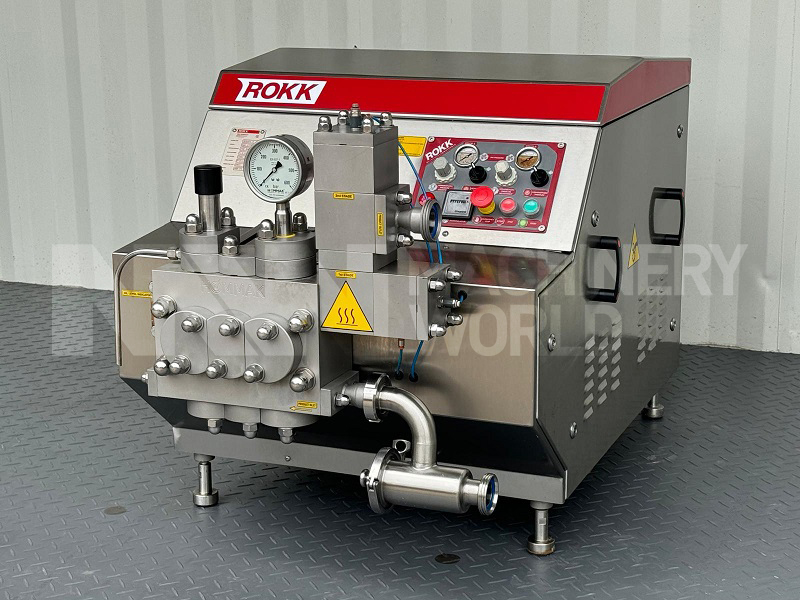

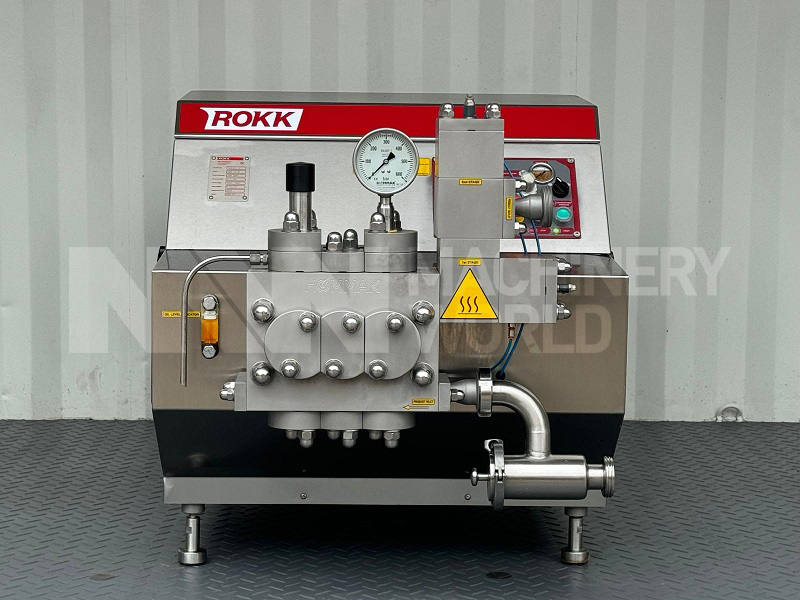

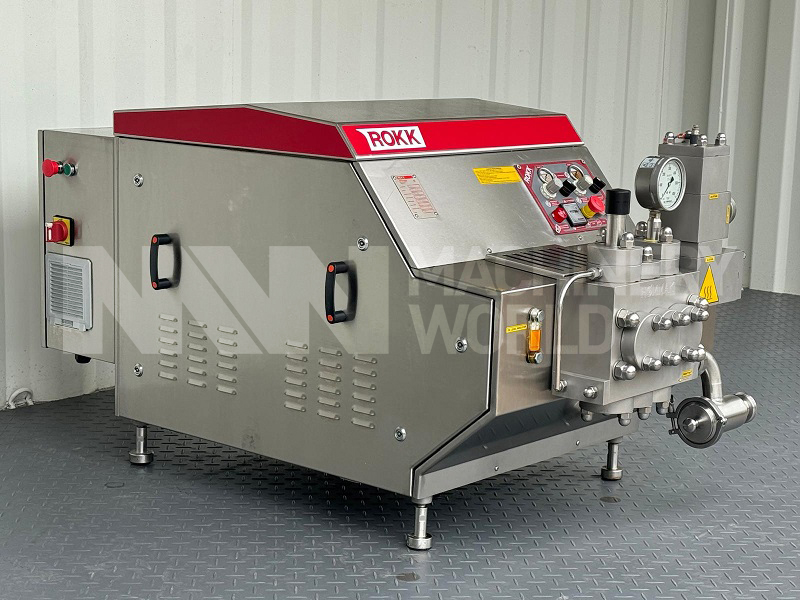

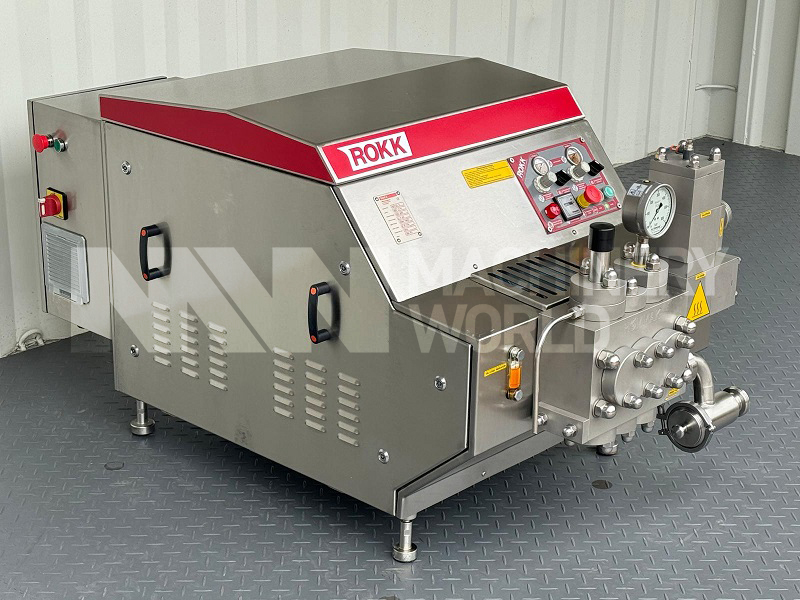

The ROKK Processing 3-Series High-Pressure Homogeniser/Homogenizers and Piston Pumps have excellent performance and reliability in the latest design concept. This ROKK Processing 3-Series Homogeniser has a working capacity of approx 500 LPH at a maximum operating pressure of 250 Bar (3,625 PSI). The MonoBlock (compression head) is manufactured out of a high tensile, corrosion resistant, forged, ultra-high quality stainless steel and checked for imperfections using ultrasound equipment. The compression head for sanitary applications provides an in-line flow pattern and minimises the number of sealed areas. The block features removable top, bottom and front flanges for easy maintenance and has an ultra clean design without dead ends. The semi-spherical valves system allows smooth machine operation, for both low and high viscosity products. This ROKK Processing 3-Series High-Pressure Homogeniser was very sparingly used (38 Hours only) and currently available for immediate sale.

Features

• Brand: ROKK Processing, United Kingdom
• Model: 3-Series
• Function: High Pressure Homogeniser

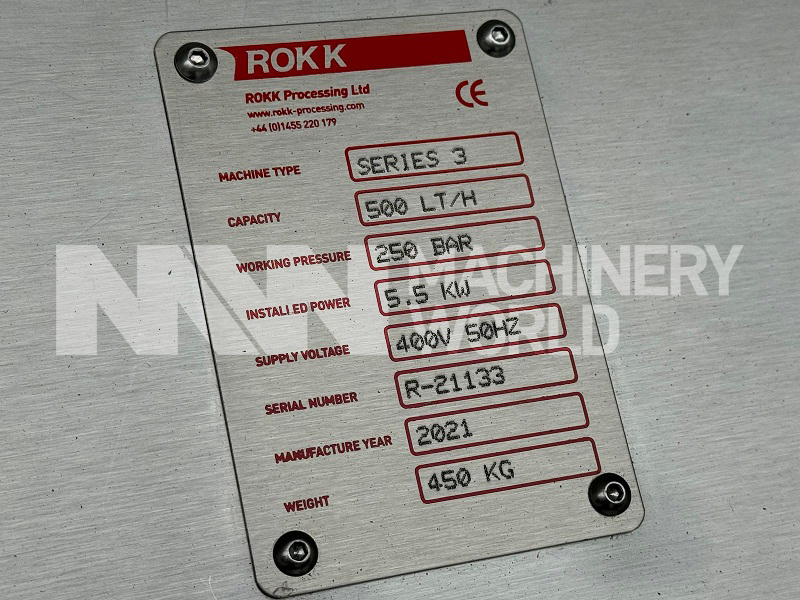

• Serial Number: R-21133
• Year of Manufacture: 2021
• Running Hours: 38 Hours
• Capacity: 500 Litres / Hour
• Max. working pressure: 250 Bar (3,625 PSI)
• Total installed power: 5.5Kw

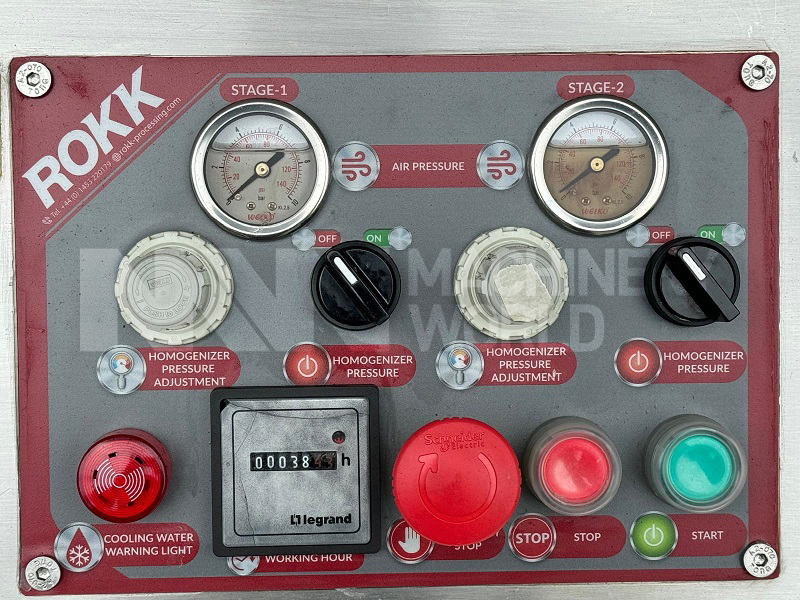

• Number of stages: 2-Stage Homogeniser
• Valve Design: Mushroom
• Piston Design: Stainless Steel
• Number of Plungers (Pistons): 3x Plungers (Pistons)
• Electrics: 400V / 50 Hz / 3 Phase
• Finish: Complete Stainless Steel
