5,000 LPH APV Gaulin G37-3.0P (200 Bar) High Pressure Homogeniser

Description

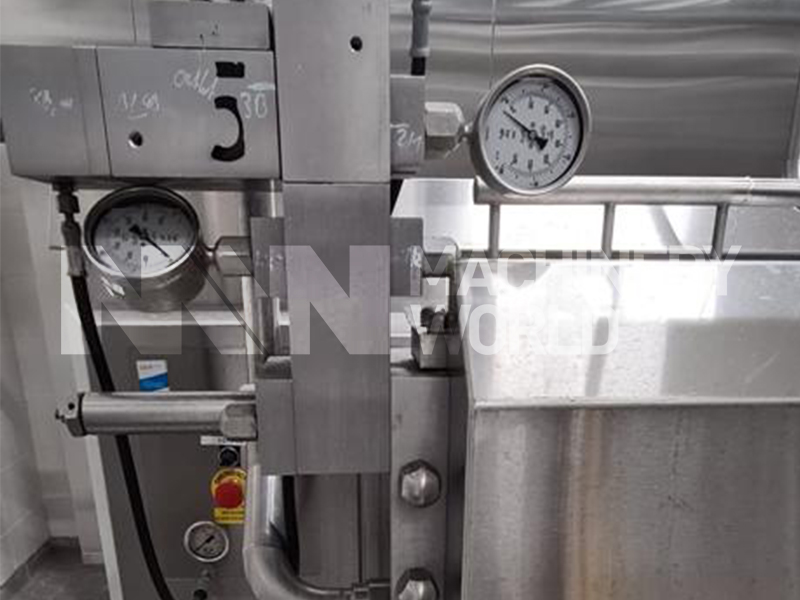

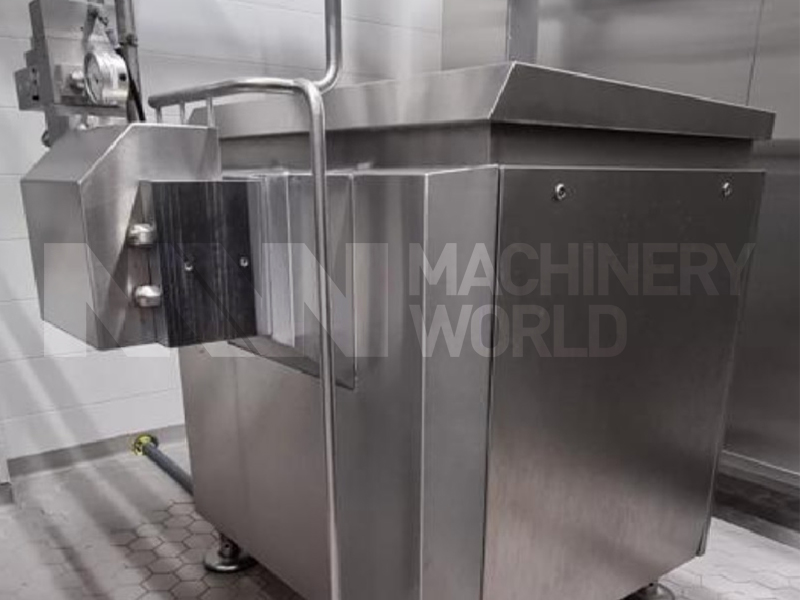

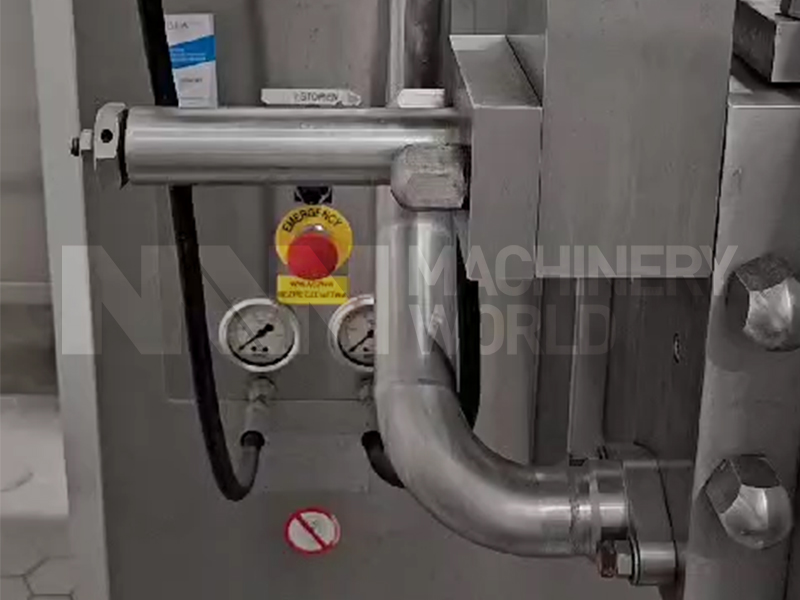

This is a used APV Gaulin G37-3.0P High Pressure Homogeniser. This APV Gaulin G37-3.0P High Pressure Homogeniser has a working capacity of approx 5,000 LPH and capable of working at a maximum rated pressure of 200 Bar (2900 PSI). This APV Gaulin G37-3.0P High Pressure Homogeniser comes with 2 Stages Homogeniser Valve assembly and has 3x plungers (Pistons). This APV Gaulin G37-3.0P High Pressure Homogeniser was previously used for Yogurt production. Currently held as stock, this APV Gaulin G37-3.0P 200 Bar High Pressure Homogeniser is available for immediate sale.

Features

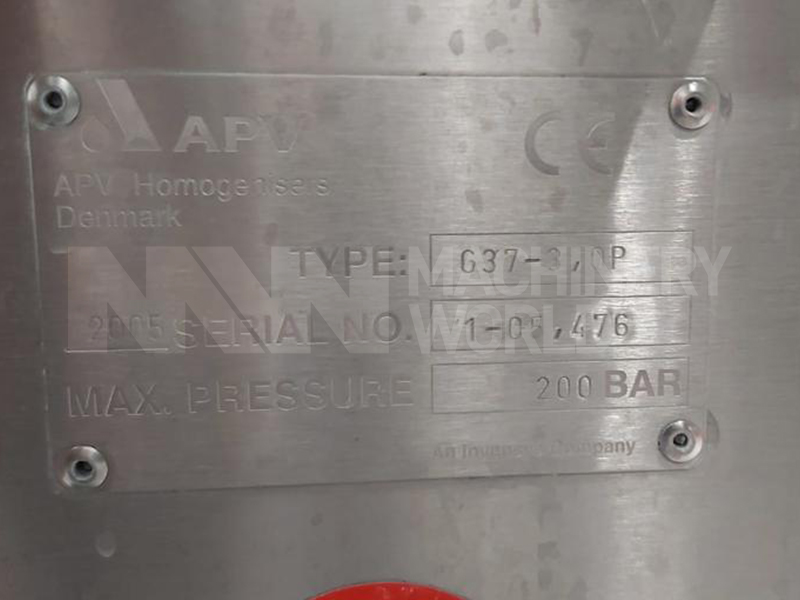

• Manufacturer: APV Homogenisers, Denmark
• Type: Gaulin G37-3.0P
• Serial Number: 1-05.476
• Year of Manufacture: 2005
• Function: High Pressure Piston Homogeniser Pump
• Capacity:
  Approx 4,963 LPH @ 200 Bar
  Approx 5,002 LPH @ 150 Bar
• Max. working pressure: 200 bar (2900 PSI)
• Valve Control: Hydraulic
• Number of stages: 2 Stage Homogeniser Valve Assembly
• Valve Type: Poppet Valve (Mushroom Type Valve)
• Number of Pistons (Plungers): 3x Pistons/Plungers

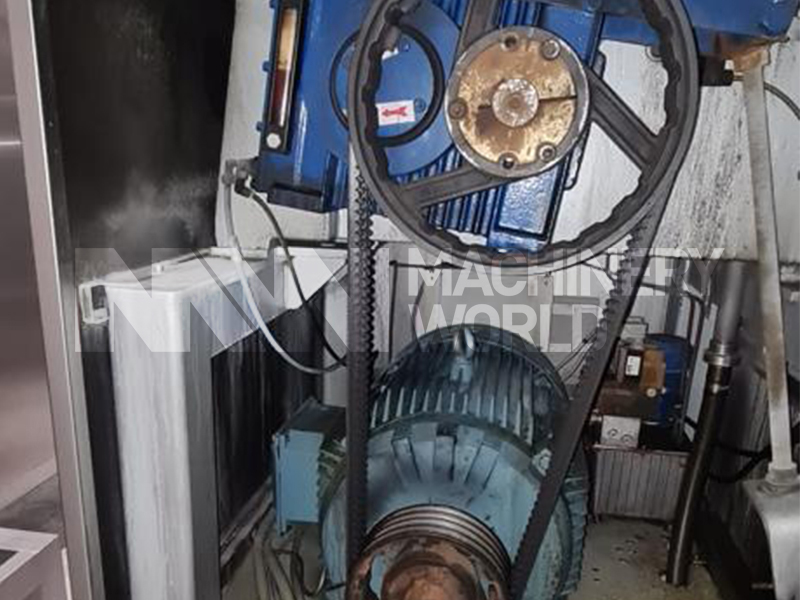

• Main Drive Motor Power: 37Kw
• Electrics: 380-415V / 3Phase / 50Hz
• Finish: Stainless steel covers
• Includes documentation
• Previous Use: Yogurt Production
• See ‘Technical Doc’ link for further details

Dimensions

• Depth: 1551mm
• Width: 1285mm
• Height: 1699mm
• Weight: Approx 2,100 kgs

Country of Manufacture

Denmark
