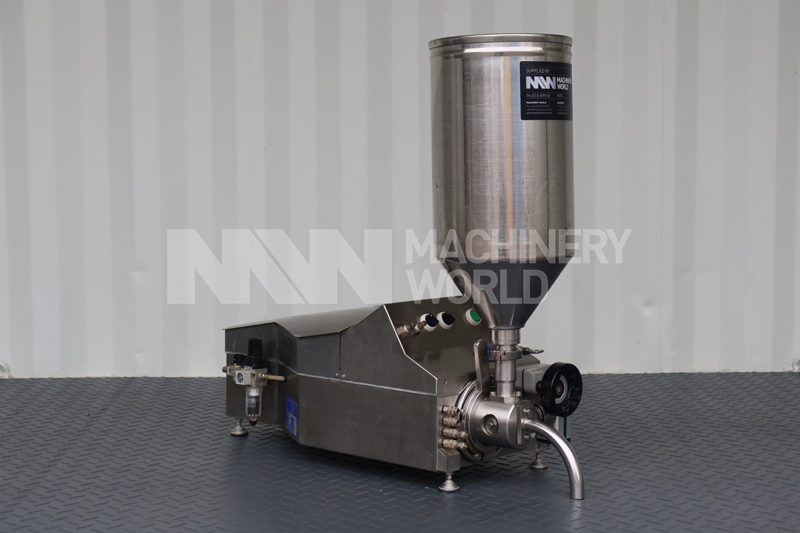

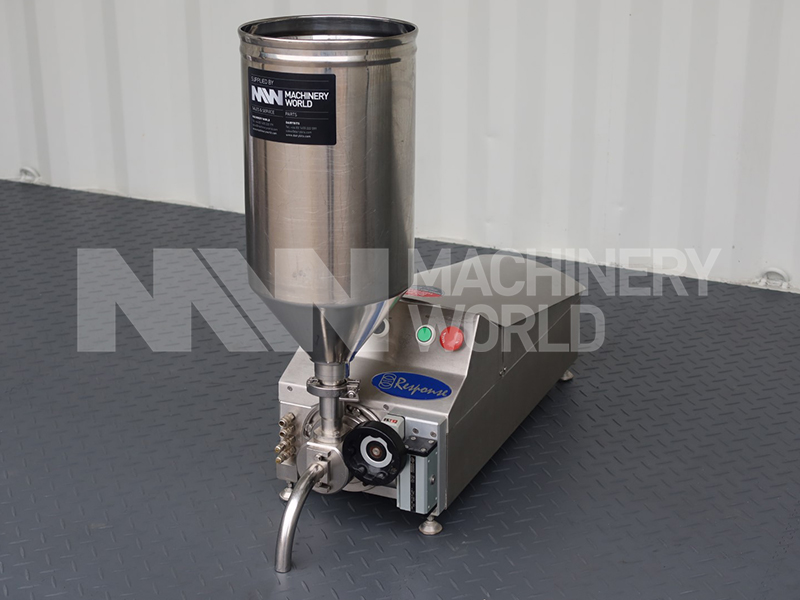

Adelphi Response Semi-Automatic Single Head Volumetric Filler

Description

This pneumatically driven filler from Adelphi is suitable for filling liquids, creams or solids in suspension thanks to its versatile filling head design. The Response is adaptable, accurate, hygienic and easy to use.  These machines are ideally suited to those wanting to start automating a previously manual filling process, and those that don’t currently require the output levels offered by a fully automated solution.

Features

• Manufacturer: Adelphi
• Model: Response

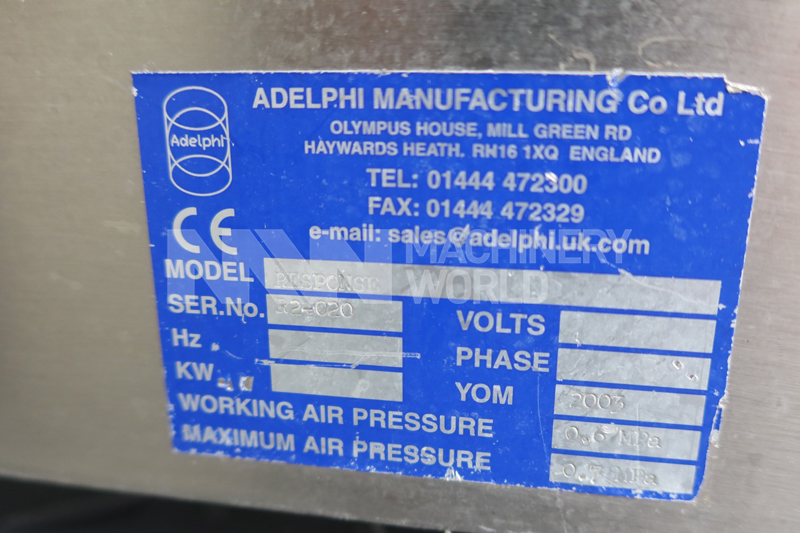

• Serial number: R2-020
• Function: Volumetric dosing machine
• Year of manufacture: 2003
• Bottle capacity: 5 – 1000 ml
• Output per minute: <40
• All stainless steel manufacture
• AISI 316 stainless steel contact parts
• Fully adjustable using a hand wheel

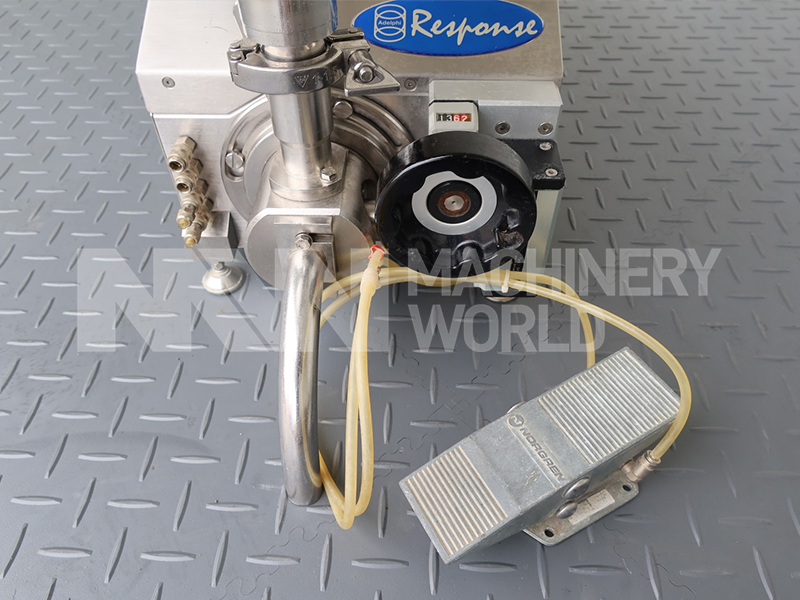

• Foot pedal operated (included)
• Includes plain conical hopper
• Accuracy: +0.25%
• Air consumption: 5 litres at 6 bar
• See ‘Technical Doc’ link for further details

Dimensions

• Depth: 840 mm
• Width: 343 mm
• Height: 830 mm
• Weight: 60 kgs

Country of Manufacture

United Kingdom
