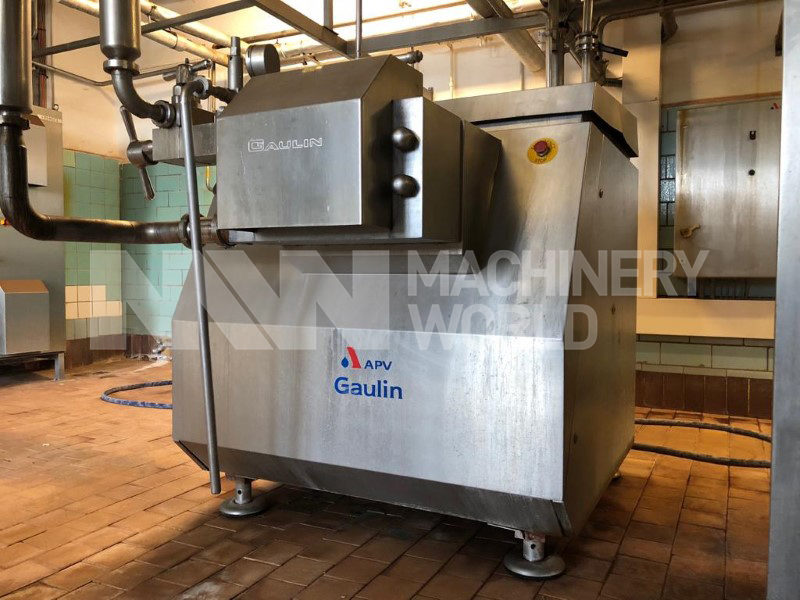

APV Gaulin 55 – 3 P Homogeniser, 7.500 l/h

Description

An APV Gaulin55 machine forhigh-pressure homogenisation of emulsions and suspensions. The product is pumped under high pressure into the homogenising device. In the device the product is forced through a small annular gap where the pressure transform into high velocity. Extreme turbulence and cavitation effectively reduce the size of liquid droplets and solid particles.

This is a Used 7,500 LPH APV Gaulin Type 55-3OP Homogeniser which is a poppet valve machine & has a max. working pressure of 3000 psi (200 bar).

Features

• Manufacturer: APV
• Model:Gaulin 55-3 P
• Serial Number:98L35278
• Function: Homogeniser
• Capacity: 7.500 litres/per hour
• Year of manufacture: 1998
• Max. working pressure: 200 bar (3000 PSI)
• Valve design: Poppet
• Number of stages: 2-Stage
• Total installed power:55 kW
• Electrics: 380V / 3Phase / 50Hz
• Finish: Stainless steel covers
• Includes control panel
• Instruction manual included

Dimensions

• Depth:175 cms
• Width:140 cms
• Height:170 cms
• Weight:2550 kgs

Country of Manufacture

Germany
