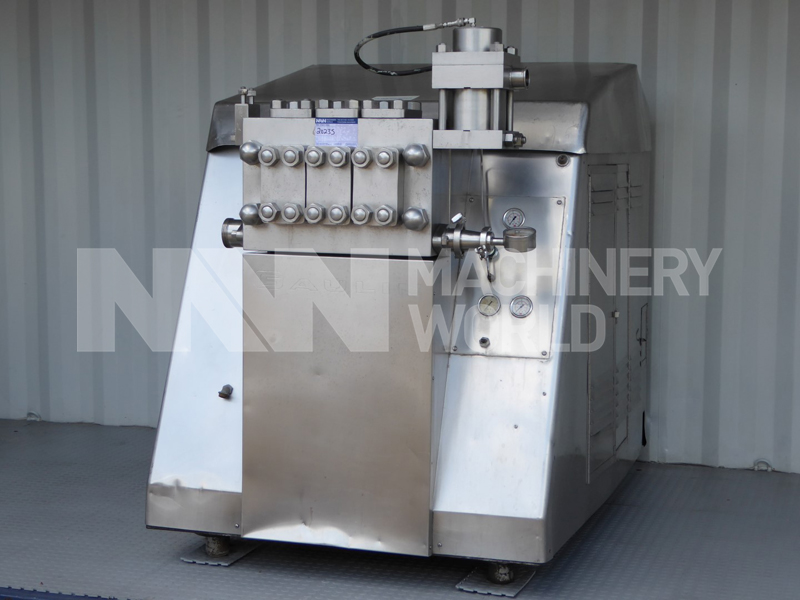

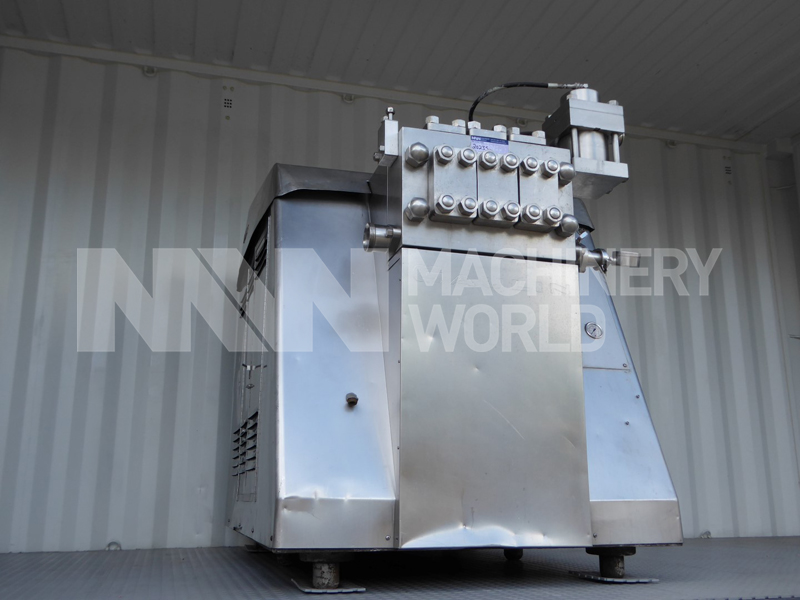

APV Gaulin MF45-3PS Homogeniser, 7.000 l/h
Out of stock
25+ Years in business since 1999
100+ Countries supplied worldwide delivery
Detailed Photos and video see exactly what you're buying
Export Documentation full export sales invoicing customs
Tailored Servicing and upgrade options available
Expert After-sales support we're here to help after delivery
Description
An APV Gaulin MF45-3PS machine for high-pressure homogenisation of emulsions and suspensions. The product is pumped under high pressure into the homogenising device. In the device, the product is forced through a small annular gap where the pressure transform into high velocity. Extreme turbulence and cavitation effectively reduce the size of liquid droplets and solid particles.
This is a Used 7,000 LPH APV Gaulin MF45-3PS Homogeniser which is a poppet valve machine & has a max. working pressure of 3000 psi (206 bar).
Features
- Manufacturer: APV
- Model: Gaulin MF45 3PS

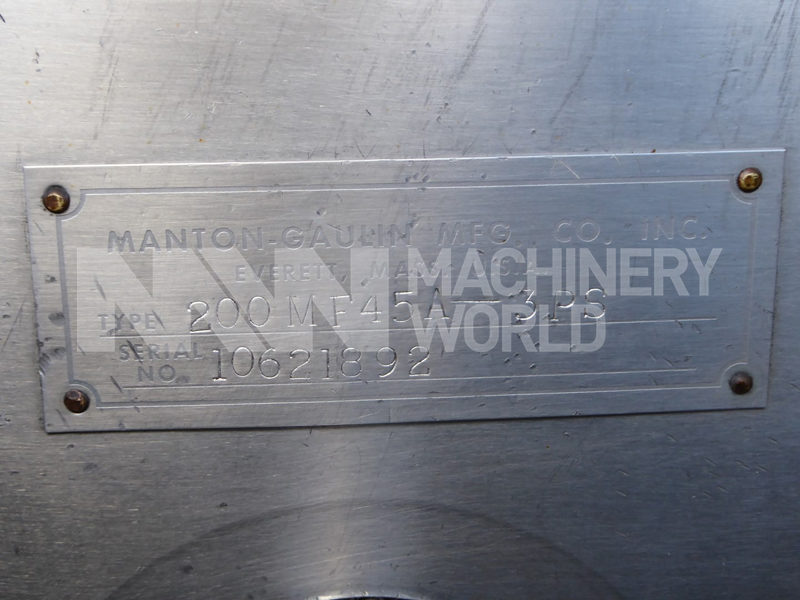

- Serial Number:10621892
- Function: Homogeniser
- Capacity: 7.000 litres/per hour
- Max. working pressure: 206 bar (3000 PSI)
- Piston diameter:70 mm
- Valve design: Poppet
- Number of stages: 1 with Micro Gap
- Total installed power:45 kW
- Electrics: 380V / 3Phase / 50Hz
- Finish: Stainless steel covers
- Instruction manual included
Dimensions
- Depth: 225 cms
- Width: 140 cms
- Height: 165 cms
- Weight: 4600 kgs
Country of Manufacture
Germany
