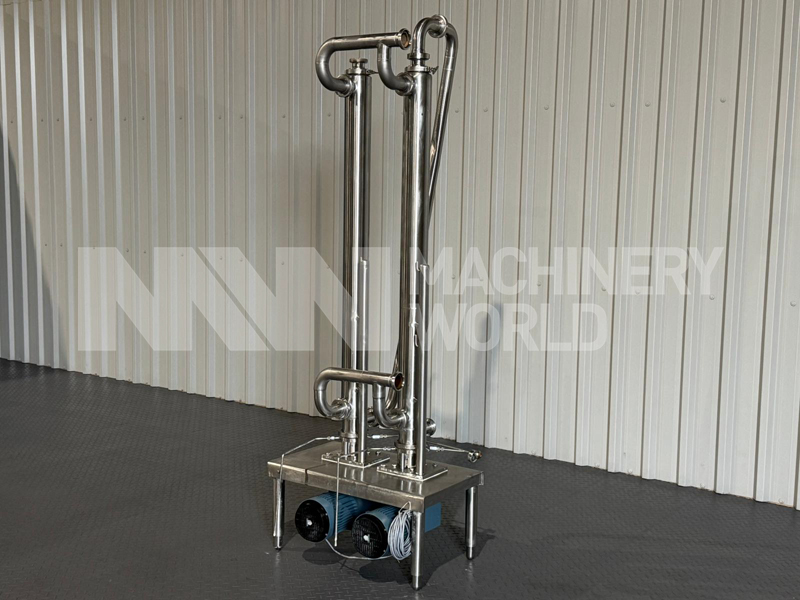

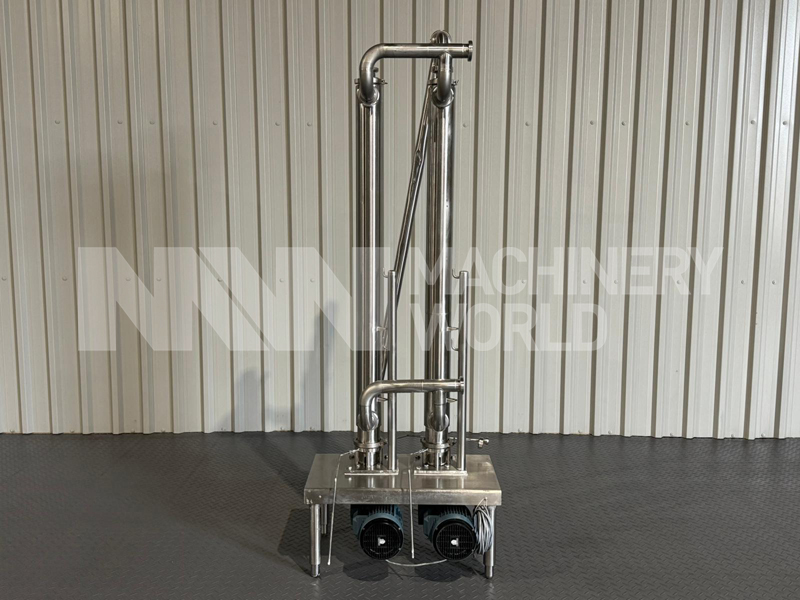

APV SSHE Scraped Surface Heat Exchanger (Twin Cylinder)

Description

This is an used APV VT 460 Scraped Surface Heat Exchanger. These APV Scraped Surface Heat Exchanger is of type VT+460 (Based on its actual dimensions against what’s shown on the attached brochure)  are widely used in the food & dairy processing industries and their main purpose includes heating, pasteurising, sterilising, cooling products and they can handle low, medium to high viscous products with particles upto 30mm. They have very high temperature handling capabilities and can also be used for crystalisation, whipping and heat sensitive products. Please note: the attached Technical Doc is provided for reference only; the specifications of the actual equipment offered may vary.

Specification

• Make: APV Pasilac-Silkeborg, Denmark
• Type: SSHE VT 460 (Based on its actual dimensions against what’s shown on the attached brochure)
• Model: Scraped Surface Heat Exchanger
• Number of Cylinders: 2x Cylinders (Twin Barrel)
• Heat Exchanger Surface Area: 0.44 sq M per Cylinder
• Max Product Pressure (Low Displacement Dasher): 16 bar
• Maximum Temperature: 150 deg C
• Nett Volume in Cylinder: Approx 7 Litre

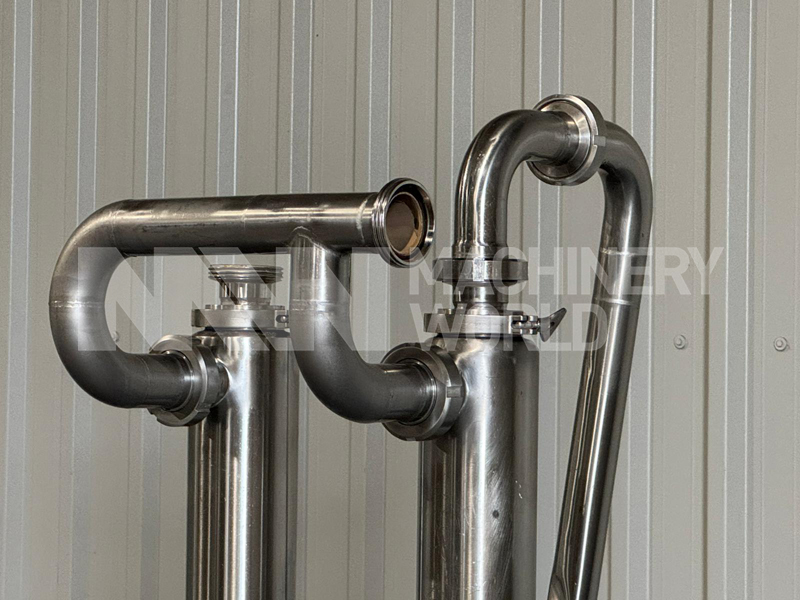

• Product Inlet & Outlet Connection Size: 2 Inch
• Heating or Cooling Media Max Pressure: 10 Bar

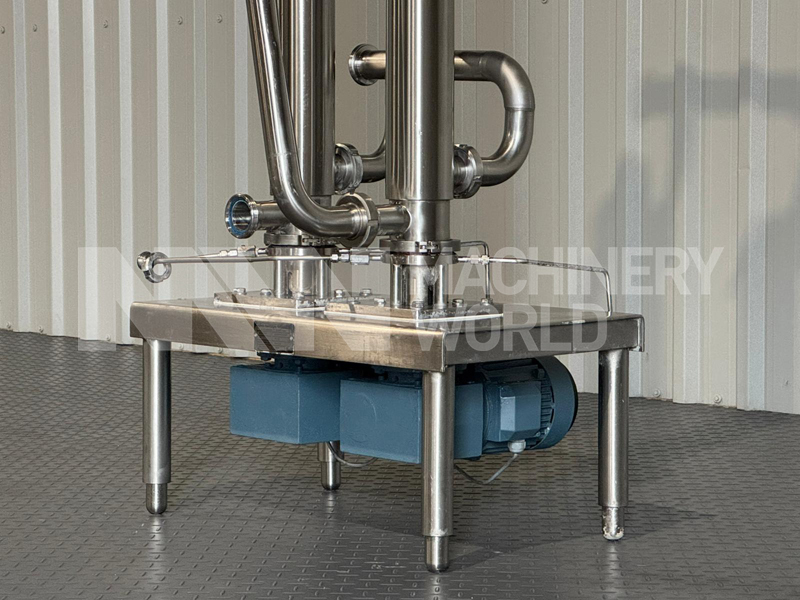

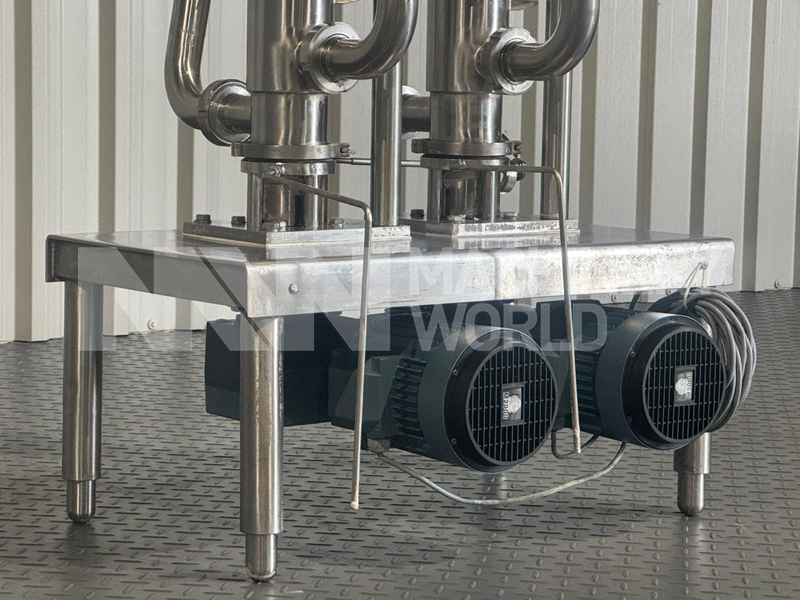

• Drive Motor Power: 2.2kw per Cylinder (4.4kw Total)

Dimensions

• Overall Length: 800mm
• Overall Width: 600mm
• Overall Height: 2270mm

Country of Manufacture

Denmark
