APV SSHE Twin Cylinder Scraped Surface Heat Exchanger

Description

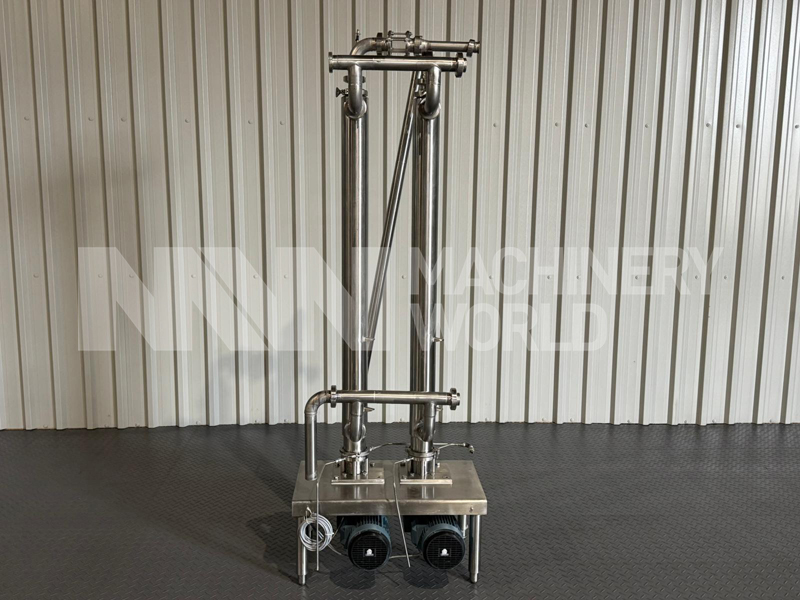

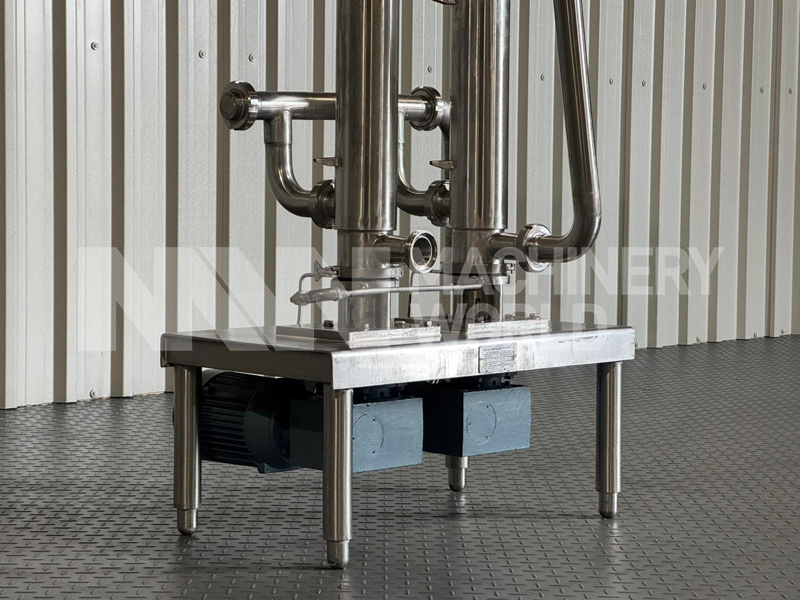

Offered here is a used APV VT 460 Scraped Surface Heat Exchanger. This model, identified as VT+460 based on its physical dimensions compared to those listed in the attached brochure, is commonly utilized in the food and dairy processing sectors. Its functions include heating, pasteurization, sterilization, and cooling of various products, and it is suitable for handling low to high viscosity materials, including those with particles up to 30mm in size. Designed to operate under high temperatures, it is also suitable for crystallization, whipping, and processing heat-sensitive products. Please note: the attached technical documentation is for reference purposes only—the actual unit’s specifications may differ slightly.

Specifications

• Manufacturer: APV Pasilac-Silkeborg, Denmark
• Model: Scraped Surface Heat Exchanger
• Type: SSHE VT 460 (based on actual dimensions vs. brochure)
• Cylinders: Twin-barrel (2 cylinders)
• Heat Transfer Area: 0.44 m² per cylinder
• Maximum Product Pressure (Low Displacement Dasher): 16 bar
• Maximum Operating Temperature: 150°C
• Cylinder Volume: Approx. 7 liters each

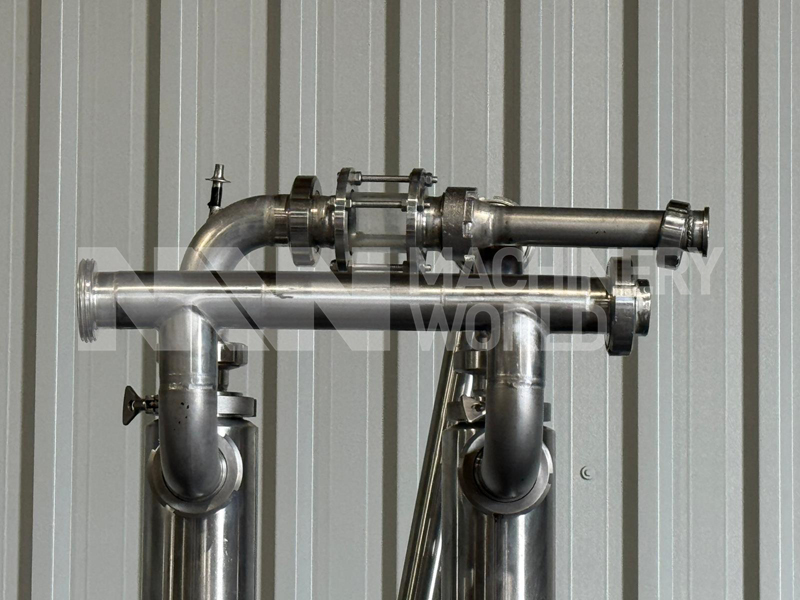

• Product Inlet/Outlet Size: 2 inches
• Max Pressure for Heating/Cooling Media: 10 bar

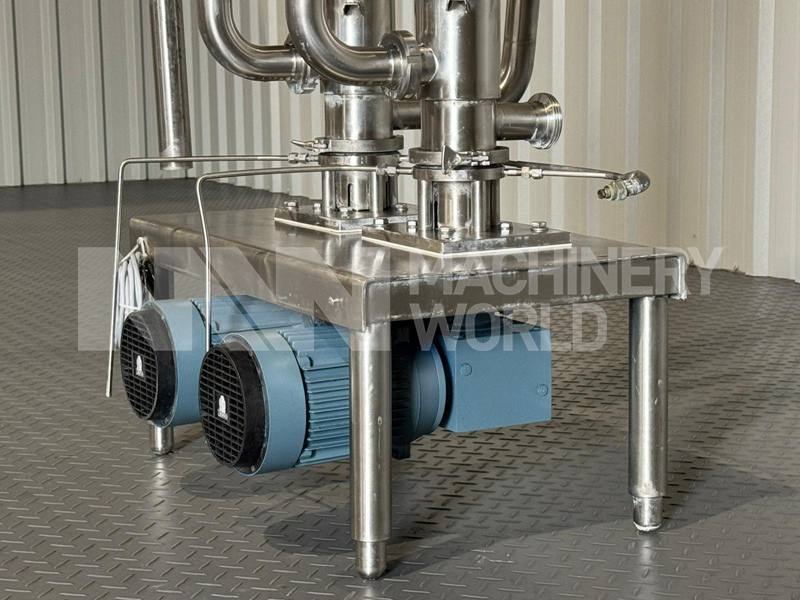

• Drive Motor Power: 2.2 kW per cylinder (Total: 4.4 kW)

Dimensions

• Length: 800 mm
• Width: 600 mm
• Height: 2270 mm

Country of Origin

Denmark
