Description
The Pastomaster HE is the latest range of pasteurisers, offering increased speed and efficiency of performance, additional programs for production of different products and concentrated mixes. The HE range has a one piece exchange pump and larger conveyor for more viscious mixes that are higher in solids. Please see a video below of this machine installed and working in the previous factory.
Features
- Manufacturer: Carpigiani

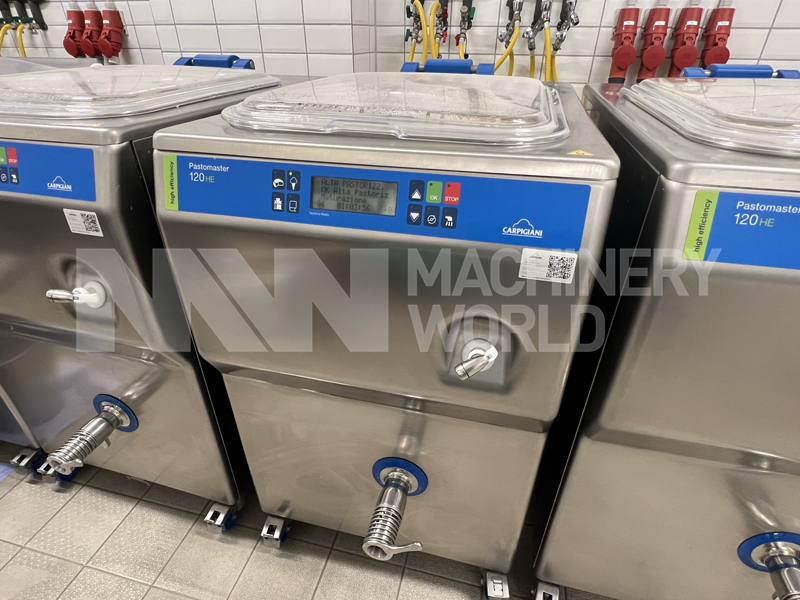

- Model: Pastomaster 120 HE
- Function: Ice cream batch pasteuriser

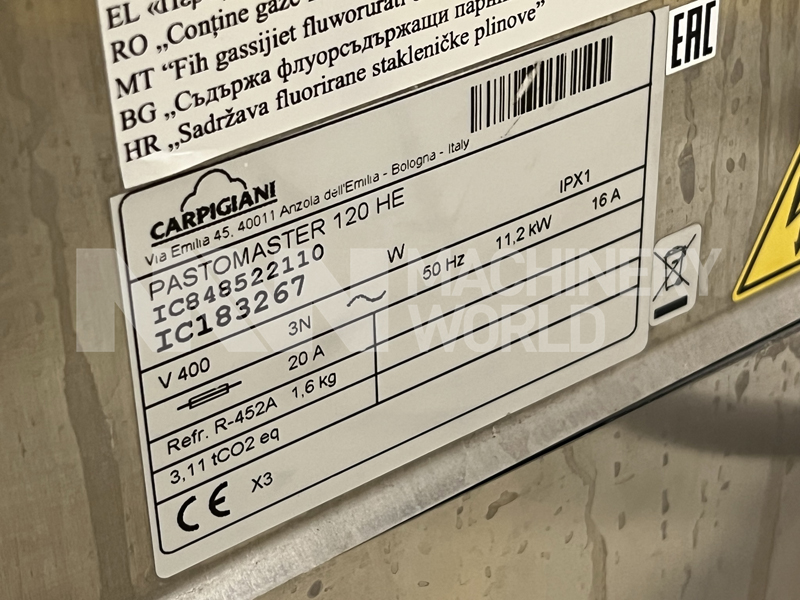

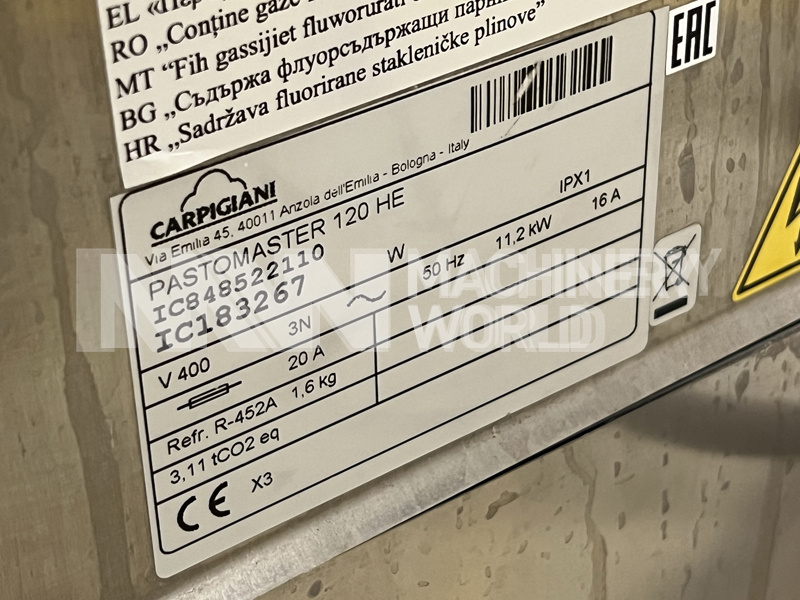

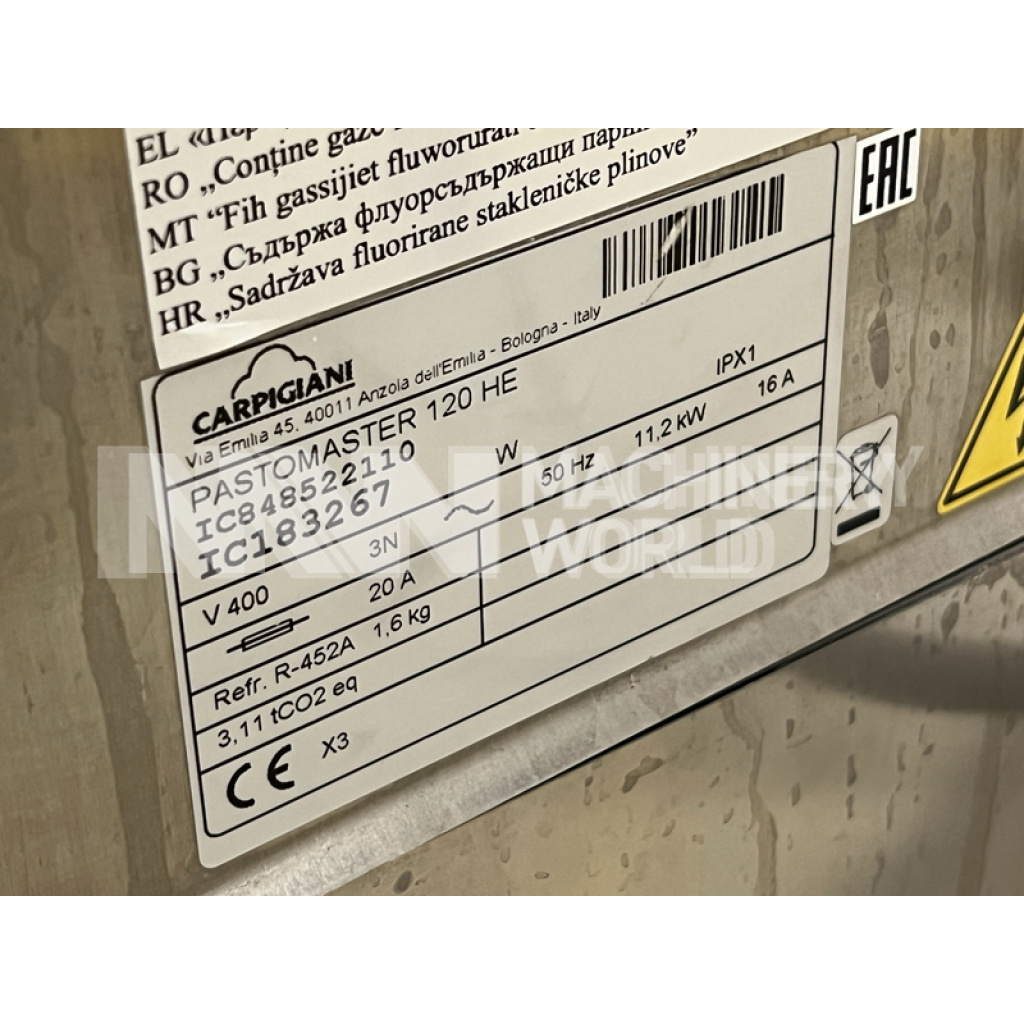

- Serial number: IC183267
- Year of manufacture: 2022
- Load capacity per cycle: 30 – 120 litres
- Motor speed for beater no: 7
- Cycle/process time: 120 mins
- Total installed power: 11,2 kW
- Electrics: 400V / 50 hz / 3 Phase
- Refrigerant: R-452A (1,6 Kg)
- Water-cooled
- Instruction manual included
- See ‘Technical Doc’ for further details
Dimensions
- Length: 90 cms
- Width: 65 cms
- Height: 105 cms
- Weight: 269 kgs
Country of Manufacture
Italy
Download Technical Doc
