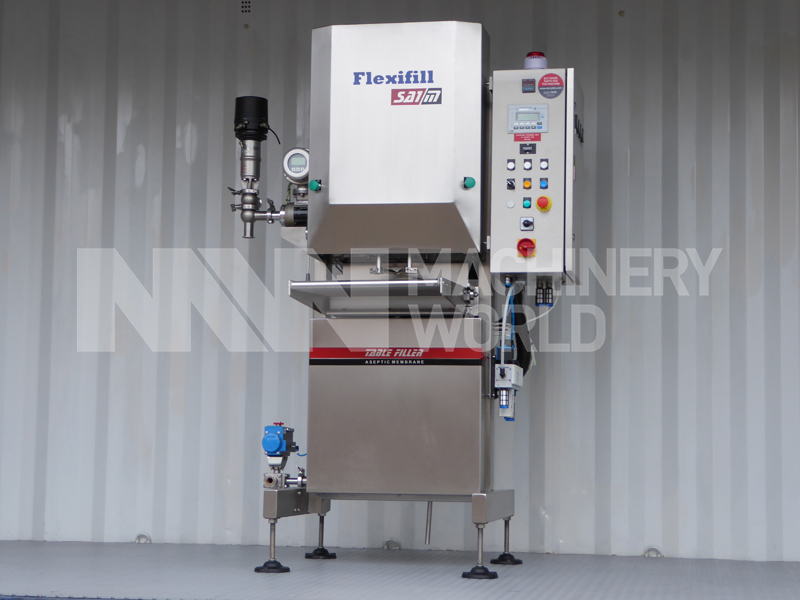

Flexifill SA1M Aseptic ‘Unused’ Bag-in-Box Filling Machine

Description

The Flexifill SA1M is an aseptic semi-automatic Bag-in-Box filler, capable of filling a wide range of low or high acid products including dairy products, juices, purees and concentrates from 2 to 20 litres in 16mm or 32mm membrane style glanded bags. The bags can either be loaded from the front of the machine and filled by the operator. Or, the bags can be filled on a driven roller table and discharged through the machine onto a conveyor system. This can then be linked to automatic bag-in-box insertion and closure.Manufactured with 316 Stainless Steel product contact surfaces and 304 main frame these machines are built to a high standard and comply with CE marking requirements.The SA1M has a high degree of flexibility and can handle all standard Bag-in-Box fitments and bags used in the aseptic market.

Features

• Manufacturer:Flexifill
• Model:SA1M
• Function: Aseptic filling and packaging line
• Serial number: FLX206
• Year of manufacture: 2015
• Neck diameter: 16 or 32mm
• Bag size: 5-20 Litre
• Capacity: 2 bags / minute
• Product pressure: 1.5 - 2.0 bar
• Product flow rate: 2 litres per second
• Includes documentation

Country of Manufacture

United Kingdom
