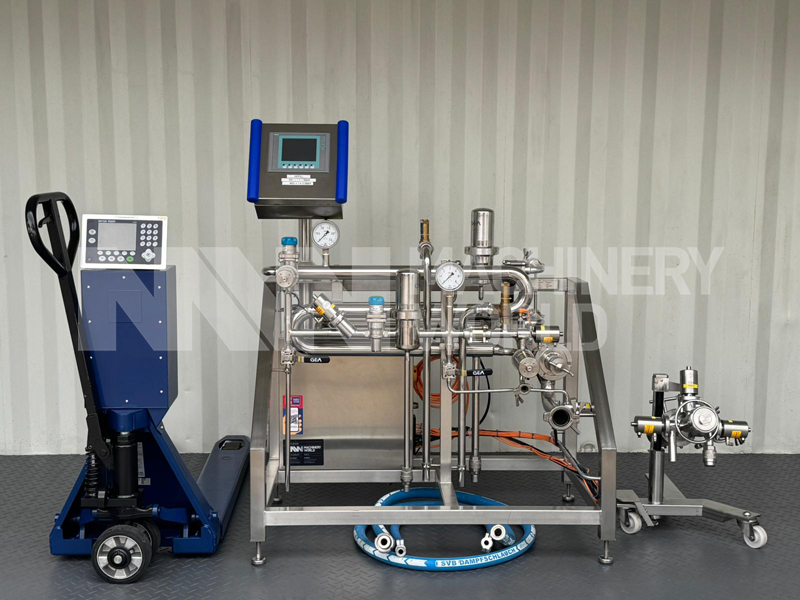

GEA Aseptomag Fillasept Aseptic Bulk & IBC Filling System with Weighing Scale (Year 2020)

Description

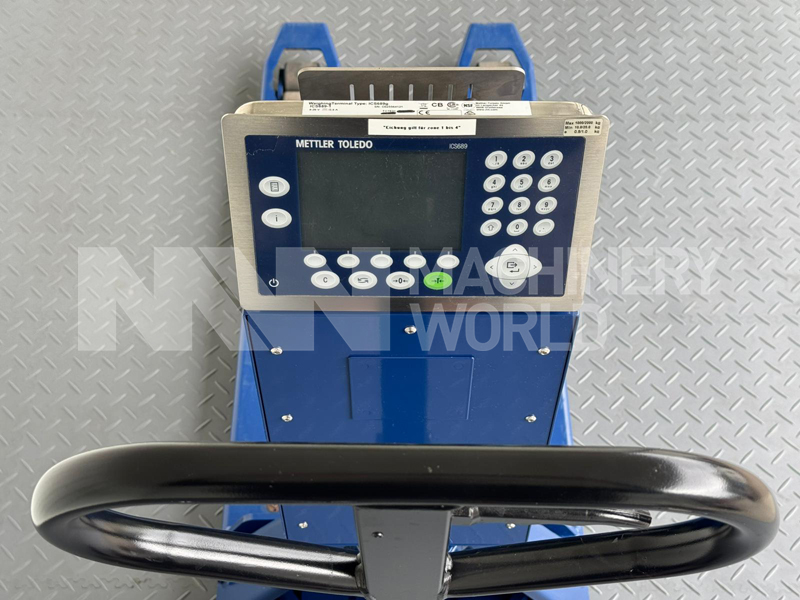

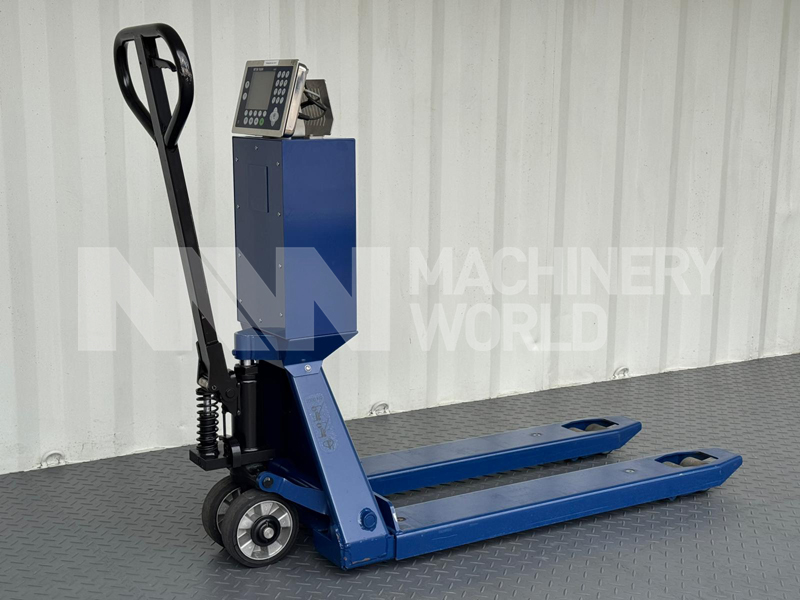

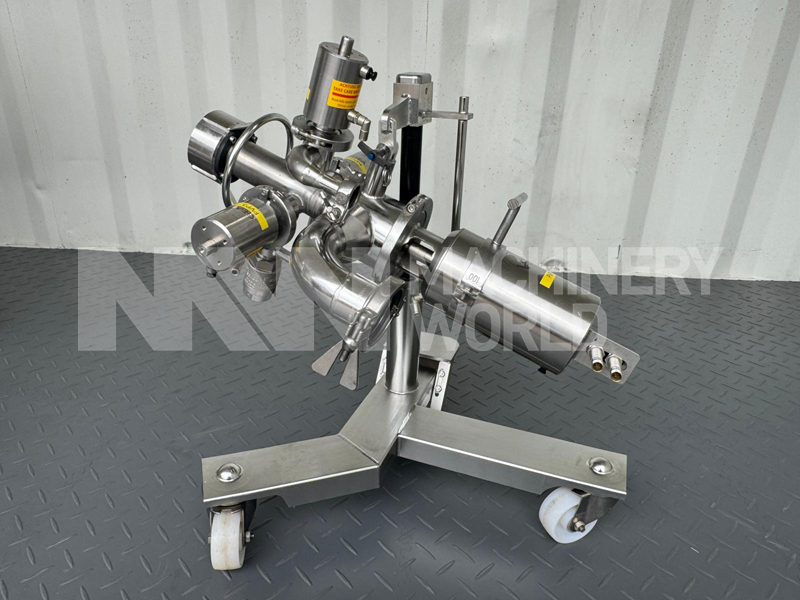

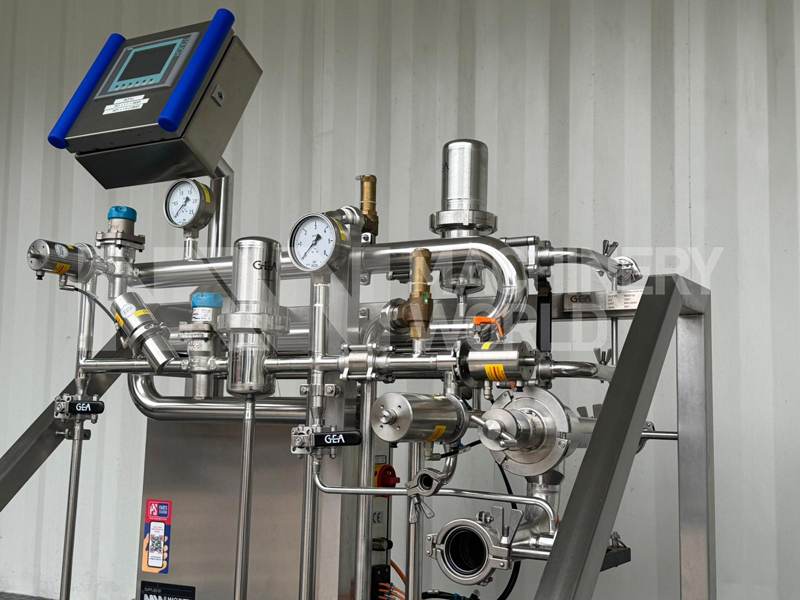

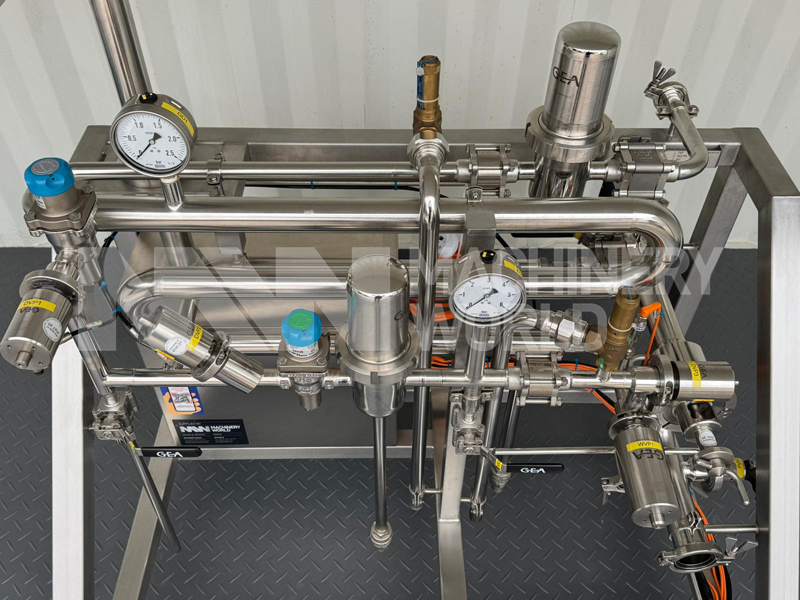

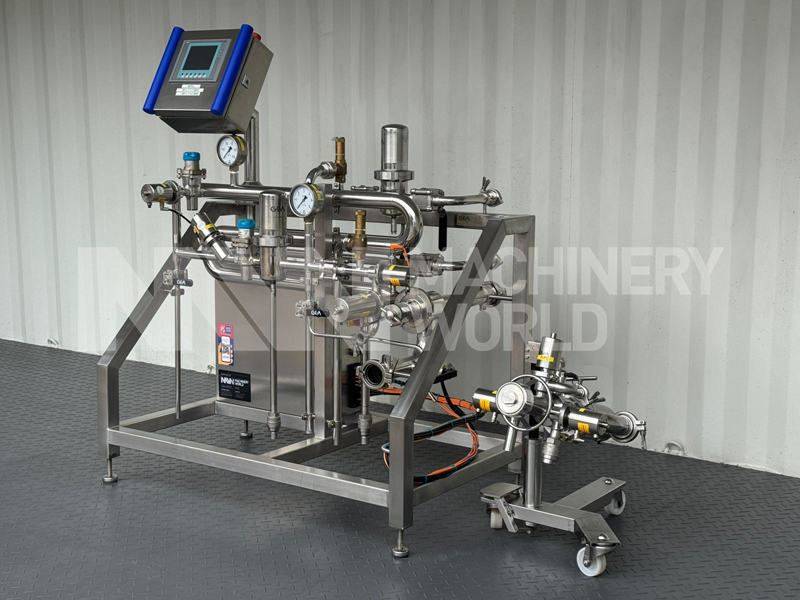

This used GEA Aseptomag Fillasept® IBC Filling System delivers aseptic filling of bag-in-box IBCs via a steam-sterilisable, drainable, dead-leg-free head on a wheeled trolley with flexible piping, creating a rinseable/sterilisable interface with hot-water rinsing from an integrated tubular heat exchanger. The used machine’s touchscreen sets and stores sterilisation, fill/rinse times, SIP/CIP and product data, with preset modes (production, SIP/CIP, rinse) and configurable submenus tailored to your process. A lift-truck scale streams weight to the PLC for accurate fills. This used unit is compatible with most bag-in-box systems; for enhanced hygiene, specify bags with a steam-sterilisable shut-off valve positioned at the lower side. This GEA Aseptomag Fillasept® IBC Filling System has been very sparingly used and is in excellent condition and available for immediate sale. Please note: the attached Technical Doc is provided for reference only; the specifications of the actual equipment offered may vary.

Specification

• Make: GEA Aseptomag AG, Switzerland

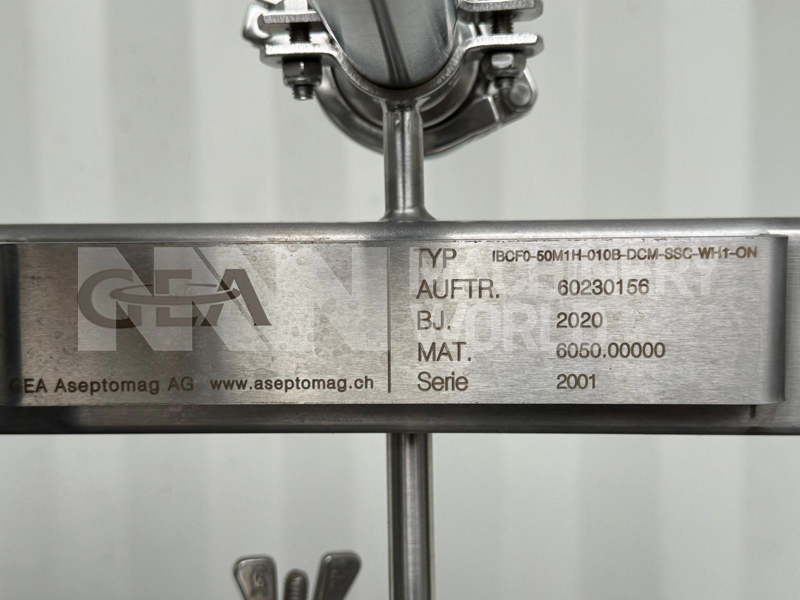

• Type: IBCF0-50M1H-010B-DCM-SSC-WH+-ON
• Function: Aseptic Bulk IBC Filler with Weighing Scale
• Model: Aseptomag Fillasept Bulk Aseptic Filler
• Serial No:60230156
• Year of Manufacture: 2020
• Nominal Diameter: DN50
• Operating Temperature: 0 – 150°C
• Nominal Pressure: 6 bar (87 psi)
• Fillable Bin Sizes: 100 – 1,000L
• Filling Capacity: Approx. 6 bins of 1,000 Litres per Hour
• Product Loss / Filling: 0.65L
• Product Valve Type: GEA Aseptomag®
• Valves For Process Media: Sanitary Valves
• Parts in Contact with Product: AISI 316L
• Supply Voltage: 100 – 230 V AC
• Monitoring of Filling Capacity: Integrated Scale

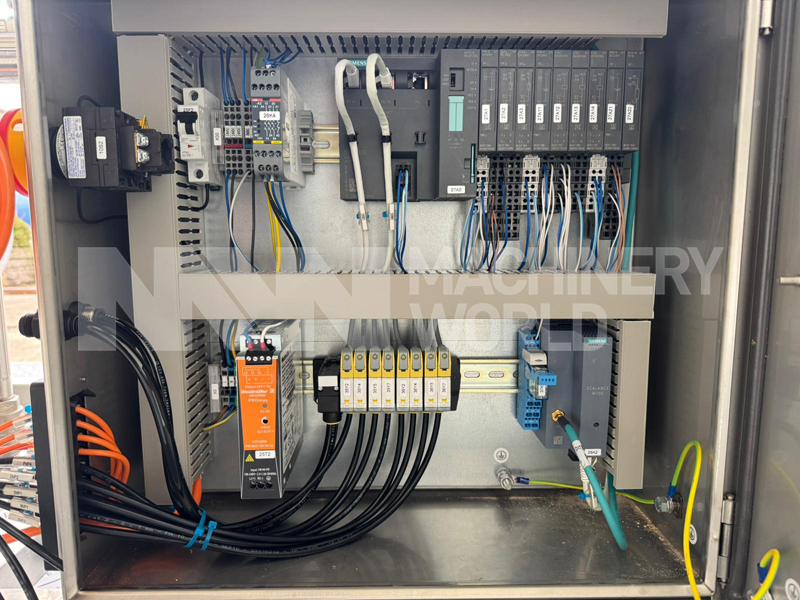

• Controls: Fully Integrated PLC Control Panel
• Support: Comes mounted on Box Sectional Stainless Steel Frame
• Additional: Operational Manual Included

Dimensions

• Length: 1200mm
• Width: 800mm
• Height: 1460mm

Country of Manufacture

Switzerland
