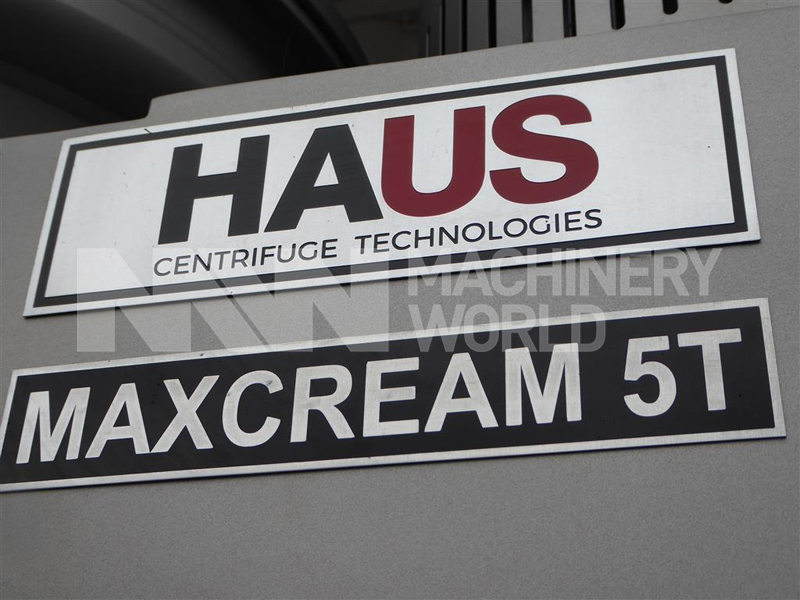

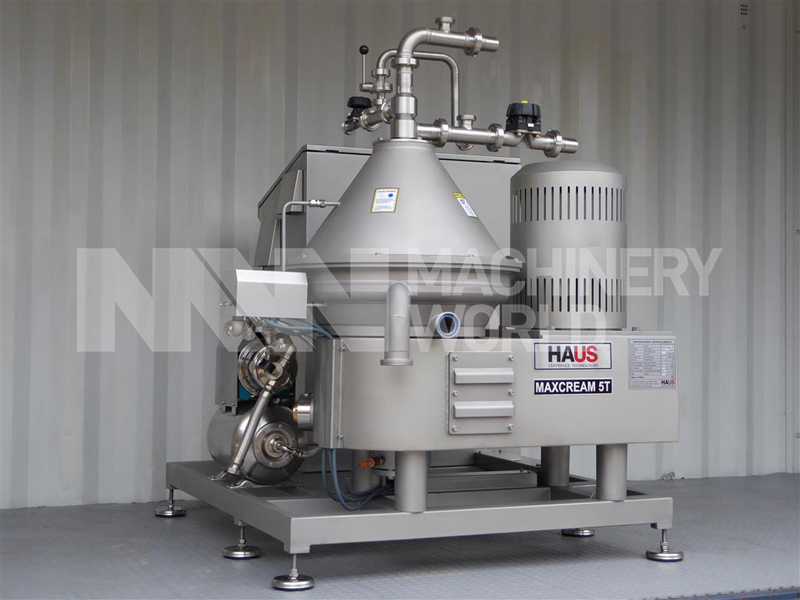

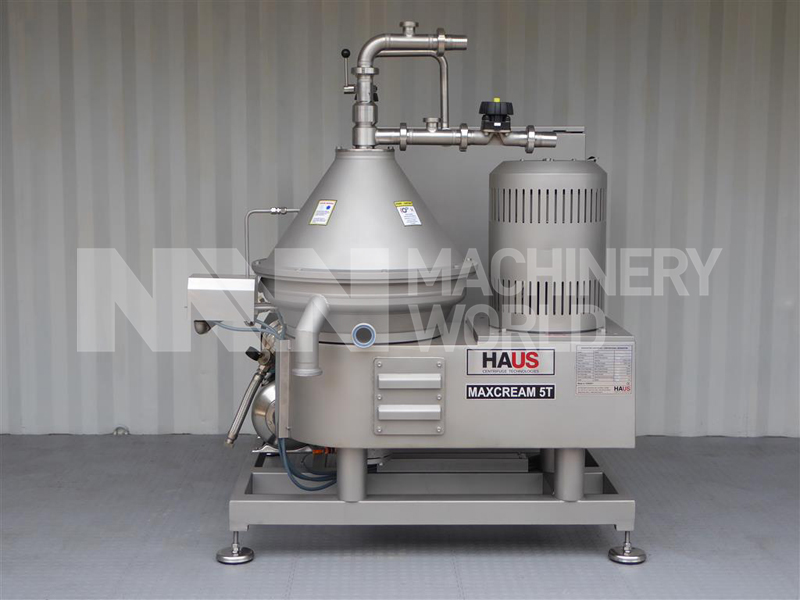

5,000 LPH Haus Maxcream 5T Milk Cream Separator – Brand New

Description

HAUS separators have high separation efficiency, quiet operation, low power consumption, easy operation, high hygiene and superior material quality. Operating parameters (solid discharge frequency, etc.) can be easily changed with the touch screen panel on the separator panel and can be easily integrated to fully automated plants. The materials used in HAUS separators are selected according to the requirements of the sector for which they are designed and international standards. HAUS separators incorporate the latest innovations in separation technologies. HAUS separators provides process-based properties such as cleaning in place(CIP) system, high temperature resistance, erosion protection, corrosion resistance. Separator accessory equipment and piping connections can be changed as desired. HAUS Centrifuge Technologies has a separation solution that meets your needs under any circumstances thanks to flexible project-based works and customizable separation solutions.

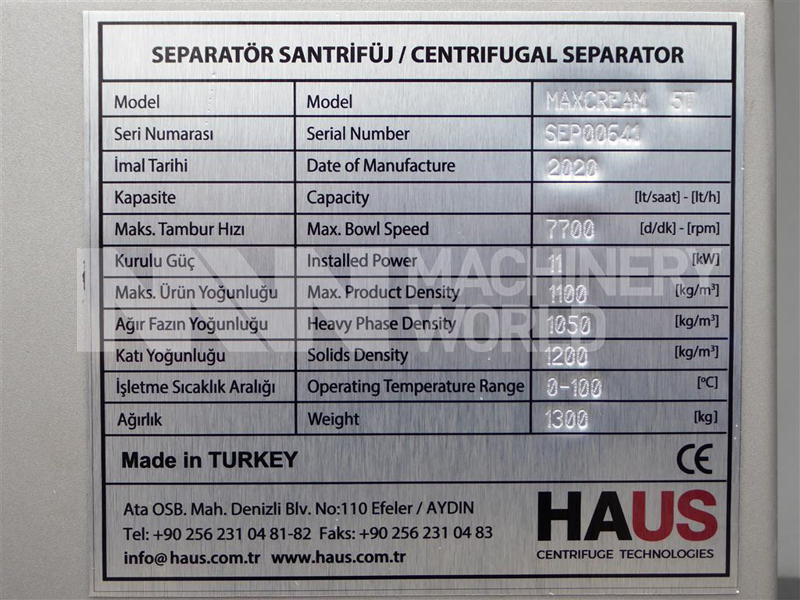

Features

• Manufacturer: Haus
• Model: Maxcream 5T
• Function: Milk Skimming, Cream Separation, Standardization and Cleaning
• Milk Skimming Capacity: 5,000 litres / hour
• Standardization Capacity: 7,000 litres / hour
• Bowl Speed: 7,700 RPM
• Motor Speed: 1,500 RPM
• Maximum Product Density: 1,100 kg/m3
• Heavy Phase Density: 1,050 kg/m3
• Solids Density: 1,200 kg/m3
• Operating Temperature Range: 0-100 deg C
• Total Installed Power: 11 kW
• Electrics: 400 Volts / 3 Phase / 50 Hz
• Controls: Fully Integrated Control Panel with PLC, Touch Screen HDMI & Frequency Controlled Inverter

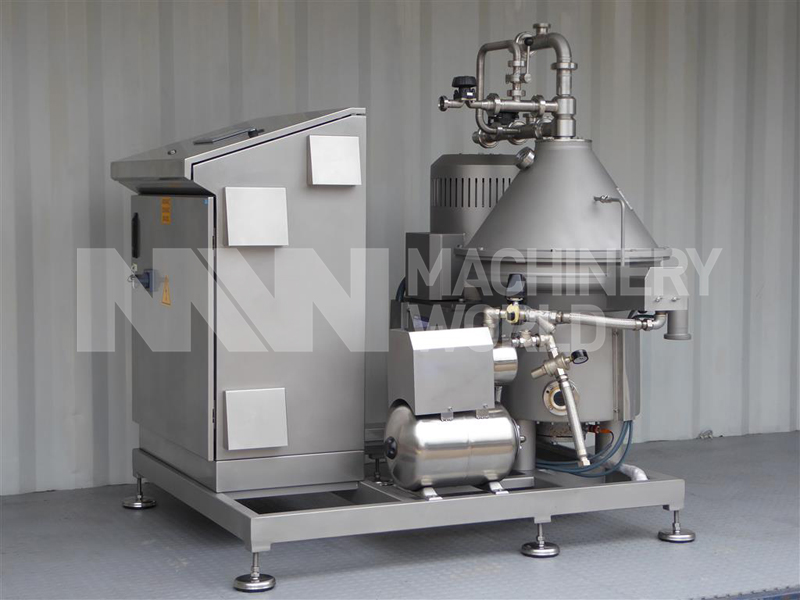

• Additional Details: Separator comes Skid Mounted with Integrated Controls & Water Pump
• Documentation included

Dimensions

• Depth: 146 cms
• Width: 170 cms
• Height: 195 cms
• Weight: 1300 kg

Country of Manufacture

Turkey
