Overview
A high-quality, pre-owned processing system comprising a Flavourtech Centritherm Evaporator and an Anhydro MS400 Spray Dryer, ideally suited for small-scale production, pilot plants, and R&D applications across the food, dairy, chemical, cosmetic, and pharmaceutical sectors.
Manufactured and installed in 2007, the system has seen limited use, with only circa 1,058 operational hours, and remains in excellent condition. Previously operated within pharmaceutical and cosmetic environments, it has been maintained to a high standard. The combination of gentle evaporation and controlled drying temperatures makes this system particularly well suited for handling heat-sensitive products, while also offering excellent versatility for processing materials such as dairy products, food ingredients, plant-based extracts, proteins, enzymes, and specialty chemicals.
The Flavourtech Centritherm Evaporator provides rapid, low-temperature concentration of liquids under vacuum conditions, preserving product quality and functionality, with an approximate infeed capacity of 80 litres per hour. This is paired with the Anhydro MS400 Spray Dryer, which efficiently converts liquid feed into powder, offering an approximate throughput of 60 litres per hour.
Together, this system provides a complete solution for concentration and drying at pilot or small production scale. It is particularly valuable for process development, enabling operators to evaluate product behaviour and suitability for spray drying prior to full-scale production.

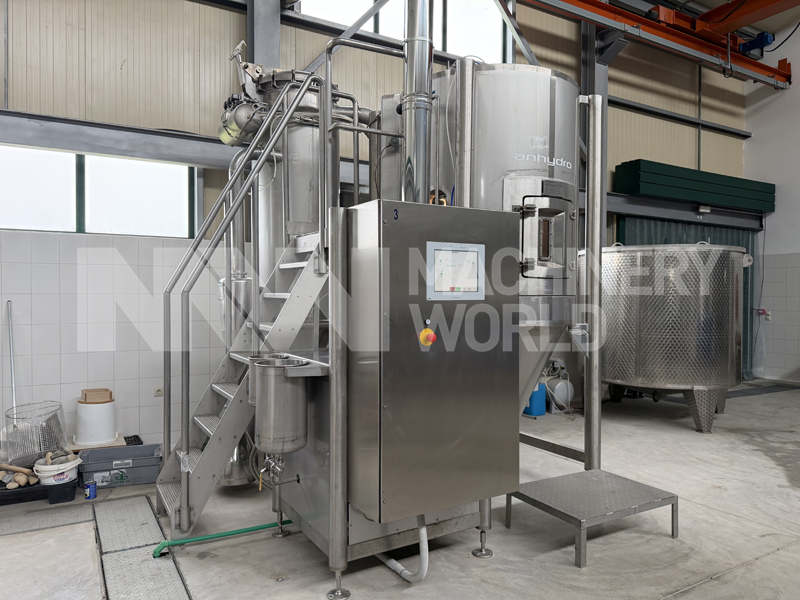

Anhydro MS400 Spray Dryer
Key Features
- Designed for R&D and small-scale production
- Gentle, low-temperature drying process
- Capable of both spray drying and spray crystallisation
- Flexible use across food, chemical, and pharmaceutical industries
Typical applications
The MS400 is suitable for processing a wide range of materials, including:
- Dairy products (milk powders of varying compositions)
- Food ingredients (coffee extract, cheese, eggs, bouillon)
- Vegetables and plant-based products (banana, tomato, soy, pectin)
- Proteins and enzymes
- Chemicals and extracts (tannins, fungicides, vitamins)
- Industrial materials (soap powders, plastics, blood products)
The plant is also well suited for spray crystallization, i.e. atomization ofeasily fusible products (e.g. fat and washing powders) without using heated drying air.
Working principleÂ
The spray dryer operates by conveying a liquid feed – such as a solution, slurry, or paste – from the feed vessel to an atomisation system, where it is dispersed into fine droplets within the drying chamber. Atomisation can be achieved using a centrifugal disc, two-fluid nozzle, or high-pressure nozzle, allowing flexibility to suit different product and process requirements.
Simultaneously, drying air is heated and introduced into the chamber in a controlled flow. The atomised droplets come into direct contact with the heated air, resulting in rapid evaporation of moisture and the formation of dry powder particles.
The dried particles are then carried by the airflow to a cyclone separator, where the powder is efficiently collected, while the exhaust air is discharged. This controlled, continuous process ensures consistent drying performance and enables precise control over particle characteristics and product quality.
Spray Dryer Features

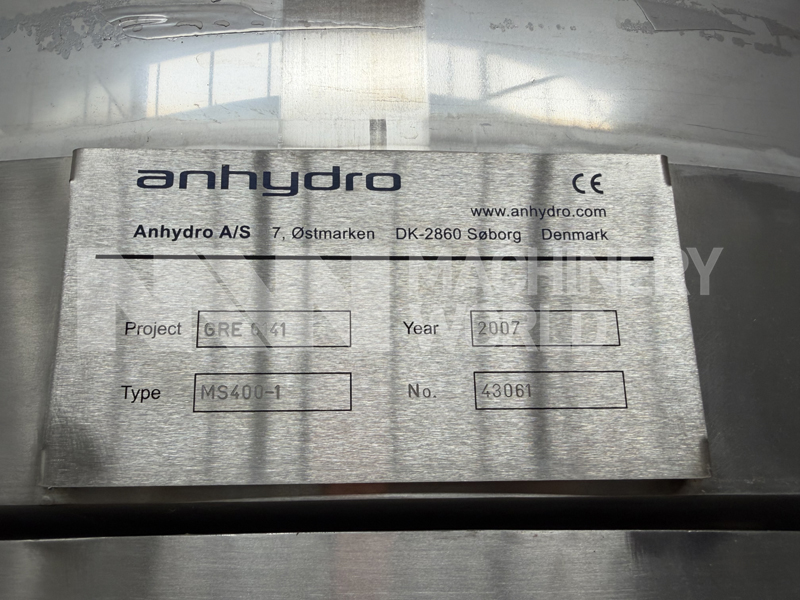

- Manufacturer: Anhydro A/S, Denmark
- Function: Small Scale Spray Dryer
- Spray Dryer Type: MicraSpray MS 400-1
- Serial number: 43061
- Year of manufacture: 2007
- Working hours: Approx 1058 hours
- Nozzle Atomiser throughput: Variable up to 60 litres/hour
- Evaporation capacity max at inlet/outlet temperatures of 300/90degC: 23 kg/hr
- Air inlet temperature: Variable up to 320degC
- Heat consumption at 300degC: 35 kW
- Suction fan Drying rate, max: 400kg/hour
- Noise level: 80 dB(A)
- Atomiser speed, variable up to 45,000 RPM
- Floor space: 2,70m x 2,05m
- Height (with centr. atomiser): 3,08m
- Net weight: 1,100 kgs
- Chamber diameter: 1.15m
- Power supply: 3ph @ 400V & 50HZ

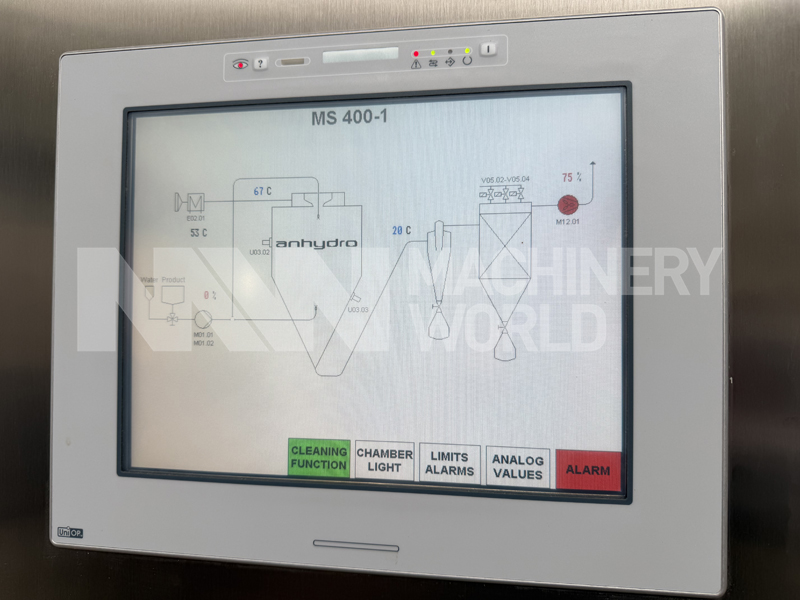

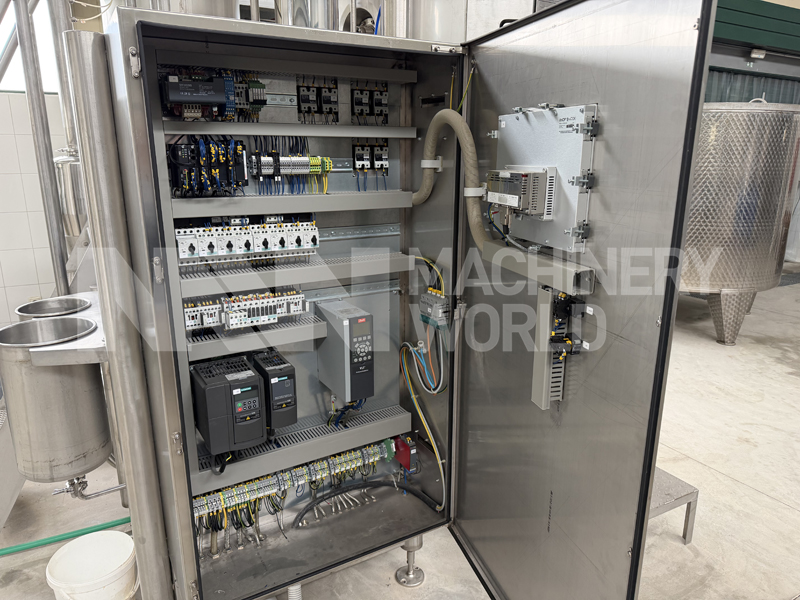

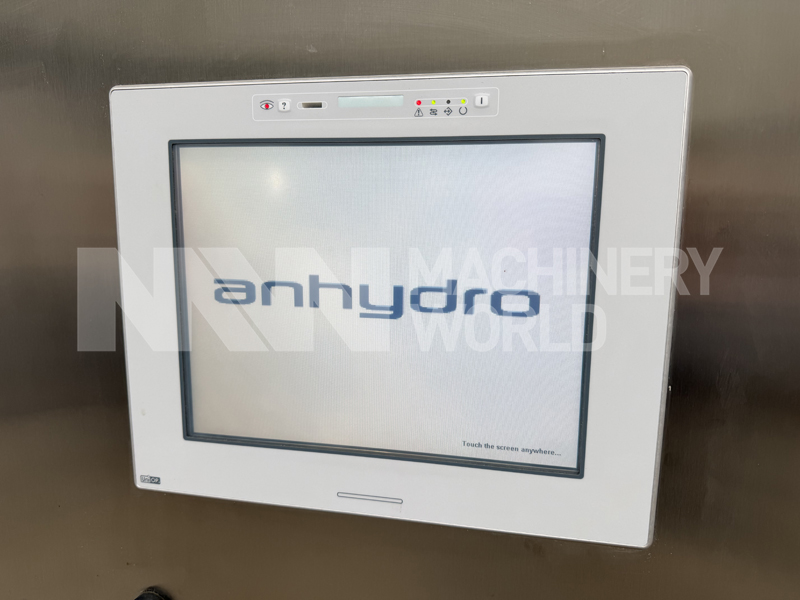

- Equipped with built-in control panel with Siemens PLC
- Spray Dryer Plant includes the following:
- Feed system assembly (10L Water Balance Tank, 25L Feed Tank, Volumetric Feed Pump & Interconnecting feed pipework)

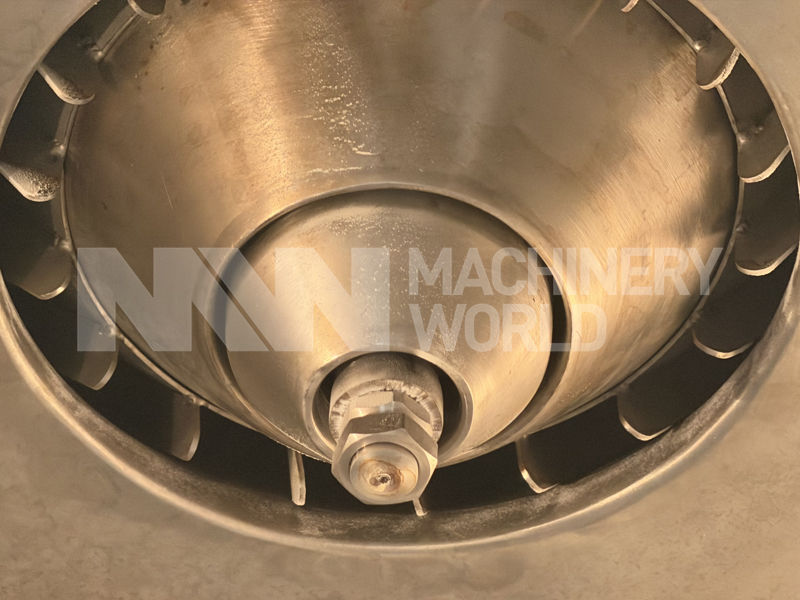

- Centrifugal Rotary Atomiser, Type CH-63
- Drying air system (Air intake filter + Electrical Air heater + Hot air duct)

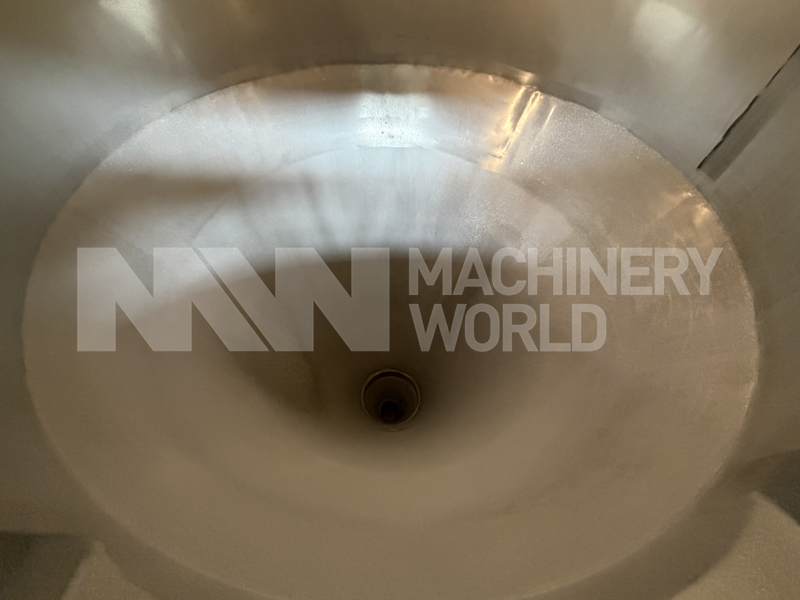

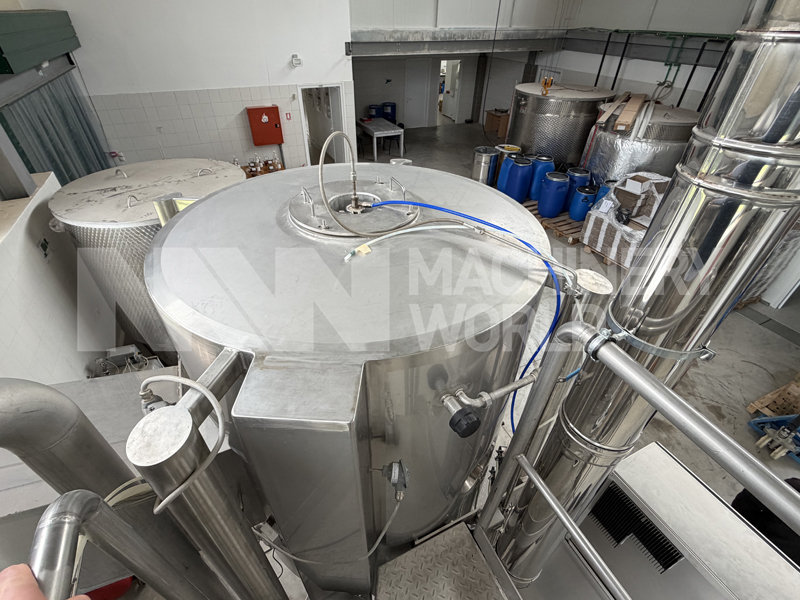

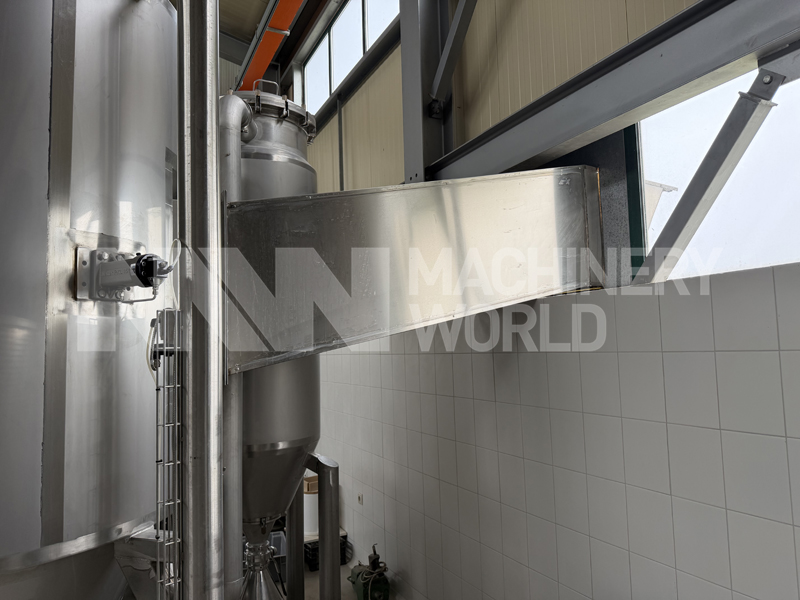

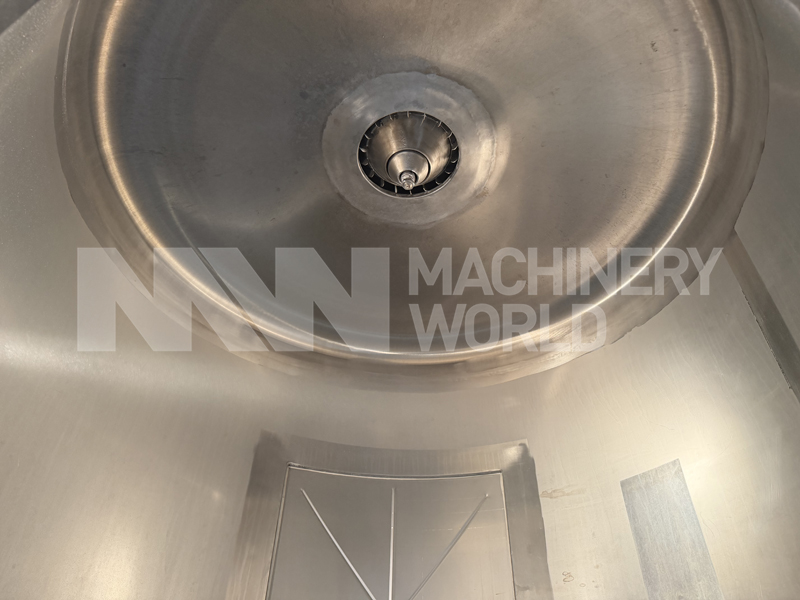

- Drying chamber system (Air distributor + Drying chamber (with pneumatic hammers)+ Air outlet duct)

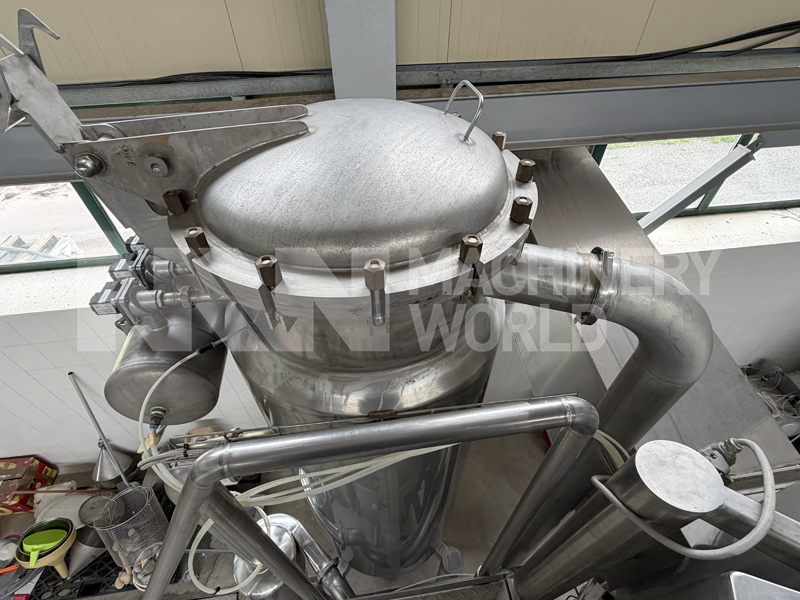

- Cyclone System (Cyclone + Exhaust air duct + Suction fan)

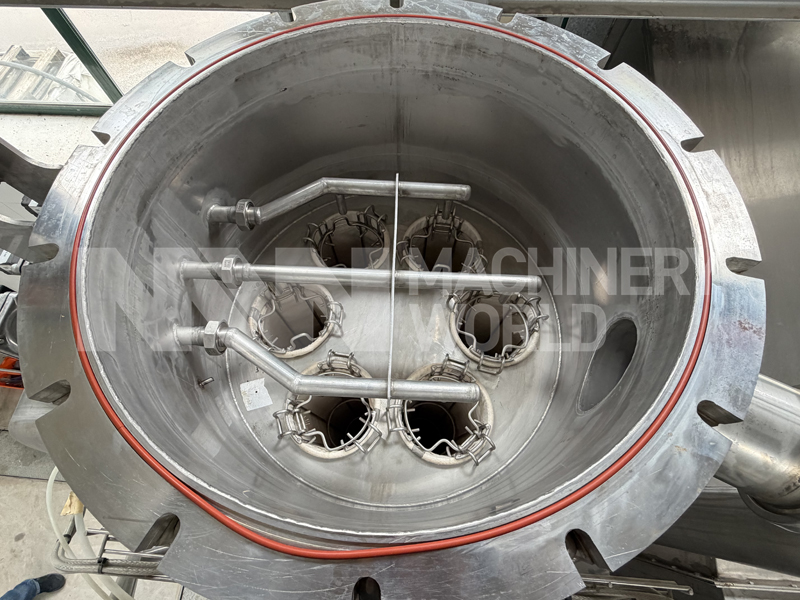

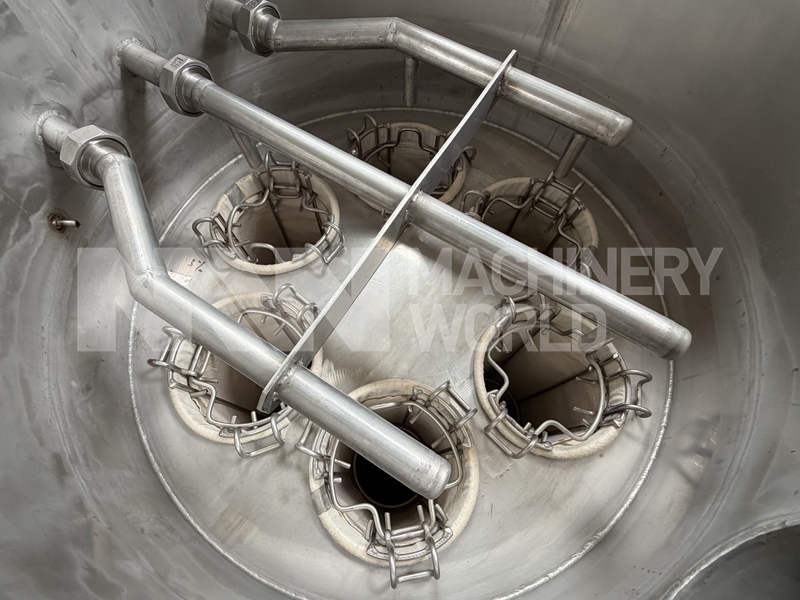

- Bag Filter
- Full documentation available
Country of Manufacture
Denmark

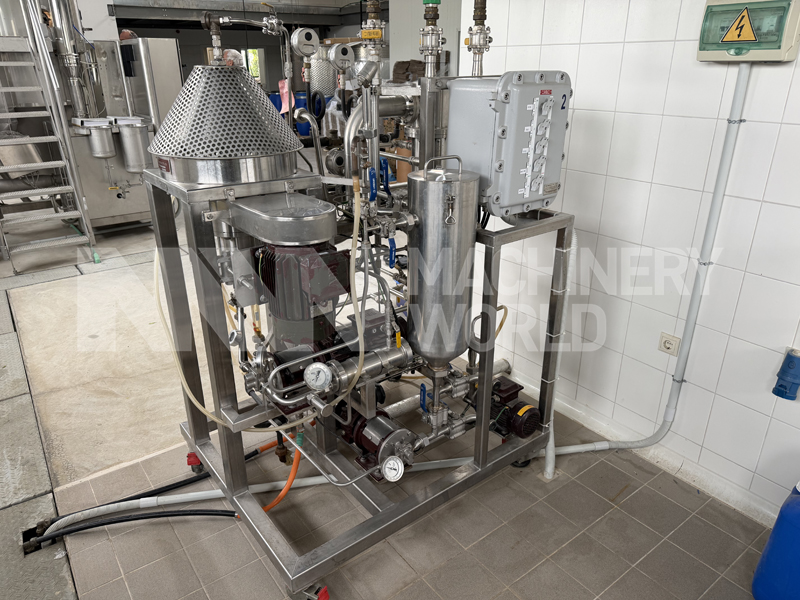

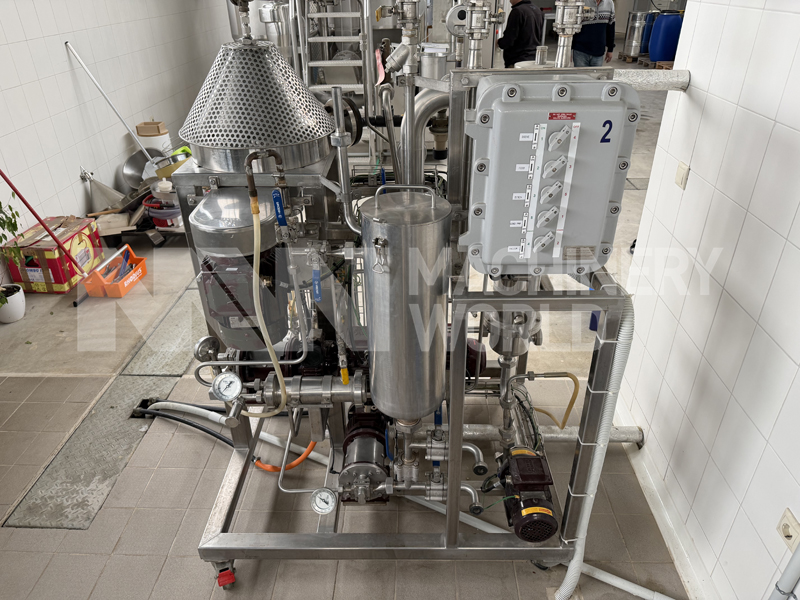

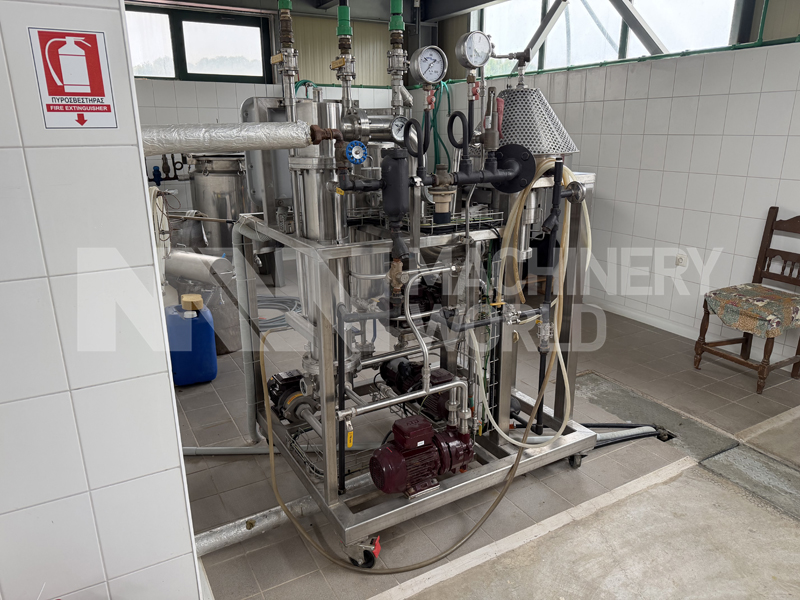

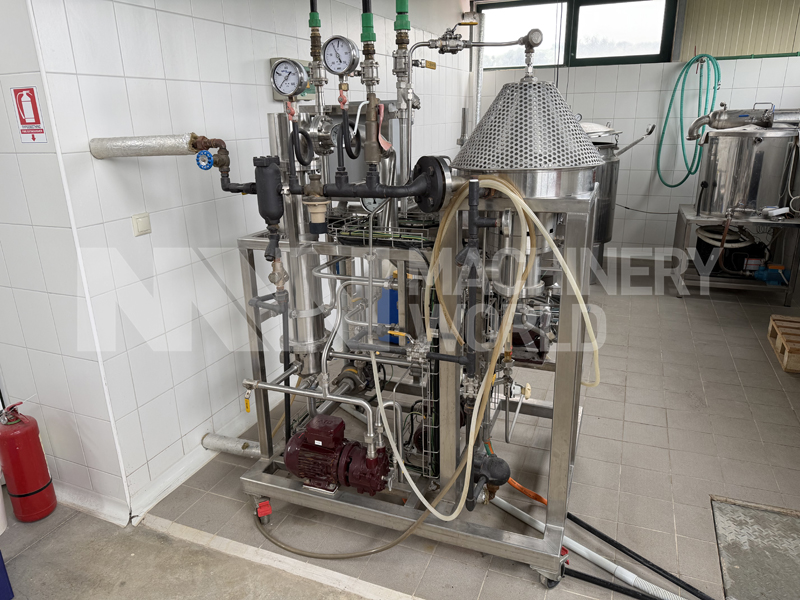

Flavourtech Centritherm Evaporator
Key Features
- Centrifugal thin-film evaporation (~0.1 mm film thickness)
- Extremely short residence time (<1 second)
- Operates under vacuum for low-temperature processing
- Steam-heated rotating cone system for efficient heat transfer
- Scalable design with stacked cones for increased capacity
- Integrated Clean-In-Place (CIP) system
- Hygienic, service-friendly construction
Working Principle
The Centritherm evaporator uses centrifugal force to distribute the product as a very thin film across the surface of rotating, steam-heated cones. This thin-film formation allows for extremely rapid heat transfer and near-instant evaporation under vacuum conditions, significantly reducing thermal exposure.
The concentrated product is continuously discharged via a paring tube, while vapours are directed to an condenser. Steam circulates within the hollow cones, condensing and being efficiently removed to maintain consistent heat transfer. This process ensures gentle, efficient concentration while preserving the integrity of heat-sensitive products.
Evaporator Features
- Manufacturer: Flavourtech Pty Ltd, Australia
- Function: Vacuum Centrifugal Thin-Film Evaporator
- Model: Centritherm CT1-09RM-001

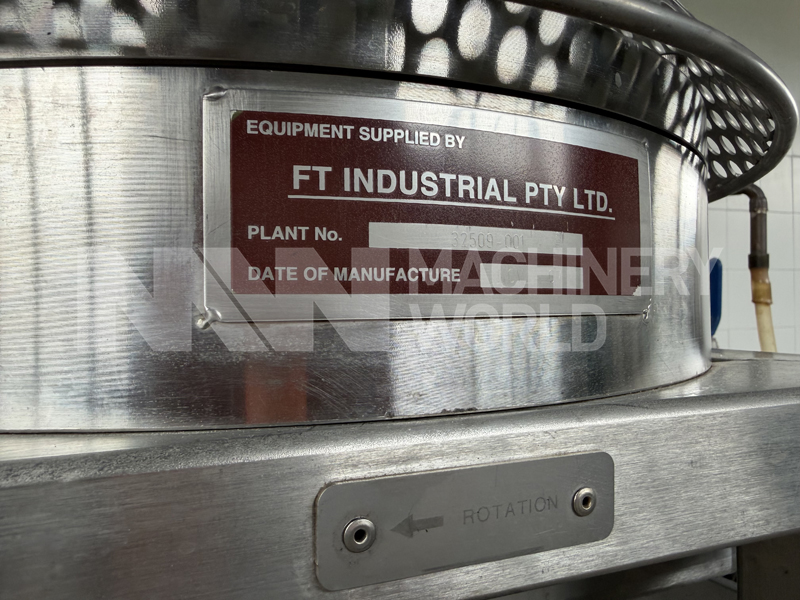

- Serial number: 32509-001
- Year of manufacture: 2007
- Infeed capacity: Approx 90 litres/hour
- Evaporation capacity (Sugar Solution (12° to 65° Brix): 50kg/hour (At a product temperature of 50oC and steam temperature of 120oC)
- Evaporation capacity (Water): 63kg/hour (At a product temperature of 50oC and steam temperature of 120oC)

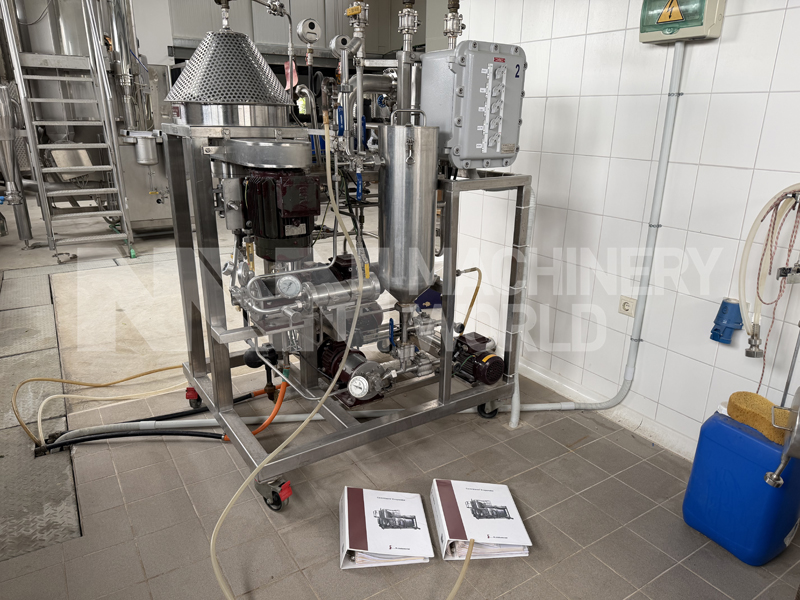

- Full documentation available
Country of Manufacture
Australia
