ROKK RHP 120 Mono Ripple Pump ‘Brand New’

Description

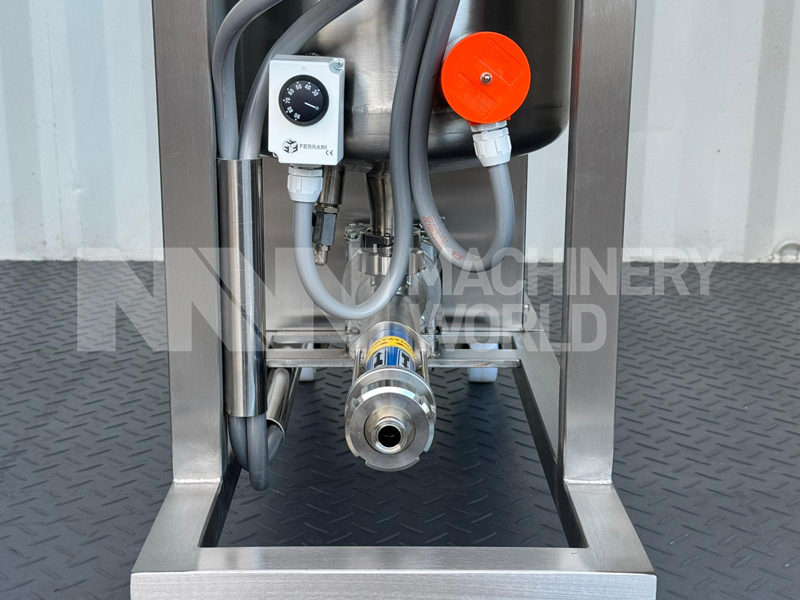

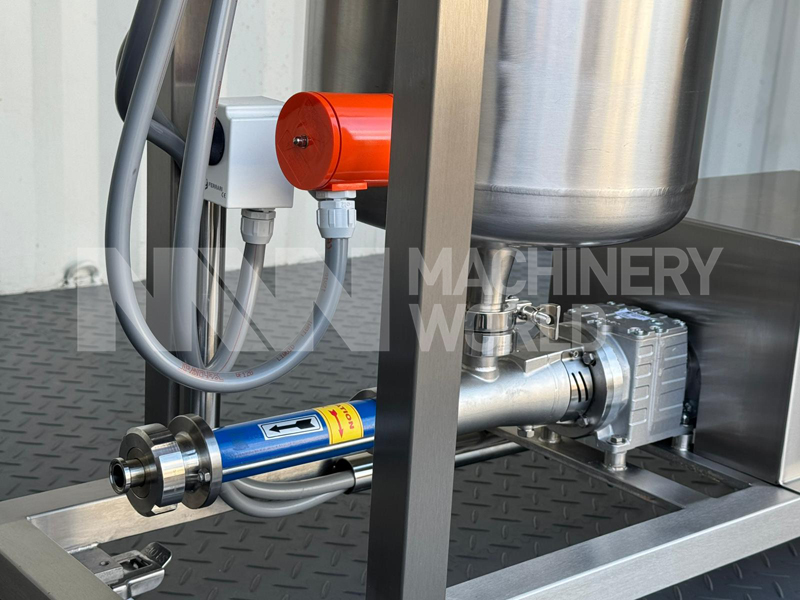

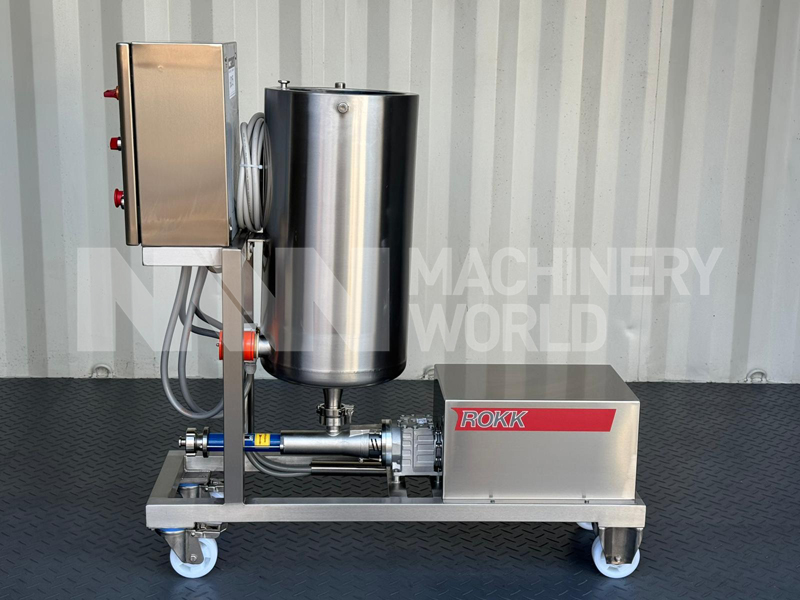

The RHP 120 Mono Ripple Pump from ROKK Processing is a high-performance solution designed for the accurate injection of ripples—syrups, sauces, liquid chocolate, and similar products—into ice cream as it extrudes from a continuous freezer. Engineered for reliability and precision, this pump ensures consistent ripple dosing while maintaining product integrity. Built around a progressive cavity (mono) pump, the RHP 120 is ideal for pumping viscous, delicate, or abrasive products, including those containing suspended solid particles. The system is self-priming and features a 30-litre double-jacketed hopper with an integrated heating element and thermostat control, ensuring optimal product flow and temperature stability, making it also suitable for chocolate sauces. The pump delivers precise and adjustable dosing via an inverter-fed variable speed control, allowing operators to regulate syrup flow from 2 to 120 litres per hour directly from the control panel. All components are mounted on a heavy-duty stainless steel trolley, providing easy mobility and flexibility within the factory. Constructed entirely from AISI 304 stainless steel, the RHP 120 meets the highest standards of hygiene and durability for food processing environments.

Features

• Manufacturer: ROKK
• Model: RHP 120
• Function: Ripple Pump
• Condition: Brand new
• Minimum flow rate: 30 litres per hour
• Maximum flow rate: 120 litres per hour
• Hopper capacity: 30 litres
• Double jacketed hopper equipped with heating element and thermostat control
• Stainless steel construction (AISI 304)
• Inverter fed pump with variable speed control
• Total installed power: 2.5 kW
• Electrical supply: 3phase, 380V & 50HZ
• All components are mounted on a heavy-duty stainless steel trolley for easy mobility within the factory
• Supplied without ripple fittings (Available to order)

Dimensions

• Length: 105 cms
• Width: 35 cms
• Height: 112 cms
• Weight: 70 kgs

Country of manufacture

Italy
