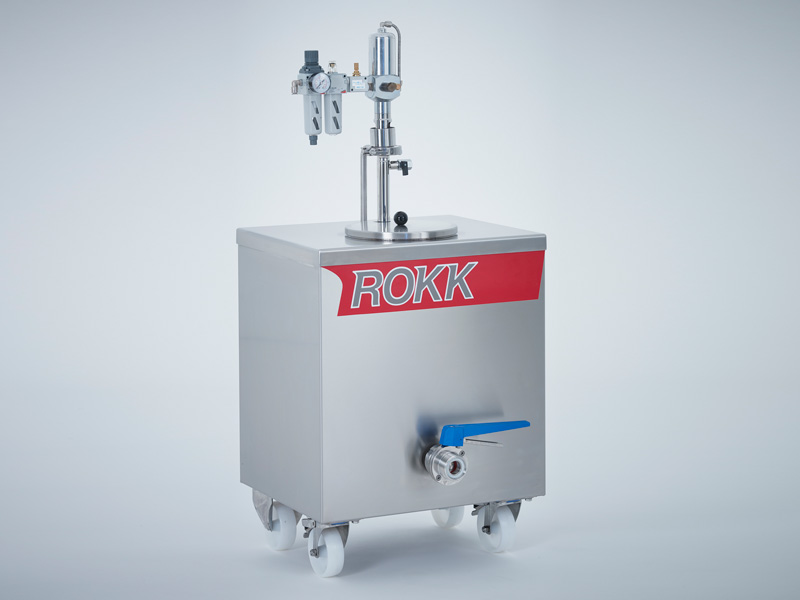

Ripple pump
Comprises
- Stainless steel tank with a capacity of 12 litres.
- Pneumatic volumetric pump that feeds sauce into the ice cream flow or can be connected to a filling machine
- The syrup flow is adjusted by a regulator on the pump
- The syrup flow ranges from 0 up to 60 litres per hour
- Syrup density can range from 1,000 up to 20,000 centipoise
- Butterfly valve for tank emptying and cleaning
Specifications
| Model | RP200 |
| Weight | 35kg |
| Dimensions cm: | 50 x 40 x 130 h |
| Air consumption: | 60lt/min. |
Primary benefits
Well engineered and high reliable: The internal mechanics, quality components and premier materials used in the construction of the RIF 200 seamlessly combine to produce a machine that can be depended on day-in, day-out.
Simple to operate: Each RP200 is simple to control using just the rotary air controller.
Easy to maintain: The durable and hygienic design of the RP200 means that every component is easily accessible, ensuring maintenance is a simple and quick process.
Fully adjustable: The machine is fully adjustable.
Numerous ripple effects can be created when the ROKK RP200 is used with one or more of the many ripple fittings that ROKK can supply.
