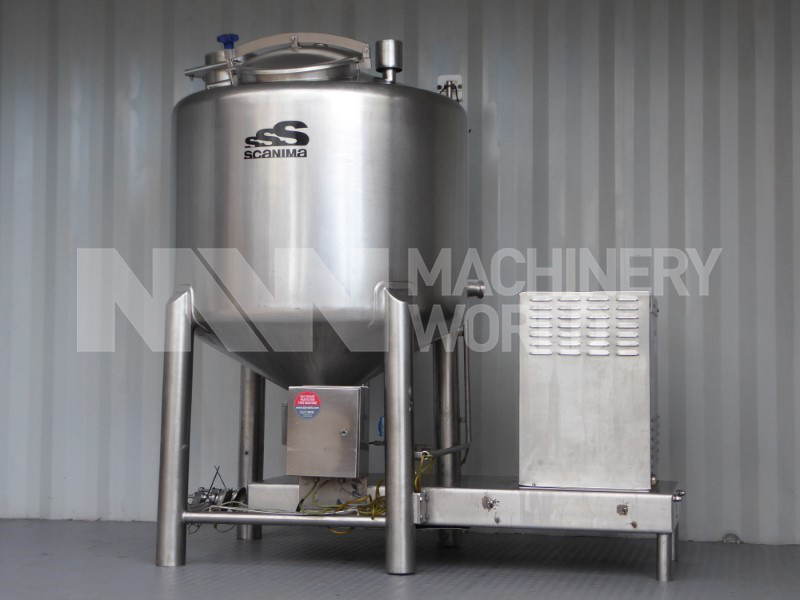

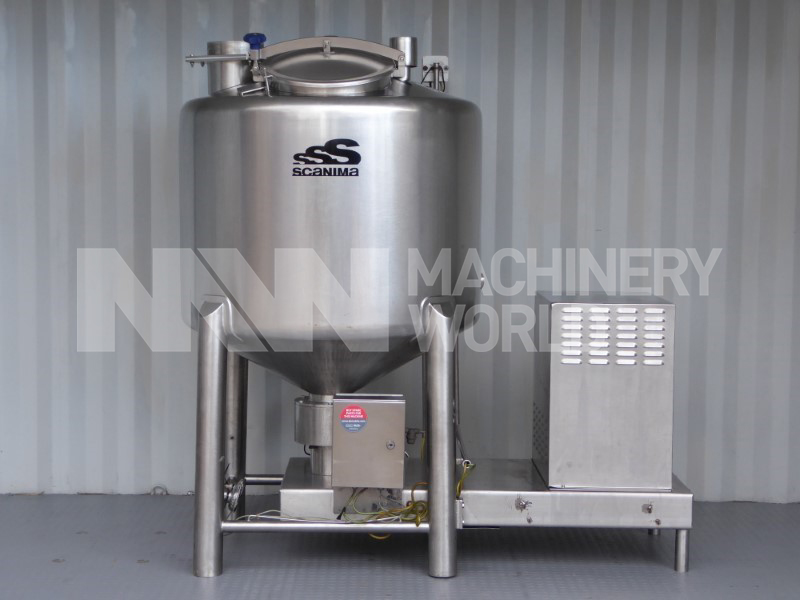

Scanima 1R2S-800 High Sheer Turbo Mixing Vessel

Description

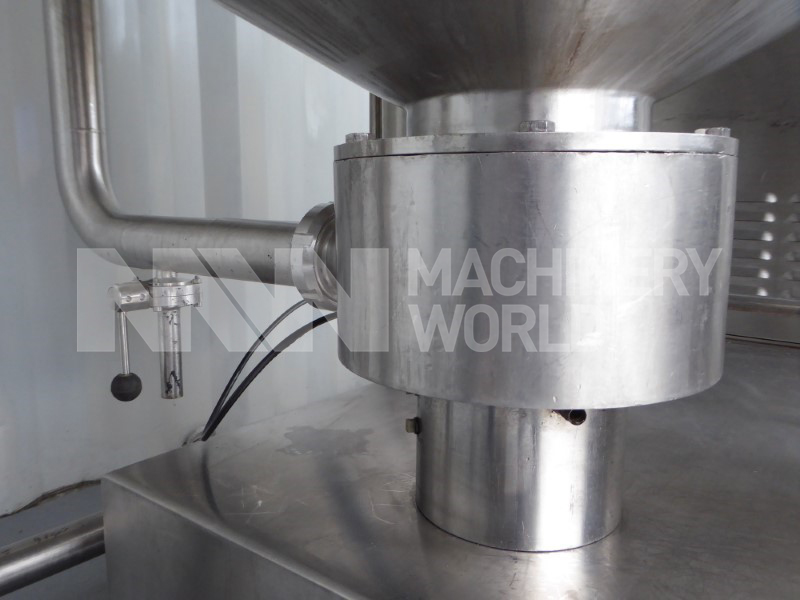

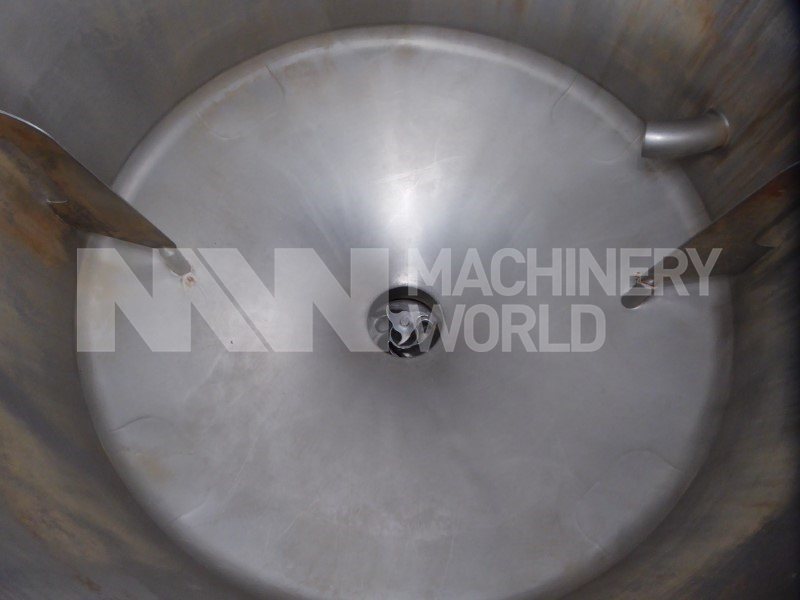

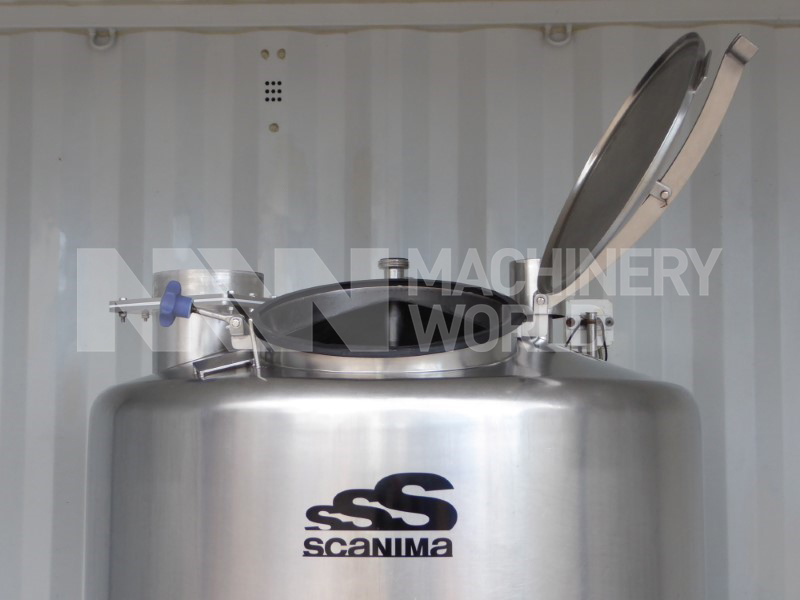

The Scanima 1R2S-800 is a self-discharging mixing plant that can be operated with continuous discharge to a buffer tank. A pre-set amount of (pre-heated) liquid (water, milk, etc) is fed into the buffer tank and brought into circulation over the Scanima turbo mixer. Powder and additives are fed into the mixing vessel or onto the powder funnel. The raw materials are mixed with the liquid to a homogenous product under circulation over a buffer tank. When the desired dry matter content and/or composition is reached, the product is discharged from the buffer tank. The efficient turbo unit produces a homogenous product free from lumps and ensures optimal wetting and processing. Continuous processing is achieved by using two or more buffer tanks, arranged for alternating storing or emptying.

Features

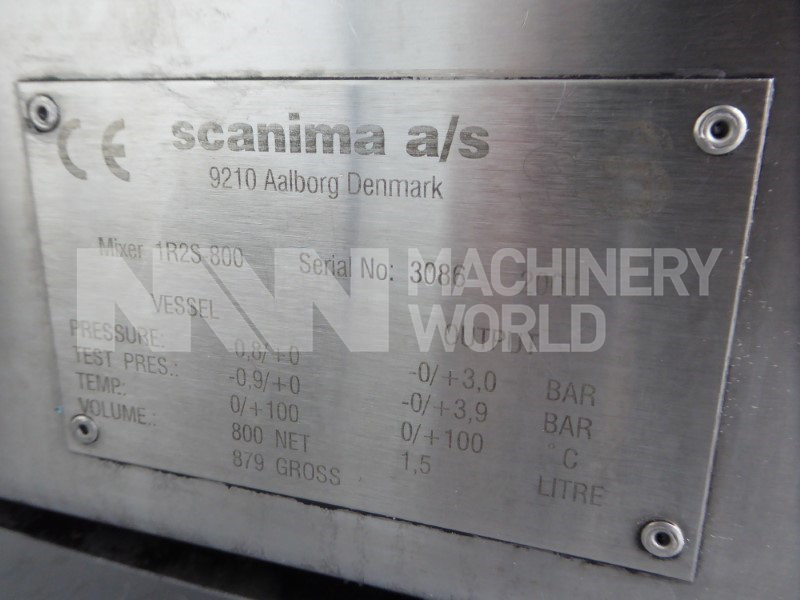

• Manufacturer: Scanima
• Model: 1R2S-800
• Function: High sheer turbo mixing vessel

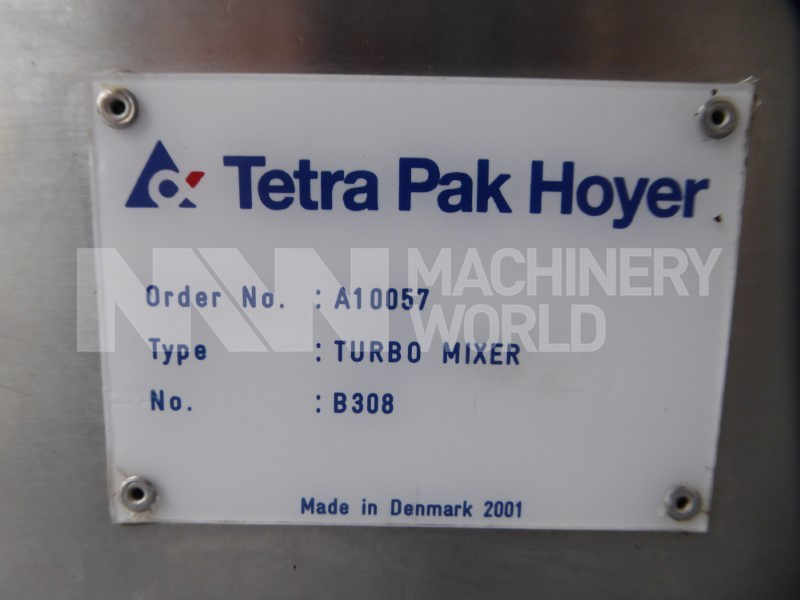

• Serial number: 3086-01
• Capacity: 800 litre
• Year of manufacture: 2001
• Vessel pressure: -0.8 / +0 bar
• Vessel test pressure:-0.9 / +0 bar
• Vessel max. temperature: 0/+100 degC
• Motor power: 30 kW
• Motor speed: 2940 RPM
• Stainless steel construction
• Electrics: 380V/50 Hz/3 phase
• Instruction manual available
• See ‘Technical Doc’ attached for drawing.

Country of Manufacture

Denmark
