Seital SE15X ‘Brand New’ Milk Separator – 3.500 l/h

Description

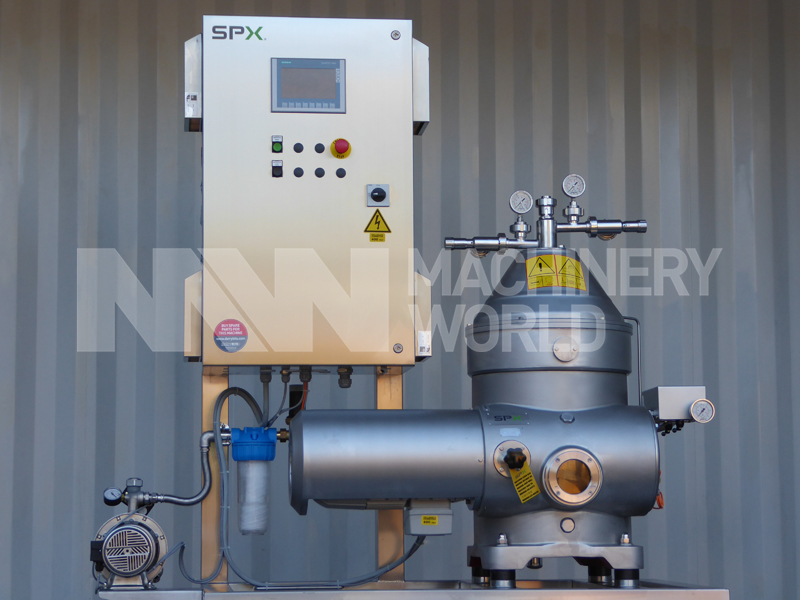

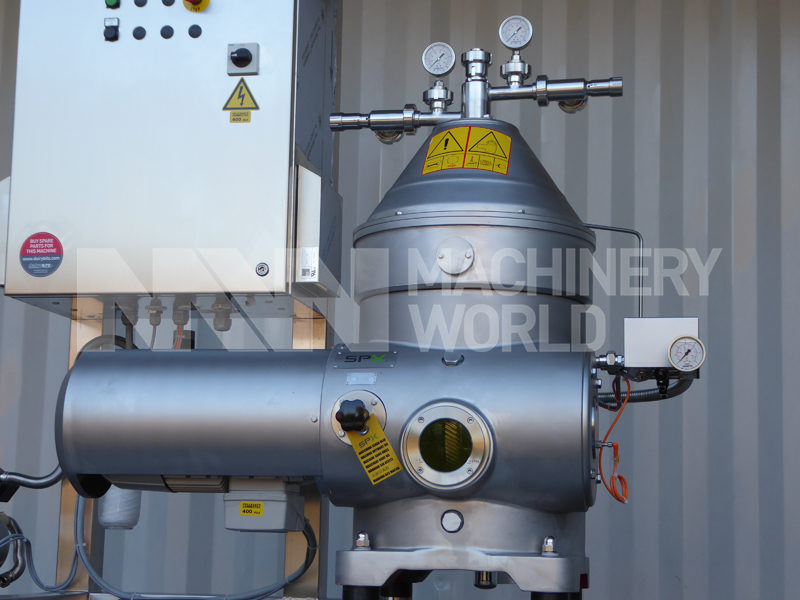

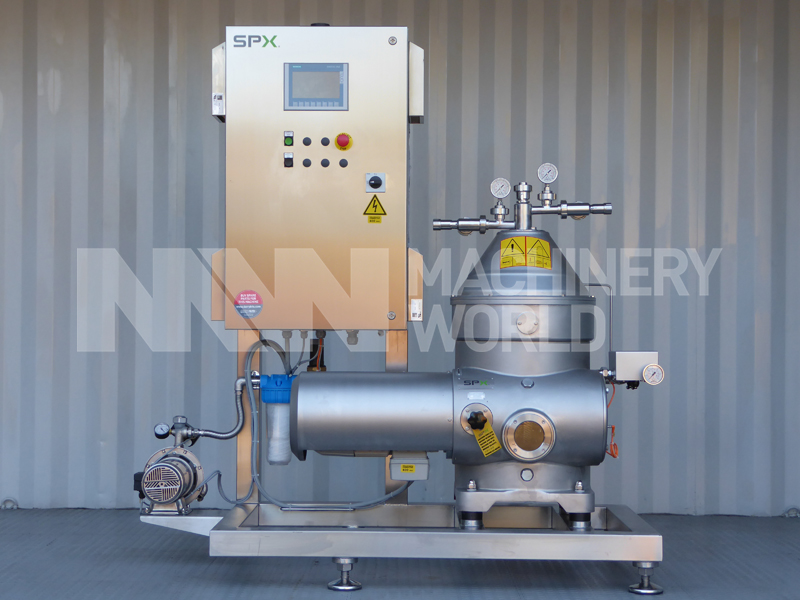

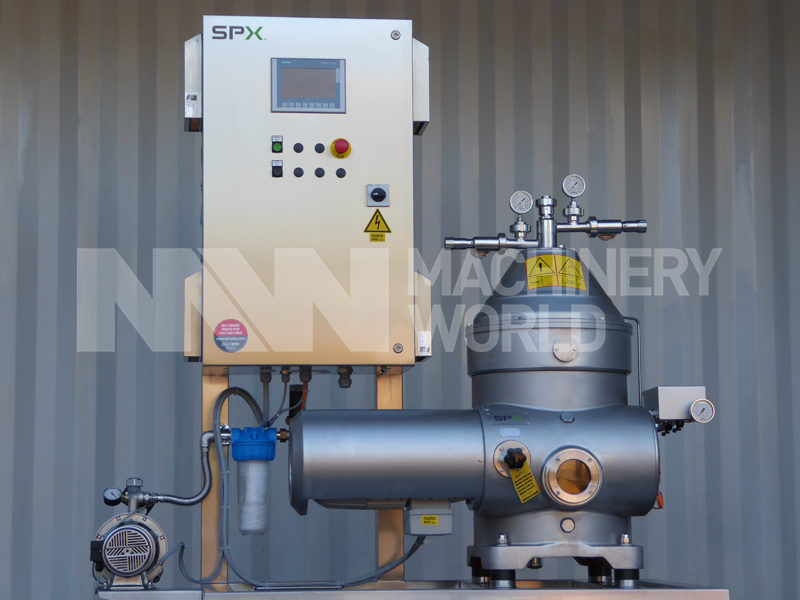

The SE15 X is a self-cleaning centrifugal separator for milk skimming, standardization, cleaning, and whey skimming. The machine is constituted by a cast-iron frame coated by stainless steel, on which are installed the following components;

• two shafts with a couple of helicoidal gears with orthogonal axes, elastic coupling, ball bearings, etc.
• motor
• manual brake
• speed sensor
• sight glass to check the movement of the gear (bowl) and oil gauge glass
• bowl
• annular cyclone collecting the sludge discharge and the bowl protection cover
• inlet - outlet flow unit
• device for operating water injection in the bowl

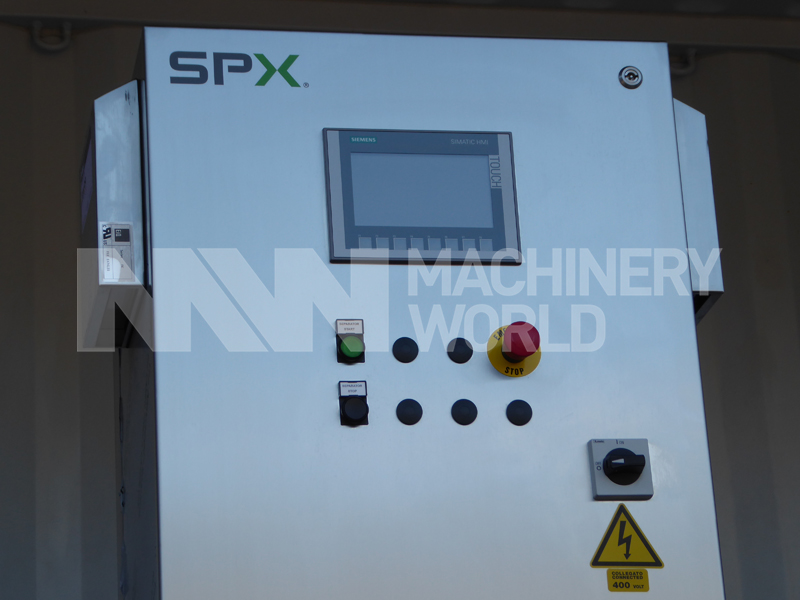

The supply also includes the electric panel, the operating water system (surge tank, filter, pressure reducer, and pressure switch) and a set of special spanners for the bowl.

Features

• Manufacturer: Seital

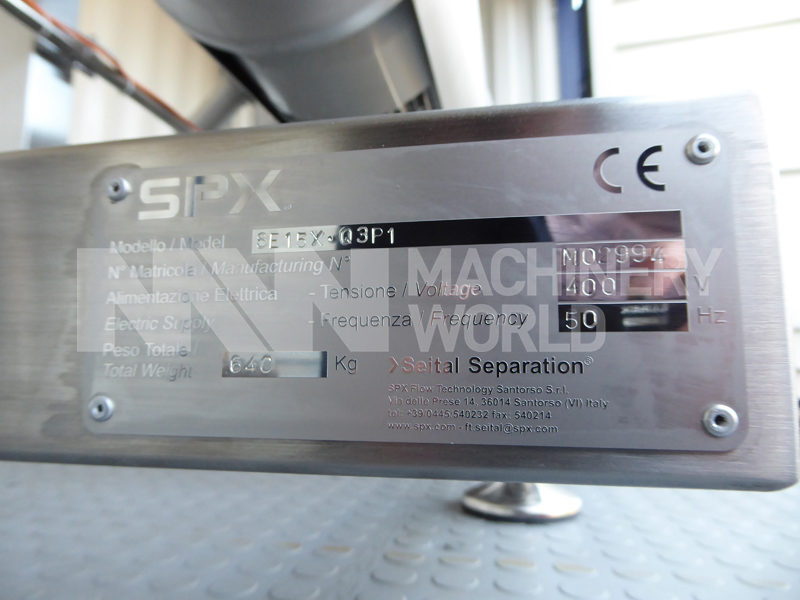

• Model: SE15X-Q3P1
• Function: Milk skimming, standardization and cleaning
• Serial number: M02994
• Includes 12 months manufacturers warranty
• Year of manufacture: 2019
• Milk skimming capacity: 3,500 litres / hour
• Whey skimming capacity: 5,000 litres / hour
• Standardization / cleaning capacity: 5,000 litres / hour
• Solid chamber capacity: 1,7 litre
• Bowl speed: 11,000 RPM
• Motor speed: 1,500 RPM
• Maximum product density: 1,1 kg/dm3
• Maximum sludge density: 1.35 kg/dm3
• Maximum product temperature: 95degC
• Minimum product temperature: 3degC
• Processing temperature: 45-55 degC
• Total installed power: 7.5 kW
• Electrics: 400 Volts / 3 Phase / 50 Hz
• Bowl: Superduplex, duplex and AISI 304
• Mounted to stainless steel skid with adjustable feet
• Operation: Electro-mechanical controlled by PLC
• Drive and motor control: with frequency converter
• Documentation included

Dimensions

• Depth: 91 cms
• Width: 178 cms
• Height: 181 cms
• Weight: 640 kgs

Country of Manufacture

Italy
