Description

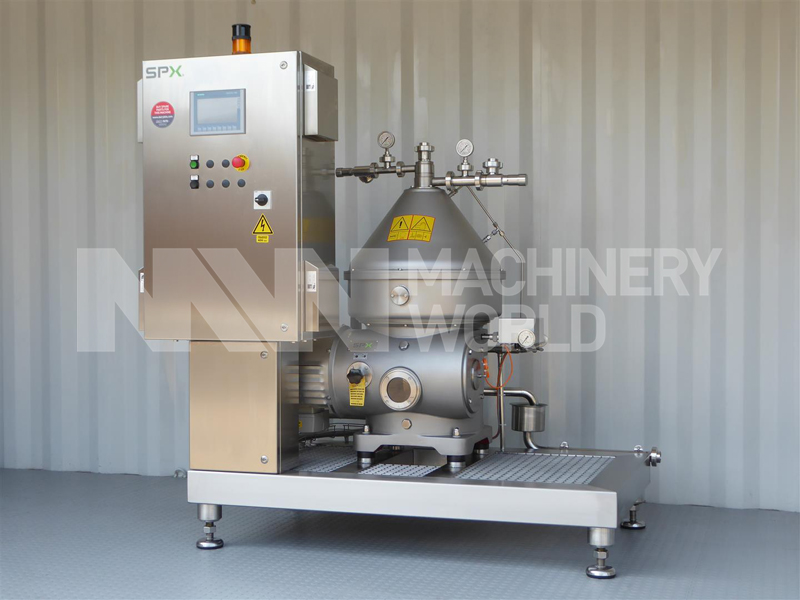

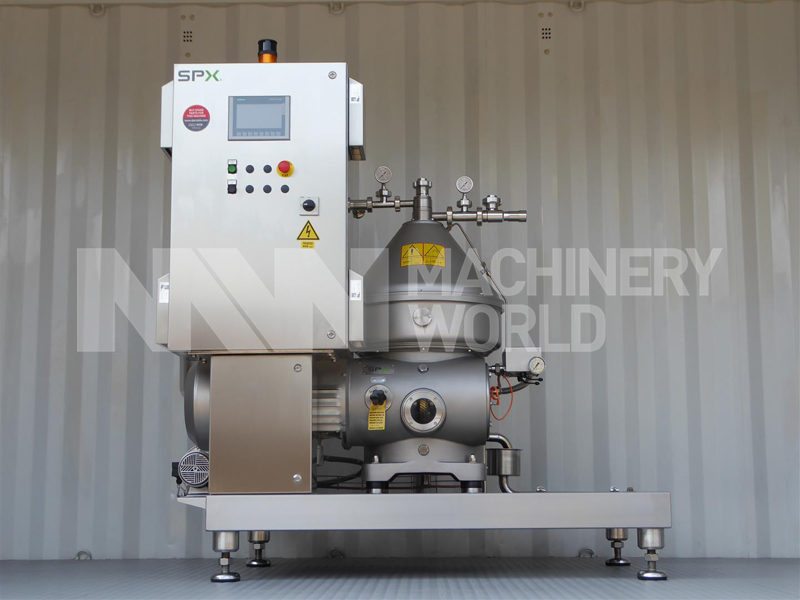

The SE20 X is a self-cleaning centrifugal separator for milk skimming, standardization, cleaning, and whey skimming. The machine is constituted by a cast-iron frame coated by stainless steel, on which are installed the following components;
- two shafts with a couple of helicoidal gears with orthogonal axes, elastic coupling, ball bearings, etc.

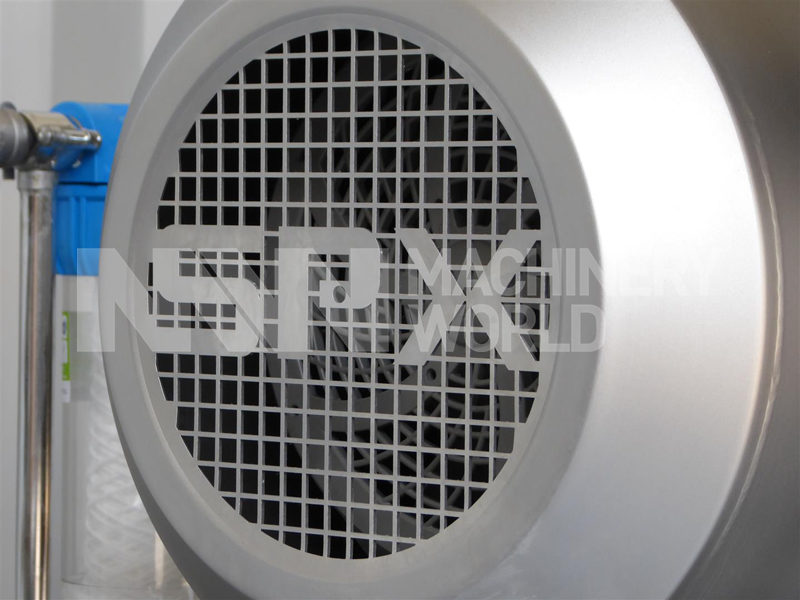

- motor
- manual brake
- speed sensor

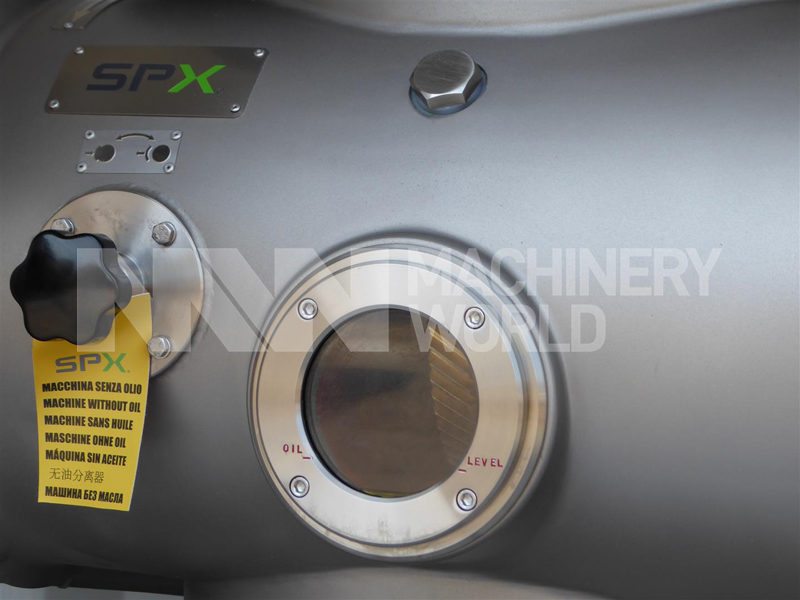

- sight glass to check the movement of the gear (bowl) and oil gauge glass
- bowl
- annular cyclone collecting the sludge discharge and the bowl protection cover
- inlet – outlet flow unit
- device for operating water injection in the bowl
The supply also includes the electric panel, the operating water system (surge tank, filter, pressure reducer, and pressure switch) and a set of special spanners for the bowl.
Features
- Manufacturer: Seital
- Model: SE20X
- Function: Milk skimming, standardization, and cleaning
- Serial number: M03019
- Year of manufacture: 2019
- Milk skimming capacity: 5,000 litres/hour
- Standardization / cleaning capacity: 8,000 litres / hour
- Solid chamber capacity: 2,7 litre
- Bowl speed: 7,500 RPM
- Motor speed: 1,450 RPM
- Maximum product density: 1,1 kg/dm3
- Maximum sludge density: 1.35 kg/dm3
- Maximum product temperature: 95degC
- Minimum product temperature: 3degC
- Processing temperature: 45-55 degC
- Total installed power: 11 kW
- Electrics: 400 Volts / 3 Phase / 50 Hz
- Skimming efficiency: 0.040% – 0,0055% (Rose Goblieb System)
- Bowl: Super duplex, duplex and AISI 304
- Mounted to stainless steel skid with adjustable feet
- Includes electrical control panel
- Documentation included
Dimensions
- Depth: 118.5 cms
- Width: 180.5 cms
- Height: 176.8 cms
- Weight: 950 kgs
Country of Manufacture
Italy
