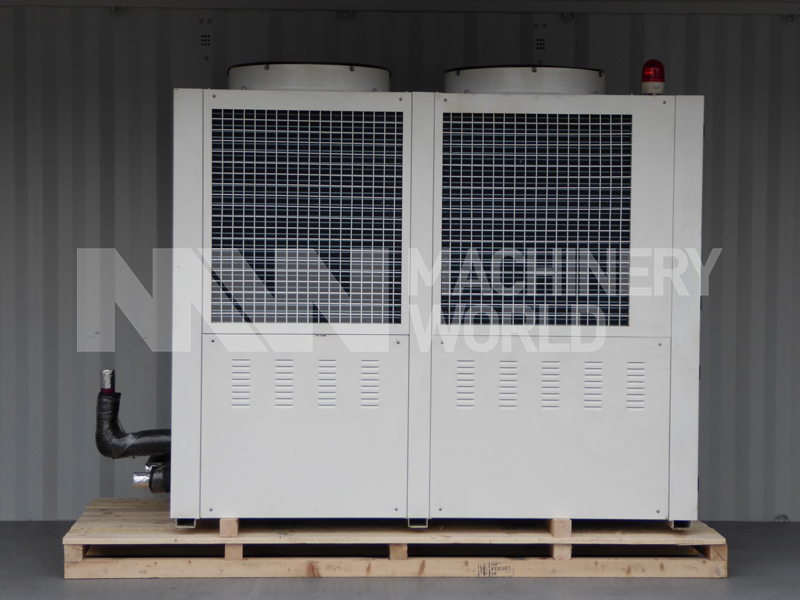

Shelton SAE-IAC 25 (25 HP Unit) Industrial Water Chiller

Description

Shelton Compact VFD Inverter Chillers harnesses inverter technology to help you reduce energy use over 30%. The inverter technology also has a smaller starting current and torque, eliminating large inrush current associated with conventional units. As with all Shelton Chillers, there is minimum cycling of the chiller unit, thereby prolonging the chiller's lifespan.

Features

• Manufacturer: Shelton
• Model: SAE-IAC 25
• Function: Industrial Water Chiller
• Serial number: 250230215
• Type: Inverter driven air cooled
• Year of manufacture: 2012
• Refrigerant: R22
• Compresser HP: 25
• Includes water circulation pump and secondary pump
• Includes 800 litre water tank
• Unit running at 1 degC
• Temperature min / max: 0 / 30 degC
• Compressor input: 19.1 kW
• Circulation pump input: 0.75 kW
• Process pump input: 1.1 kW
• Fan input: 1.5 kW
• Voltage: 415V / 50Hz /3 Phase
• Includes instruction manual

Dimensions

• Length:265 cms
• Width:110 cms
• Height:205 cms
• Weight:800 kgs

Country of Manufacture

Singapore
