Silverson FLB60 Flashblend Inline High Shear Mixer Powder Dissolver (Year 2007)

Description

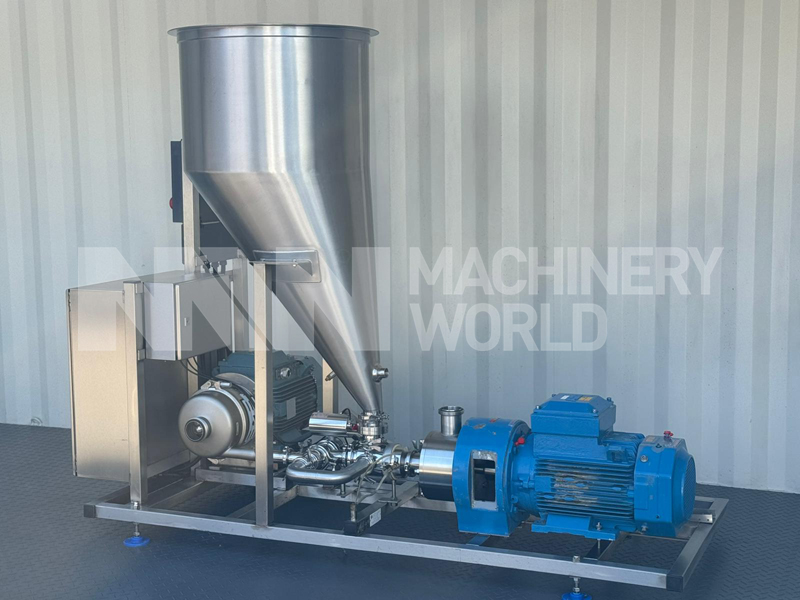

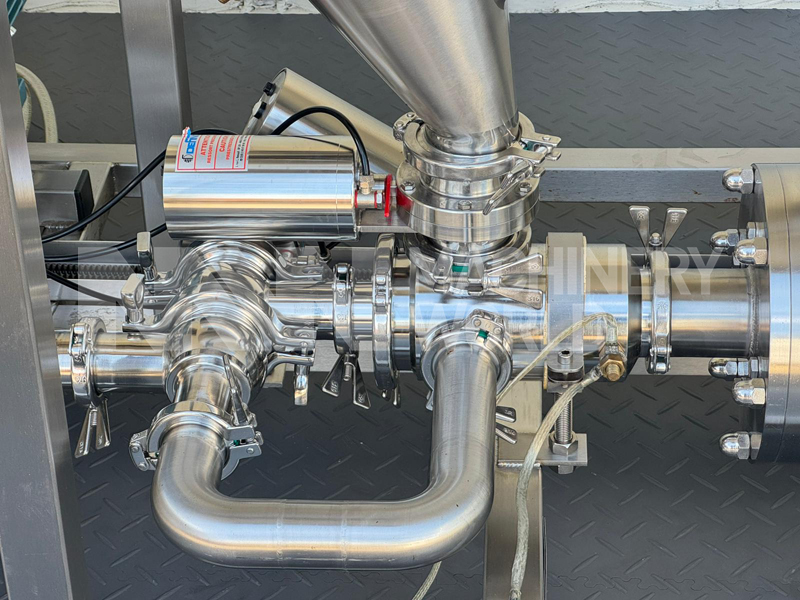

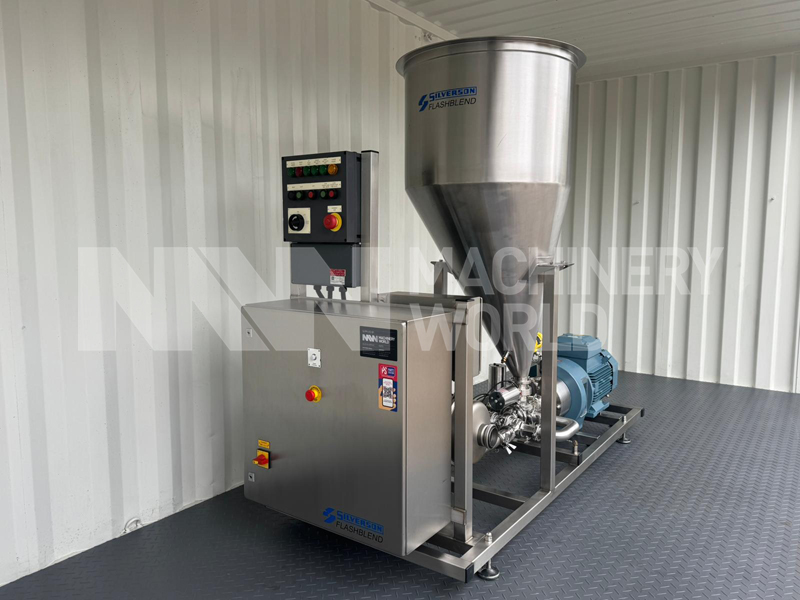

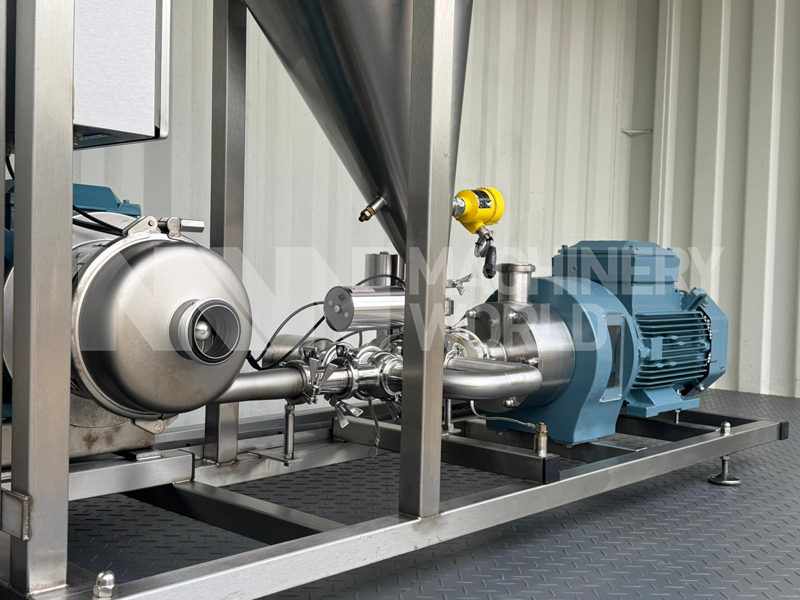

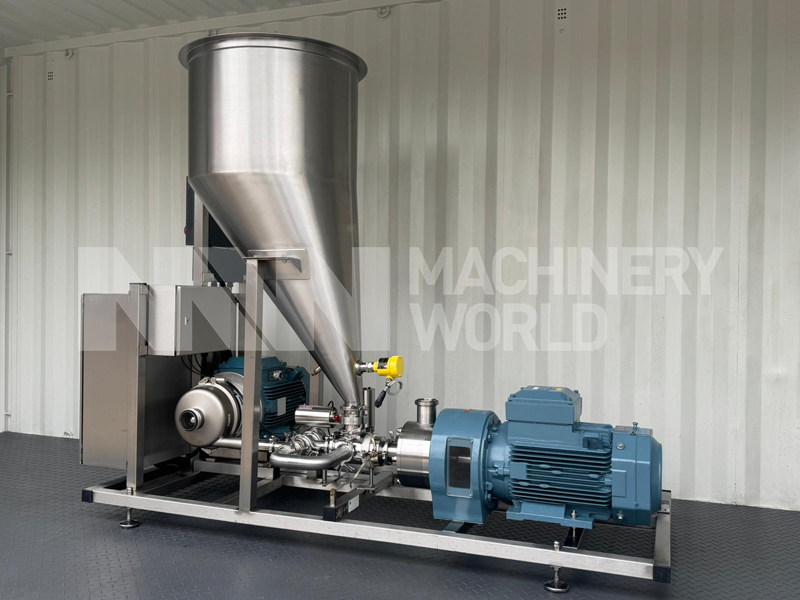

This is a used Silverson FLB60 Inline High Shear Mixer Dissolver. Silverson FLB60 Inline High Shear Mixer Dissolvers has a recommended powder feed capacity flow rate of approximately 15,000kg per hour, although this can vary based on the type of powder and its solubility including the type of the liquid being pumped. The Silverson FLB60 Flashblend Inline High Shear Mixer Dissolver is specifically engineered to quickly wet powders into liquids. It is capable of processing a variety of powders that create low-viscosity liquids when dissolved, resulting in a light viscous gel. The Silverson FLB60 Flashblend Inline High Shear Mixer Dissolver includes the following components: 1) Silverson Inline High Shear Mixer, 2) APV Centrifugal Pump, 3) Blend Injector or Venturi, 4) Powder Hopper, 5) Pneumatically Operated Actuated Butterfly Valve, 6) Pneumatically Operated Actuated Divert Valve for CIP Mode, and 7) Electrical Control Panel. This used Silverson FLB60 Inline High Shear Mixer Dissolver is available for immediate sale.

Specification

• Make: Silverson Machines Ltd, England
• Type: Flashblend FLB60
• Model: Flashblend Inline High Shear Mixer Dissolver

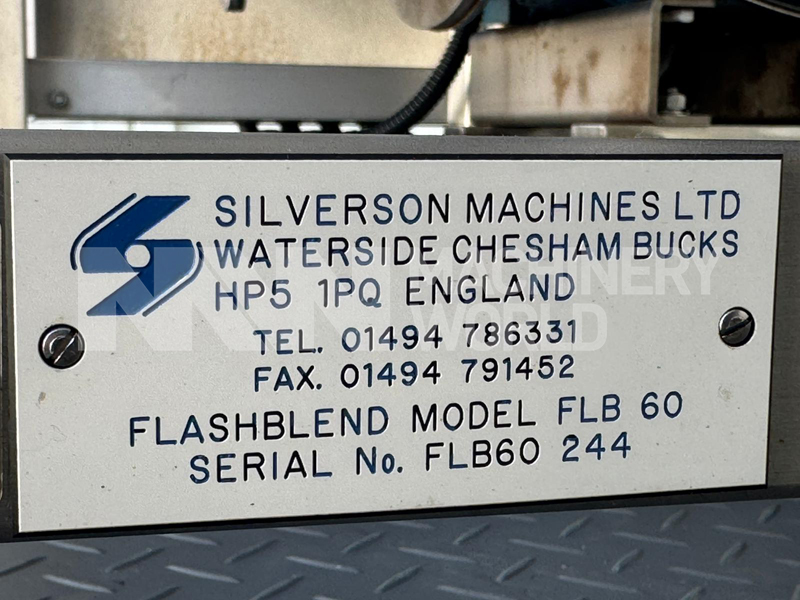

• Serial Number: FLB60 244
• Year of Manufacture: 2007
• Construction: 316 grade Stainless Steel Product Contact Parts
• Typical Powder Flow-rate: 15,000kg per hour (Varies depending on the type of powder, its solubility and type of liquid being pumped through)
• Nominal Flow-rate during Mixing Operation: Approx. 26,000 LPH
• Nominal Flow-rate during CIP Cleaning Operation: Approx. 45,000 LPH
• Total Installed Power: 26kw

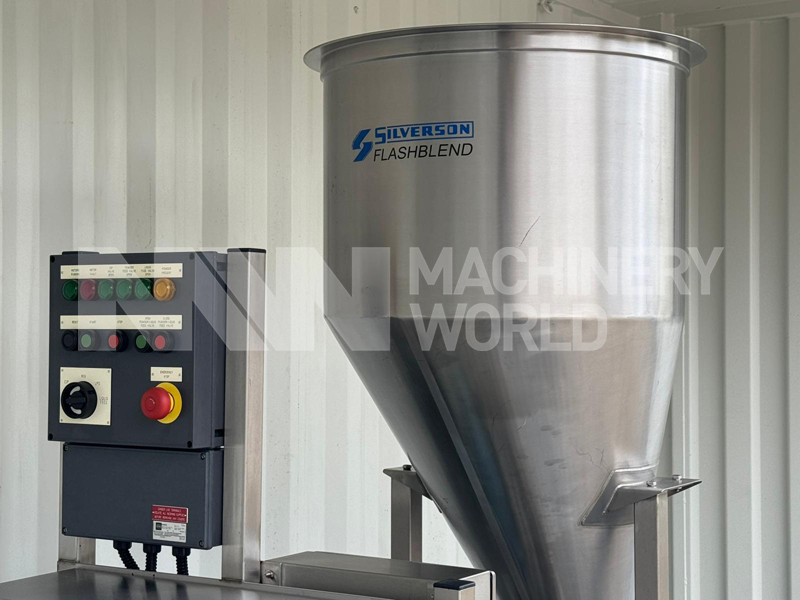

• Standard Hopper Volume: Approx. 300 Litres

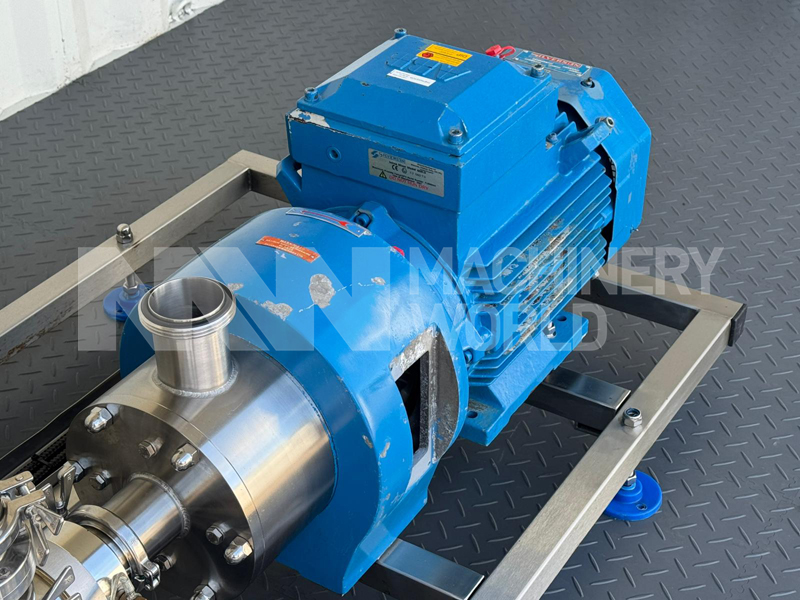

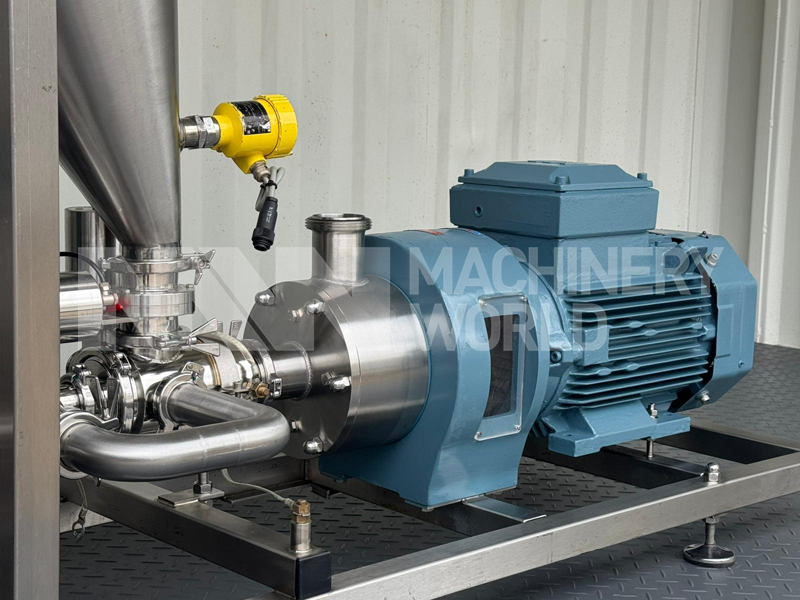

• High Shear Mixer Dissolver: Make: Silverson, England Model: 600LS High Shear Head Type (Stator): General Purpose High Shear Head Motor Power: 15kw, 3-Ph & 50Hz Speed: 2940 RPM Standard Inlet/Outlet Size: 3 inch

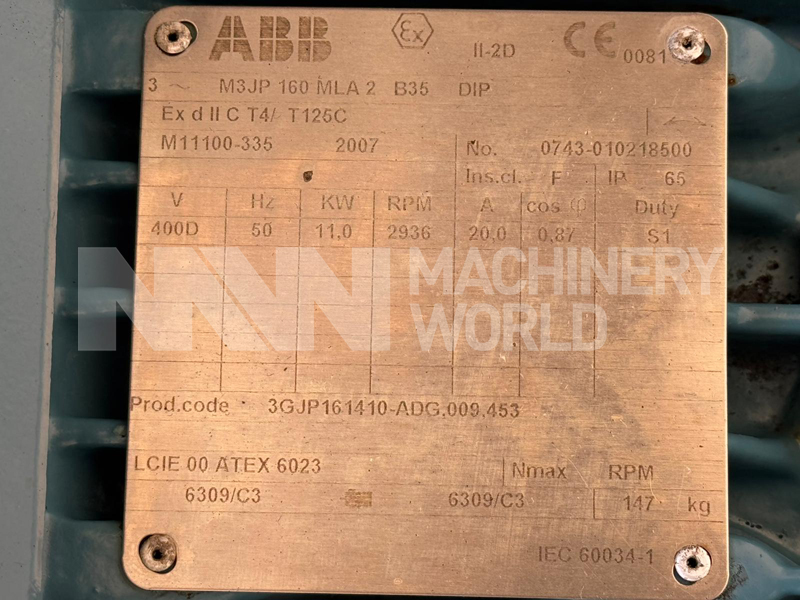

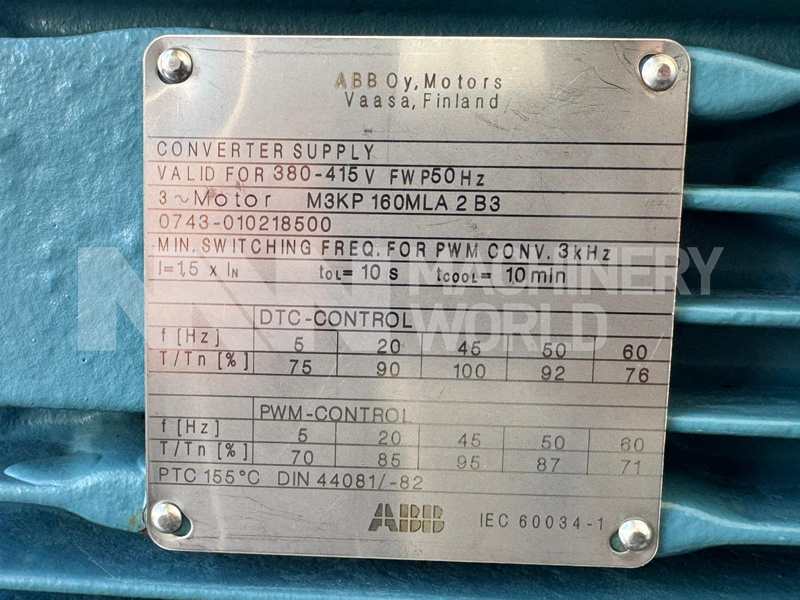

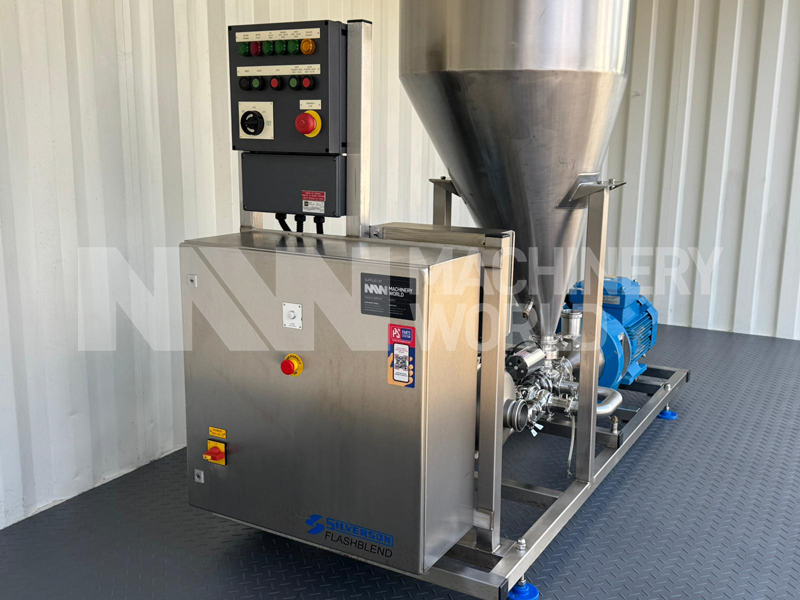

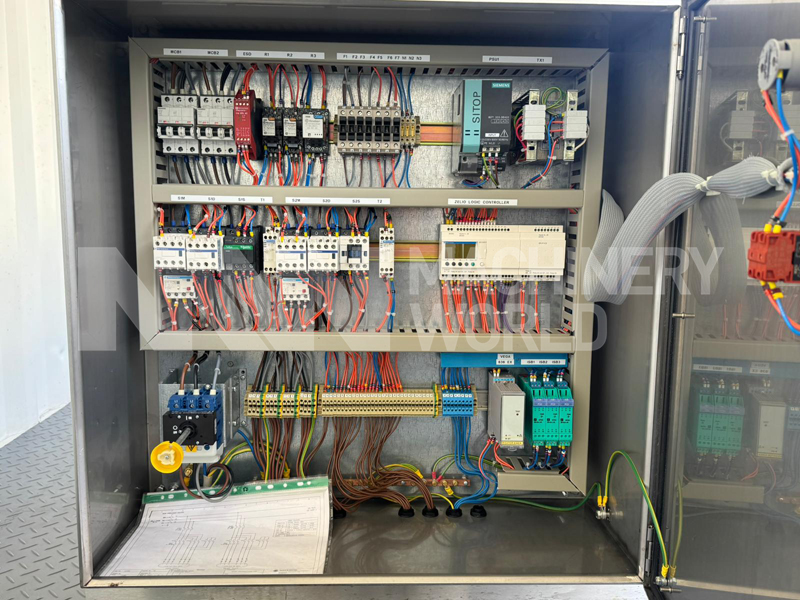

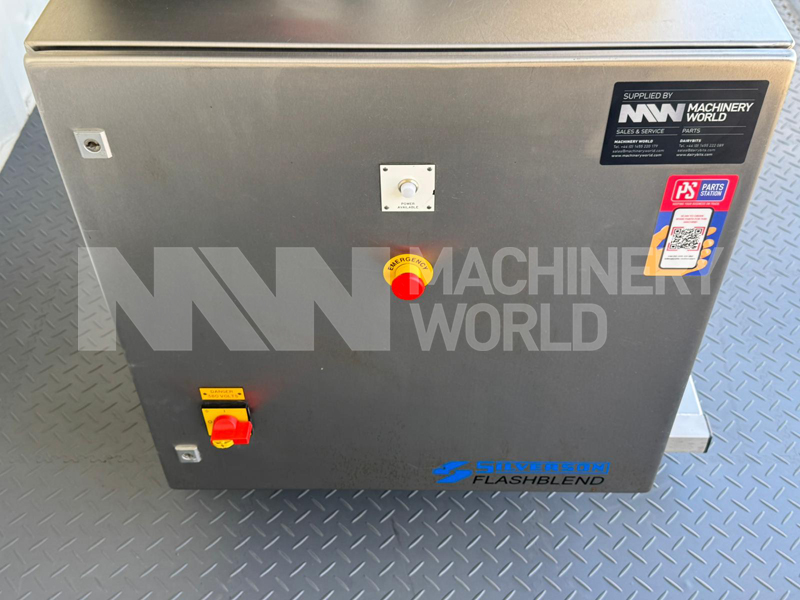

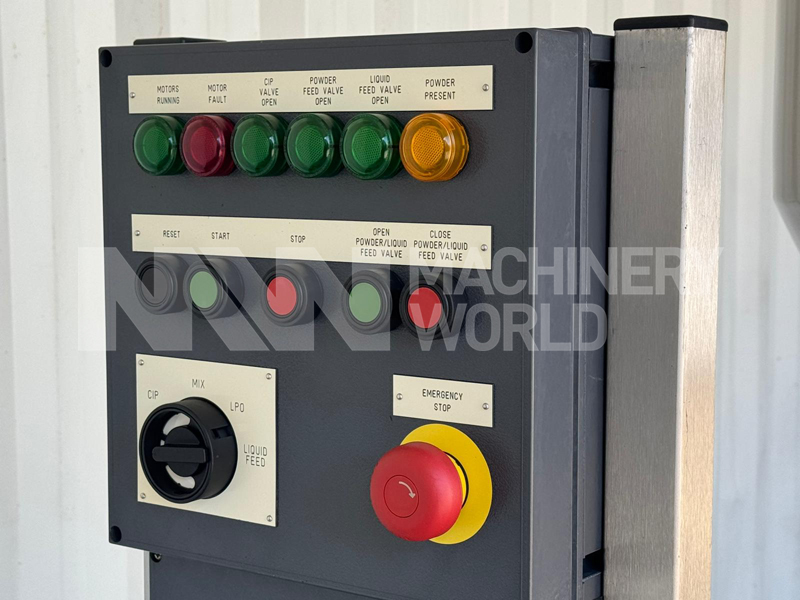

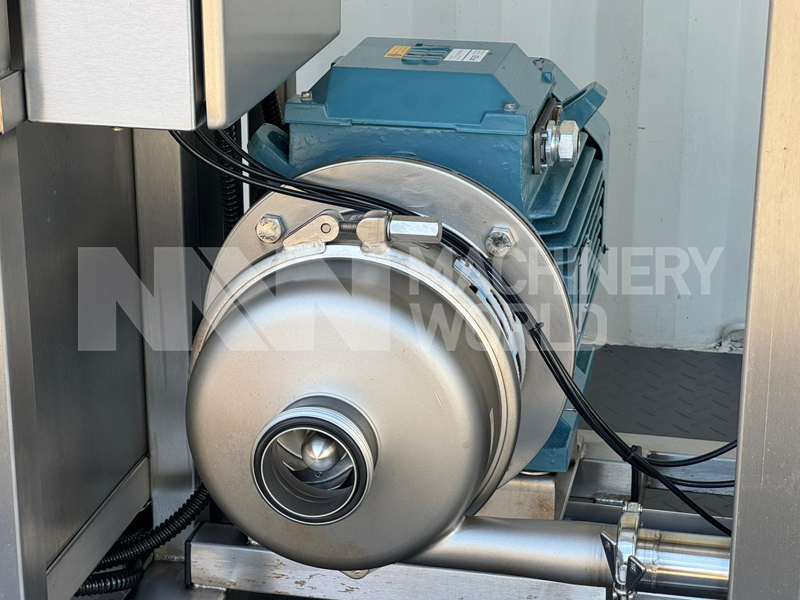

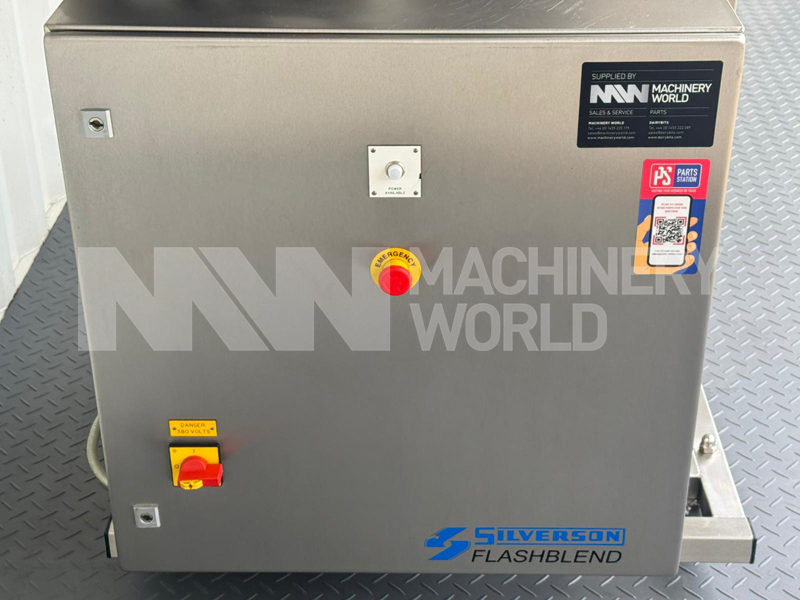

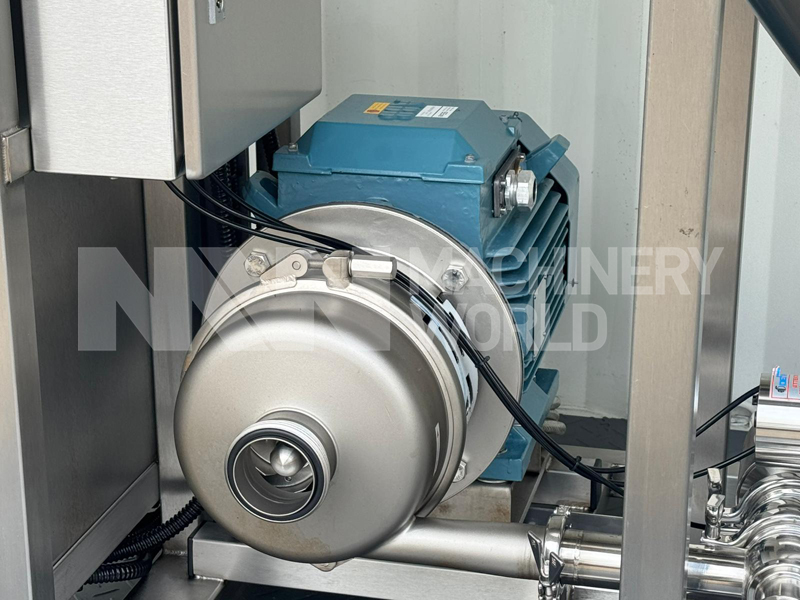

• Centrifugal Pump Make: APV, England Motor Power: 11kw, 2900 RPM, 3-Ph & 50Hz Standard Inlet/Outlet Size: 3 inch Control Panel: Comes Fully Integrated
• Additional Details: Silverson Flashblend Mixer comes built on Stainless Steel Skid.

Dimensions

Overall Length: 2100mm Overall Width: 1100mm Overall Height: 2000mm

Country of Manufacture

England
