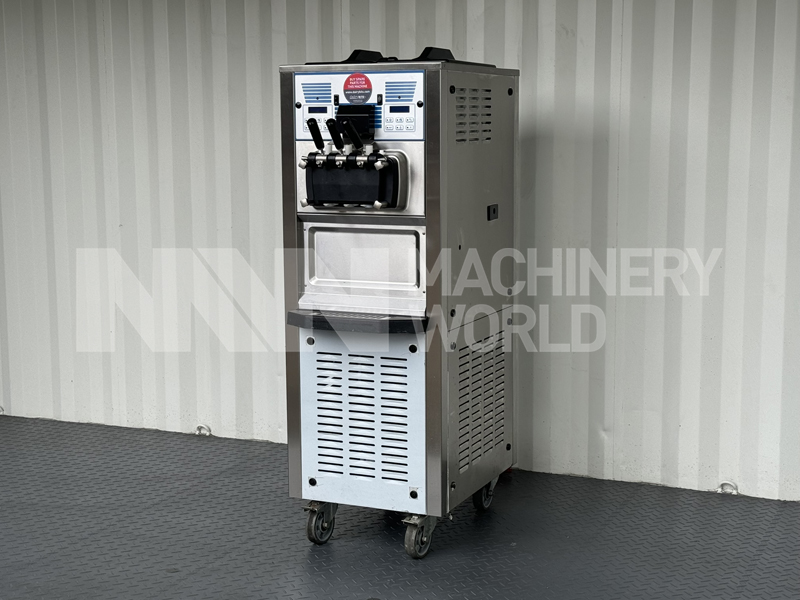

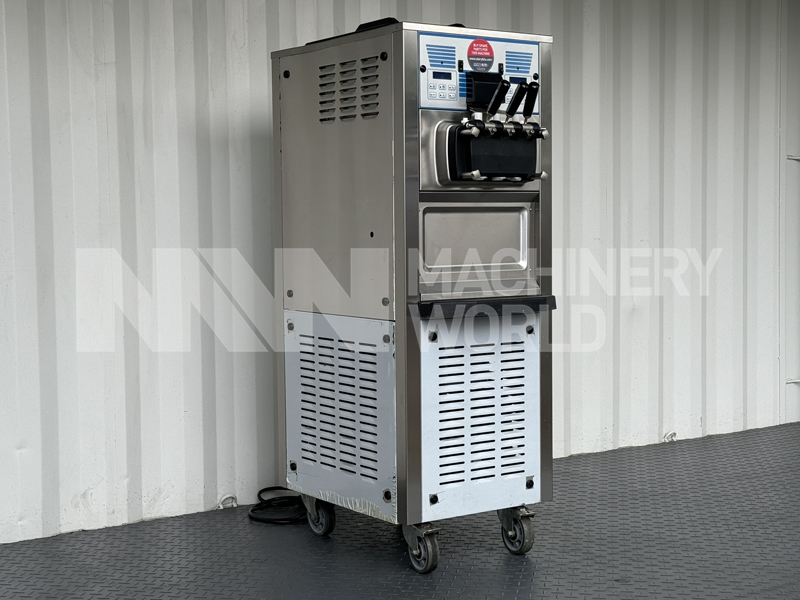

Spaceman 6378W Soft Serve Machine

Description

The Spaceman 6378W is the premium soft serve option for high capacity ice cream operations who want to offer more options on their dessert menu. Dual controls allow the operator to independently manage settings for two different flavors, plus swirl in the middle, while dual main compressors offer peace of mind. Floor standing with convenient locking castor wheels, this model has a 380V 3-phase connection and user-friendly digital control boards. The air pump has eight different consistency settings to create creamy, fluffy ice cream good for tall cones or dipped cones, while cutting back on product cost and daily maintenance. The hopper agitators will stir product throughout the day, saving operator time and ensuring an even cool in the hoppers. Patented freezing technology on the 3.4qt cylinder means more ice cream is ready to serve at one time, producing up to 94qts/hr, or 750 small cones every hour.

Technical Specification

Product Offering
All popular soft serve variations from low or non-fat ice cream to custards, yogurt and sorbet

Freezing Cylinder
Two, 3.2 Liter (3.38 quarts)

Mix Hopper
Two, 15 Liters (15.9 quarts)
Separate hopper refrigeration maintains mix temperature below 4.4°C (40°F) during Cool and Standby modes.

Mix Low Indicator
When mix level is low, the Mix Low light turns “ON” to alert operator to add mix.

Standby
Maintains product temperature in the mix hoppers and freezing cylinders below 4.4°C (40°F) during long no-use periods.

Microprocessor Controls
Automatically regulates refrigeration and maintains consistent product quality by controlling product temperature and viscosity.

Counter
Records number of dispenses per day and total number of dispenses.

Temperature Display
Displays hopper and cylinder temperature; helps control product safety.

Safety Protections

Low temperature and motor overload cutouts protect from cylinder over freezing.
High pressure switch prevents compressor overheat.
Thermal overload protects from motor overheat.

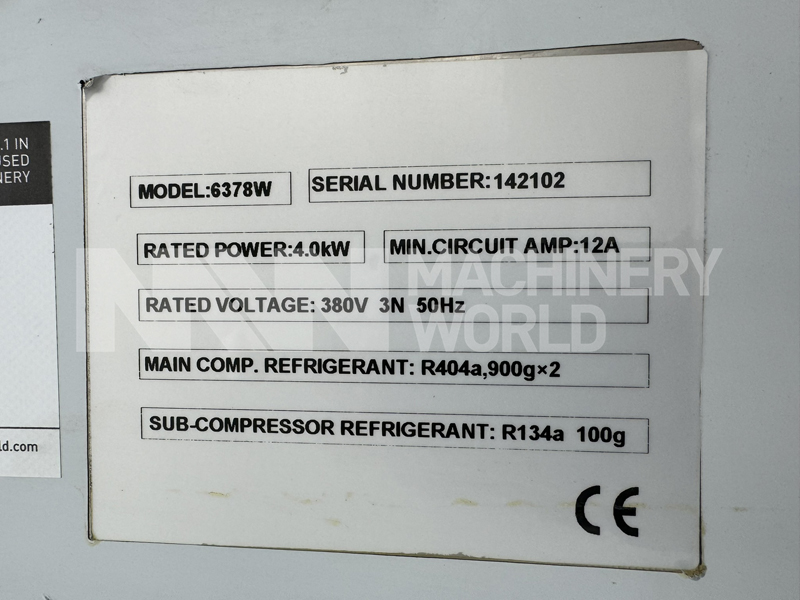

Technical specification

• Manufacturer: Spaceman
• Model: 6378W
• Function: Soft serve ice cream and yogurt machine
• Serial number: 142102
• Total installed power: 4 kW
• Electrics: 380V / 50 Hz / 3 phase
• Main compressor refrigerant: R404A  (900g x 2)
• Sub-compressor refrigerant: R134A (100g)
• Documentation available

Dimensions

• Depth: 90 cms
• Width: 54 cms
• Height: 163 cms
• Weight: 285 Kgs

Country of Manufacture

Italy
