Stephan UM12 Universal Process Mixer

Description

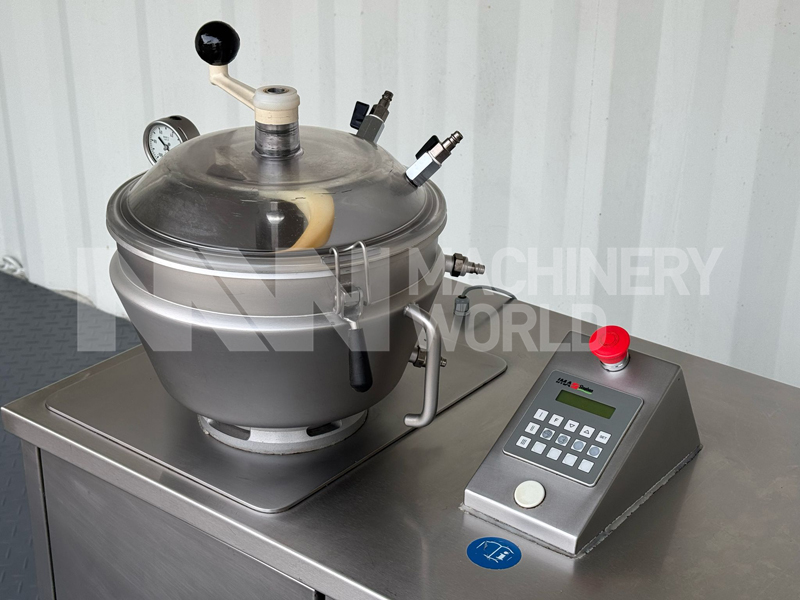

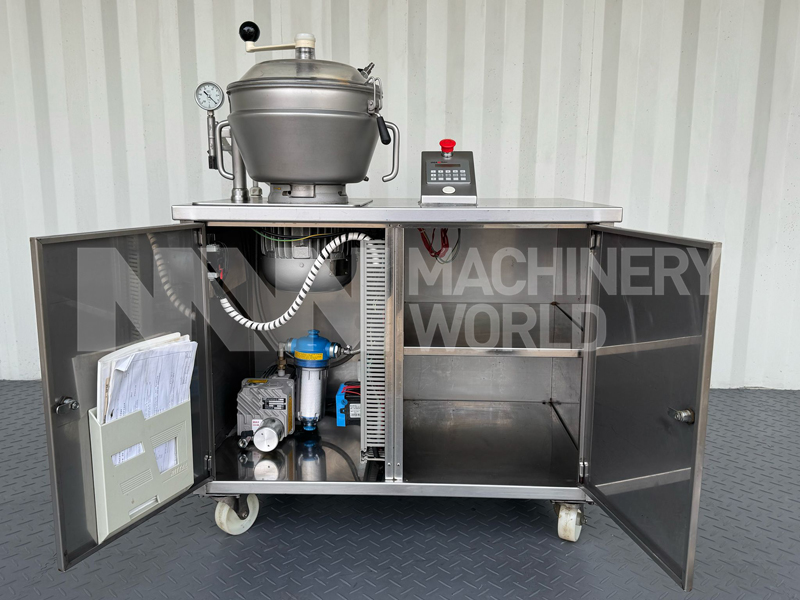

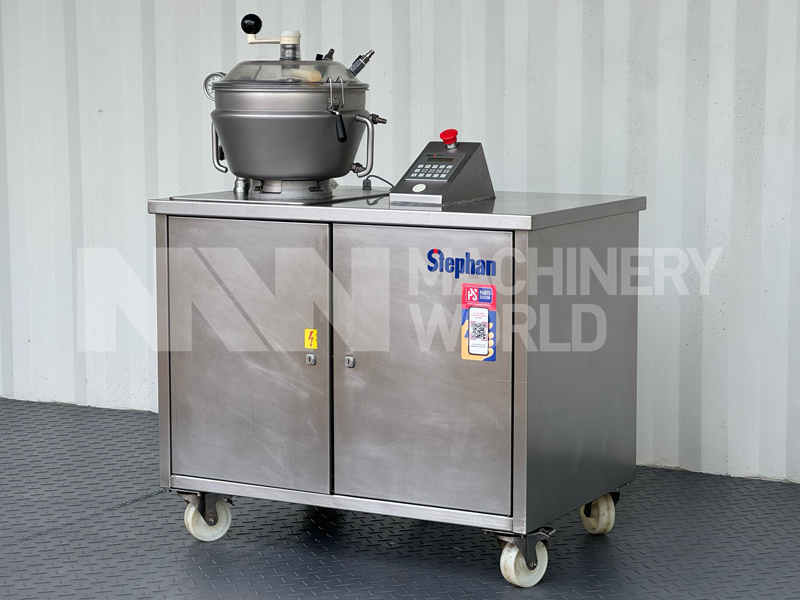

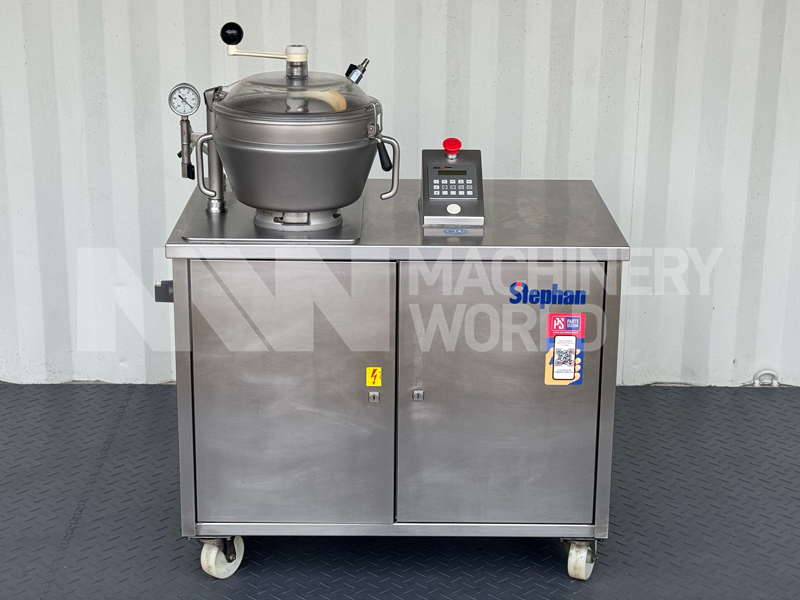

This is a used Stephan UM12 Universal Process Mixer. This Stephan UM 12 Universal Process Mixer has a maximum working Volume (Batch Size) of Approx 7L & minimum working volume of approx 1L, which varies depending on the type of product being mixed. This UM12 Universal Process Mixer has a Double Jacket with Maximum operating temperature of 95 deg C. It comes with a removable bowl (manual) for discharge of product. Stephan UM12 Universal Process Mixer comes with 2-Blade (S-Blade) Cutter Assembly and Top Mounted Scraped Surface Mixer. Currently held as stock, this machine is available for immediate sale.

Specification

• Make: Stephan Machinery GmbH, Germany
• Machine Type: UM12 EB
• Model: Universal Vertical Cutter Process Mixer

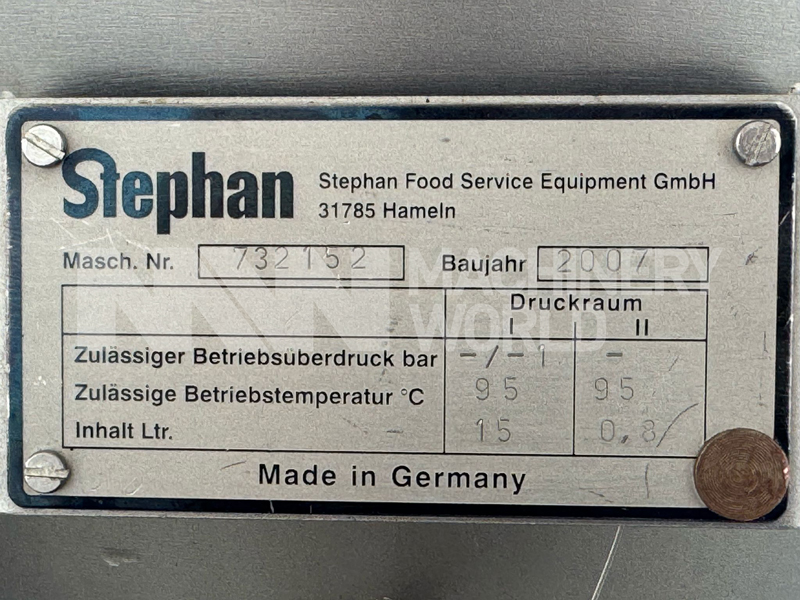

• Machinery Number: 732152
• Year of Manufacture: 2007

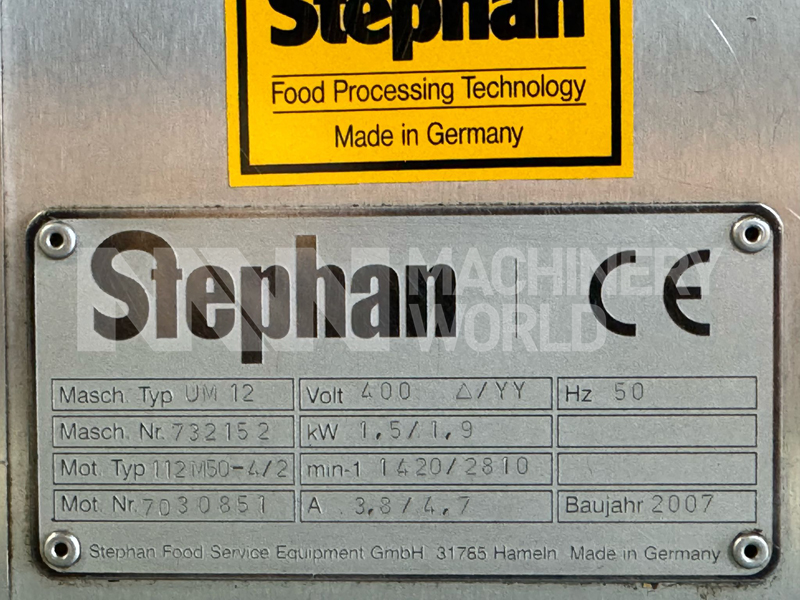

• Installed Power: 1.5kw, 3-Ph, 400V & 50Hz
• Mixer Speed: 1,420 to 2,810 RPM
• Tank Volume (to Brim): Approx 12 Litres
• Load Capacity: Approx 1-7 Litres (Product Dependant)
• Jacket capacity: 0,8L
• Max Permissible Tank Vacuum/Pressure: -1.0/0.0 Bar
• Max Permissible Operating Temperature: 95degC
• Max Permissible Pressure for Double Jacket: 0.0 Bar
• Max Permissible Operating Temperature for Double Jacket: 95degC
• Bowl Construction: Double Jacketed
• Mixer:

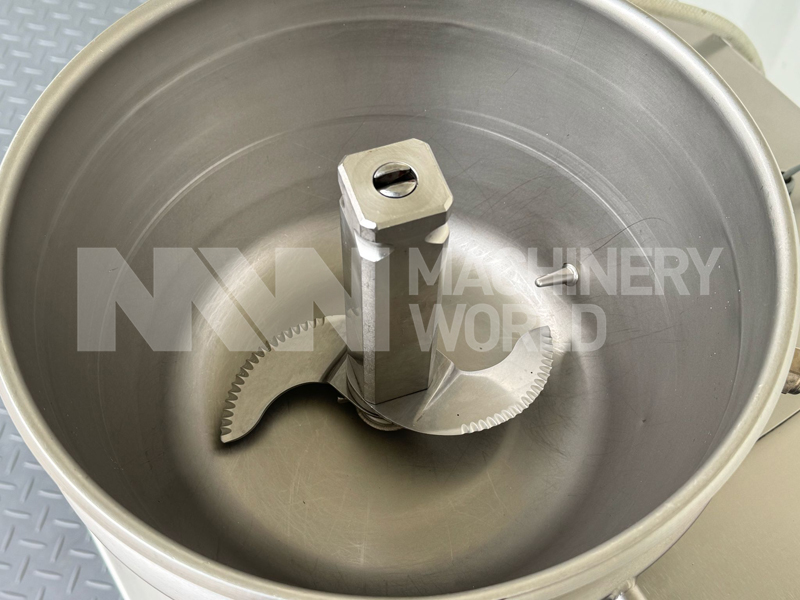

  • Bottom High Speed Cutter (S-Blade) Mixer driven via dual speed 1.5 kW motor
  • Top Slow Speed Scraped Surface Mixer (Manual)
• Construction: 304 Grade Stainless Steel Construction
• Bowl Removable for decanting product
• Controls: Comes Fully Integrated.

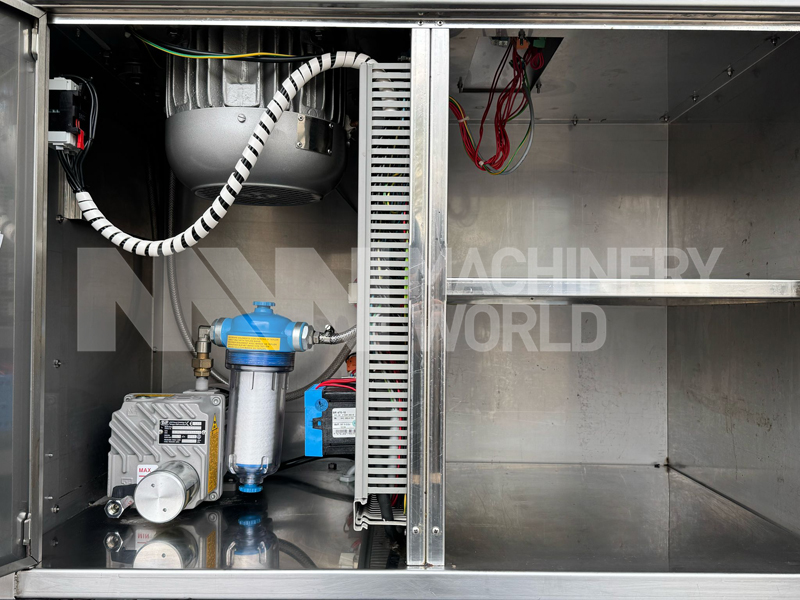

• Inclusions: DVP Vacuum Pump (Model LB.5WR)

Dimensions

• Width: 900mm
• Depth: 600mm
• Height: 1150mm
• Weight: 34 Kgs

Country of Manufacture

Germany
