Tecnofreeze Servo-driven 2.5 & 5 Litre Napoli Ice Cream Filling Machine (Year 2020)

IN STOCK AVAILABLE TODAY

Description

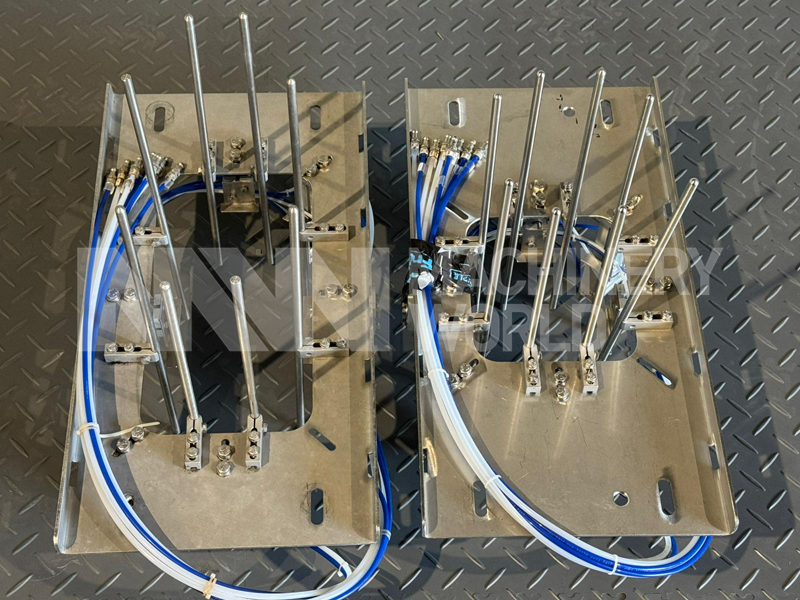

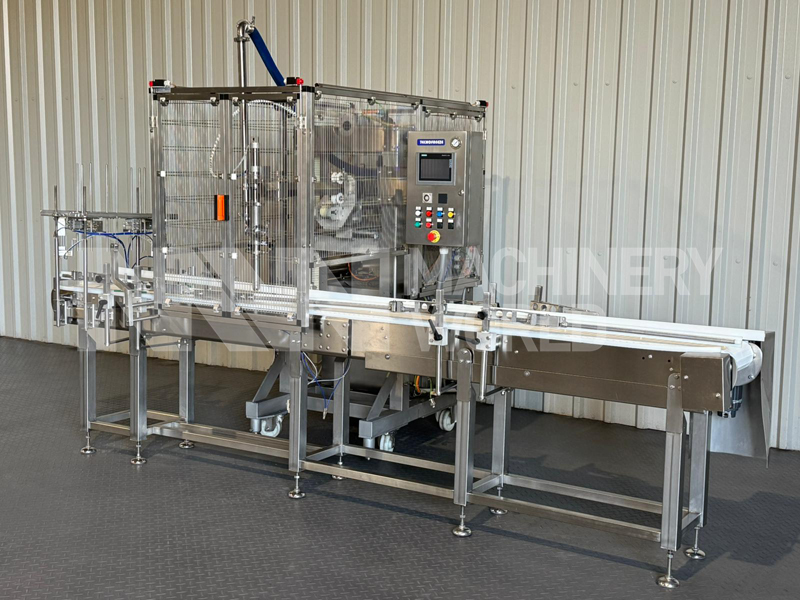

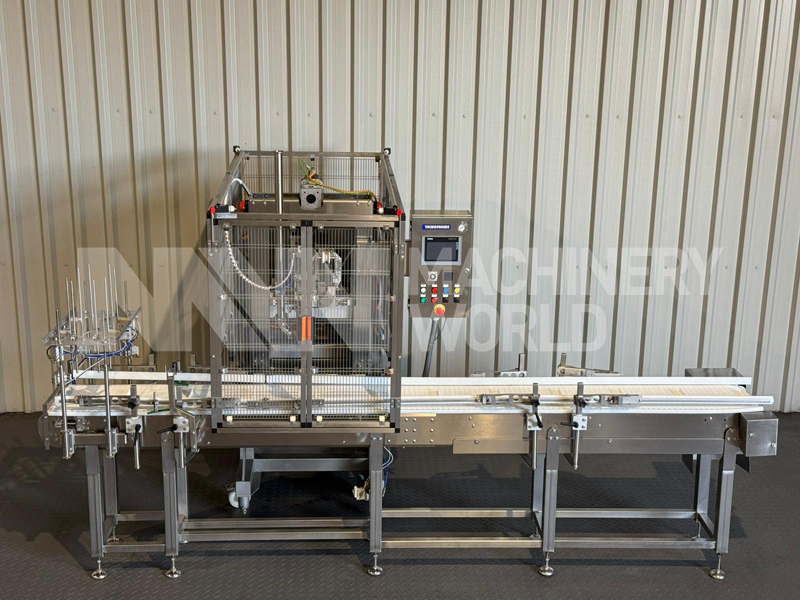

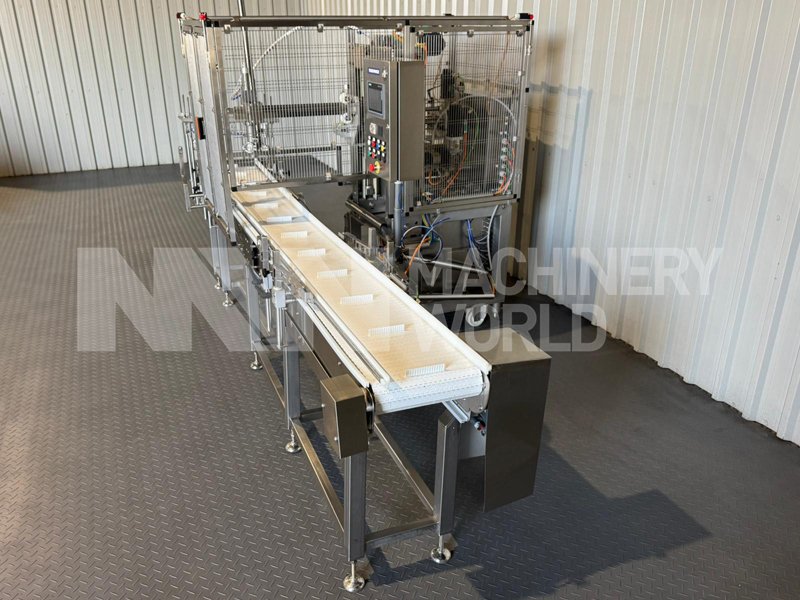

This is a pre-owned in-line automatic filling machine, manufactured by Tecnofreeze, Italy, in 2020. The machine is supplied with change parts for both 2.5-litre and 5-litre Napoli containers, with programming tailored to each size. Additional change parts and programs are available for purchase at an extra cost.

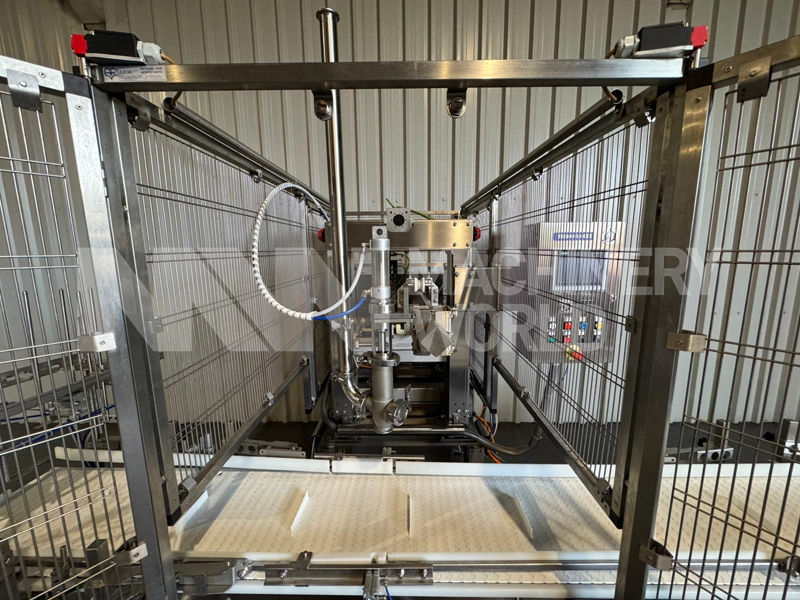

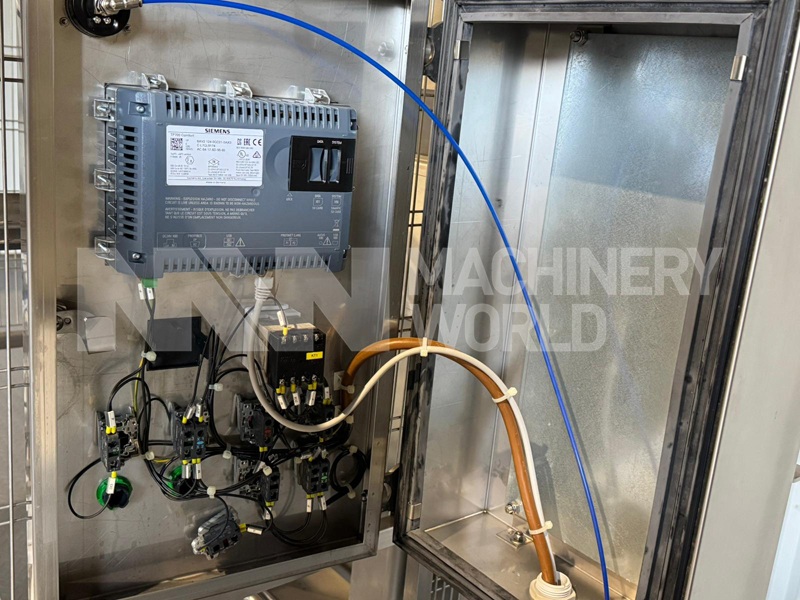

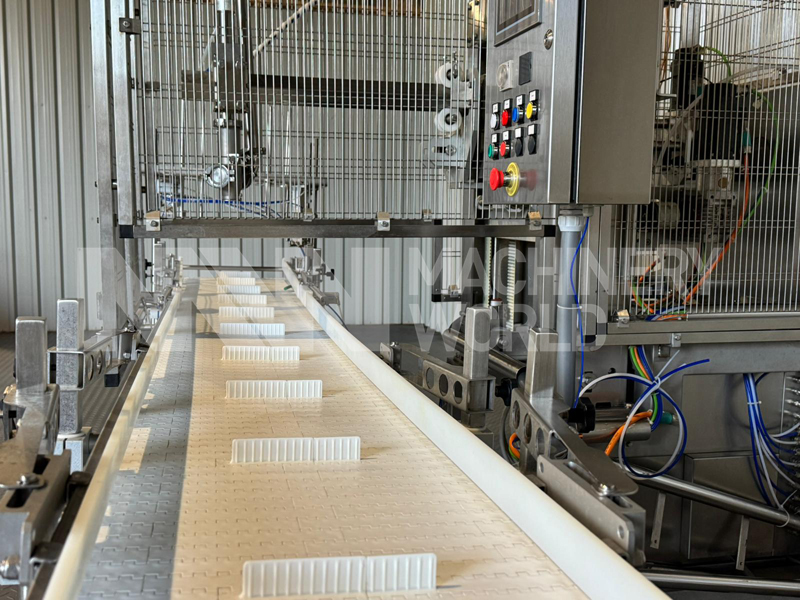

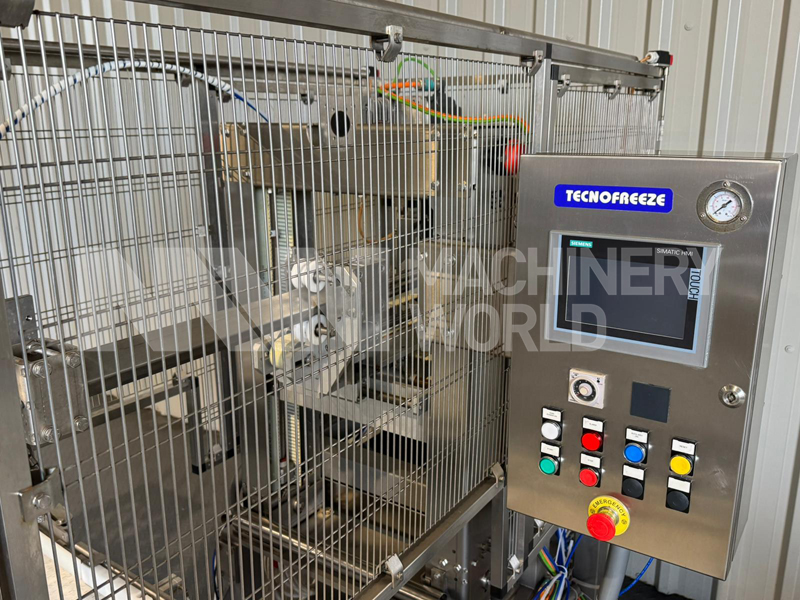

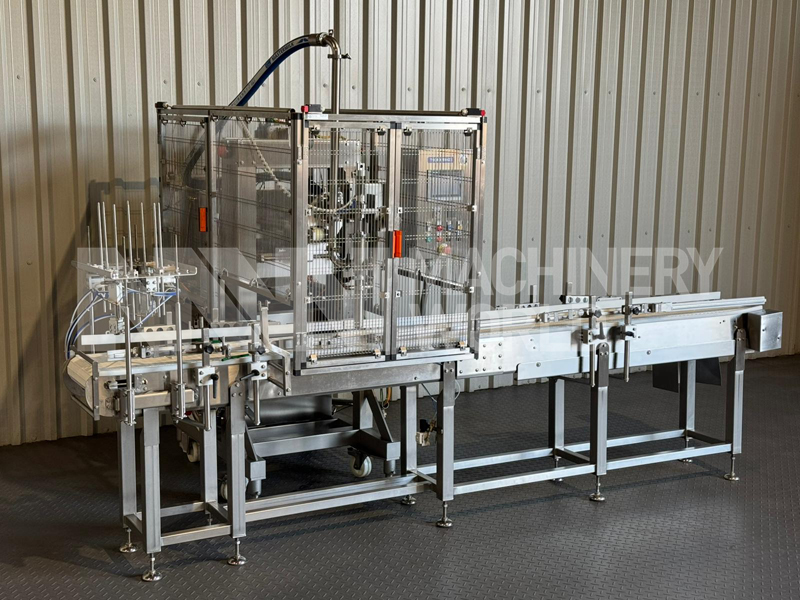

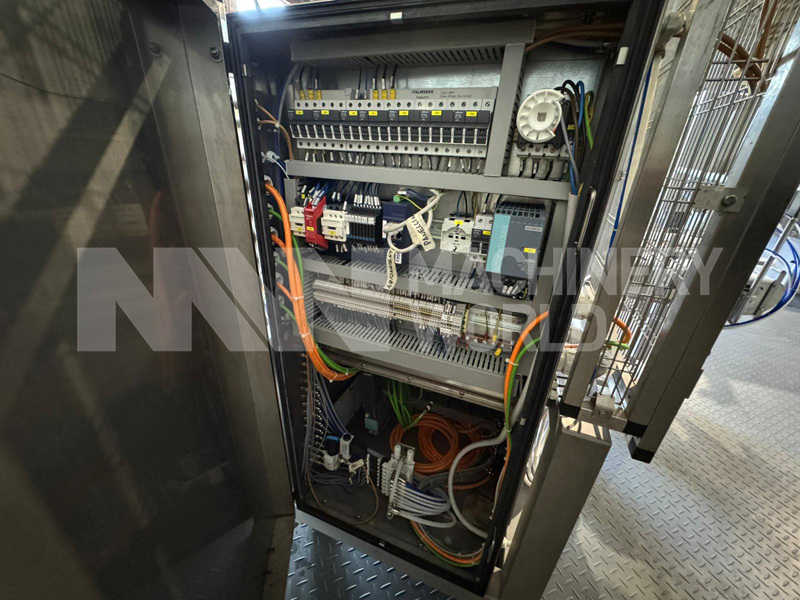

This is a Tecnofreeze in-line, automatic filling machine that can produce a more artisan-effect fill compared with traditional vertical dosers on other fillers, due to its unique servo-driven fill mechanism. It can fill a maximum of 8 catering ice cream tubs per minute (with a maximum volume of up to 5 litres), giving an hourly capacity of up to 500 tubs. The machines features a tub magazine with dispenser, an indexing food-grade linear belt with tub grippers to ensure that the tub remains stable at all times during the filling cycle. The filling head is moved using 3 servo-driven motors to mirror artisan container filling and for a more attractive and even distribution of ice cream and ripples. All functions are controlled and operated via a Siemens touch panel with Siemens PLC control. The entire filling zone is protected by an inter-locked safety guard to prevent entrapment. To ensure that it is able to continuously run while producing a high quality finished product, no expense has been spared on the construction with only the finest, well-known components and premium stainless steel and aluminium being used throughout.

See video below of this machine in operation.

Features
  • Manufacturer: Tecnofreeze SRL
  • Function: In-line servo-driven bulk filling machine
  • Maximum capacity: 500 tubs/ hour
  • Minimum capacity: 150 tubs/ hour
  • Year of manufacture: 2020
  • Equipped with change parts for standard 2.5L and 5L Napoli container
  • Maximum fill volume: 5 litres
  • Maximum tub size: 220 x 150 mm
  • Number of rows possible: 1
  • Machine stations include: Tub drop, Table index, Tub fill
  • Electrical consumption: 5.5 kW
  • Air consumption: 100 Litres/Per hour
  • Stainless steel construction
  • Fully guarded
  • Voltage: 400V / 50Hz / 3 Phase
Dimensions
  • Length: 350 cm
  • Width: 190 cms
  • Height: 215 cms
  • Weight: 850 kgs
