Description

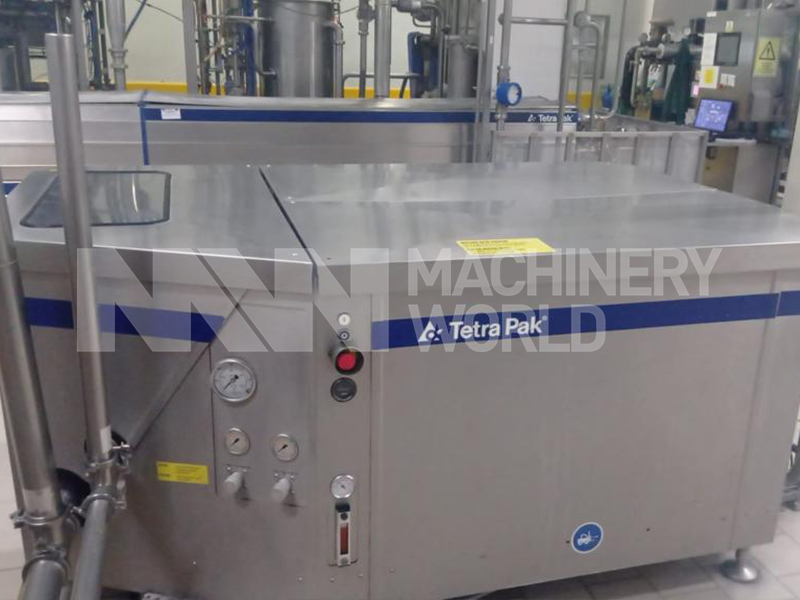

A Used Tetra Pak Alex 25 machine for high-pressure homogenisation of emulsions and suspensions. The product is pumped under high pressure into the homogenising device. In the device the product is forced through a small annular gap where the pressure transform into high velocity. Extreme turbulence and cavitation effectively reduce the size of liquid droplets and solid particles.
Features
- Manufacturer: Tetra Pak
- Model: TAM 25
- Function: Homogeniser
- Condition: Fully serviced
- Serial Number: T5845524213
- Capacity: 10,000 litres/per hour
- Year of manufacture: 2004
- Max. working pressure: 200 bar
- Value design: Mushroom
- Piston diameter: 50mm
- Piston design: Stainless steel
- Piston packing: Grooved
- Total installed power: 75 kW (1780 r/min)
- Number of stages: 2-Stage
- Electrics: 400V / 50 Hz / 3 Phase
- Includes control panel and inverter
- Finish: Stainless steel covers
Dimensions
- Length: 267 cms
- Width: 170 cms
- Height: 110 cms
- Weight: 2275 kgs
Country of Manufacture
Sweden
