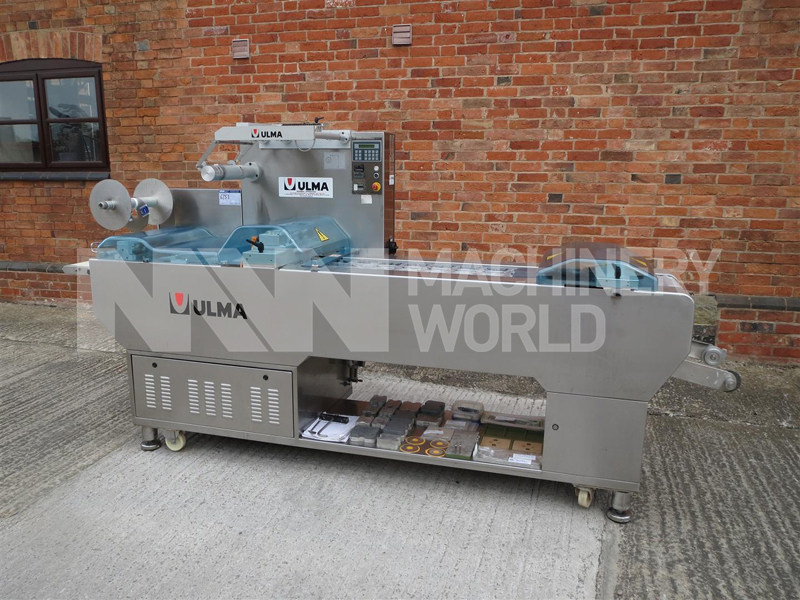

Ulma Nemco TF Mini 320 Packaging Machine

Description
    The Ulma ‘Mini’ series is the ideal solution for transition from manual solutions to automatic packing systems. It offers a more economic solution with the same pros of a bigger machine using the traditional packing system. For example, reduction of package cost, increase of productivity, offers improvement of final product presentation and lower product handling during packing process
Features
  • Serial Number: 3011249
  • Year of Manufacture: 2001
  • Fully PLC controlled with menu interface
  • 100% stainless steel construction
  • Voltage: 380V/3 Phase/50hz
  • Consumption: 11 Amps

Technical Specifications:

  • Maximum advance – 300 mm (11.8”)
  • Depth Range – 5-80mm (0.2”-3.16”)
  • Bottom Film Width – 320mm (12.6”)
  • Maximum roll diameter (Bottom roll – 350mm (13.8”) & Top roll – 350mm (13.8”)
  • Core diameter – 76mm. -3”
  • Loading area – 400 -875mm. (expandable 1 metre)
  • Water consumption – 60-120 Litres per hour , 2 Bar, 8-10 C degrees
  • Pneumatic consumption – 600-800 l/min, 6 bars
Dimensions
  • Length:320 cms
  • Width:180 cms
  • Height:167 cms
  • Weight: 800 kgs
Country of Manufacture

Spain


Download Technical Doc
