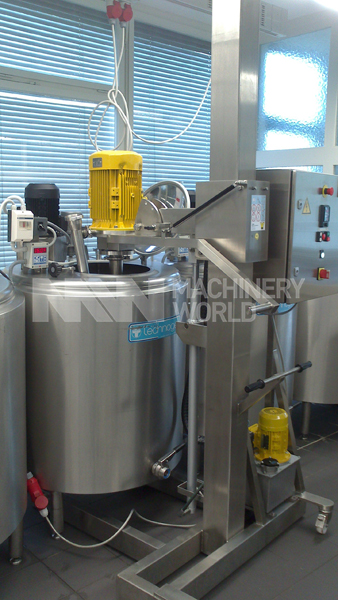

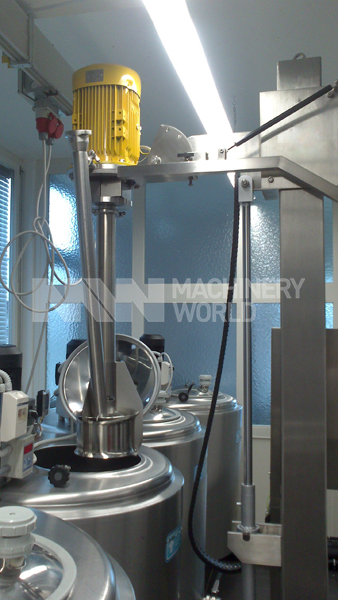

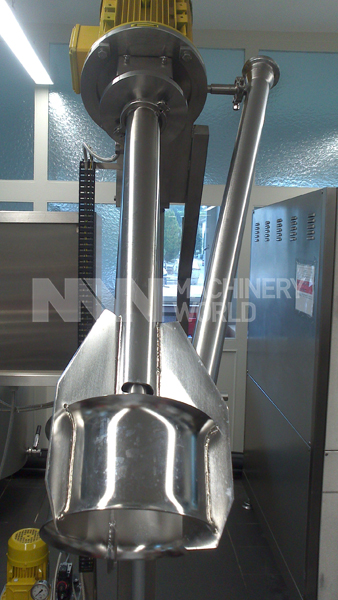

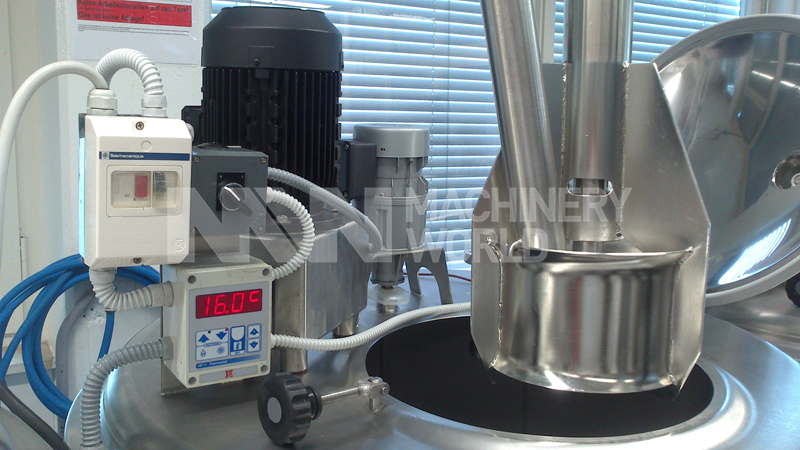

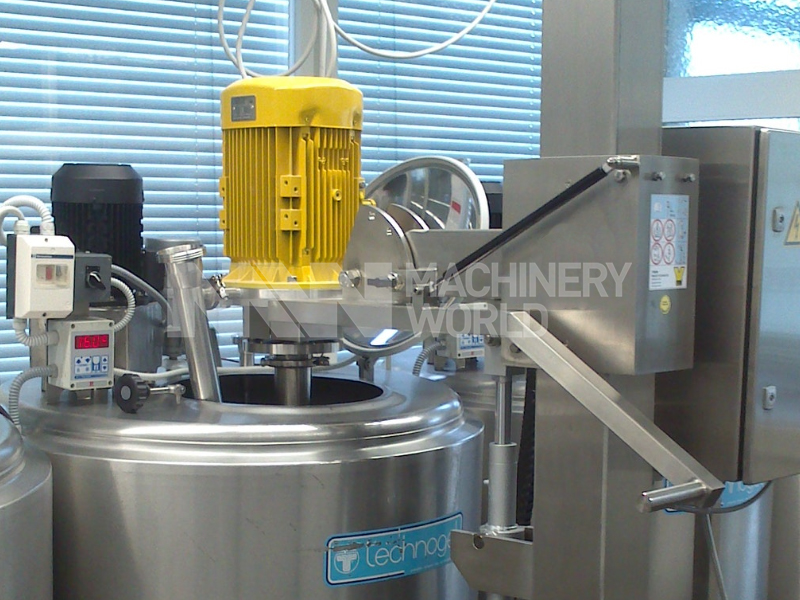

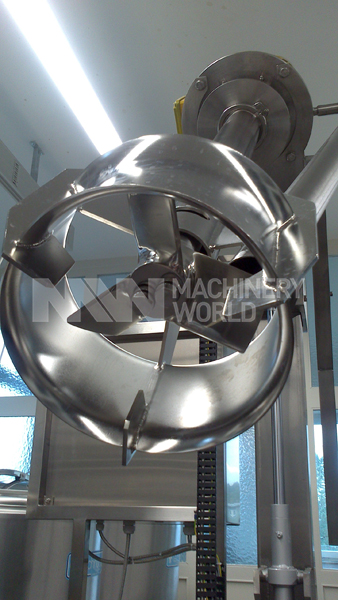

Ytron-y VM11-IV Jet Stream Emulsifier / Mixer

Description

The Ytron Y creates an axial jet stream to homogeneously mix liquids with a viscosity of up 50,000 mPa*s (approx.) without air entrainment. Because of its design, vortex formation (which is normally associated with conventional agitators) is eliminated to provide much more efficient mixing.

Features

• Manufacturer: Ytron-Y
• Model: 7.50FC-4/VM11-IV
• Function: Jet stream emulsifier / mixer
• Year of manufacture: 2013
• Instruction manual

Advantages

• Axial flow pattern
• Perfectly homogenous mixing
• No air entrainment
• No sedimentation, even with heavy suspensions
• Very short process times due to extremely rapid circulation in the vessel
• No floating of product on the surface
• Rapid mixing of entire container contents
• No in tank baffles/flow deflectors required, flow deflectors are integrated on stator
• Low shear due to short residence time in the YTRON-Y mixing head

Dimensions

• Depth: 42 cms
• Width: 120 cm
• Height: 287 cm
• Weight: 120 kgs

Country of Manufacture

Germany
