1.5kw & 10,000 LPH ROKK Processing HCP3 Centrifugal Pump – BRAND NEW – 3x Pumps

Features

• Quiet running
• Flow rate easily adjustable (If Pump is run using Frequency Inverter)
• Corrosion Resistance (316 Grade Stainless Steel Contact Parts)
• Energy Efficiency
• Smooth Flow
• Low Maintenance
• Size Versatility
• Application Versatility

General Build Specification

• The material contact with product is made of AISI316 Stainless Steel
• Body and other parts are made of AISI304
• Capacities mentioned for the products have density range 0,7-1,1 /cm3
• Maximum operating pressure of 10 bar
• Mechanical seal unit can be removed from the front
• Flushing unit easy to retrofit
• Pump shaft protected by wear sleeve
• Only two mechanical seal sizes for the entire pump series
• Seal face material options: carbon/silicon carbide (standard)Surface roughnesses of Ra ≤ 0,8µm can be achieved by mechanical treatment of the surface (higher surface qualities on request)

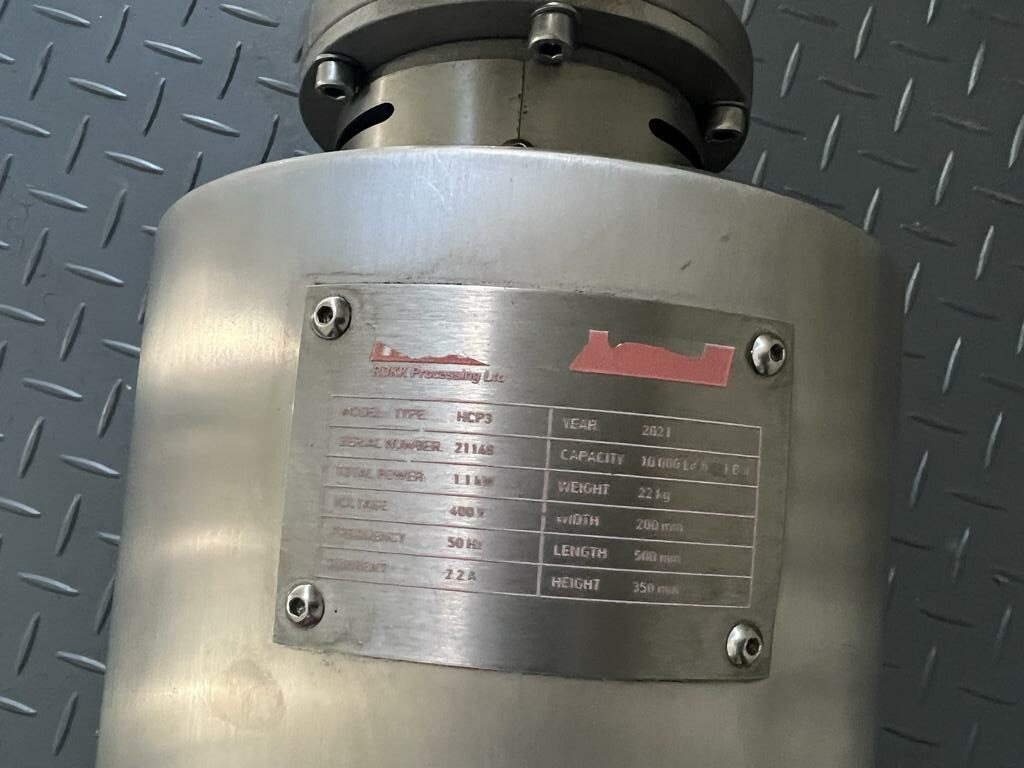

• Make: ROKK Processing
• Type: HCP3
• Serial Number: 21161
• Model: Hygienic Centrifugal Pump
• Product Contact Parts: 316 Grade Stainless Steel
• Impeller Size: 110mm
• Inlet Size: 2 inch (DN50)
• Outlet Size; 1.5 inch (DN40)
• Capacity: Approx 10,000 LPH
• Motor Make: ABB
• Motor Power: 1.5kw, 400V & 50Hz
• Comes with Stainless Steel Motor Shroud and Pump Mounted on Stainless Steel Feet

Dimensions

• Length: 500mm
• Width: 200mm
• Height: 350mm
• Weight: 22kg
