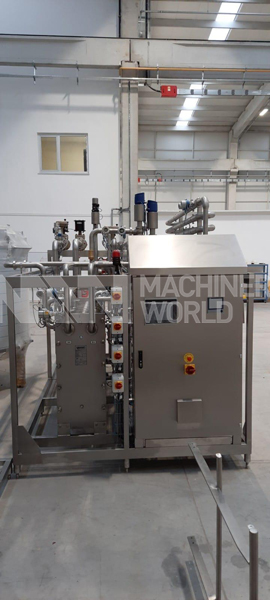

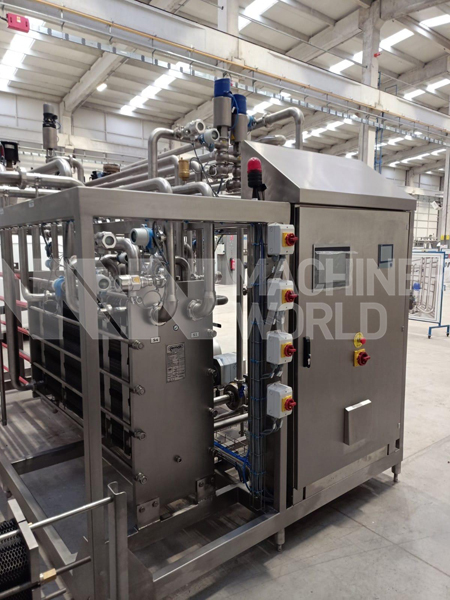

10,000 LPH Skid Mounted Milk Pasteuriser Plant with Alfa Laval Plate Heat Exchanger & PLC Control Panel (Year 2021 – NEVER USED)

Description

Available immediately, this NEVER USED 10,000 Litres Per Hour Skid Mounted Milk Pasteuriser Plant (Year of Manufacture 2021 - NEVER USED) is offered in absolutely immaculate condition. The complete pasteurisation system has never been commissioned or installed and represents an exceptional opportunity to purchase a high-quality dairy processing plant. Designed for the continuous pasteurisation of milk and other dairy products, this fully automatic plant is skid mounted for straightforward installation and incorporates a PLC control system with HMI touchscreen, Alfa Laval Plate Heat Exchanger, Stainless Steel Balance Tank, Hot Water Heating Section, Regeneration Section, Cooling Section, Holding Tube and automatic flow diversion for reliable, energy-efficient pasteurisation. The plant has been manufactured using hygienic stainless steel construction throughout and is ideal for milk processing plants, dairy factories, cheese manufacturers, butter manufacturers, yoghurt producers, beverage processors and food manufacturers seeking a pasteurising solution within the design temperature profile of the current system. The Alfa Laval P10-M Plate Heat Exchanger is designed for a throughput of 10,000 LPH and features 297 Alloy 316 stainless steel plates, DIN connections and a design temperature of 110°C, providing excellent thermal efficiency and dependable performance. Please note: Downloadable technical documentation provided below is for guidance only and may not reflect the exact specifications of the plant offered.

Ideal For

• Milk Pasteurisation
• Dairy Processing Plants
• Cheese Manufacturers
• Yoghurt Production
• Cream Processing
• Flavoured Milk Production
• Dairy Beverage Manufacturing
• Food Processing Facilities

Important Note Please note that the P&ID drawing supplied with the plant illustrates a Homogeniser within the process line. This Homogeniser is NOT included with this sale. The P&ID clearly shows the homogeniser as part of the overall process layout. Machinery World would be delighted to supply a suitable Homogeniser separately, allowing the purchaser to complete the process line exactly as illustrated on the P&ID drawing with a machine fully matched to the plant capacity and specification.

Specification

• Integrator: Gemak
• Plate Heat Exchanger Manufacturer: Alfa Laval, Denmark
• Pump Manufacturer: Alfa Laval, Denmark
• Valves Manufacturer: Alfa Laval, Denmark

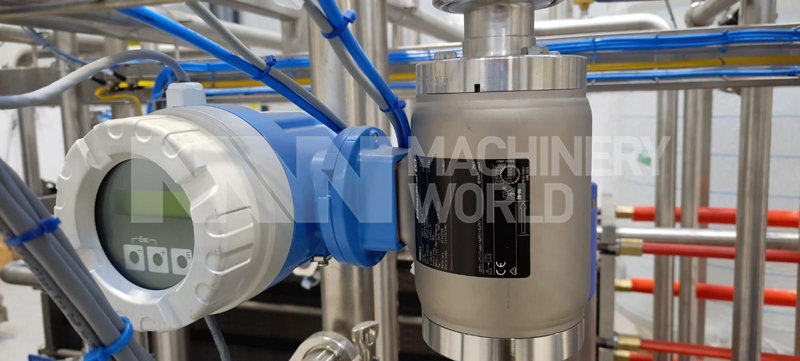

• Flowmeter Manufacturer: Endress & Hauser, Switzerland
• Positioner Valve Manufacturer: Samson, Germany
• Other Instrumentation: Endress & Hauser, Switzerland
• Serial Number: 2110101
• Year of Manufacture: 2021
• Condition - NEVER USED
• Capacity: Approx 10,000 Litres per Hour
• Condition: Never Used / Never Installed
• Skid Mounted Hygienic Stainless Steel Construction
• Fully Automatic PLC Control System
• HMI Touchscreen Operator Interface
• Alfa Laval P10-M Plate Heat Exchanger
• Automatic Regeneration Section
• Hot Water Heating Section
• Chilled Water / Ice Water Cooling Section
• Holding Tube
• Automatic Flow Diversion Valve
• Balance Tank

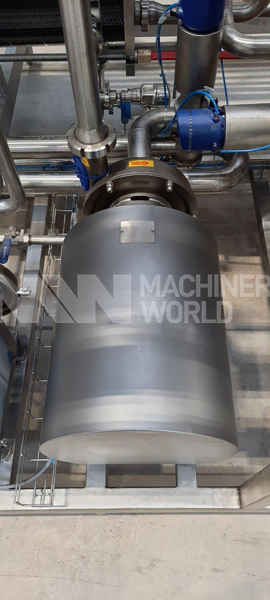

• Product Feed Pump
• Booster Pump
• Instrumentation with Pressure & Temperature Monitoring
• Hygienic Stainless Steel Pipework
• CIP Compatible Design
• Comes with Fully Integrated Compressed Air Operated Double Diaphragm Dosing Pump for Acid & Caustic.
• Suitable for Milk and Similar Products

Components Included

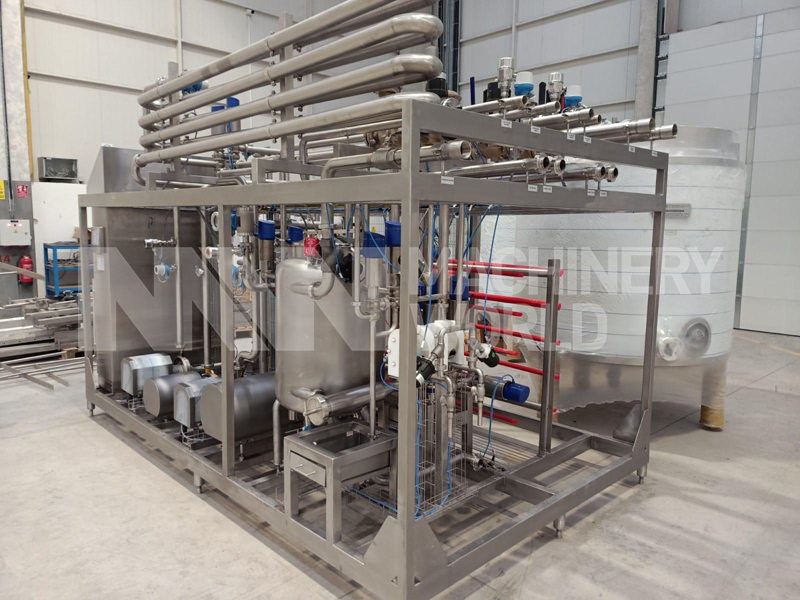

• Complete Stainless Steel Skid Mounted Pasteuriser

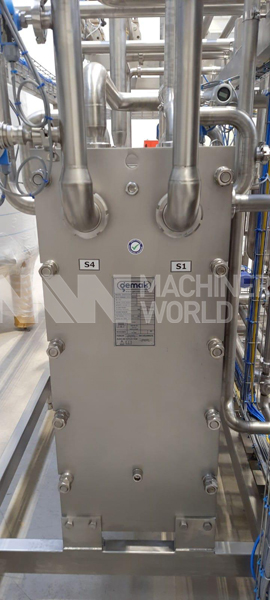

• Alfa Laval P10-M Plate Heat Exchanger

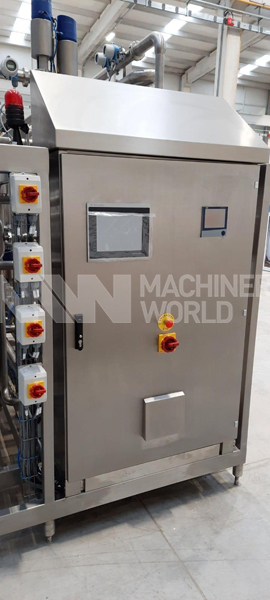

• PLC Control Panel
• HMI Operator Touchscreen

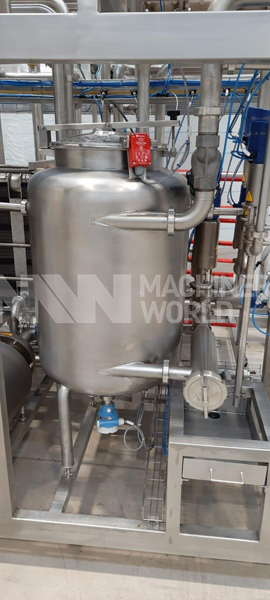

• Stainless Steel Balance Tank
• Product Feed Pump
• Booster Pump
• Hot Water Circuit
• Regeneration Section
• Cooling Section

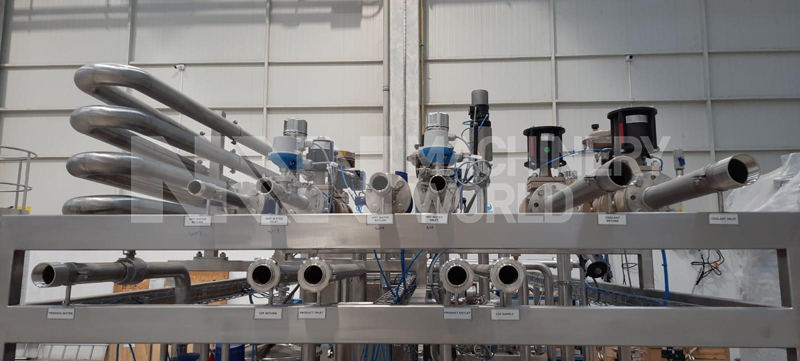

• Holding Tube
• Flow Diversion Valve
• Instrumentation Package

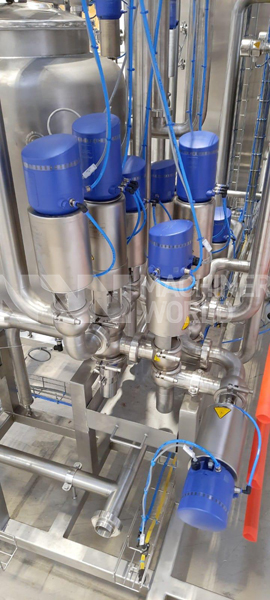

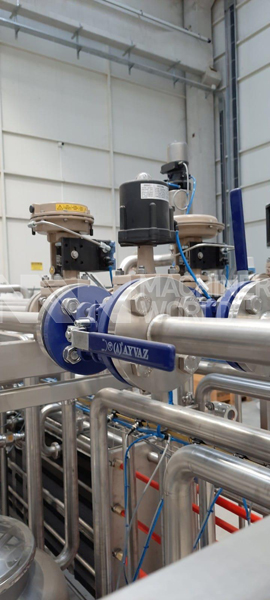

• Stainless Steel Hygienic Pipework & Valves
• Electrical Control System
• Plant Documentation including Layout Drawings, P&ID and Plate Heat Exchanger Specification

Approximate Skid Dimensions

• Length: 3000mm
• Width: 2500mm
• Height: 3000 mm
