Features
- Quiet running
- Flow rate easily adjustable (If Pump is run using Frequency Inverter)
- Corrosion Resistance (316 Grade Stainless Steel Contact Parts)
- Energy Efficiency
- Smooth Flow
- Low Maintenance
- Size Versatility
- Application Versatility
General Build Specification
- The material contact with product is made of AISI316 Stainless Steel
- Body and other parts are made of AISI304
- Capacities mentioned for the products have density range 0,7-1,1 /cm3
- Maximum operating pressure of 10 bar
- Mechanical seal unit can be removed from the front
- Flushing unit easy to retrofit
- Pump shaft protected by wear sleeve
- Only two mechanical seal sizes for the entire pump series
- Seal face material options: carbon/silicon carbide (standard)Surface roughnesses of Ra ≤ 0,8µm can be achieved by mechanical treatment of the surface (higher surface qualities on request)

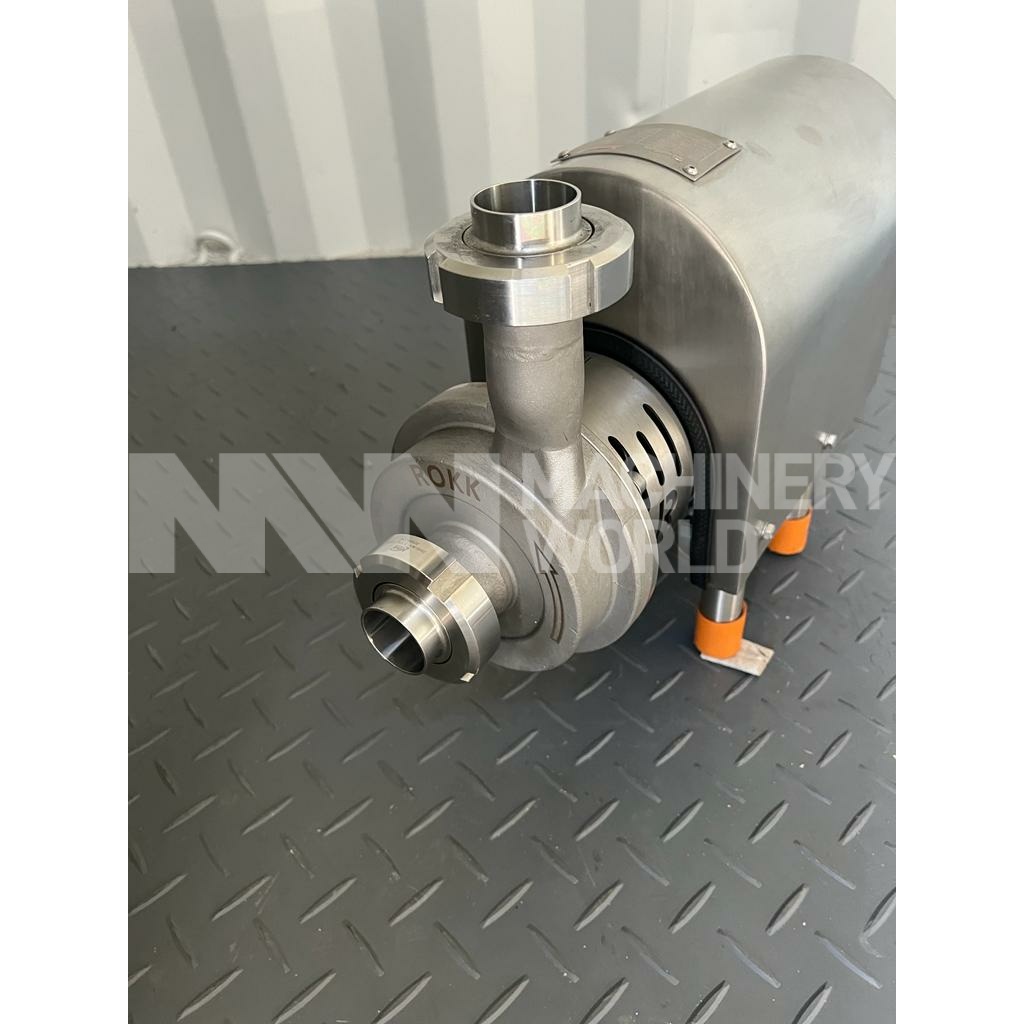

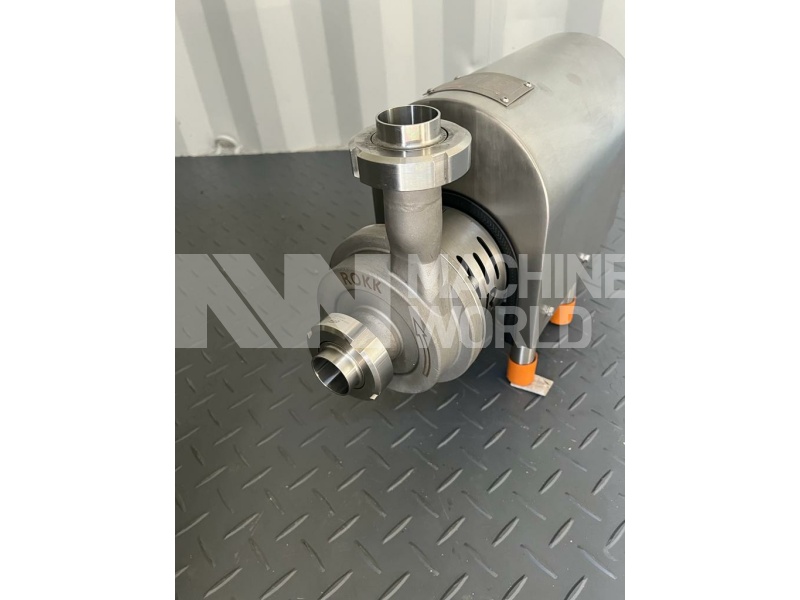

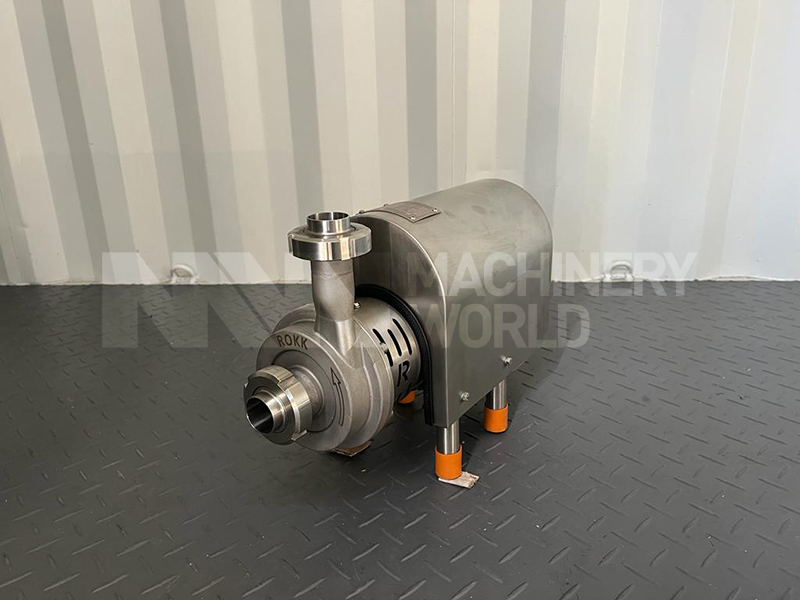

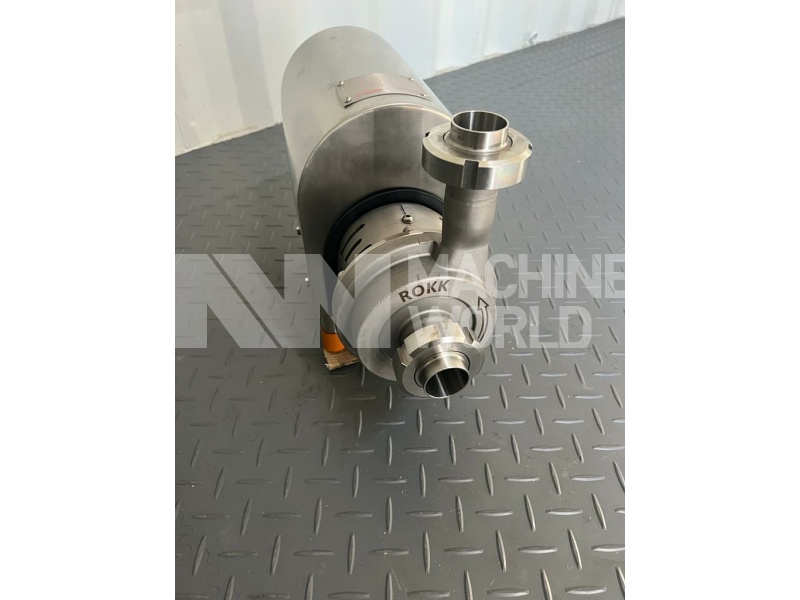

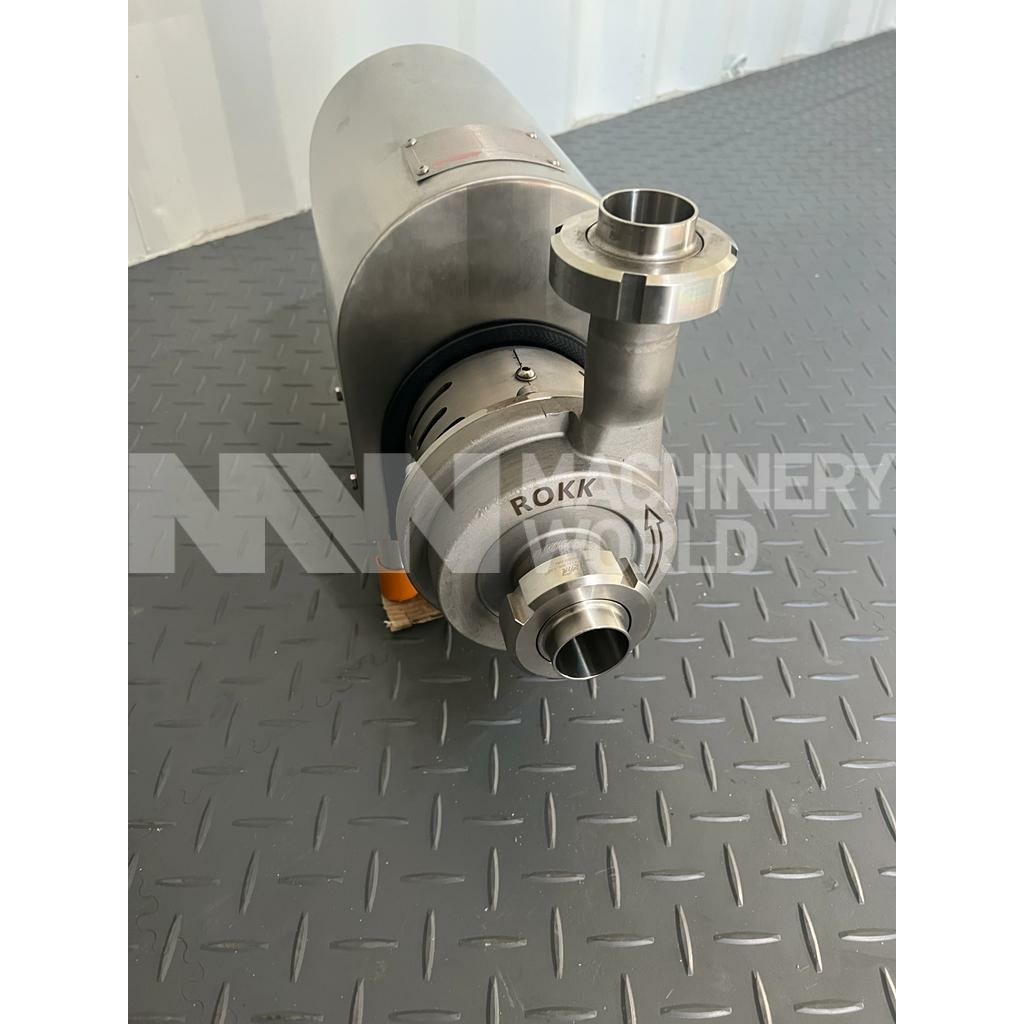

Pump Specification
- Make: ROKK Processing
- Type: HCP3
- Serial Number: 21161
- Model: Hygienic Centrifugal Pump
- Product Contact Parts: 316 Grade Stainless Steel
- Impeller Size: 110mm
- Inlet Size: 2 inch (DN50)
- Outlet Size; 1.5 inch (DN40)
- Capacity: Approx 10,000 LPH
- Motor Make: ABB
- Motor Power: 1.5kw, 400V & 50Hz
- Comes with Stainless Steel Motor Shroud and Pump Mounted on Stainless Steel Feet
Dimensions
- Length: 500mm
- Width: 200mm
- Height: 350mm
- Weight: 22kg
