Description

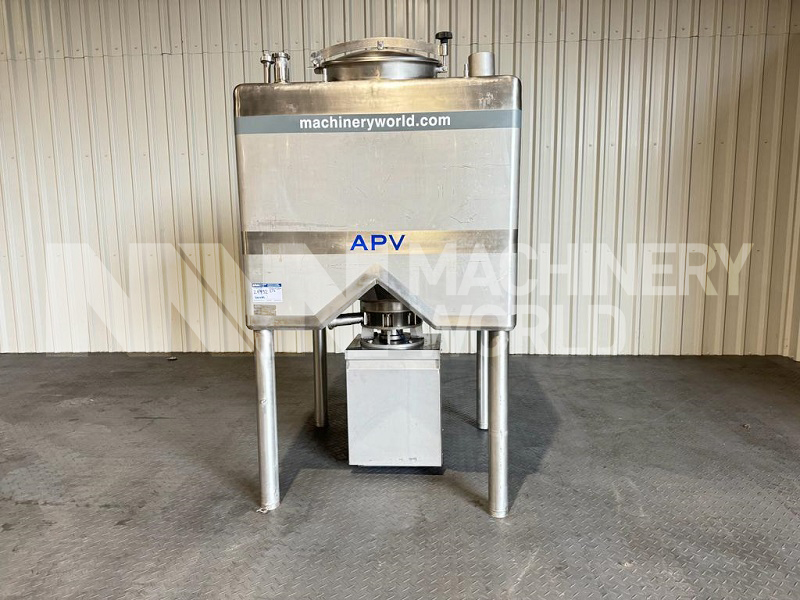

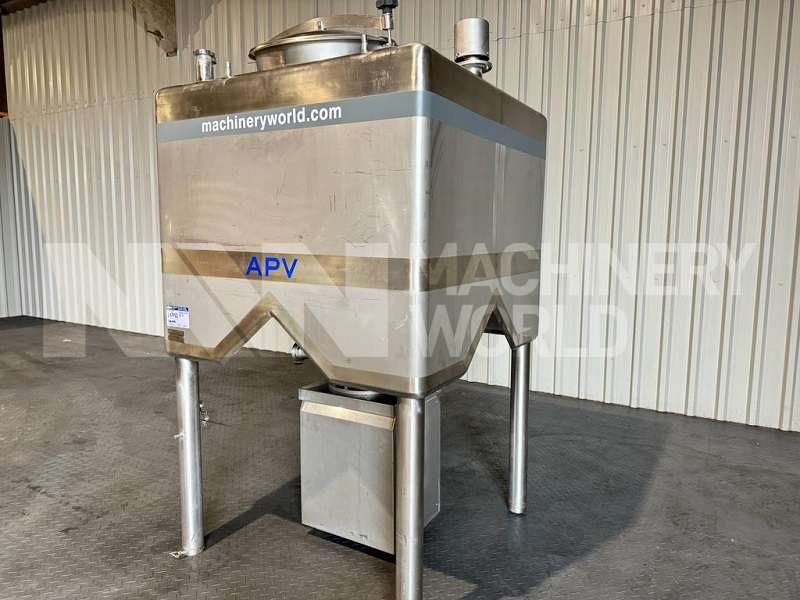

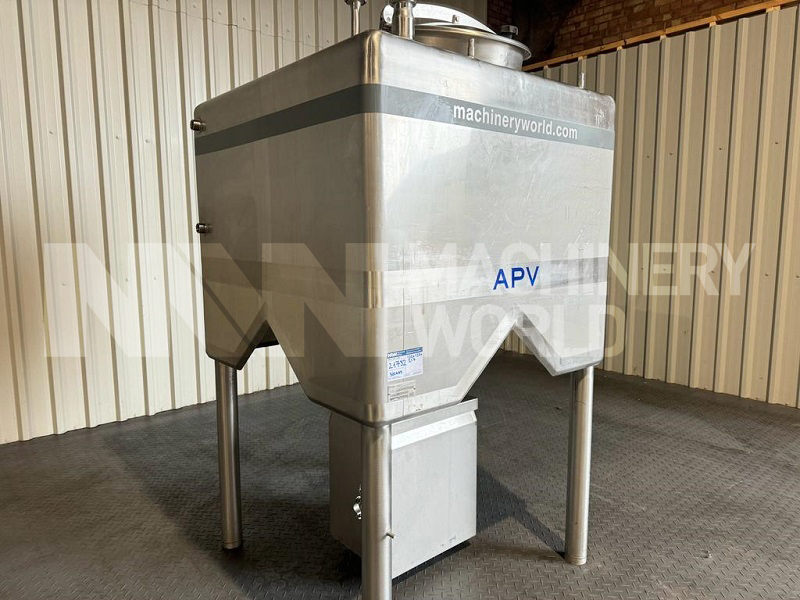

This is a used APV SPX Flex-Mix TB+1000 Liquiverter High Shear Turbo Batch Mixer. APV SPX Flex-Mix TB+1000 Liquiverter High Shear Turbo Batch Mixer has a tank volume of approx 1,000 Litre. APV SPX Flex-Mix TB+1000 Liquiverter High Shear Turbo Batch Mixer is well suited for products with low to medium viscosity, where a quick and efficient mixing of products is required for dispersion or reconstitution of liquid & powder constituents. APV SPX Flex-Mix TB+1000 Liquiverter High Shear Turbo Batch Mixer is a manual unit designed for batch mixing, inline mixing over one or more hydration tanks, or continuous mixing, with optional integration in full automated production.
Common Applications
- Soya Milk
- Skim milk 35%, 40%, 50% total solids
- Chocolate milk
- Recombined milk
- Juices
- Juice concentrates
- Dessert cream
- Soups
- Almond paste
- Cacao
- Yogurt
- Mayonnaise
- Ice cream
- Oat slurry
- SCM
- Tomato Concentrate
- Ref. APV SPX Website
Specification
- Manufacturer: APV
- Model: TB+1000
- Function: Liquiverter / High Shear Mixer / High Speed Mixer / Turbo Mixer

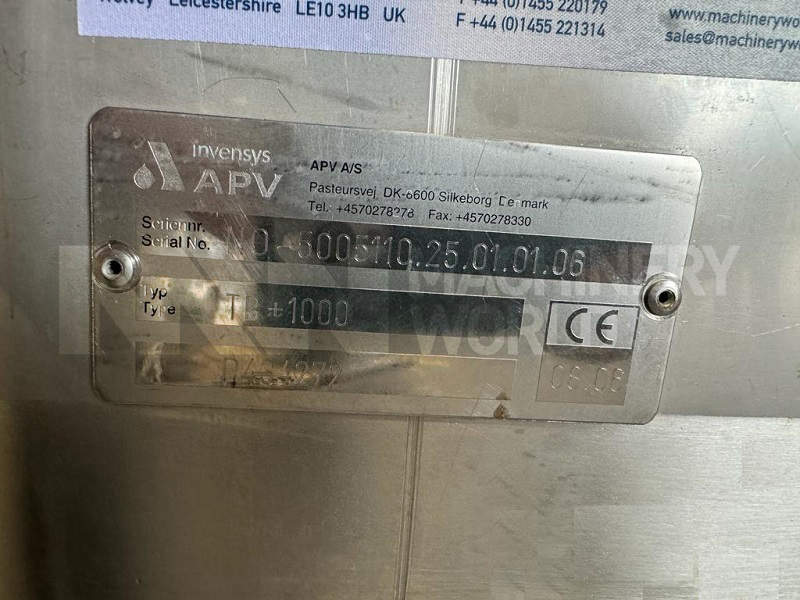

- Serial Number: 5005110.25.01.01.06
- Tank Volume: Approx. 1,000 Litres
- Year of manufacture: 2006
- Construction: Single Skin Stainless Steel

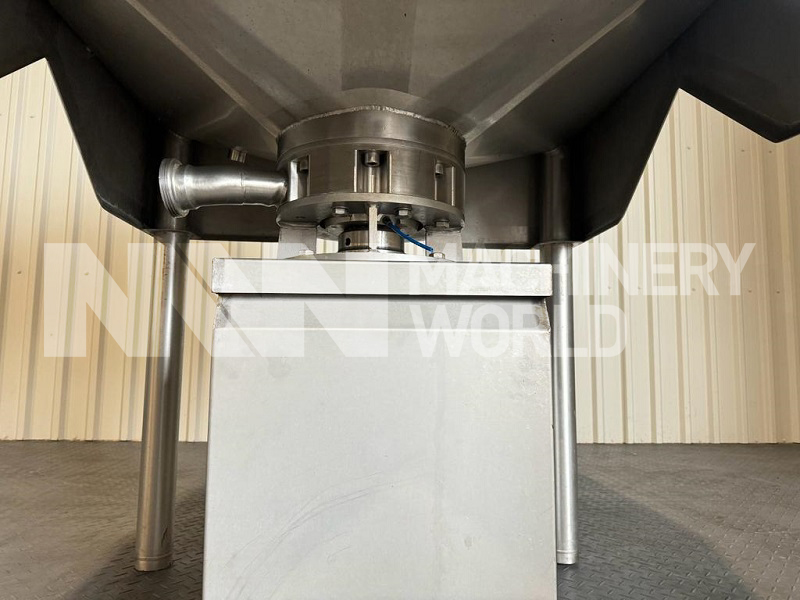

- Bottom Mixer Motor Power: 18.5kw
- Mixer Speed: 1465 RPM
- Electrics: 50/60Hz & 3-Phase

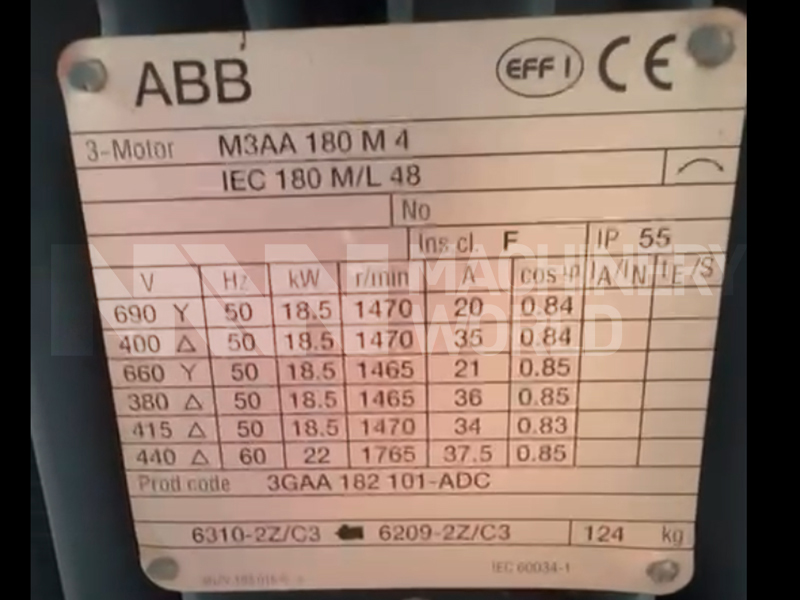

- Motor Manufacturer: ABB
- Bottom Outlet: 3.5 inch

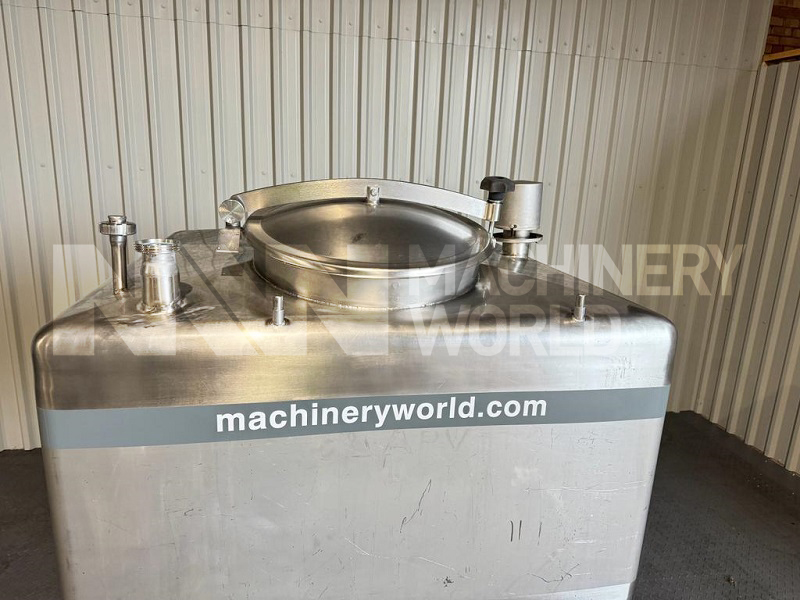

- Inlet: Top
- CIP: Comes with Top Entry CIP Spray Head

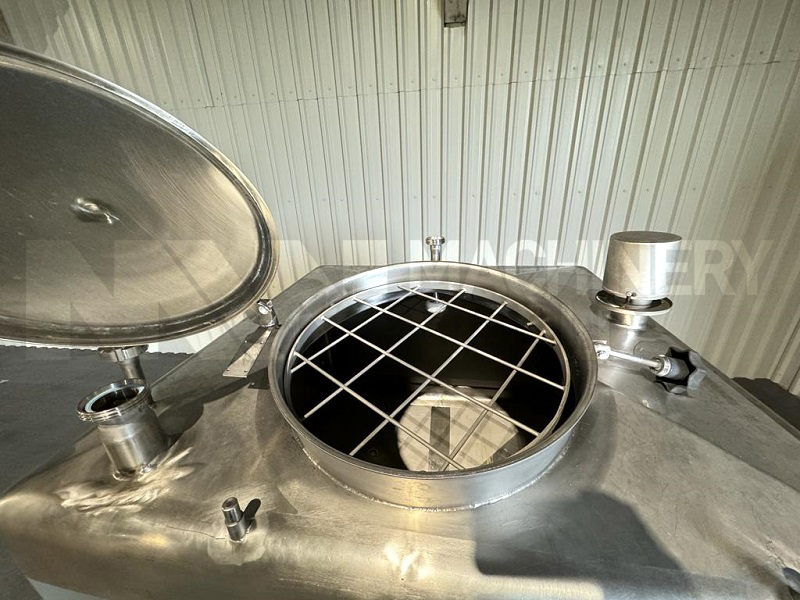

- Manway: Top Manway with Safety Grid
- Vent: Top Mounted Breather Vent with vent Cap
- Other Ports: Bottom BSP from Temperature Probe and 2x Side Mounted BSP for High Level & Low Level Sensors
- Exclusion: Temperature Probe, High Level Sensor & Low Level Sensor
- Stainless Steel Construction
- See ‘Technical Doc’ link for further details
Dimensions
- Length:1200mm
- Width:1200mm
- Height:2150mm
- Weight: 800 kgs
Country of Manufacture
Denmark
