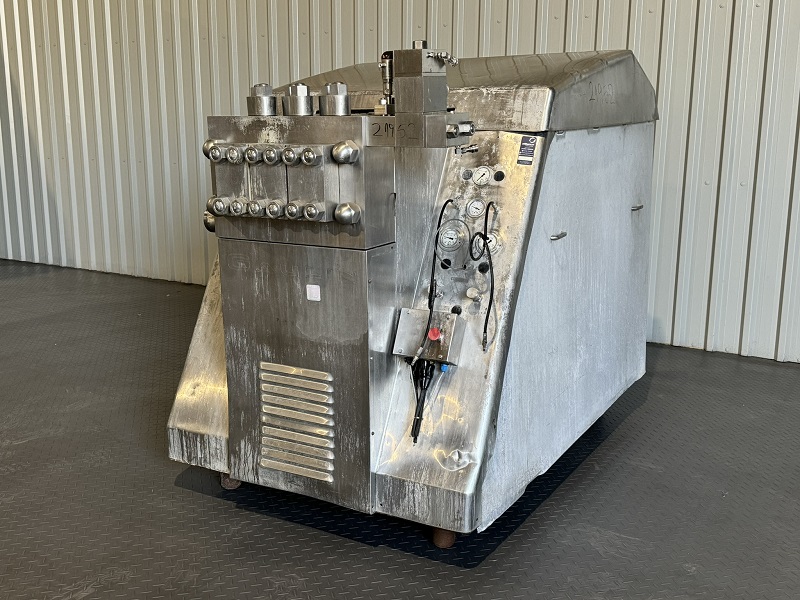

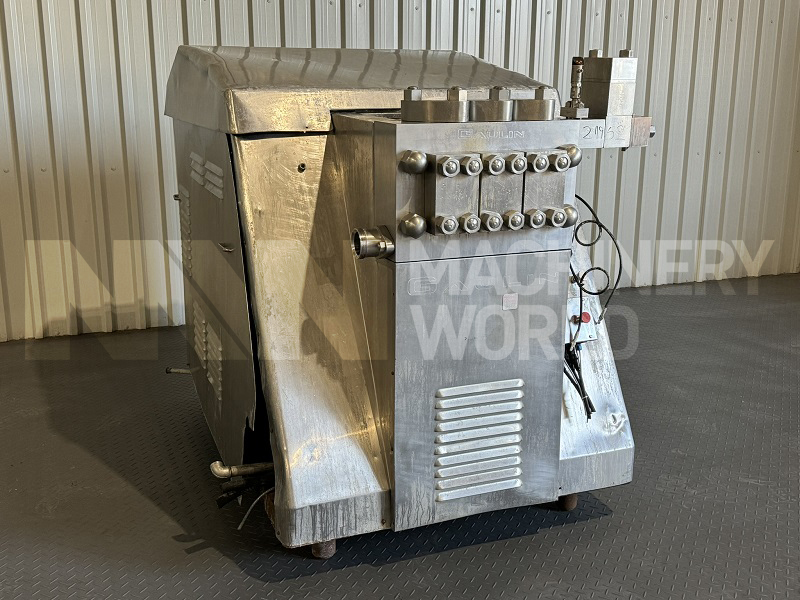

10,000 LPH APV Gaulin MC45-3TPS (205 Bar) High Pressure Homogeniser

Description

This is a used APV Gaulin MC45-3TPS machine for high-pressure homogenisation of emulsions and suspensions. The product is pumped under high pressure into the homogenising device. In the device the product is forced through a small annular gap where the pressure transform into high velocity. Extreme turbulence and cavitation effectively reduce the size of liquid droplets and solid particles.

This Used Approx 10,000 LPH APV Gaulin MC45-3TPS Homogeniser has Poppet Valves with a maximum working pressure of 3000 psi (205 bar).

Features

• Manufacturer: APV, USA
• Model: Gaulin MC45 3TPS
• Function: High Pressure 2-Stage Homogeniser

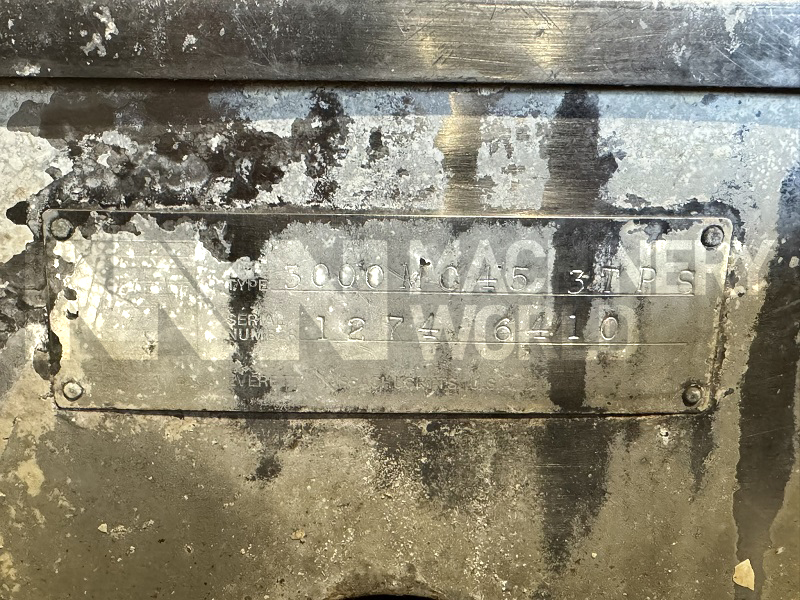

• Serial Number: 1274 6410
• Capacity: Approx 10,000 LPH (Not tested, but based on APV Gaulin's nameplate details - Actual set capacity on Homogeniser could vary)
• Max. working pressure: 205 bar (3000 PSI)
• Homogenising Valve Type: Poppet Valve
• Number of Stages: 2-Stage Homogeniser
• Electrics: 3Phase & 50Hz
• Finish: Stainless steel covers
• Generic APV Gaulin MC45 Instruction Manual included

Dimensions

• Depth: 2000mm
• Width:1300mm
• Height:1700mm
• Weight: Approx 4000kgs

Country of Manufacture

USA
