MBS MLW Multitube Corrugated Shell-in-Tube Tubular Heat Exchanger (Year 2018)

Description

This is a used MBS MLW Multitube Heat Exchanger. This MBS MLW Multitube Heat Exchanger is of Corrugated Shell-in-Tube type and is well suited for hygienic application. This product is specifically designed for thermal exchange processes involving products with low to medium viscosity, even when containing particulates. It is constructed from stainless steel and the product side features a surface finish ensuring a smooth and hygienic surface. The standard pressure rating is 10 bar and it is rated for temperatures up to 110°C.

Specification

• Make: Mbs srl, Italy

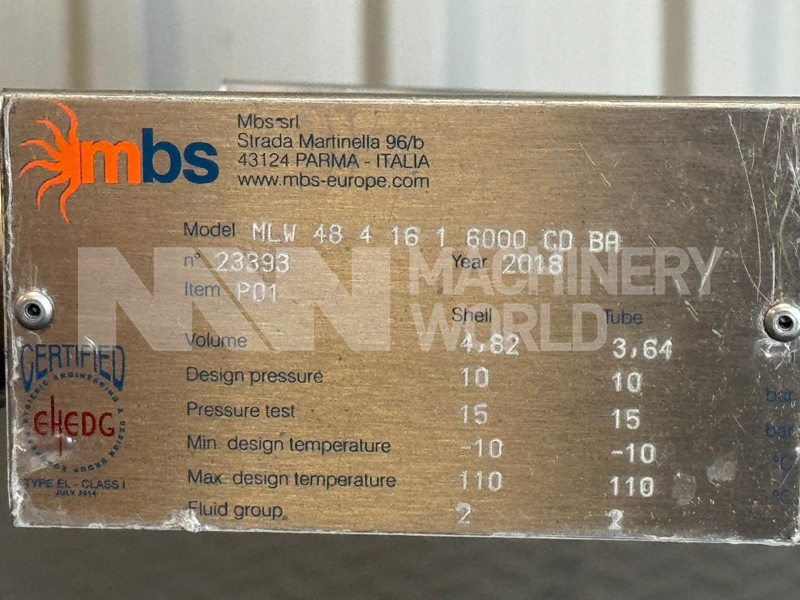

• Model: MLW 48 4 16 1 6000 CD BA
• Function: Corrugated Shell-in-Tube Tubular Heat Exchanger
• Serial Number: 23393
• Year of Manufacture: 2018
• Volume:
  • Shell: 4.82
  • Tube: 3.64
• Design Pressure:
  • Shell: 10 Bar
  • Tube: 10 Bar
• Minimum Design Temperature:
  • Shell: -10 deg C
  • Tube: -10 deg C
• Maximum Design Temperature:
  • Shell: 110 deg C
  • Tube: 110 deg C

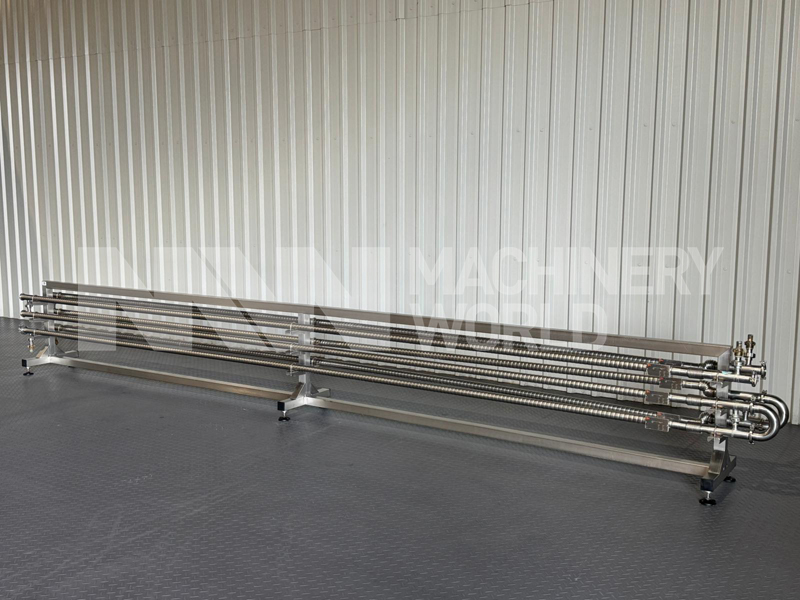

• Total Number of Shell-in-Tube Lengths: 6x Lengths
• Total number of Internal Tubes: 4 per length (4 Tubes x 6 Lengths = 24 Internal Tubes)

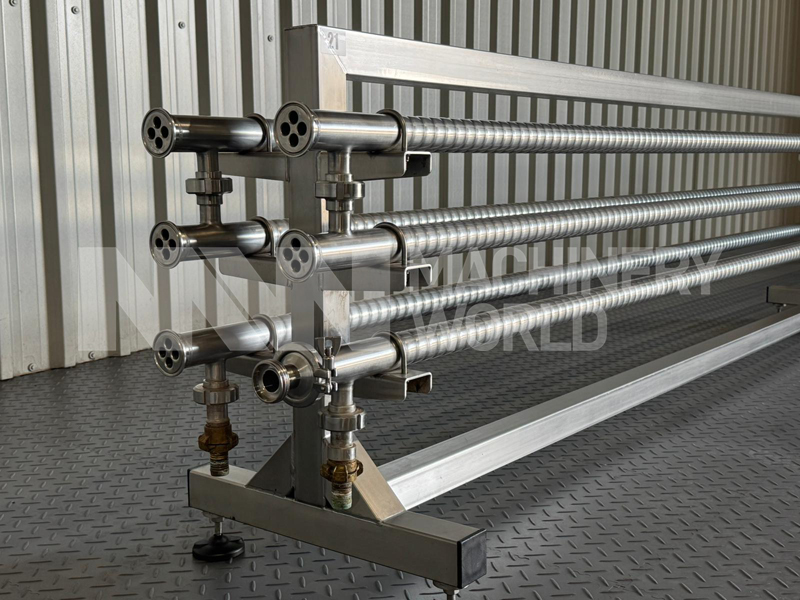

• Additional Details: Comes mounted on a Stainless Steel Frame

Country of Manufacture

Italy
