Description

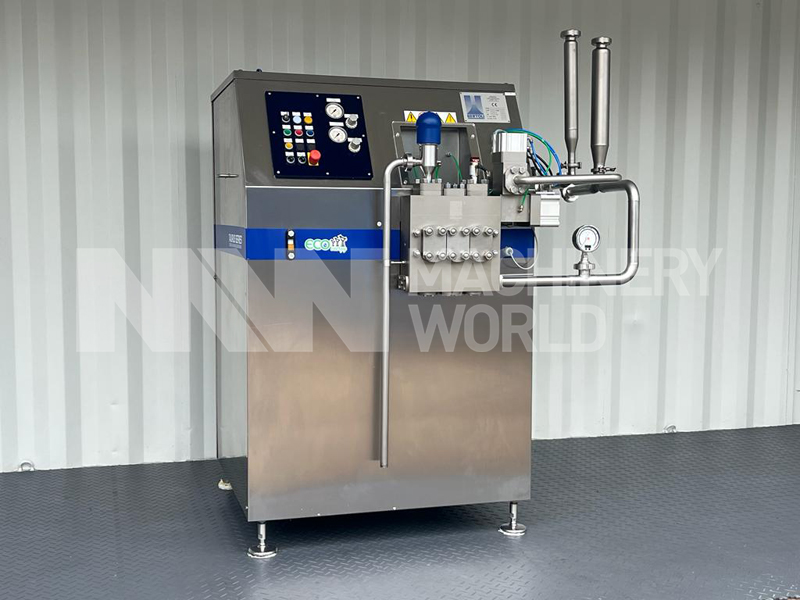

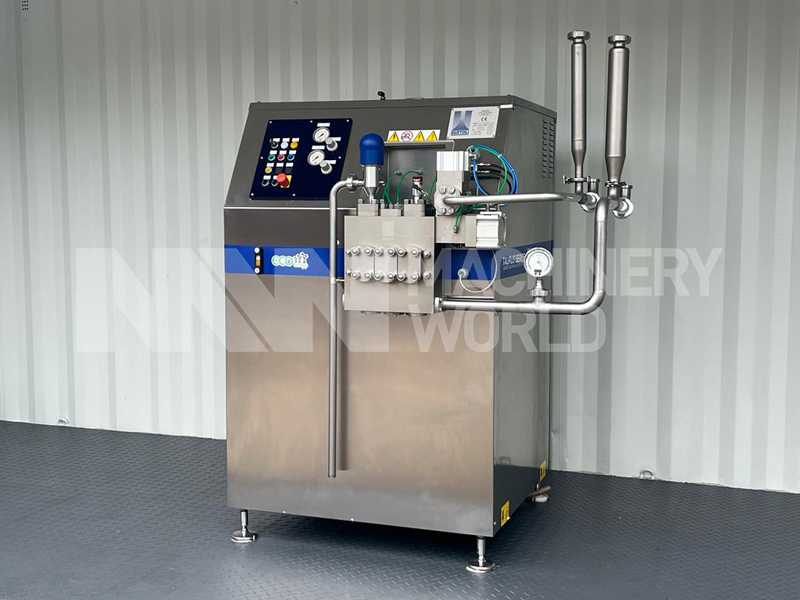

This is a used Bertoli BH31008 Homogeniser.This Bertoli BH31008 Homogeniser has a working capacity of approx 1,200 LPH and capable of working at a maximum rated pressure of 200 Bar (2900 PSI). This Bertoli BH31008 Homogeniser comes with 2 Stage Homogeniser Valve assembly and 3x high chrome plated pistons – plungers. This 1,200 LPH Bertoli BH31008 Homogeniser was previously used at a major multinational dairy processing facility in Europe. Currently held as stock, this Bertoli BH31008 Homogeniser is available for immediate sale.
Specification

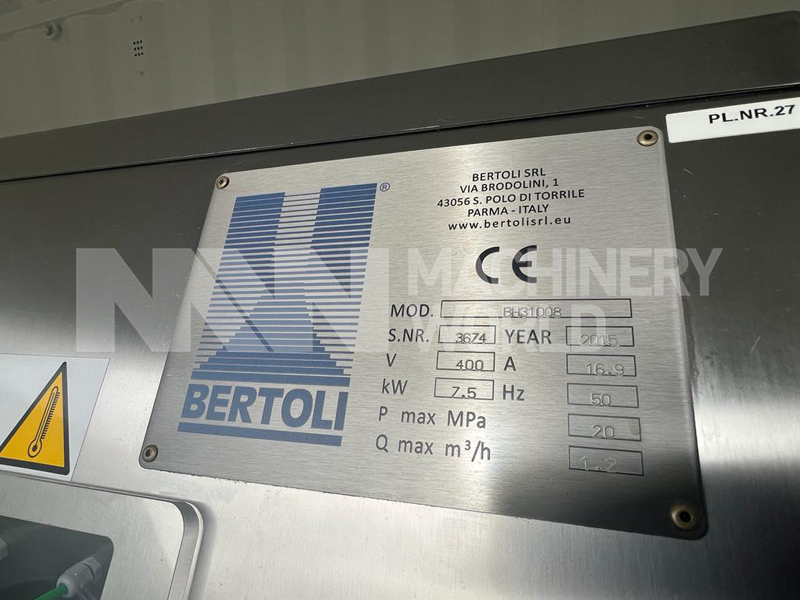

- Manufacturer: Bertoi SRL
- Model: BH31008
- Serial Number: 3674
- Function: High Pressure Homogeniser Pump
- Capacity: Approx 1,200 Liters Per Hour
- Max. working pressure: 200 bar (2,900 PSI)
- Operating Temperature: 95 deg C
- Valve Control: Hydraulic

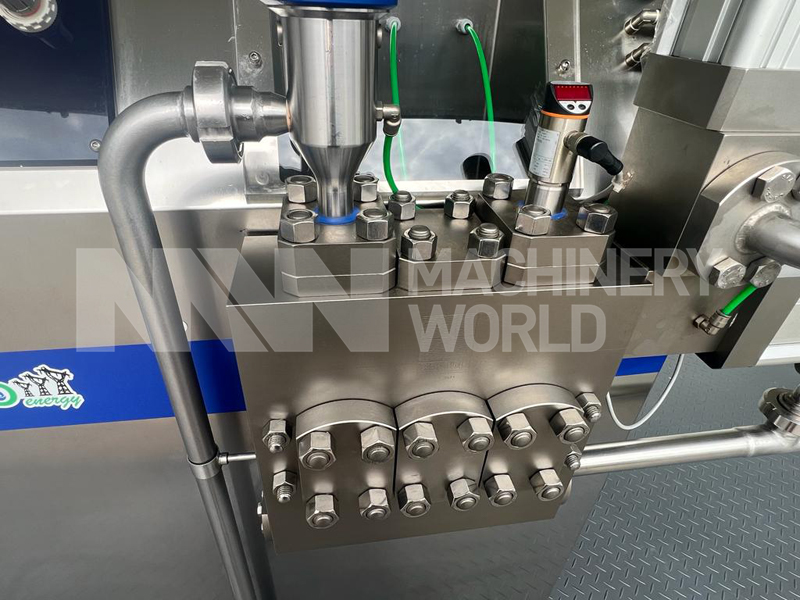

- Number of stages: 2-Stage
- Valve Type: Poppet Valve (Mushroom Type Valve)

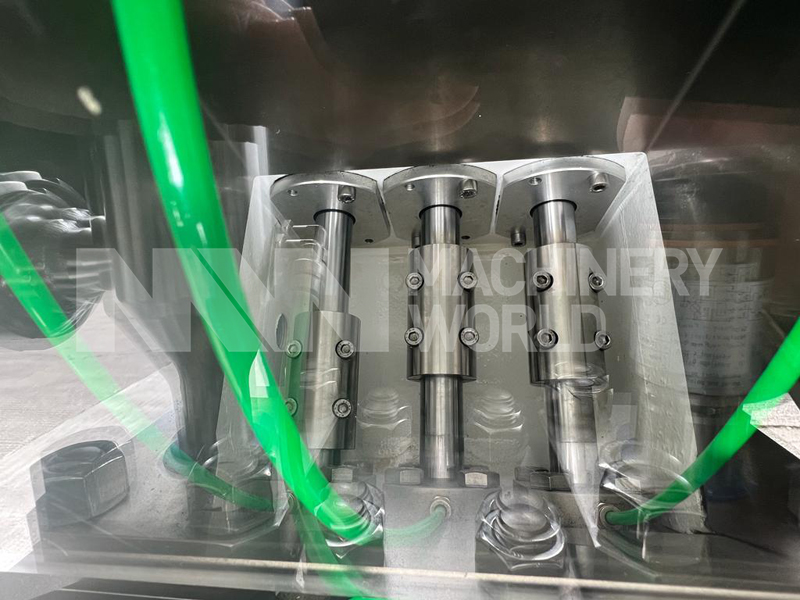

- Number of Pistons (Plungers): 3x Pistons/Plungers
- Piston Material: Chromium Carbide Coated Pistons
- Main Drive Motor Power: 7.5kw
- Electrics: 400V / 16.9 Amps / 3-Ph / 50Hz
- Finish: Stainless steel covers
- Previous Use: Dairy Application
Country of Manufacture
Italy
