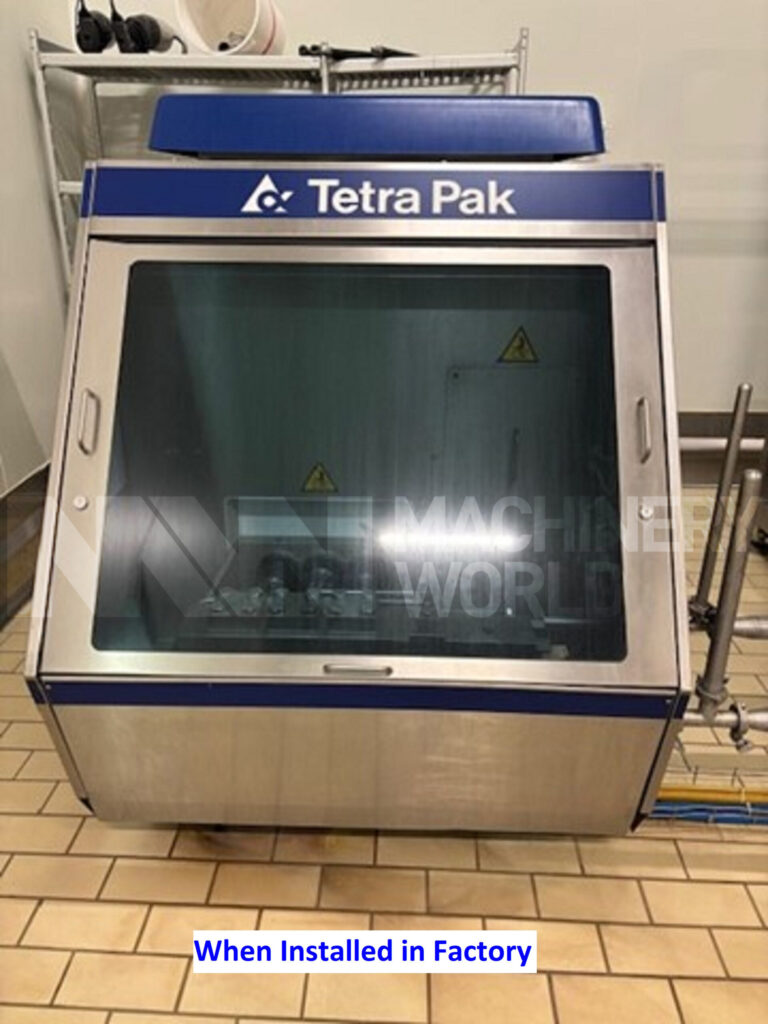

1,200 to 2,400 LPH Tetra Pak Tetra Alex TA200 (350 Bar) High Pressure Homogeniser (Year 2010)

Description

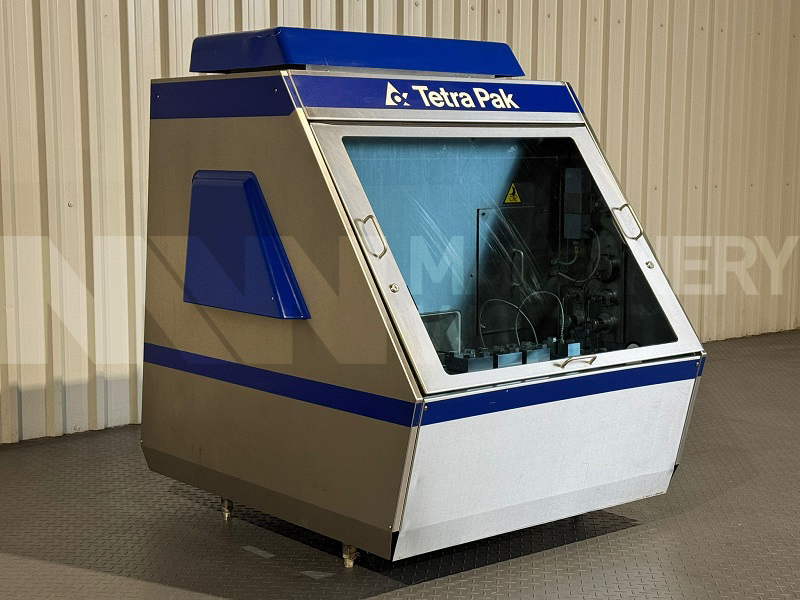

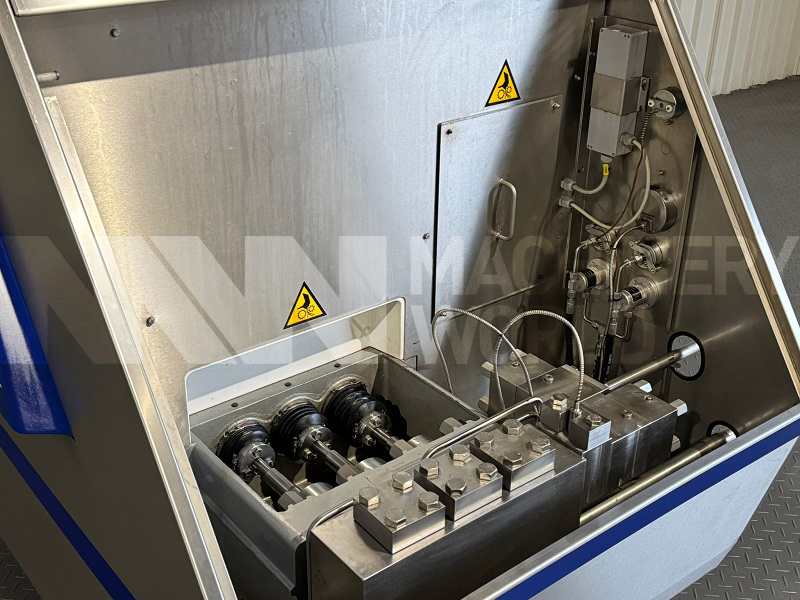

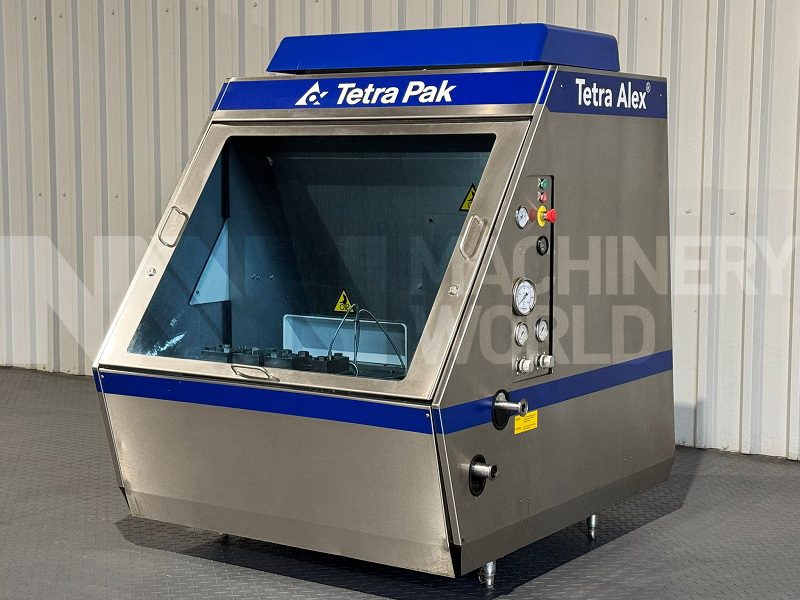

This is a used Tetra Pak Tetra Alex TA 200 Homogeniser, with a capacity of approx 1,200 to 2,400 LPH and at a maximum working pressure of 350 Bar (5,076 PSI). Tetra Pak Tetra Alex TA200 High Pressure Homogeniser comes equipped with a horizontally mounted positive displacement pump with 3-pistons. This Tetra Pak Tetra Alex TA200 High Pressure Homogeniser are designed for high pressure homogenisation of emulsions and suspensions and includes various products such as Pasteurised Milk, UHT Milk, Dairy Cream, Yogurt, Condensed Milk, Ice Cream Mix, Fruit Juices, Concentrates, Ketchups, Sauces, Mayonnaise and other similar products. Current held as stock, this Tetra Pak Tetra Alex TA200 High Pressure Homogeniser is available for immediate sale. Please note that ‘Technical Doc’ attachment shown is for information purpose only and the actual equipment under offer might vary in specification.

Specification

• Make: Tetra Pak, Sweden
• Machine Type: Tetra Alex TA200
• Model: High Pressure Piston Homogeniser

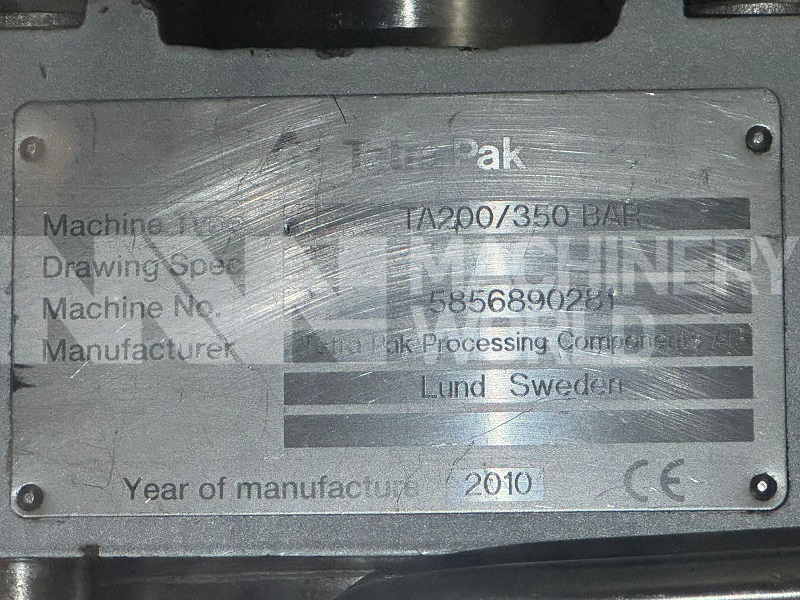

• Serial Number: 5856890281
• Year of Manufacture: 2010
• Working Capacity: Approx 1,200 to 2,400 LPH (Variable with Frequency Controlled Inverter)
• Working Pressure: 350 Bar (5,076 PSI)

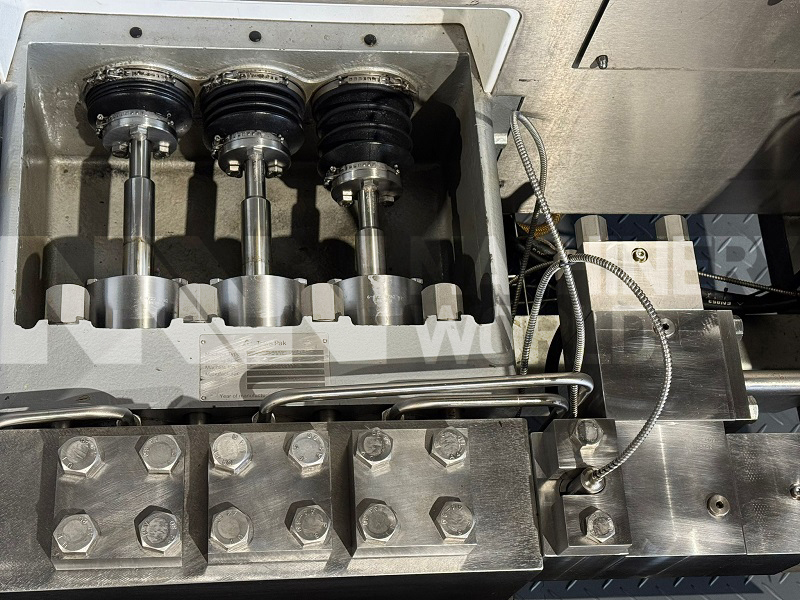

• Number of Pistons: 3-Pistons
• Piston Diameter: 32mm
• Piston Material: Chromium Coated

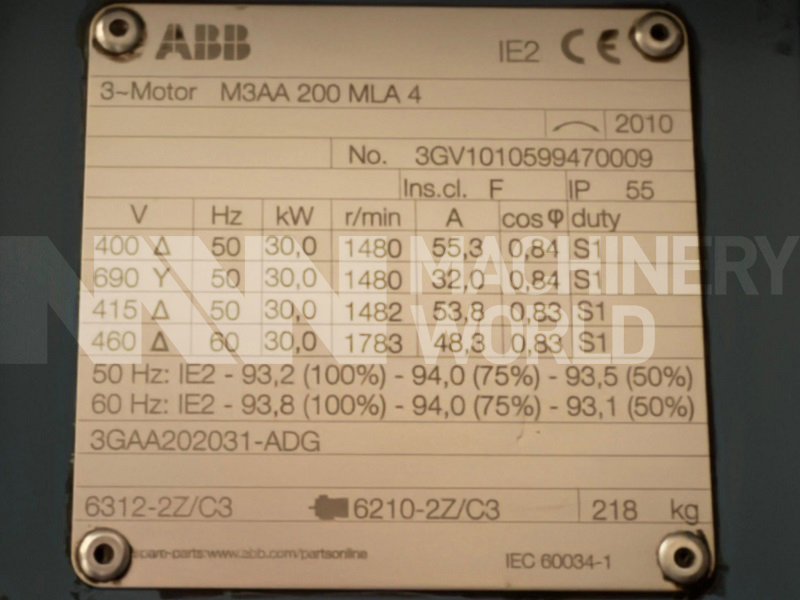

• Motor Power: 30kw, 3-Ph & 50/60Hz
• Finish: Stainless Steel Shroud
• Additional Details: Comes with Frequency Inverter for Speed Control and Operational Manual.
• Not Included: Control Panel

Dimensions

• Length: 1534mm
• Width: 1310mm
• Height: 1526mm

Country of Manufacture

Sweden
