15,000 LPH Reda RO15W Reverse Osmosis RO Membrane Filtration Plant (Year 2014)

Description

This is a used Reda RO15W Reverse Osmosis RO Membrane Filtration Plant. The reverse osmosis filtration plant is designed for the concentration of sweet whey, operating at a working temperature of 10 °C and an ambient temperature of 20 °C. With a feed flow rate of 15,000 kg/h, the system produces 10,000 kg/h of permeate and 5,000 kg/h of retentate, achieving a volume concentration ratio (VCR) of 3. Incoming whey contains 6–6.5% total solids, which are reduced to 0.01–0.02% in the permeate and concentrated to 18–21% in the retentate. The plant operates within a pressure range of 15–35 bar and incorporates 32 membrane elements of type 8038, arranged across 3 filtration loops. Powered by a 400 V, 50 Hz, 3-phase electrical supply, the system draws 80 A and has an installed power capacity of 48 kW, ensuring efficient, high-volume processing for dairy and food applications.

Specification

• Make: Reda, Italy
• Function: Reverse Osmosis RO Membrane Filtration Plant
• Serial Number: RO15W
• Year of Manufacture: 2014
• Hourly Flow Rate (Feed In Capacity): Approx 15,000 Kg per Hour
• Permeate Flow Rate: 10,000 Kg per Hour
• Retentate Flow Rate: 5,000 Kg per Hour
• Previous Use: Concentration of Sweet Whey
• Total Solids in Feed: 6% to 6.5%
• Total Solids in Retentate: 18% to 21%
• Concentration Ratio: 3
• Working Temperature: 10 deg C
• Ambient Temperature: 20 deg C
• Number of Filter Elements: 32
• Filtration Loops: 3
• Installed Power: 48kw, 3-ph & 50Hz

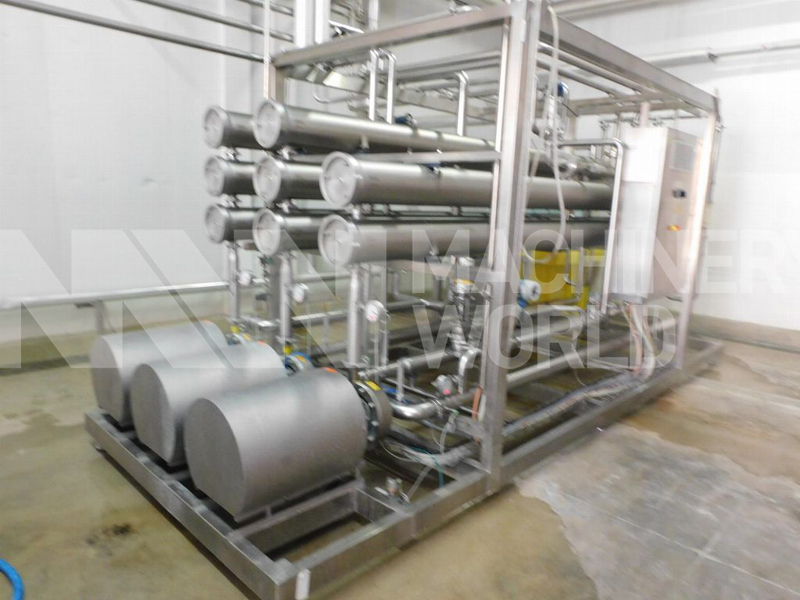

• Comes completely Skid mounted with High Pressure Pumps, Valves, Stainless Steel Balance Tank, Flowmeters and Interconnecting Pipework

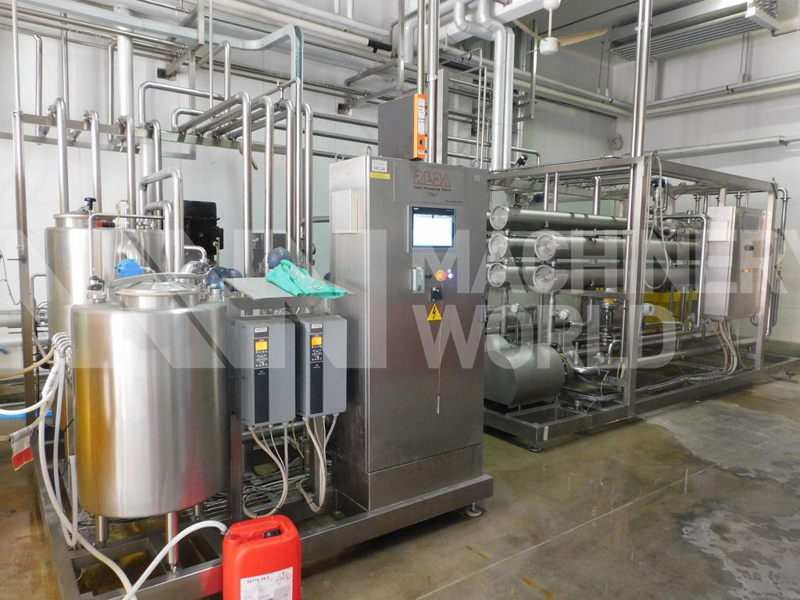

• Control Panel:
  Comes fully integrated on Skid with Siemens PLC and Frequency Inverters for Pumps
• Comes with full User Manual & Electrical Drawings

Country of Manufacture

Italy
