Silverson FLB60 Flashblend Powder-Liquid-Liquid Inline High Shear Mixer Dissolver

Description

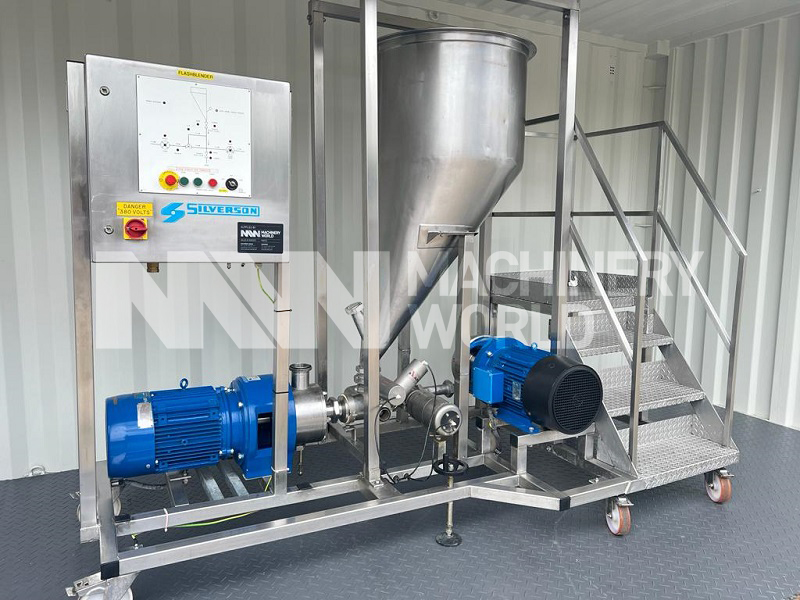

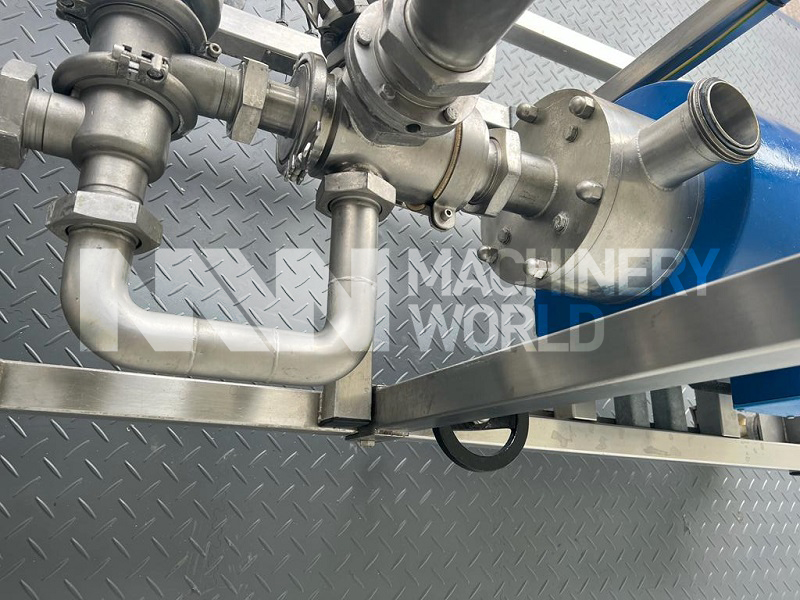

This is an used and fully refurbished Silverson FLB60 Inline High Shear Mixer Dissolver. Silverson FLB60 Inline High Shear Mixer Dissolvers have a recommended powder feed capacity flow rate of approx 15,000kg per hour (varies depending on the type of powder and solubility of the liquid being pumped through). Silverson FLB60 Flashblend Inline High Shear Mixer Dissolver is specifically designed to wet powders into liquids rapidly. Silverson FLB60 Flashblend Inline High Shear Mixer Dissolver processes various kinds of powders which forms low viscous liquids when dissolved to form a viscous gel. Silverson FLB60 Flashblend Inline High Shear Mixer Dissolver comprises of the following: 1) Silverson Inline High Shear Mixer, 2) APV Puma Centrifugal Pump, 3) Blend Injector or Venturi, 4) Powder Hopper with Level Probe, 5) Pneumatically Operated Actuated Butterfly Valve, 6) Pneumatically Operated Actuated Divert Valve for CIP Mode & 7) Electrical Control Panel. This Used & Refurbished Silverson FLB60 Inline High Shear Mixer Dissolver is available for immediate sale.

Specification

• Make: Silverson Machines Ltd
• Type: Flashblend FLB60
• Model: Flashblend Inline High Shear Mixer Dissolver

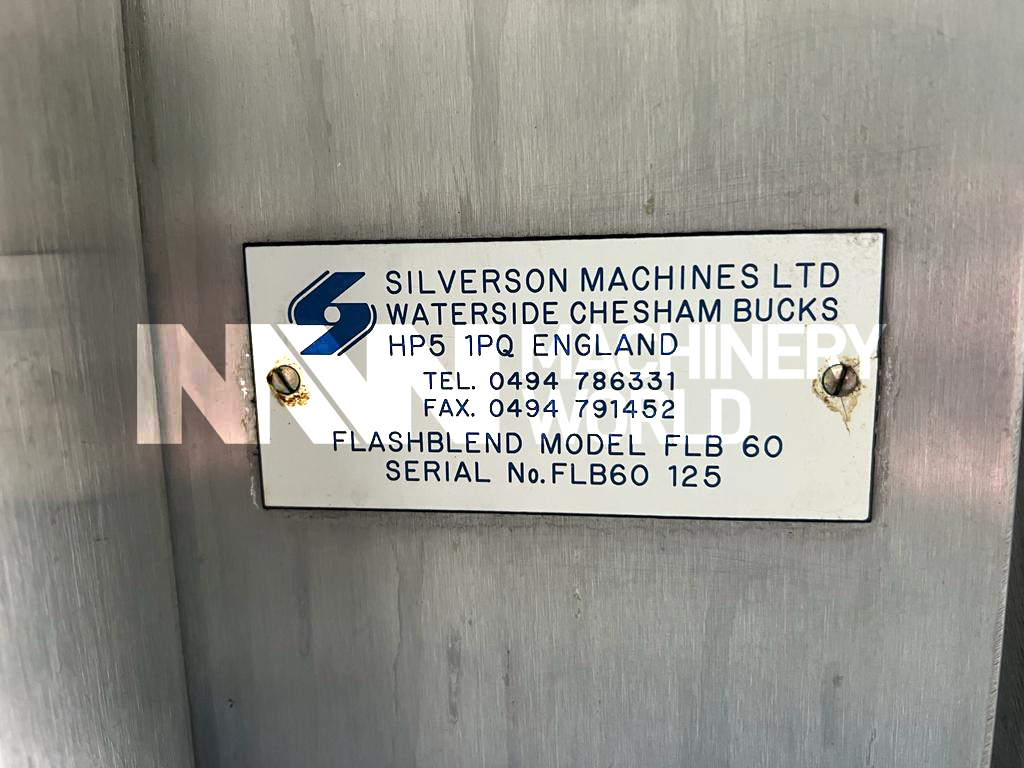

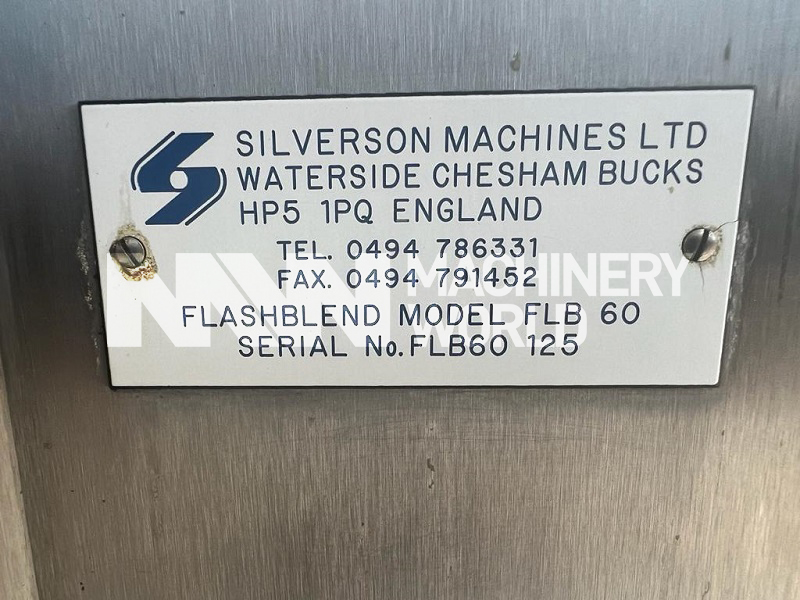

• Serial Number: FLB60 125
• Construction: 316 grade Stainless Steel Product Contact Parts
• Typical Powder Flow Rate: 15,000kg per hour (Varies depending on the type of powder and solubility of the liquid being pumped through)
• Nominal Flowrate during Mixing Operation: Approx. 26,000 LPH
• Nominal Flowrate during CIP Cleaning Operation: Approx. 45,000 LPH
• Total Installed Power: 26kw
• Standard Hopper Volume: Apporx. 300 Litres
• High Shear Mixer Dissolver:
  Make: Silverson, England

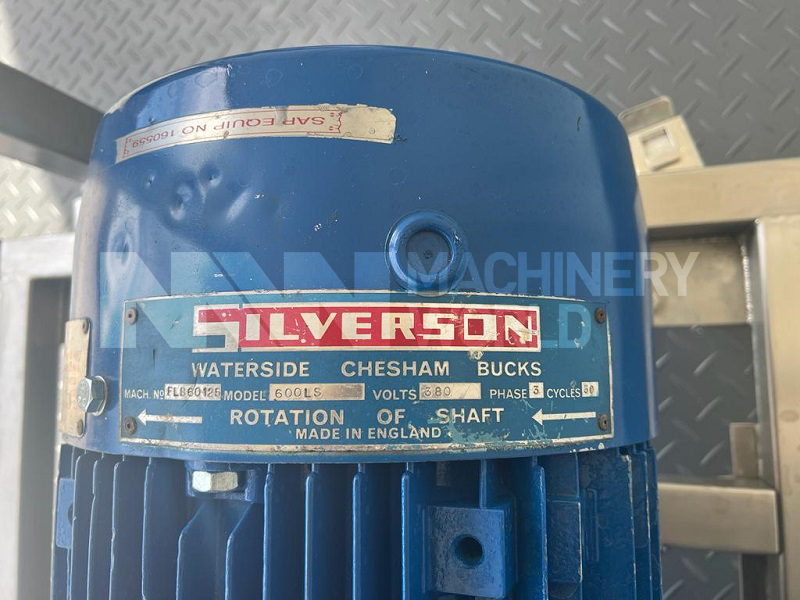

  Model: 600LS

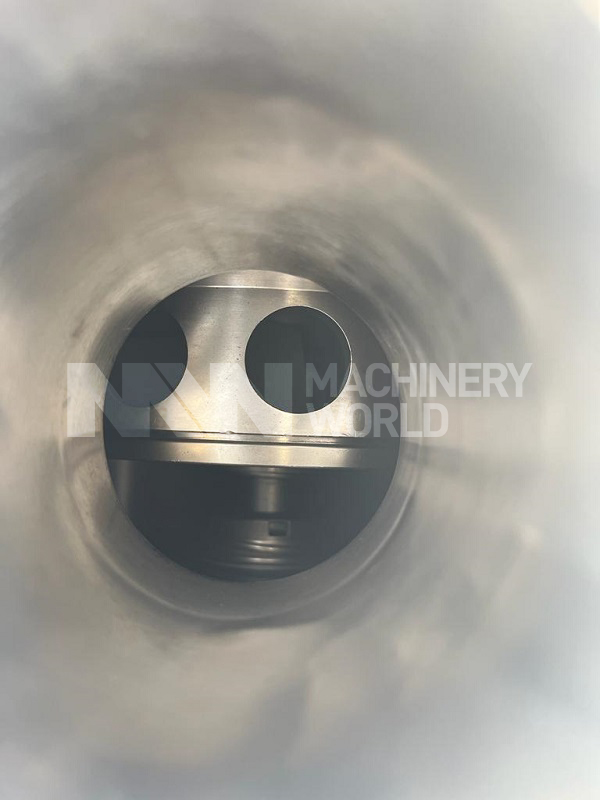

  High Shear Head Type (Stator): General Purpose High Shear Head
  Motor Power: 15kw, 3-Ph & 50Hz
  Speed: 2940 RPM
  Standard Inlet/Outlet Size: 3 inch
  Height of Outlet: 650mm from Finished Floor Level

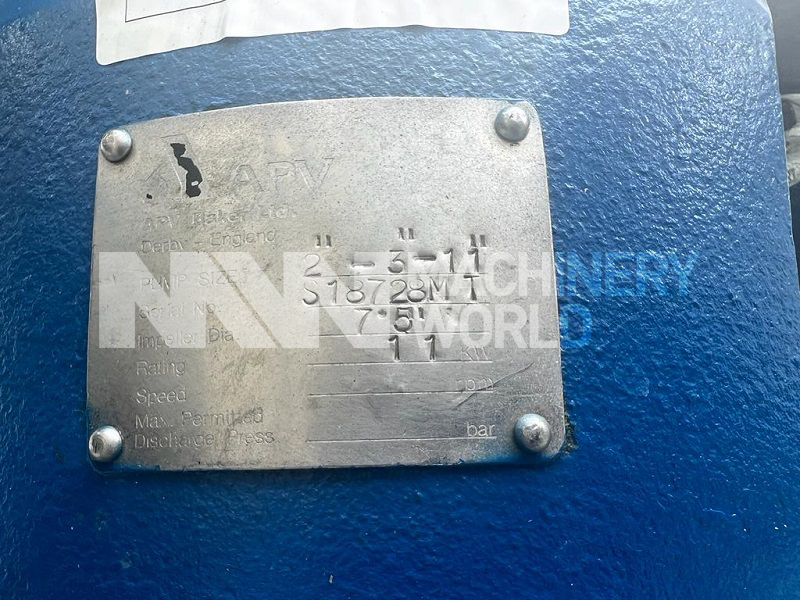

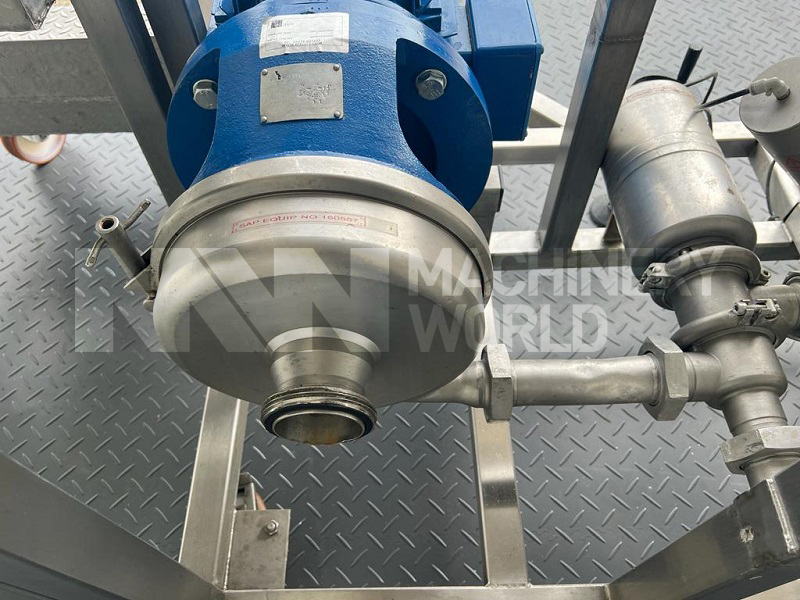

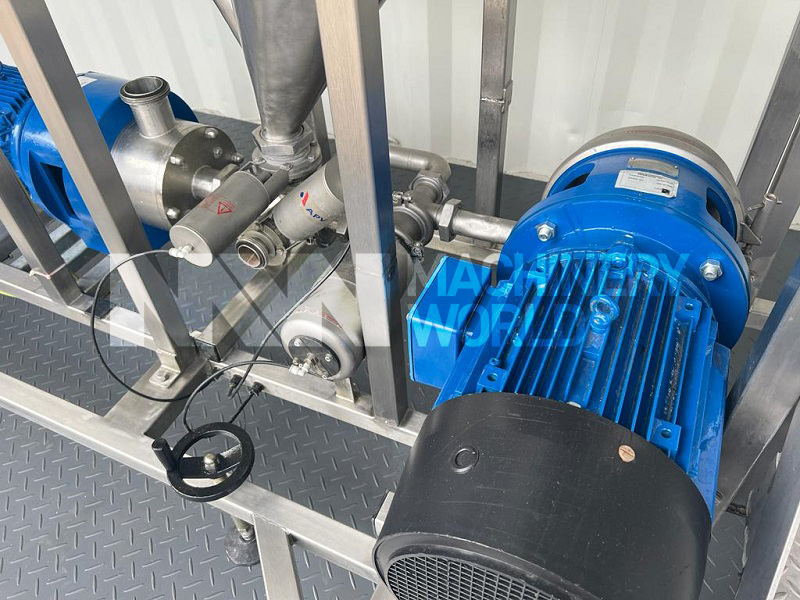

• Centrifugal Pump
  Make: APV, England
  Motor Power: 11kw, 2900 RPM, 3-Ph & 50Hz
  Standard Inlet/Outlet Size: 3 inch
  Height of Inlet: 550mm from Finished Floor Level

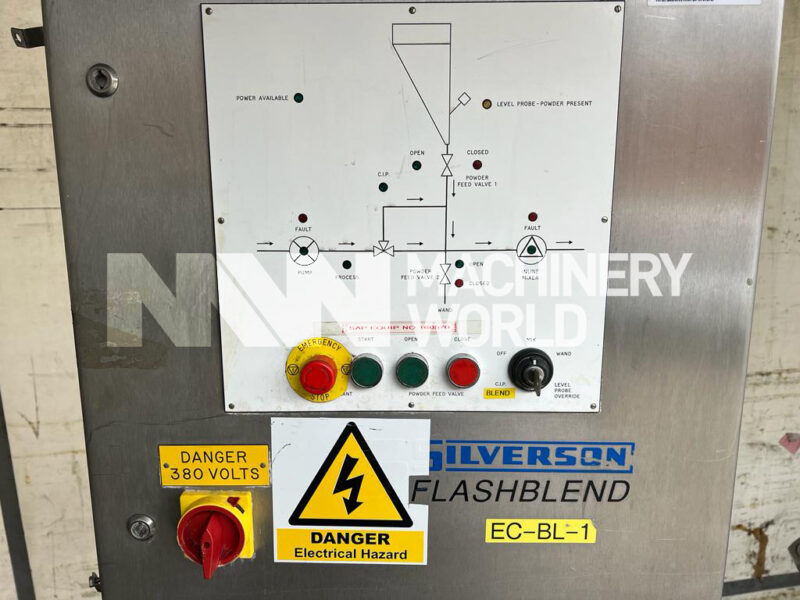

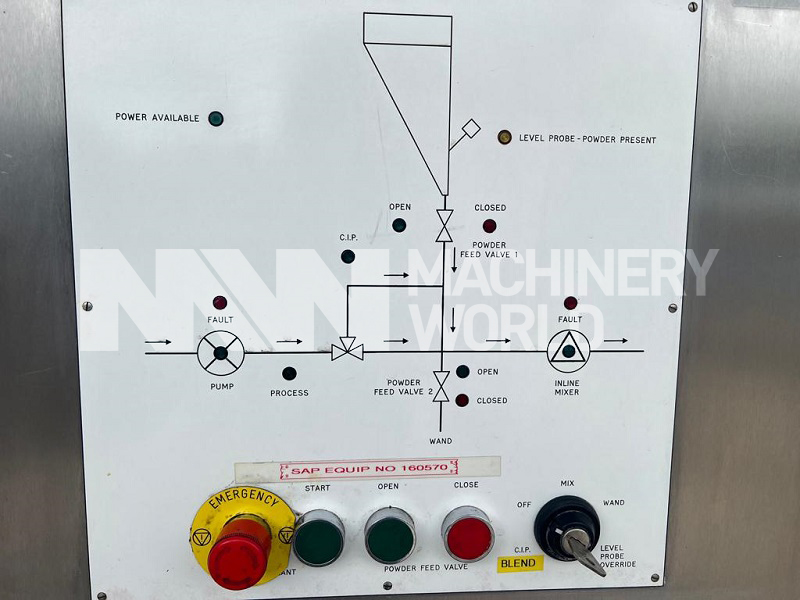

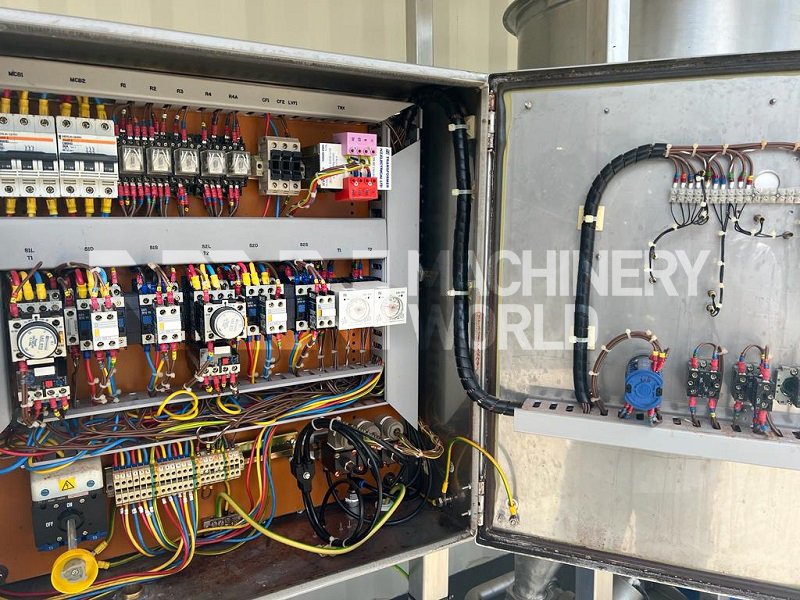

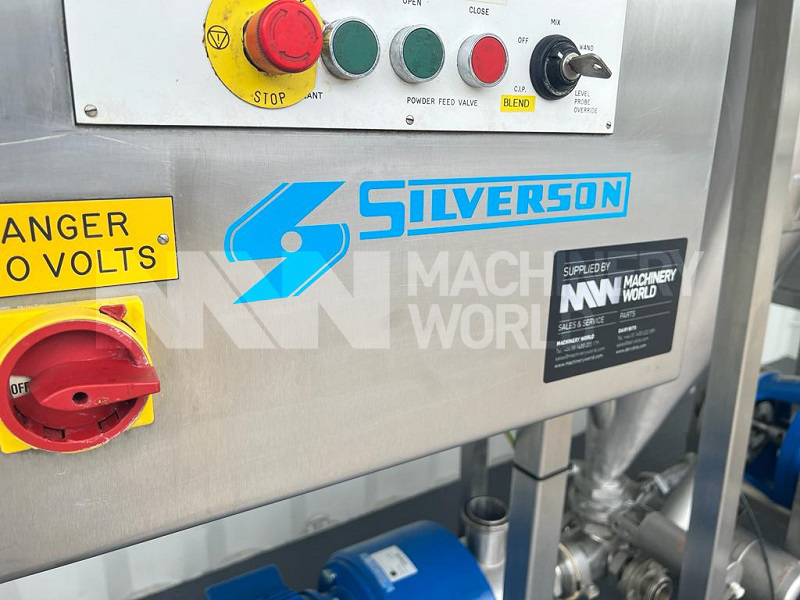

• Control Panel: Comes Fully Integrated

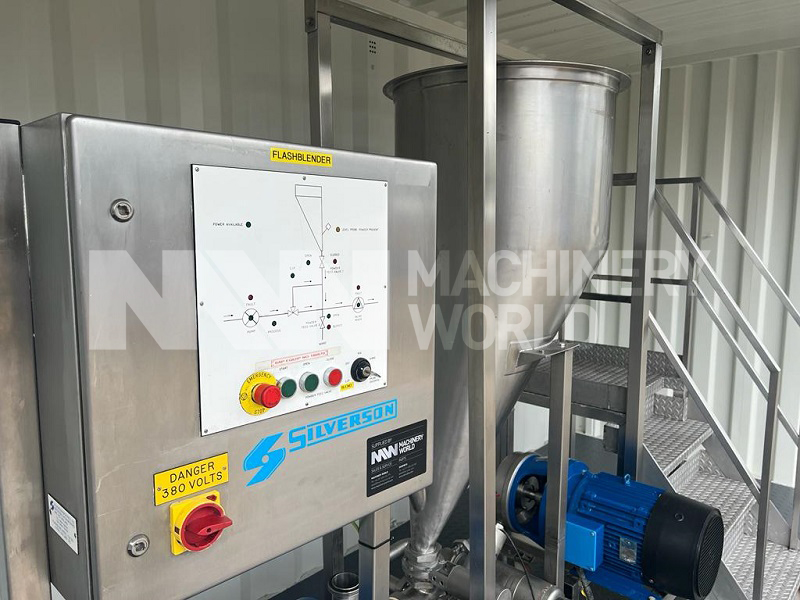

• Additional Details: Silverson Flashblend Mixer comes built on Stainless Steel Skid and mounted on Castor Wheels. Also includes an integrated access step ladder with Handrails, to enable operator to manually tip Powder into the Hopper.

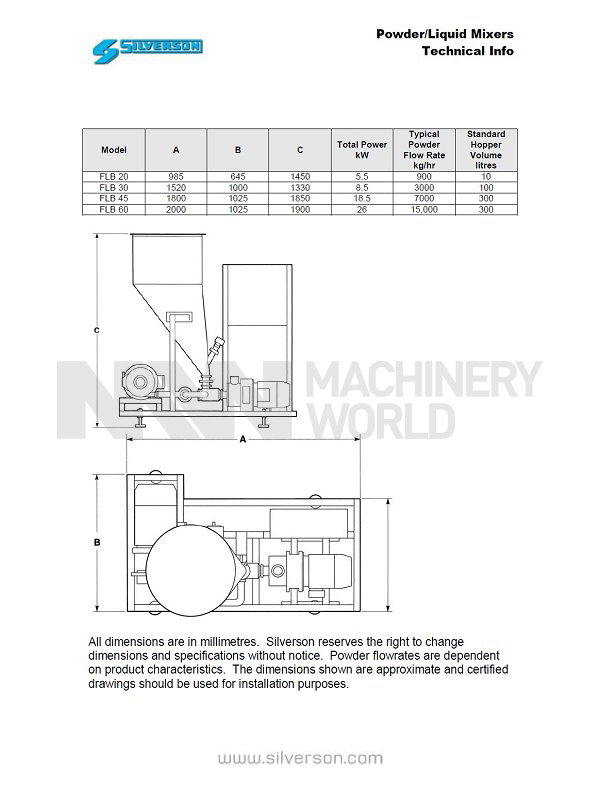

Dimensions

Overall Length: 2650mm
Overall Width: 1100mm
Overall Height: 2250mm
Height to Top of Product Hopper: 2030mm

Country of Manufacture

England
