Description

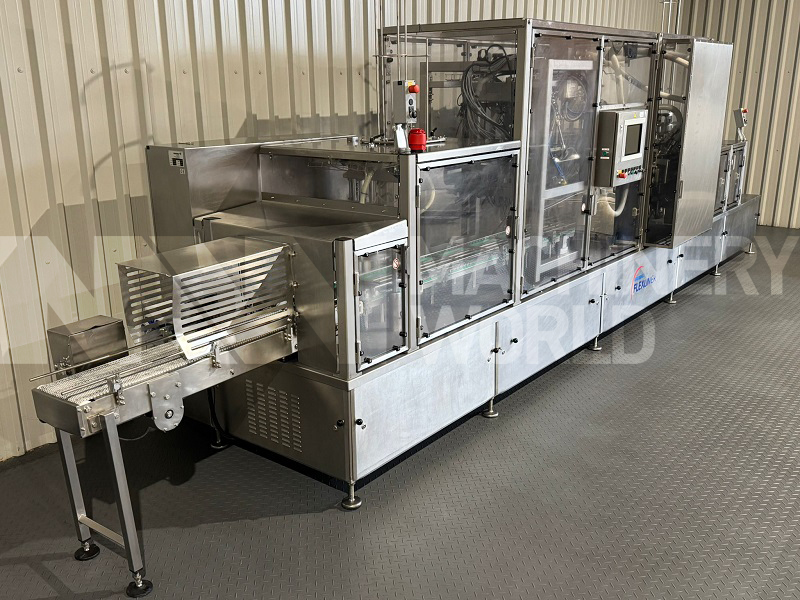

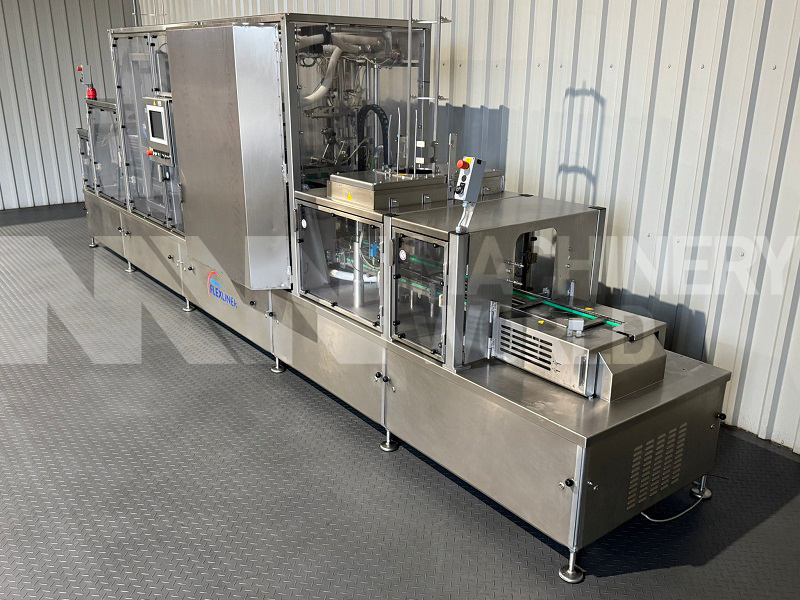

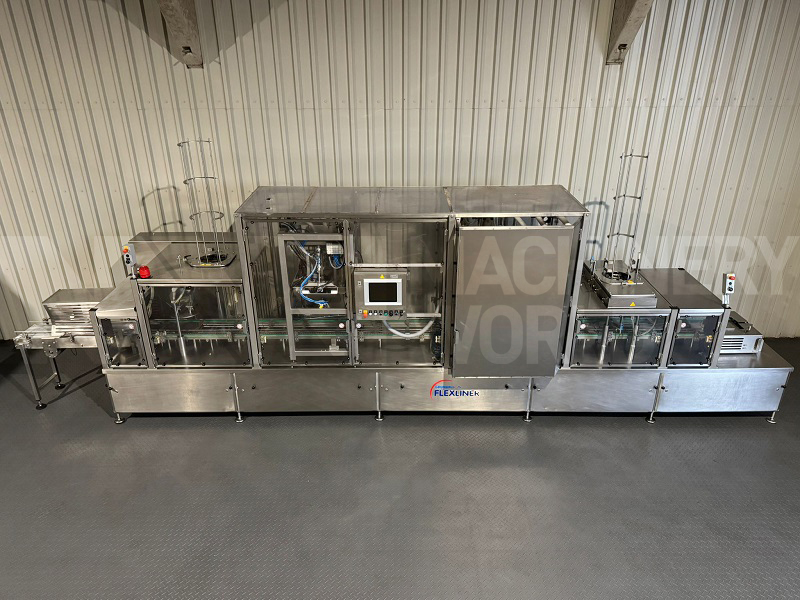

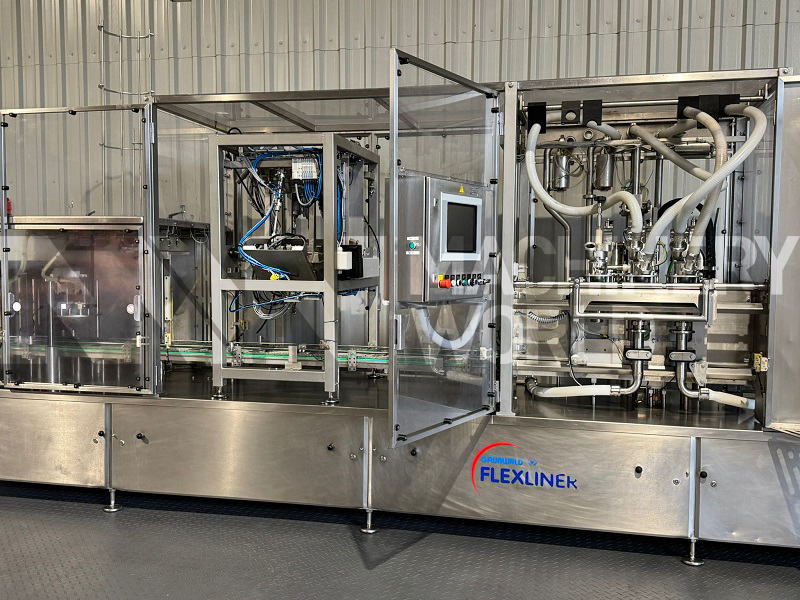

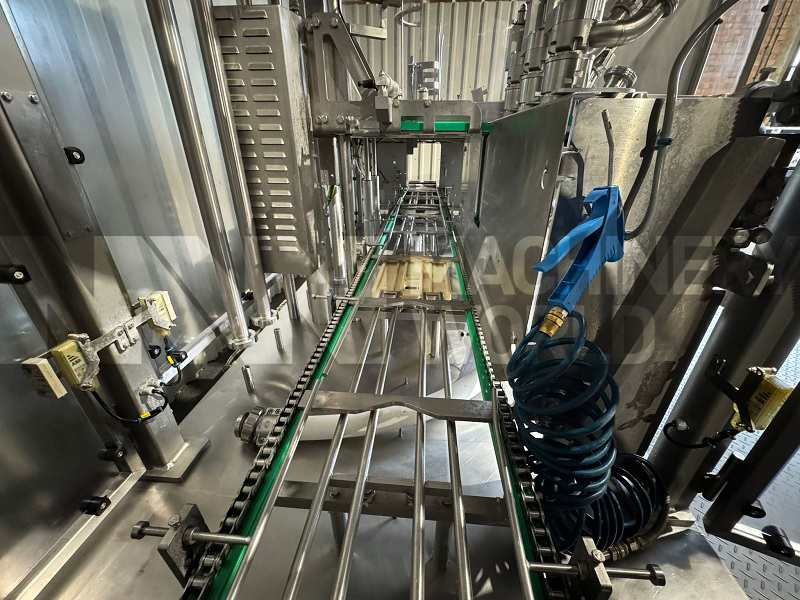

This is a used Grunwald Flexiliner XL Linear Bucket Filler with Niverplast Automatic Varifold Bag Closer. This Grunwald Flexiliner XL is a Single Lane (1-Lane) Linear Fully Automatic Bucket Filler was manufactured in 2014 with a filling speed of 240 to 900 buckets, which varies depending on the fill capacity. Grunwald Flexiliner XL 1-Lane Linear Fully Automatic Bucket Filler is capable of filling 1kg to 20kg Buckets. Niverplast Automatic Varifold Prefabricated Bag Closer was added to this machine in the year 2017, as the previous owner wanted to do Bag-in-Box filling on the same machine.
Fully automatic and exceptionally versatile, Flexiliner XL Bucket Filler has been crafted in line with Grunwald’s well established design principles. In its development, considerable attention has been given to ergonomic handling, ensuring a high level of availability, minimizing format changeover times, and achieving maximum cost efficiency. Please note that ‘Technical Doc’ attachment shown is for information purpose only and the actual equipment under offer might vary in specification.
Specification
Automatic Bucket Filler
- Make: Grunwald GmbH, Germany
- Type: Flexiliner XL 1-Lane
- Function: Fully Automatic Linear Bucket Filler

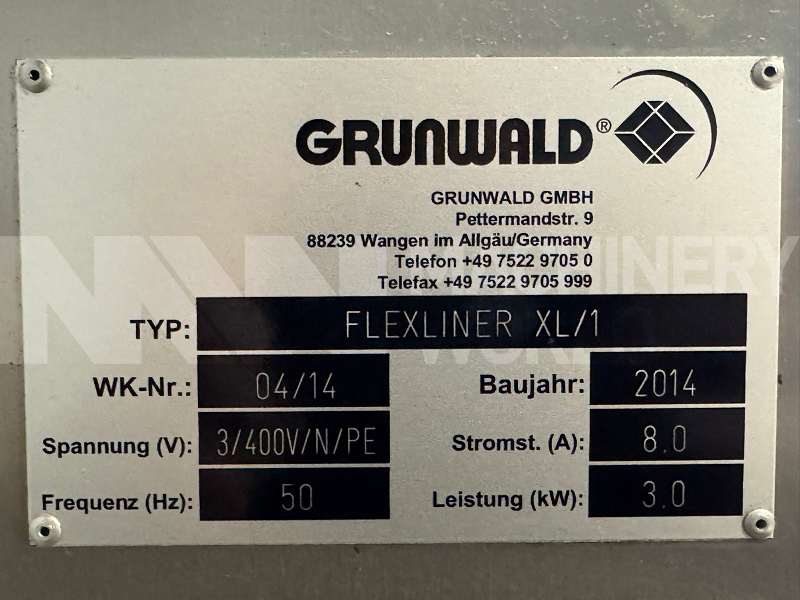

- Machine Number: WK04/14
- Year of Manufacture: 2014
- Total Number of Lanes: Single Lane (1-Lane) Bucket Filler
- Filling Speed: Approx 240 to 900 buckets per hour (Varies depending on Filling Capacity)
- Filling Capacity: 1kg to 20kg
- Power: 8kw
- Stations Included on the Filling Machine

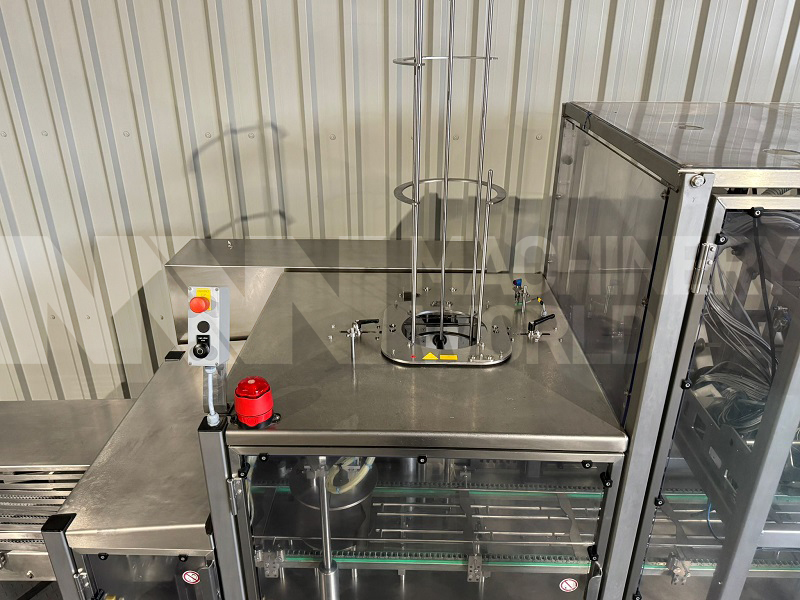

- Bucket Dispenser

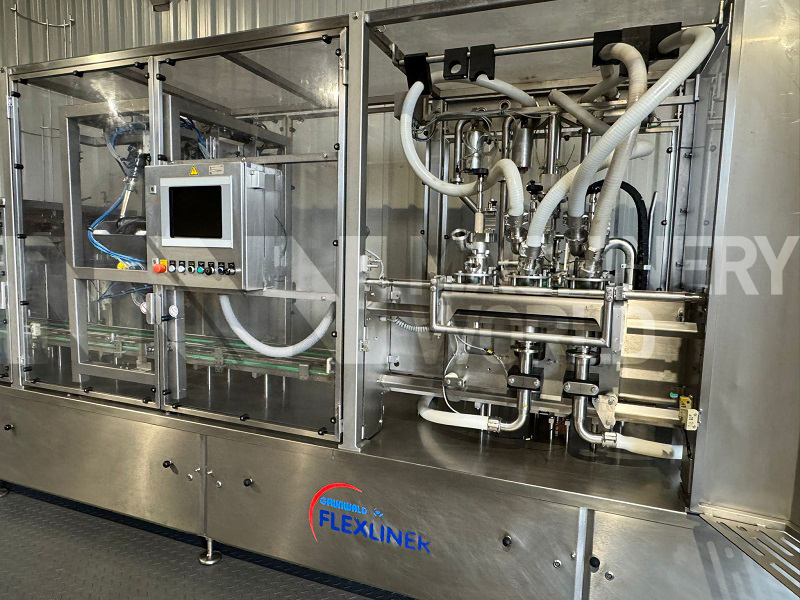

- Dosing Station
- Snap-On Lid Station
- Bucket Discharging Station

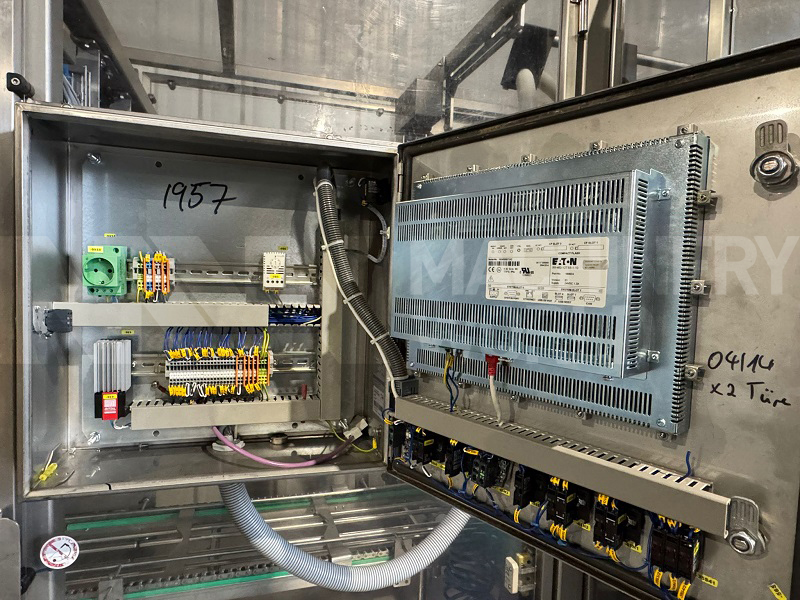

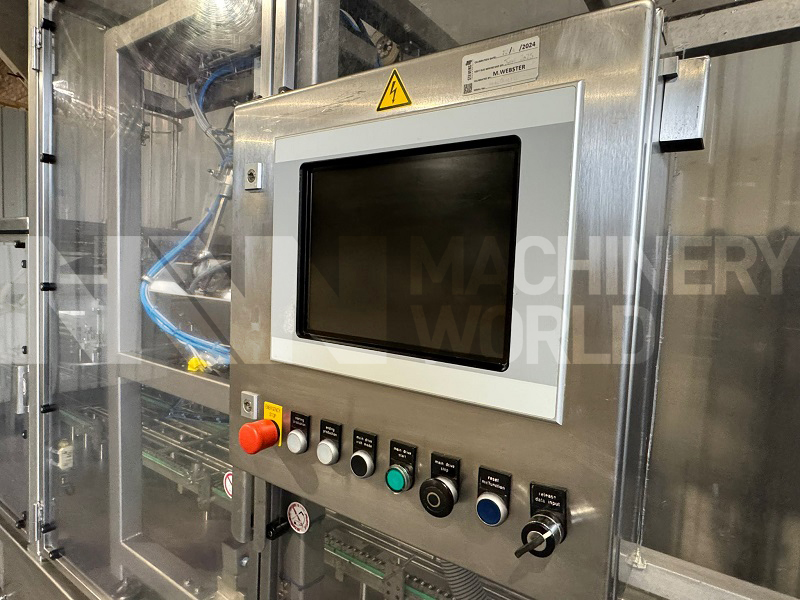

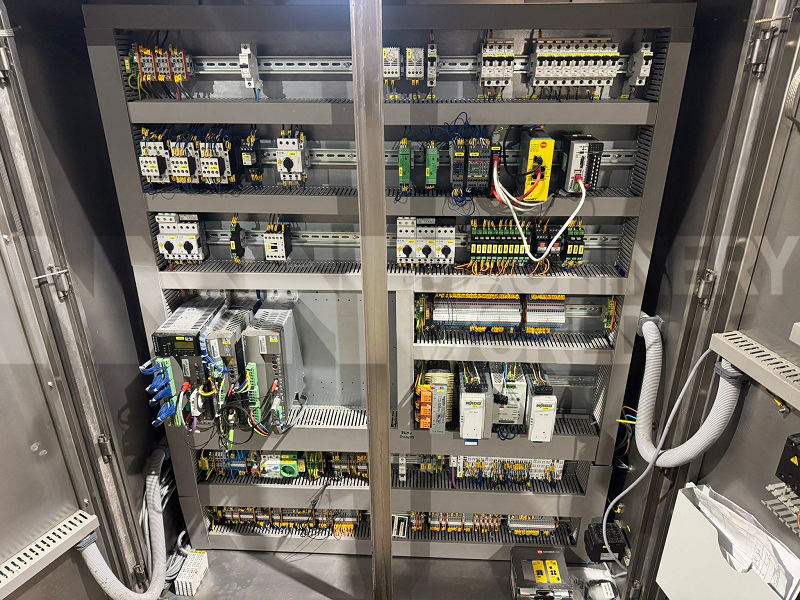

- Additional Details: Comes with Fully Integrated PLC Control Panel with Touchscreen HMI.
- NOT INCLUDED: Conveyors
Bucket Filler Dimensions
- Length: 8100mm
- Width: 1615mm
- Height: 2424mm

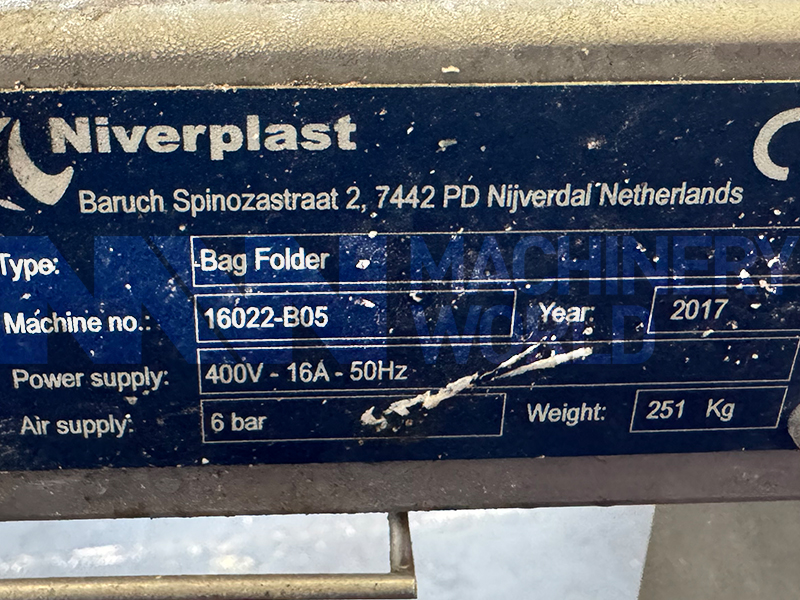

Automatic Bag Closer
- Make: Niverplast, Netherlands
- Type: Bag Folder
- Function: Automatic Prefabricated Bag Folder – Closer
- Machine Number: 16022-B05
- Year of Manufacture: 2017

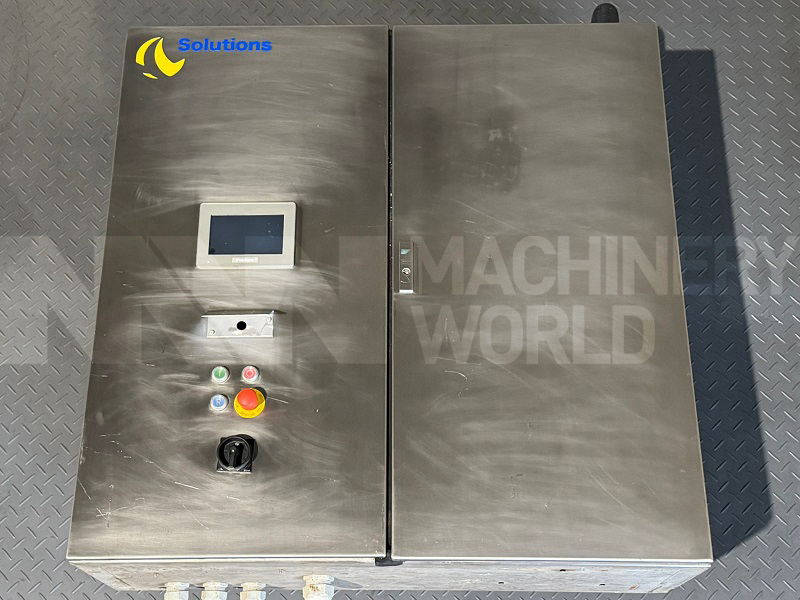

- Controls: Comes with a PLC Control Panel
- Power: 4kw
Bag Folder Dimensions
- Length: 1170mm
- Width: 1305mm
- Height: 2200mm
Country of Manufacture
Germany
Download Technical Doc
