2,000 LPH Frings ClearFlow UF P10 Ultra Filtration Membrane Plant (Year 2010)

Description

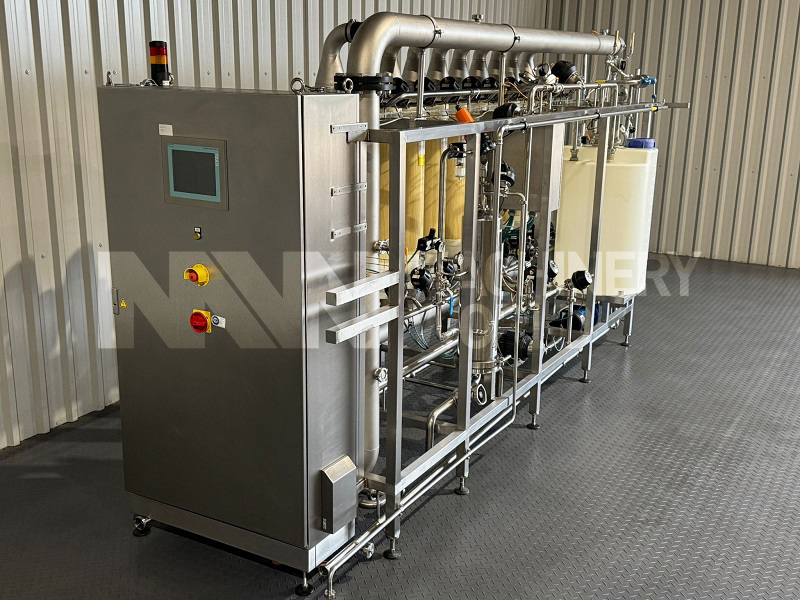

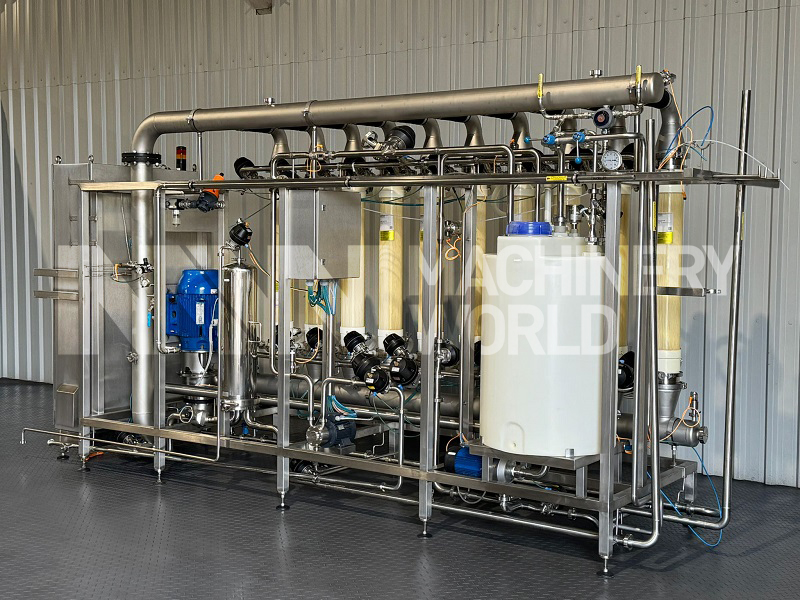

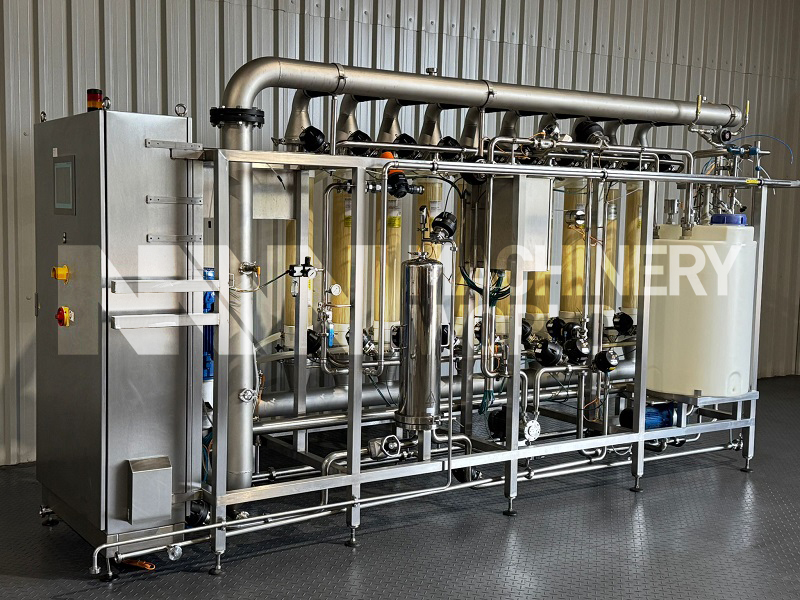

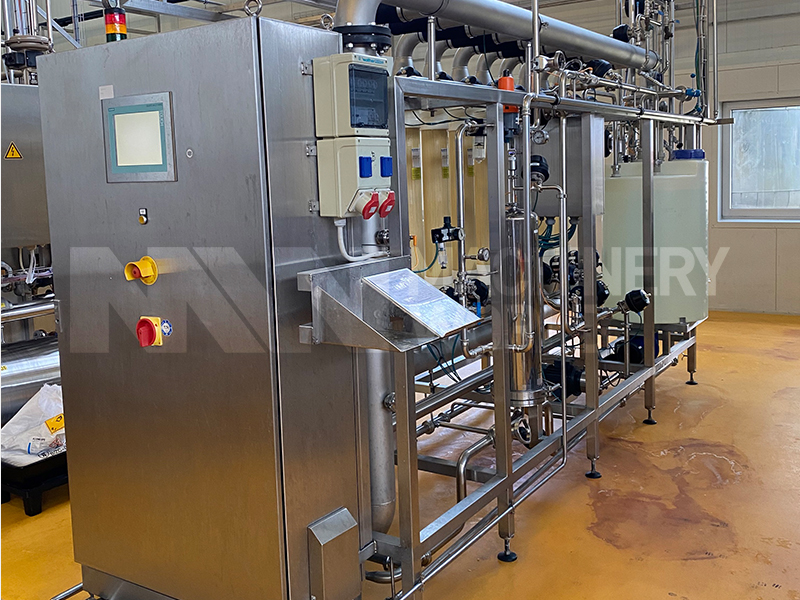

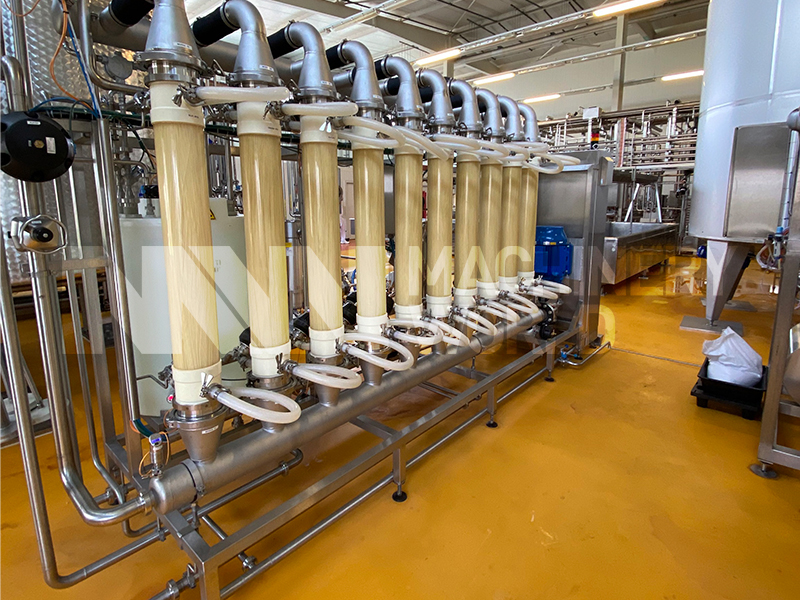

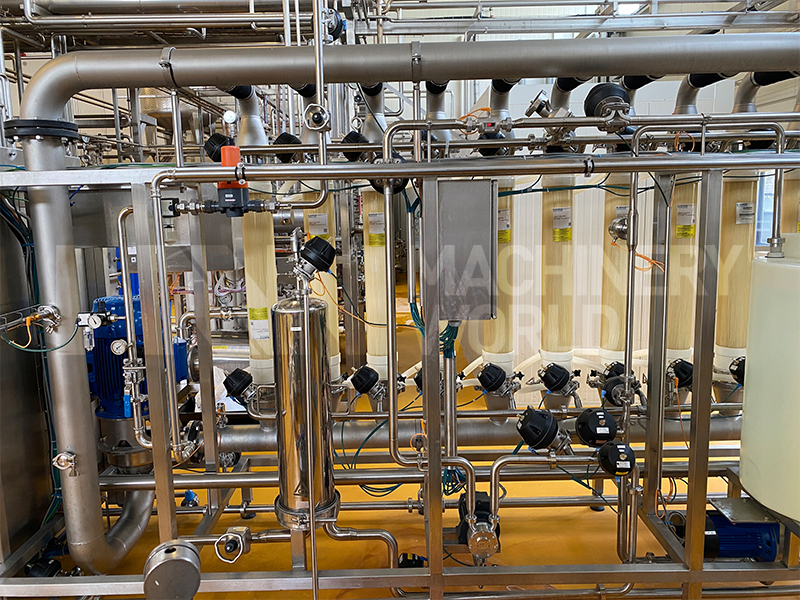

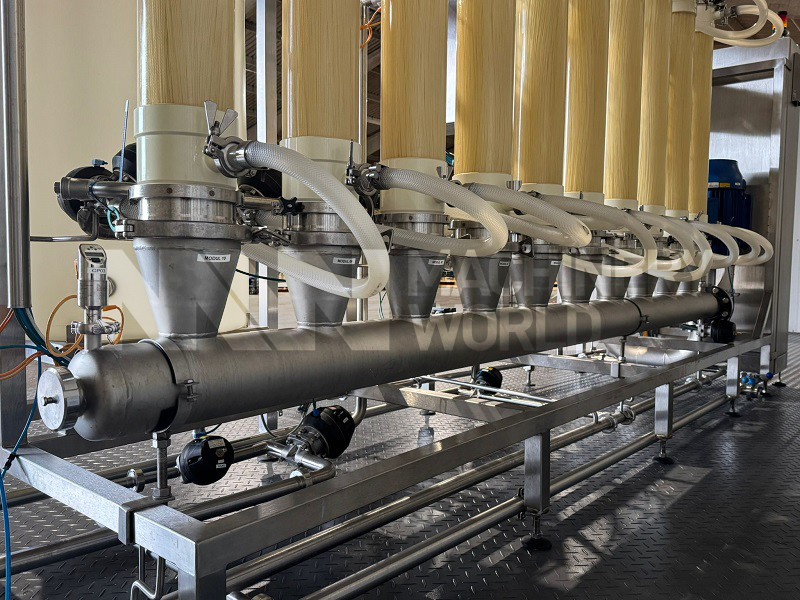

This is a used Frings ClearFlow UF P10 Ultra Filtration Membrane Plant. This Frings ClearFlow UF P10 Ultra Filtration Membrane Plant has a maximum feed in product capacity of upto 2,000 LPH and has a Filtrate output of approx 500 LPH to 800 LPH (Varies depending on the type of product being put through). This Frings ClearFlow UF P10 Ultra Filtration Membrane Plant was previously used on Colostrum and can possibly used on other similar dairy products (Membrane suitability has to be checked). Please note that 'Technical Doc' attachment and P&ID shown are for information purpose only and the actual equipment under offer might vary in specification.

Specification

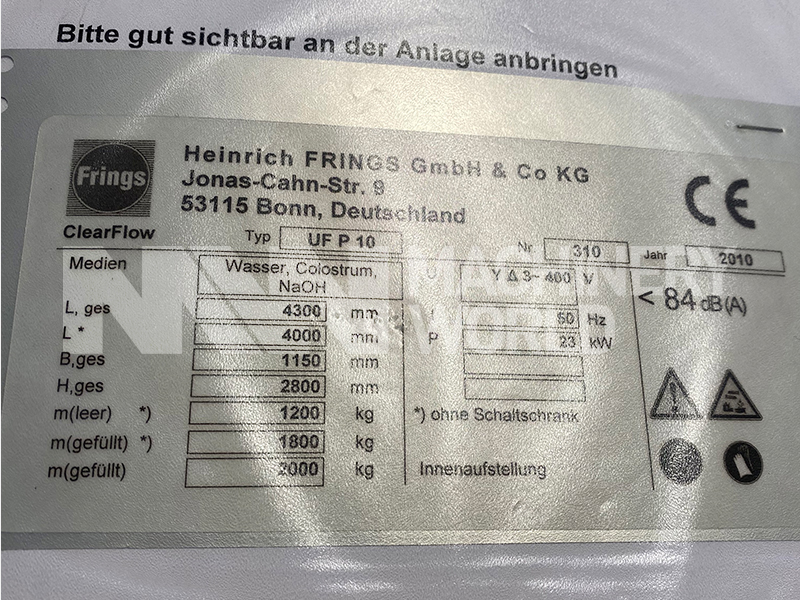

• Make: Heinrich Frings GmbH & Co KG, Germany
• Type: UF P10 - Ultra Filtration
• Serial No: 310
• Year of Manufacture: 2010
• Power: 23kw
• Voltage & Frequency: 3-Ph, 400V & 50Hz
• Filtrate Flow: 500 LPH to 800 LPH (Varies depending on the type of product being put through)
• Bypass Flow: Approx 2,000 LPH
• Parameters based on Previous Use:
  • Steam Consumption: Approx 17 kg per hour
  • Chilled Water: Approx 2,500 LPH
  • Hot Water: Approx 2,500 LPH
  • Waste Water: Approx 1,500 LPH
  • Product (Colostrum): Approx 1,485 LPH
• Construction: Completely Skid Mounted

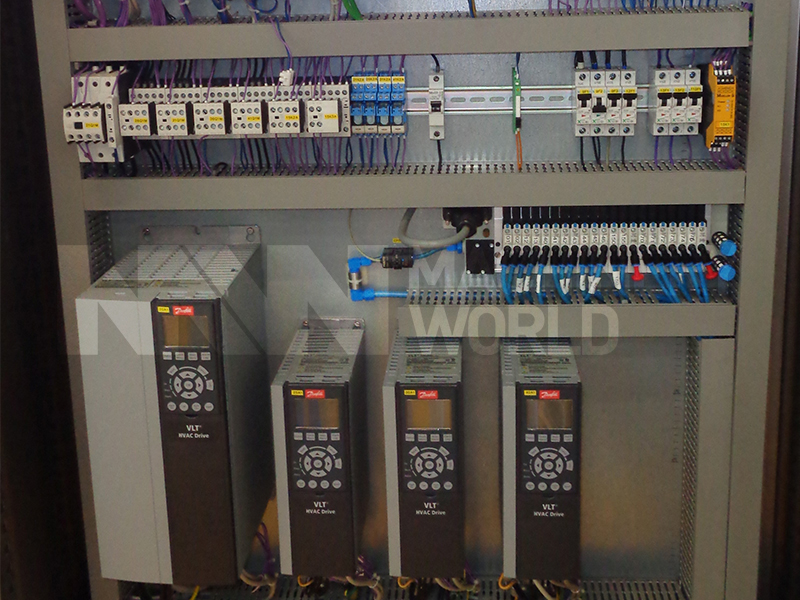

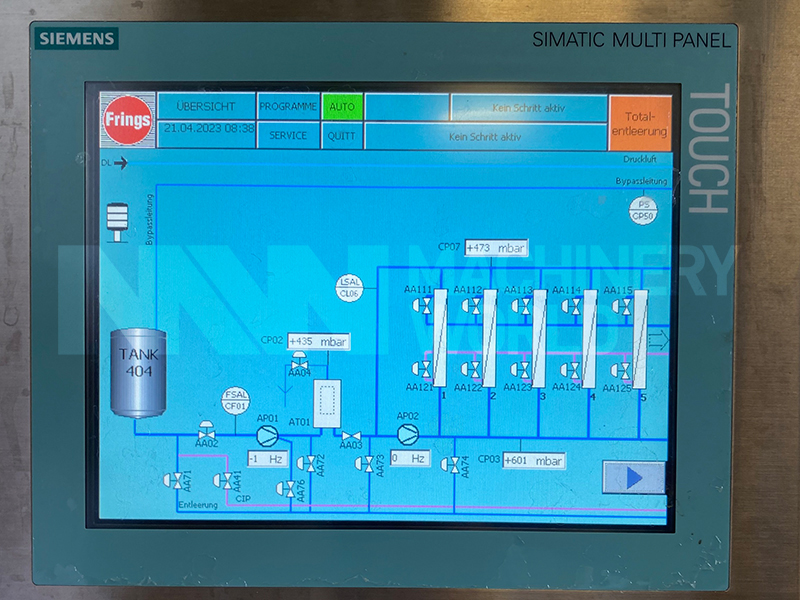

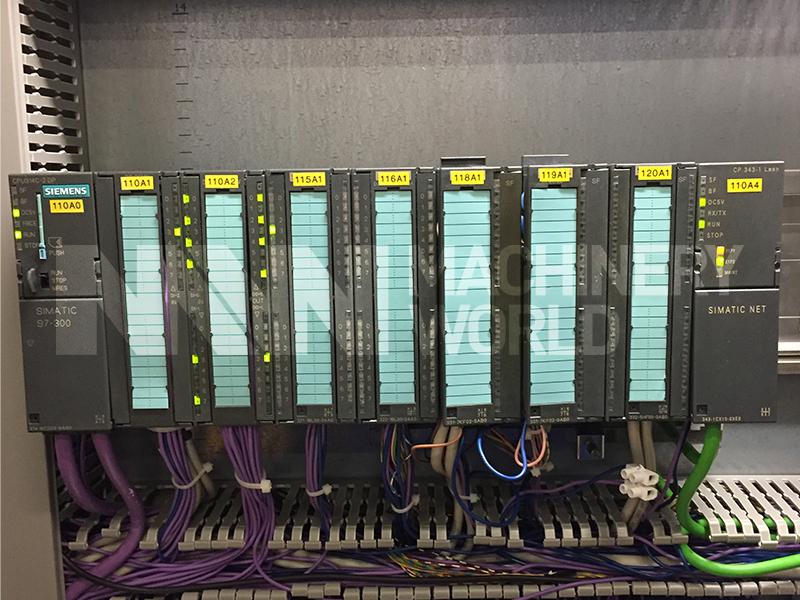

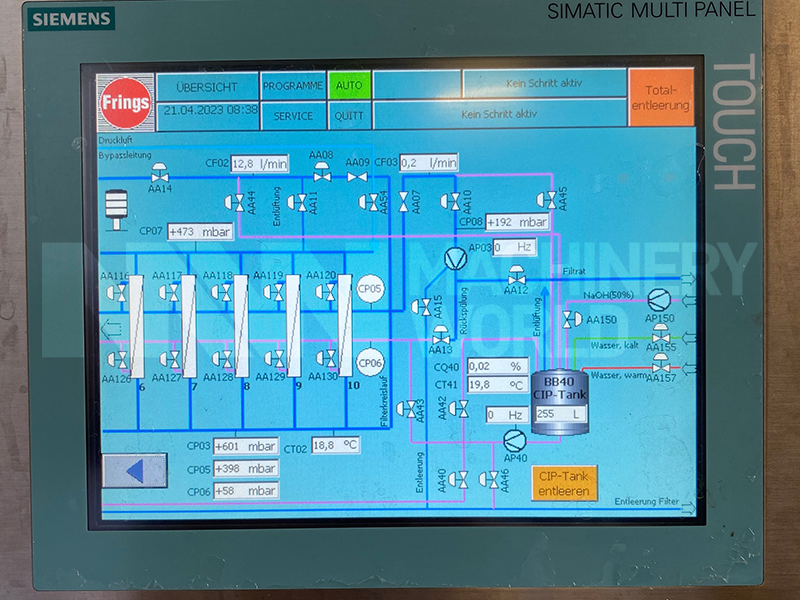

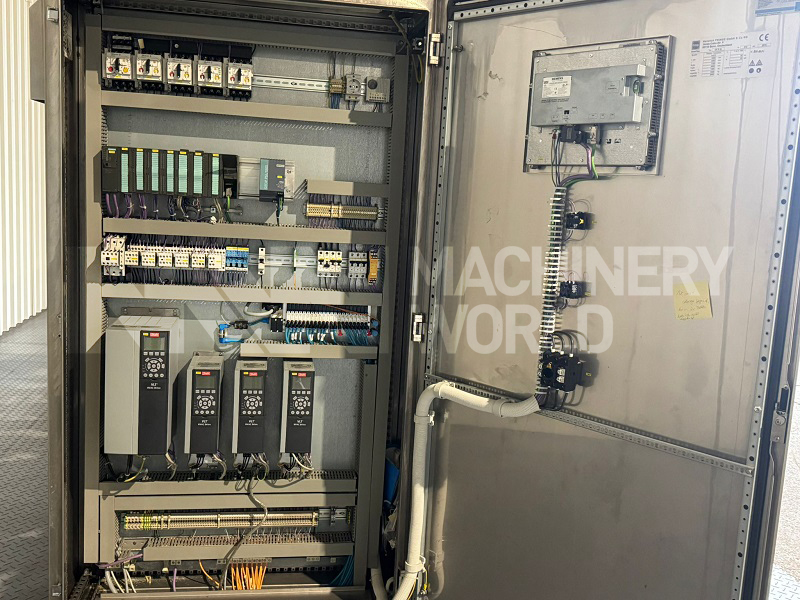

• Controls: Fully Integrated Control Panel with Siemens S7 PLC and Siemens Simatic Touch Screen HMI. Control Panel also includes Danfoss Frequency Inverters for Speed Control of Pumps.
• Additional Details: Includes Documentation and P&ID Drawing.
• Not Included: Product Tank

Country of Manufacture

Germany
