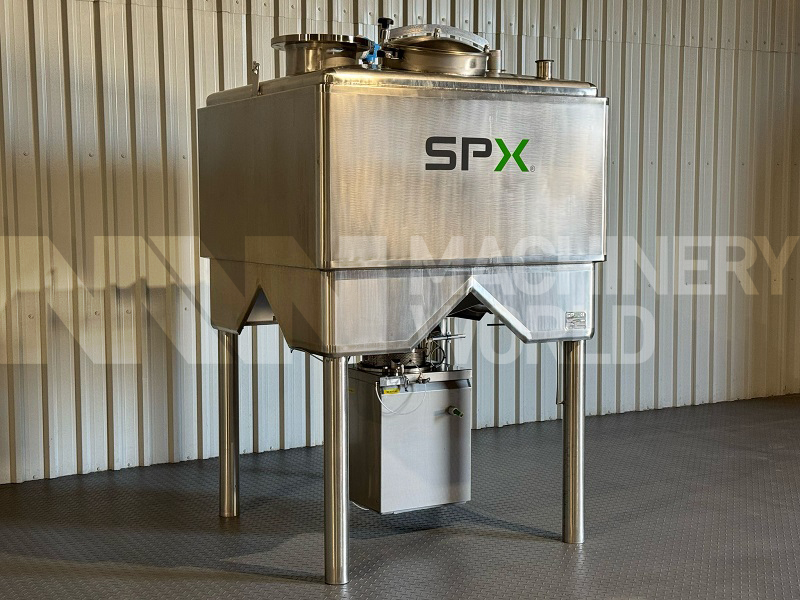

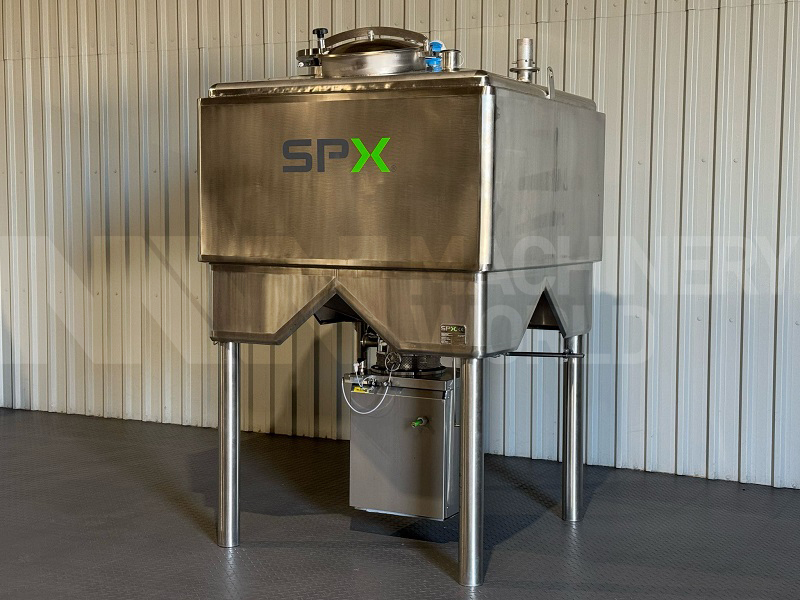

2,000 Ltr SPX FX Systems Flex-Mix TB+2000 Liquiverter High Shear Turbo Batch Mixer (Year 2020)

Description

This is a used SPX FX Systems Flex-Mix TB+2000 Liquiverter High Shear Turbo Batch Mixer. The APV SPX FX Systems Flex-Mix TB+2000 features a tank capacity of approximately 2,000 liters. It is particularly effective for mixing products with low to medium viscosity, facilitating rapid and efficient dispersion or reconstitution of liquid and powder components. The APV SPX FX Systems Flex-Mix TB+2000 is engineered for batch mixing, inline mixing across one or multiple hydration tanks, or continuous mixing, with the possibility of being integrated into fully automated production systems.. Note: ‘Technical Doc’ attachment shown is for information purpose only and the actual equipment under offer might vary in specification.

Common Applications

• Soya Milk
• Skimmed milk with total solids of 35%, 40%, and 50%
• Chocolate-flavored milk
• Recombined dairy milk
• Fruit juices
• Concentrated juice products
• Cream for desserts
• Soups
• Almond puree
• Cocoa
• Yogurt
• Mayonnaise
• Frozen dessert
• Oat mixture
• SCM
• Tomato concentrate
  • Above information is from manufacturer's website (Ref. APV SPX Website)

Specification

• Manufacturer: SPX Flow Technology, Poland
• Type: FX Systems
• Model: TB+2000
• Function: Liquiverter / High Shear Mixer / High Speed Mixer / Turbo Mixer

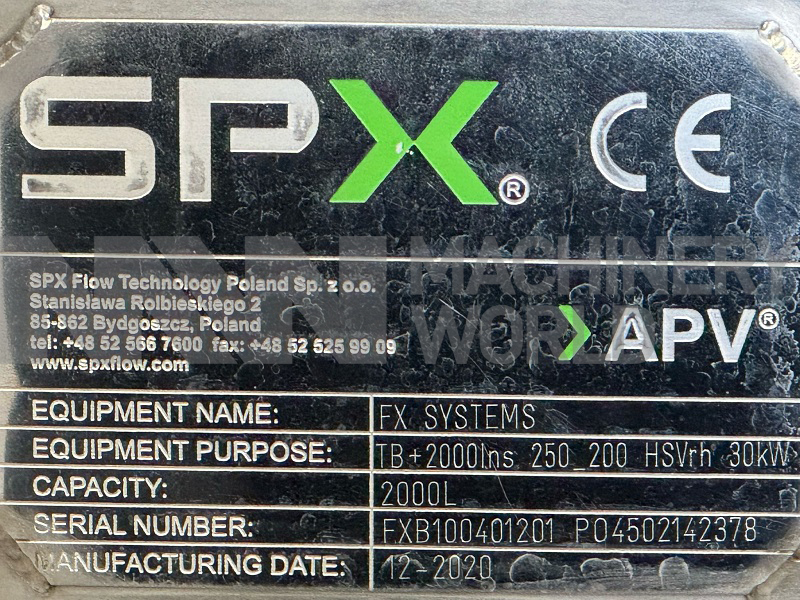

• Serial Number: FXB100401201 P04502142378
• Tank Volume: Approx. 2,000 Litres
• Year of Manufacture: December 2020
• Construction: Insulated & Clad Skin Stainless Steel

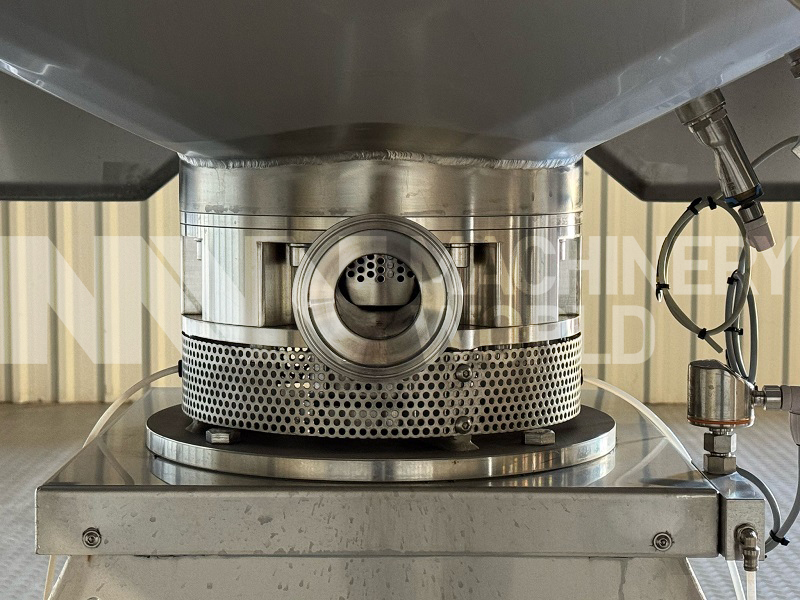

• Bottom Mixer Motor Power: 30kw
• Mixer Speed: 1484 RPM
• Electrics: 50/60Hz & 3-Phase

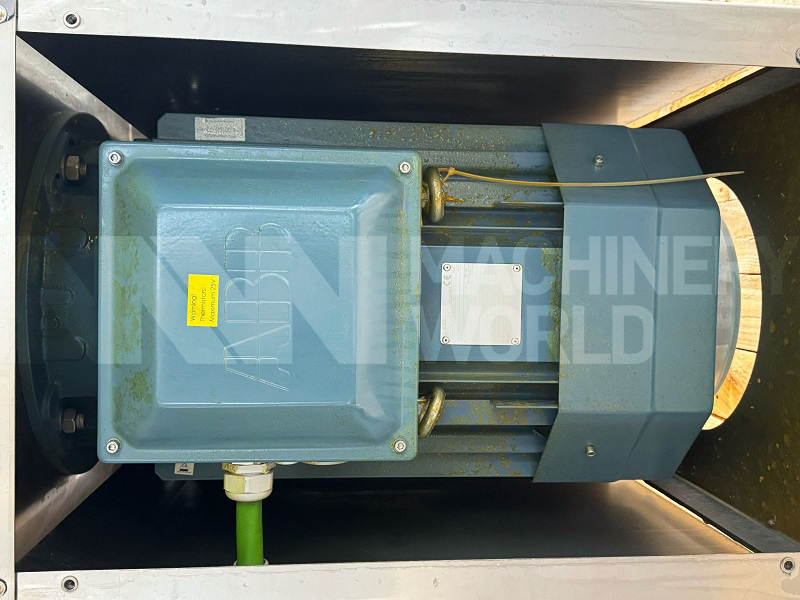

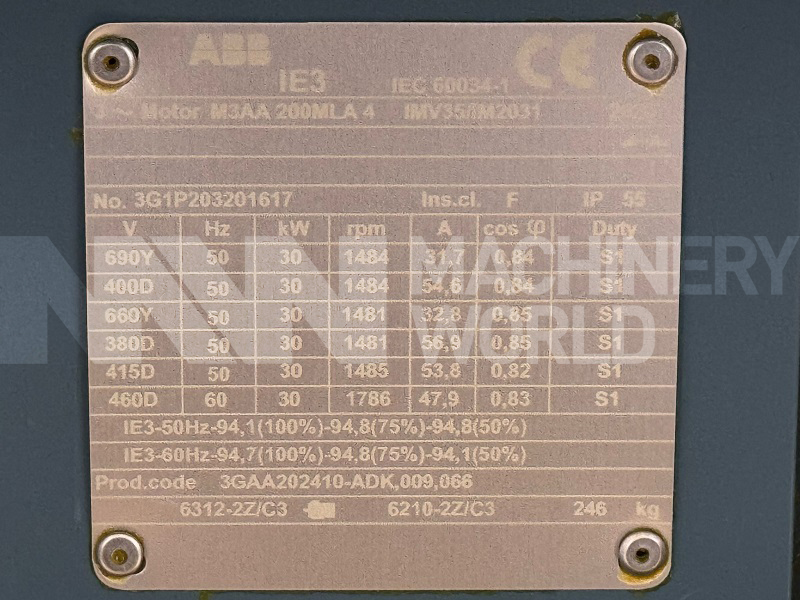

• Motor Manufacturer: ABB
• Bottom Outlet: 4 inch
• Inlet: Top

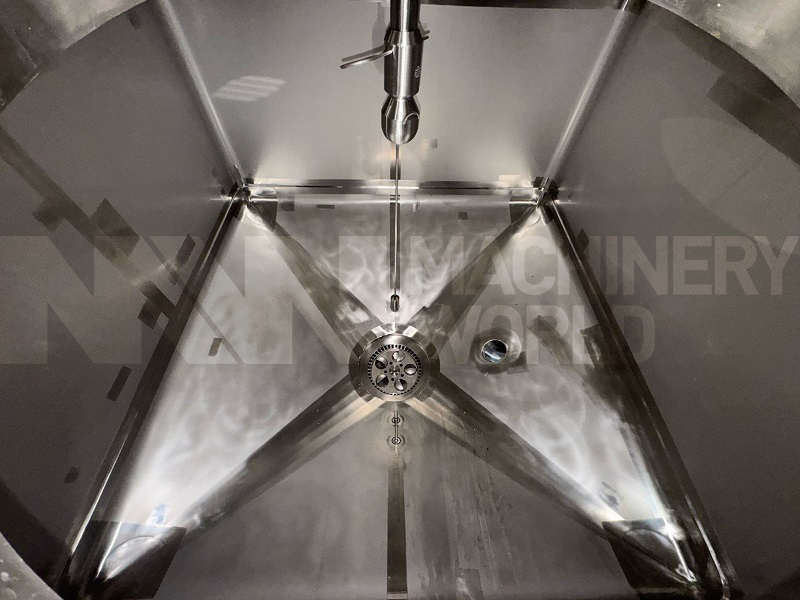

• CIP: Comes with Top Entry CIP Spray Head

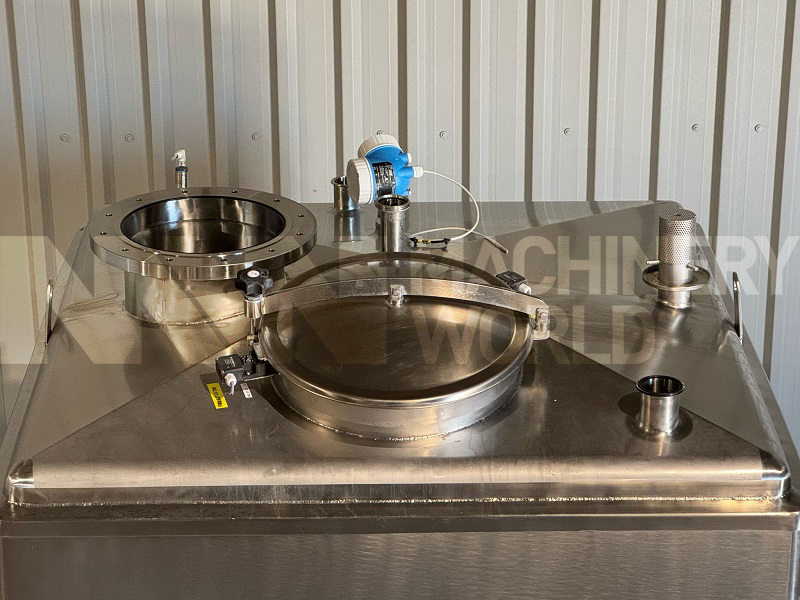

• Manway: Top Manway with Circular Lid
• Vent: Top Mounted Breather Vent with vent Cap
• See 'Technical Doc' link for further details

Inclusions

• SPX 2000+TB Flex Mix

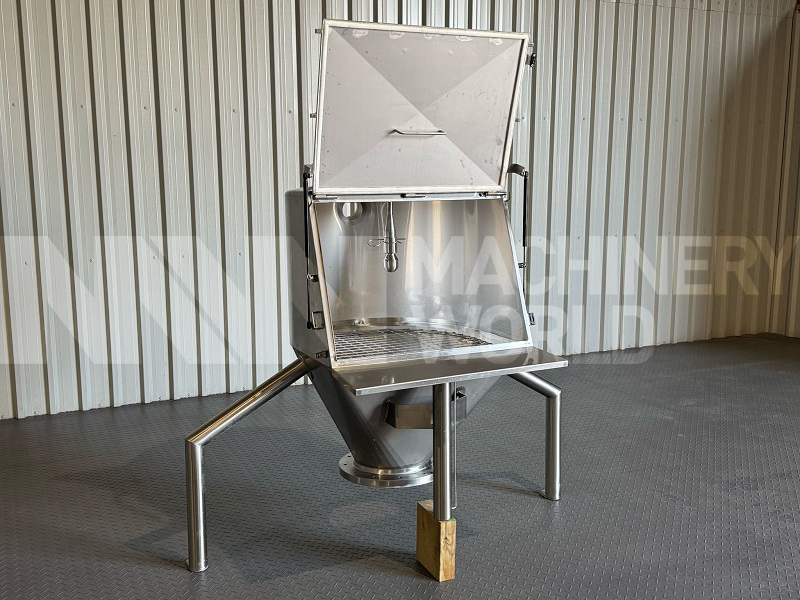

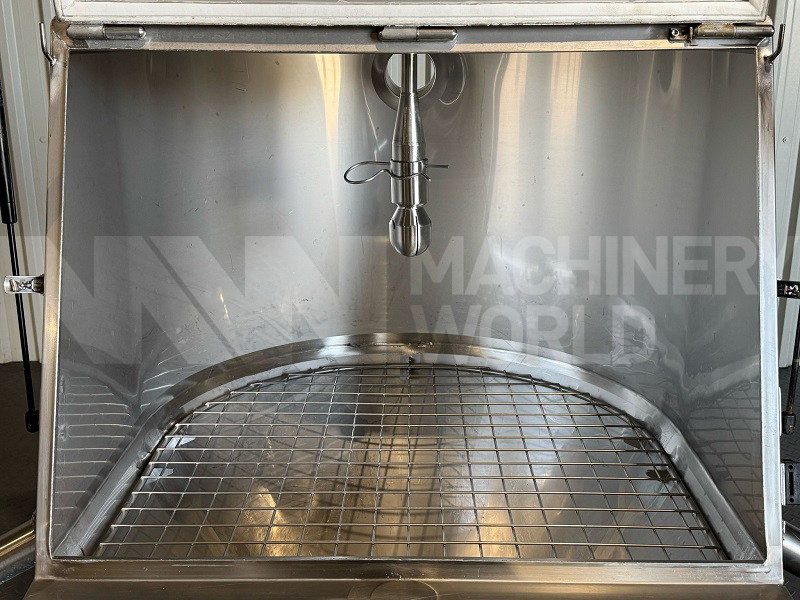

• Top Powder Discharge Station

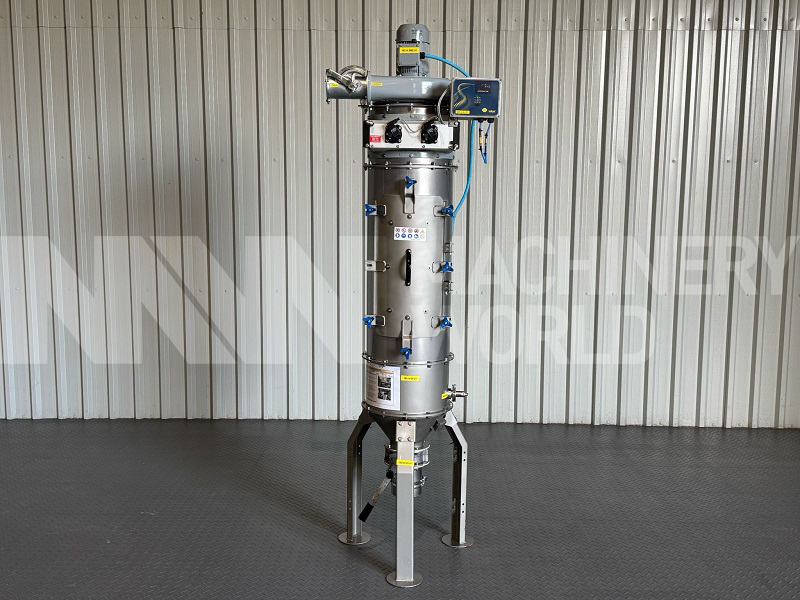

• Wam Group Powder Dust Collector (Filter)

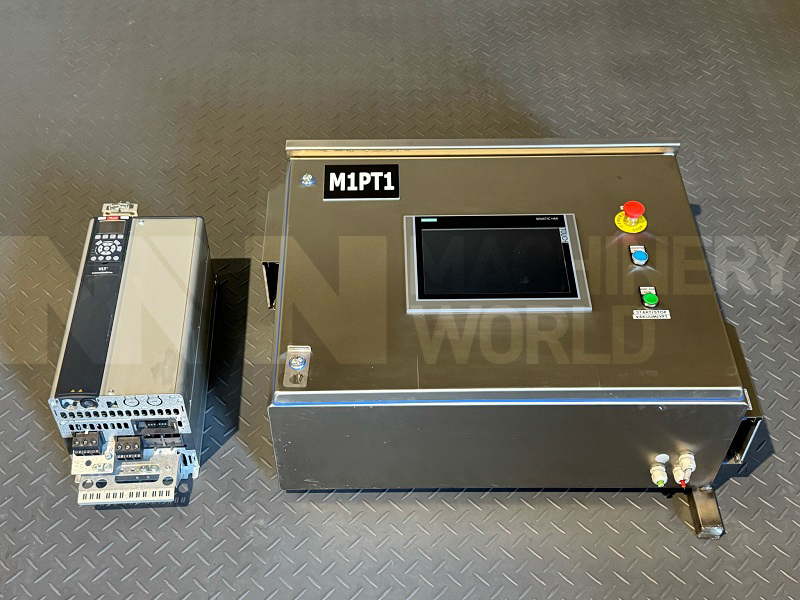

• Panel with Touch Screen HMI and Frequency Inverter for Liquiverter

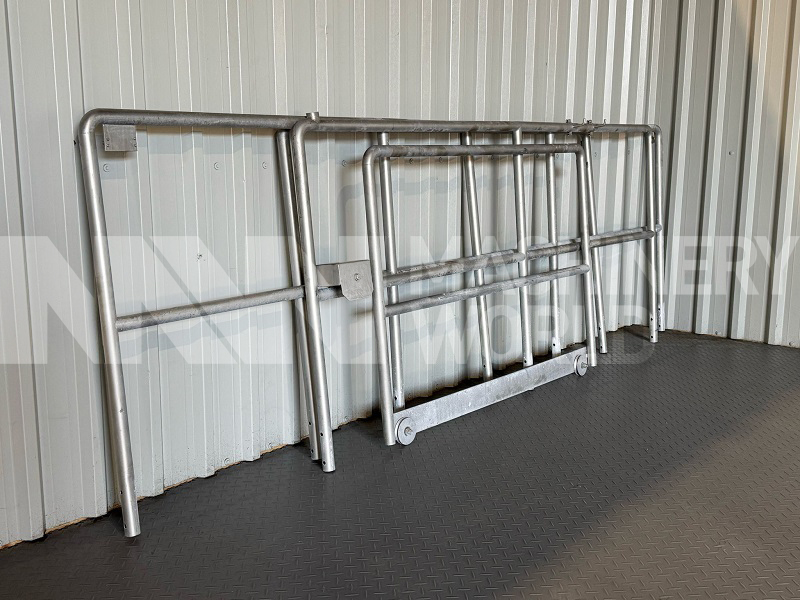

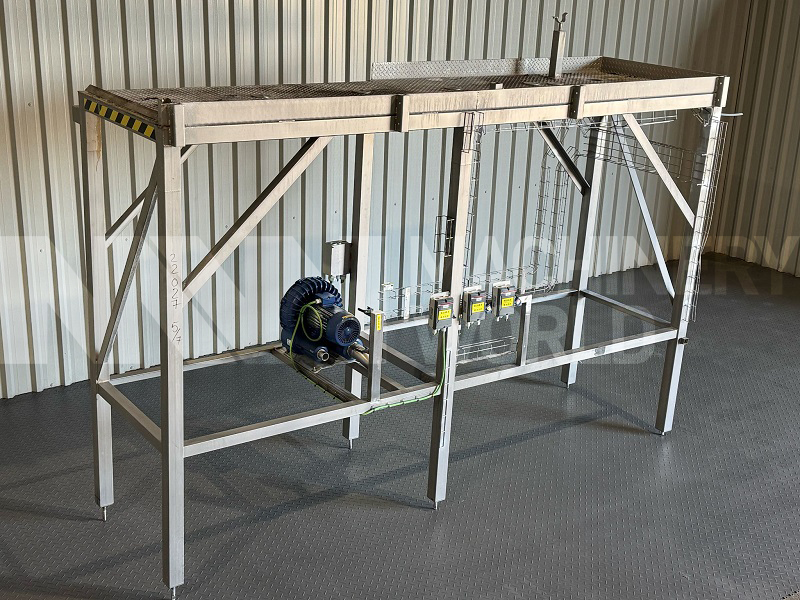

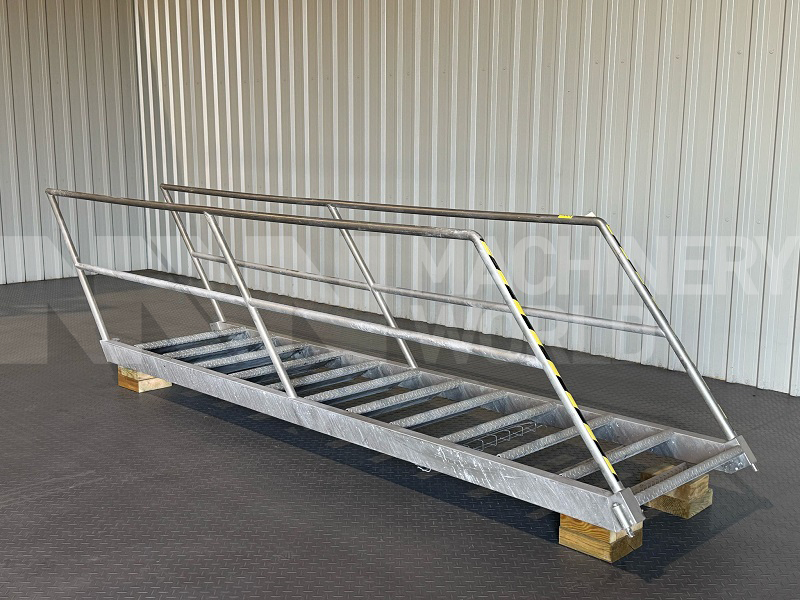

• Stainless Steel Support Gantry with Access Ladder
• Full set of documentation (Operational Manual, General Arrangement Drawing, Electrical Drawing & Certification)

Not Included

• PLC Control Panel is not included, as this Mixer was connected to a centralised factory control system.

Condition

Sparingly used

Dimensions

• Length:1300mm
• Width:1300mm
• Height:2450mm

Country of Manufacture

Poland
