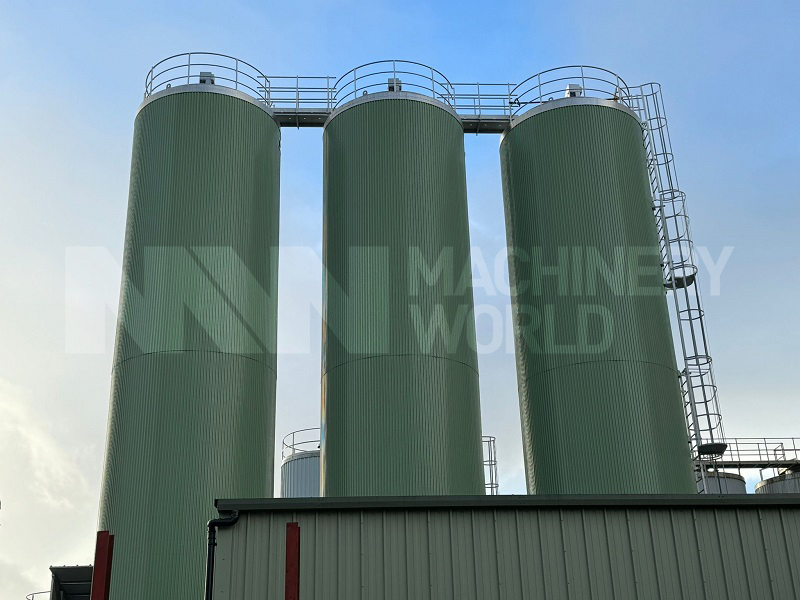

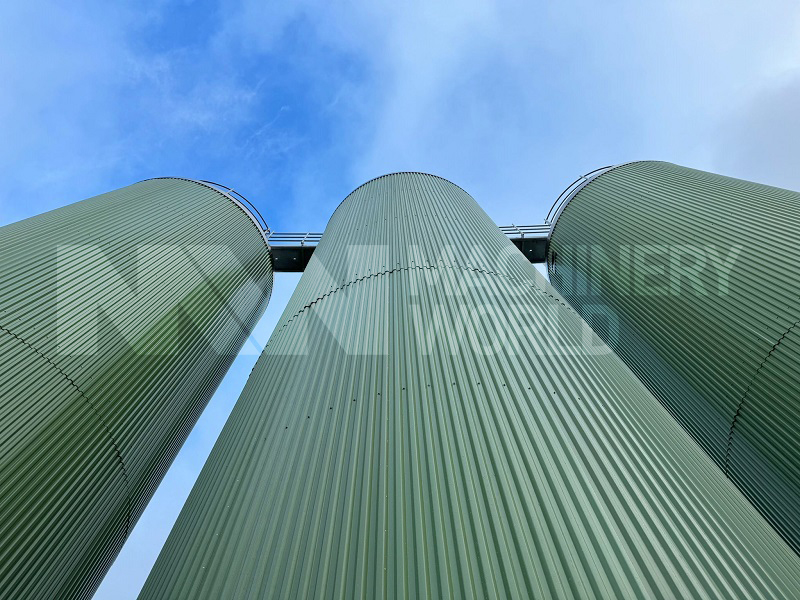

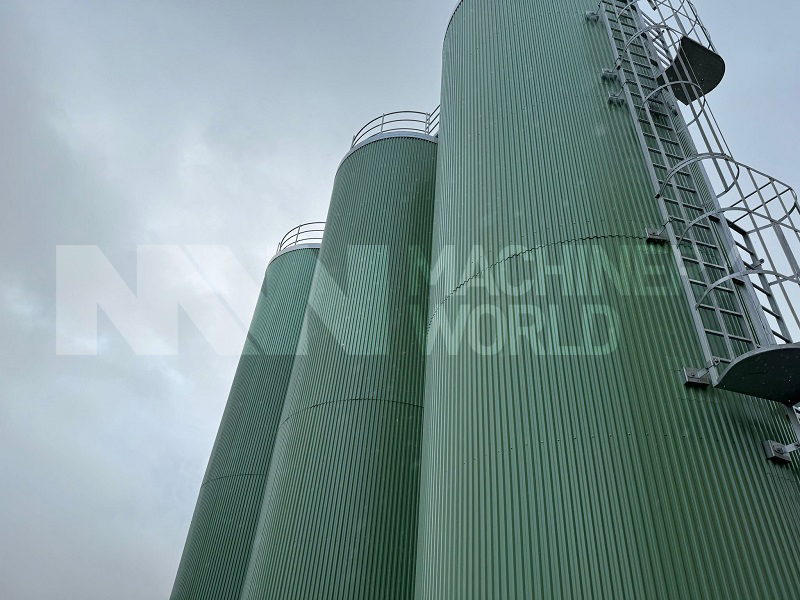

200,000 Ltr Gpi 316 Grade Stainless Steel Insulated & Clad Silo with Alfa Laval Agitator – Brand New 2023

Description

These are 3x Brand New Gpi Stainless Steel Insulated & Clad Silos with a working volume of 200,000 Ltr. These 200,000 Ltr Silo are of 316 Grade Stainless Steel construction and suitable to be used on corrosive products such as Whey or highly acidic Juices.Gpi 316 Grade Stainless Steel Insulated & Clad Silo comes with Side Entry Alfa Laval Paddle Mixers for constant re-circulation of product within the Silo.

Specification

• Make: Gpi, The Netherlands
• Type: Dairy Milk Whey Liquid Holding Silo
• Year of Manufacture: 2023
• Working Volume: Approx 200,000 Ltr
• Material of Construction: 316 Grade Stainless Steel
• Support: Skirted with Bottom Access Alcove & Door
• Base: Dished Base with Centrally Located Outlet

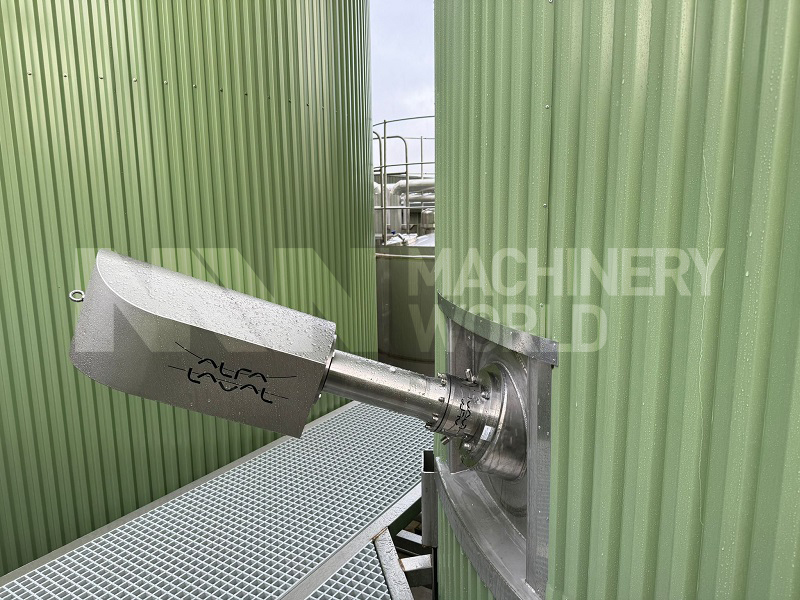

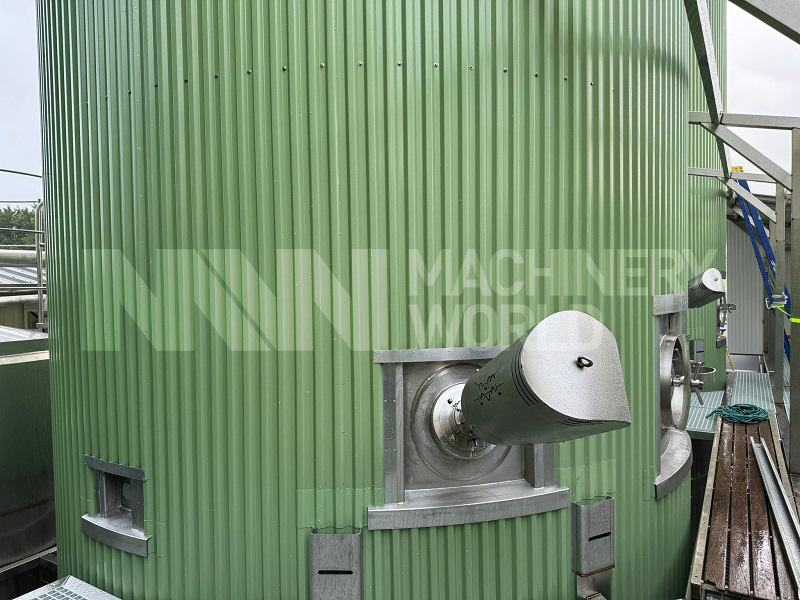

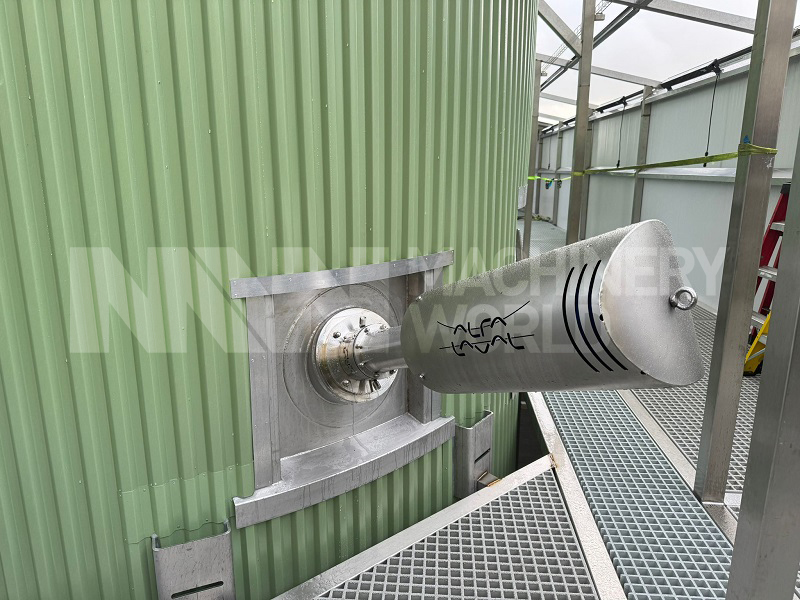

• Agitator:
  Make: Alfa Laval
  Type: Side Entry with Paddles
• Insulation: 80mm Aluminium Faced Rockwool Insulation
• Cladding: Plastisol Profile Cladding
• Vent: Breather Vent on Top with Formaflow HEPA Filter
• CIP: Top Entry with Spray Heads
• Manway: Side Entry with Secured Oval Lid
• Additional Details: Comes with Top Handrails and Side Access Ladders with Safety Hoops.

Dimensions

• Overall Height (Including Top Handrails): 19567mm (19.56m):
• Barrel Height of Tank: 15000mm (15m)
• Diameter: 4106mm (4.1m)

Country of Origin

The Netherlands
