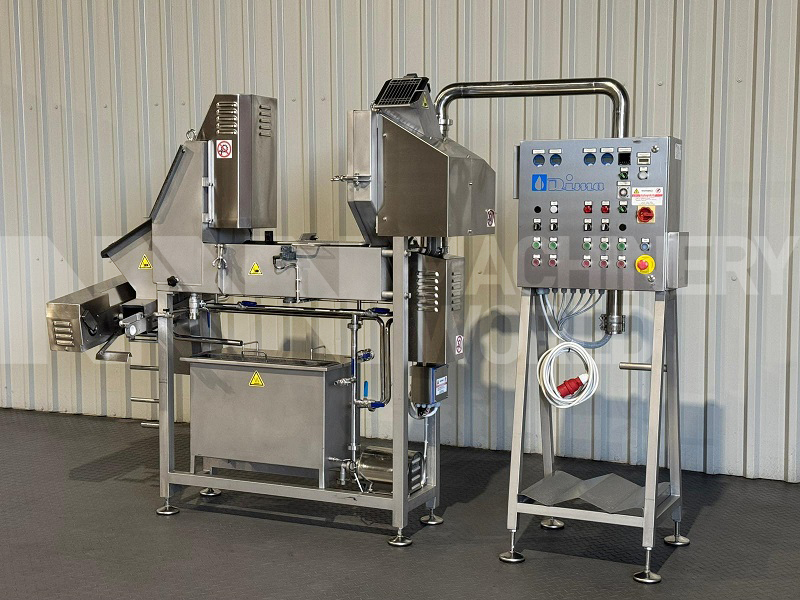

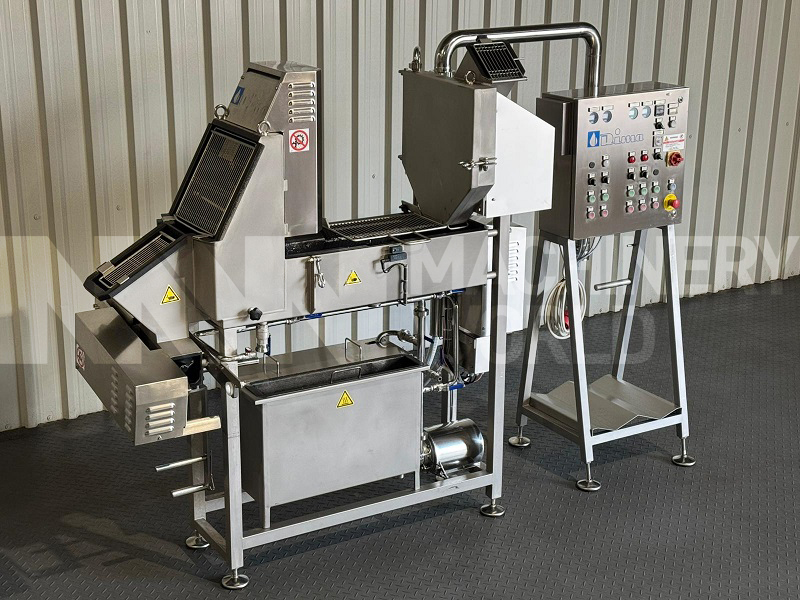

200kg per hour Dima Compact 200 Mozzarella Cooker Stretcher Moulder (Year 2019)

Description

This is a used Dima Compact 200 Mozzarella Cooker Stretcher Moulder. This Dima Compact 200 Mozzarella Cooker Stretcher Moulder was manufactured in the year 2019 and has a capacity adjustable to maximum of approx 200kg per hour (Capacity varies depending on the product characteristics, moisture and moulding size).

Dima Mozzarella machine is a compact unit designed for the continuous cutting, cooking, stretching, and molding of various types of “pasta filata” cheeses, including mozzarella, fior di latte, mozzarella di Bufala, pizza cheese etc. With compact dimensions, Dima Compact 200 Cooker Stretcher Moulder is tailored for small dairies that seek to automate their cheese production while preserving a diverse and artisanal approach. It features straightforward operation, a compact structure, and the versatility necessary for producing high-quality cheese. It comes equipped with a curd slicer, cooker-stretcher, and molder, along with an integrated system for cooking water preparation, heating, and circulation—all contained within a single machine. Dima Compact 200 Mozzarella Cooker Stretcher Moulder would be ideal solution for small dairies, restaurants, supermarkets, research and development laboratories, universities, and professional institutes. Please note that there are no Moulds offered with the Dima Compact 200. However, these Moulds can be supplied, based on customer’s actual requirement.

Specification

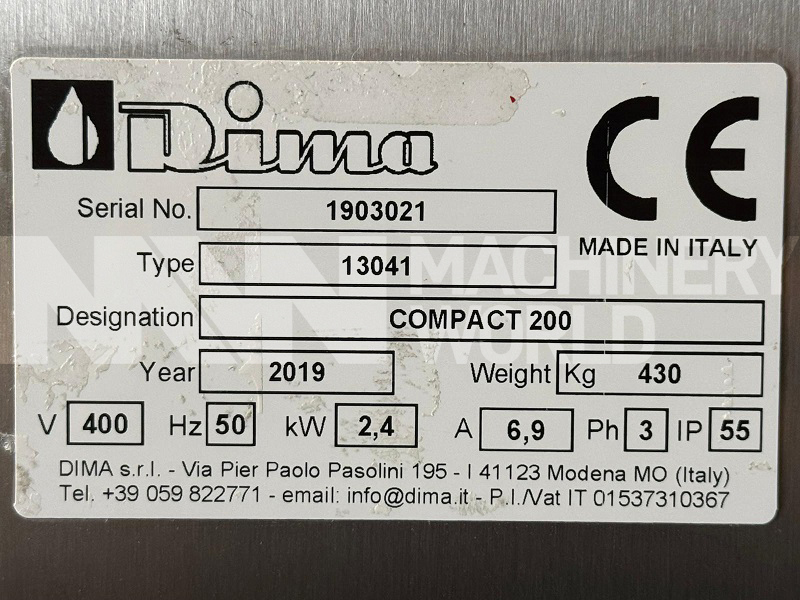

• Make: Dima srl, Italy
• Model: Compact 200
• Function: Mozzarella Cheese Cooker Stretcher Moulder
• Year of Manufacture: 2019
• Capacity: Adjustable to maximum of approx 200kg per hour (Capacity varies depending on the product characteristics, moisture and moulding size)
• Installed Power: 2.4kw, 3-Ph, 50Hz
• Water Consumption: Approx 350 Litres per hour
• Included Sections:

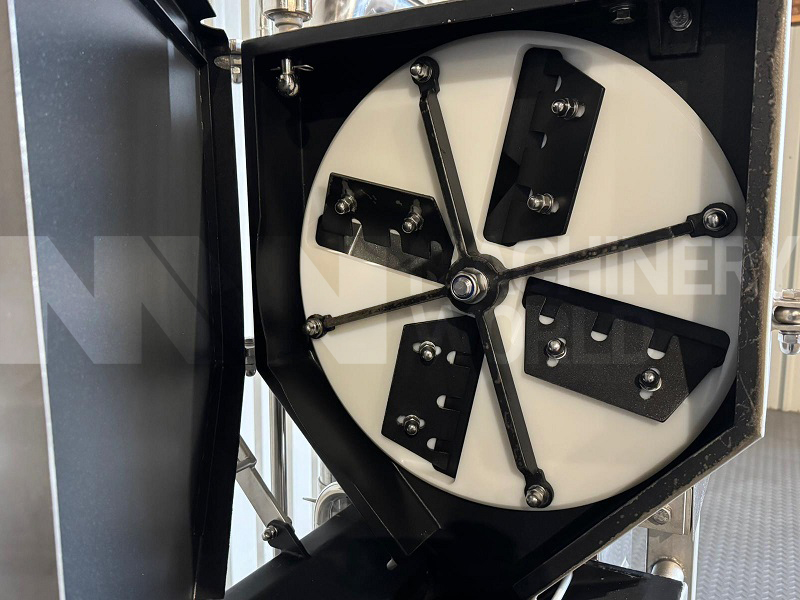

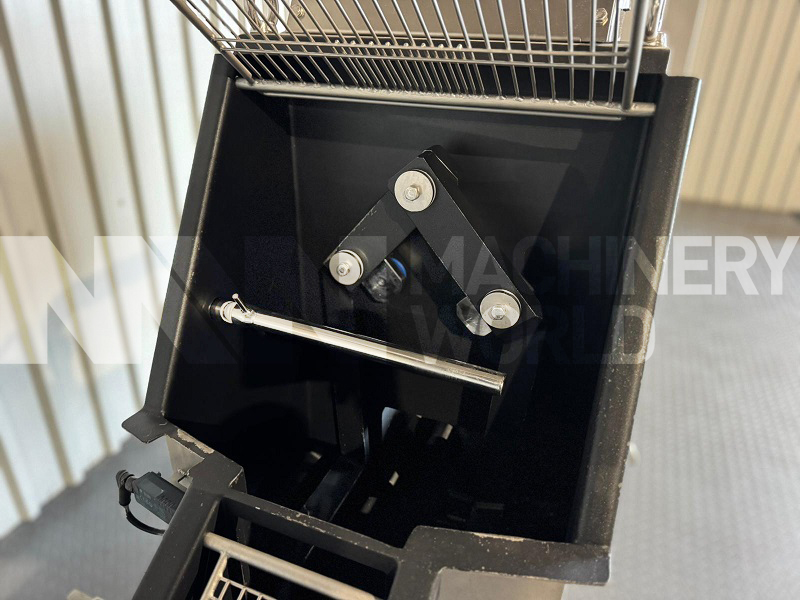

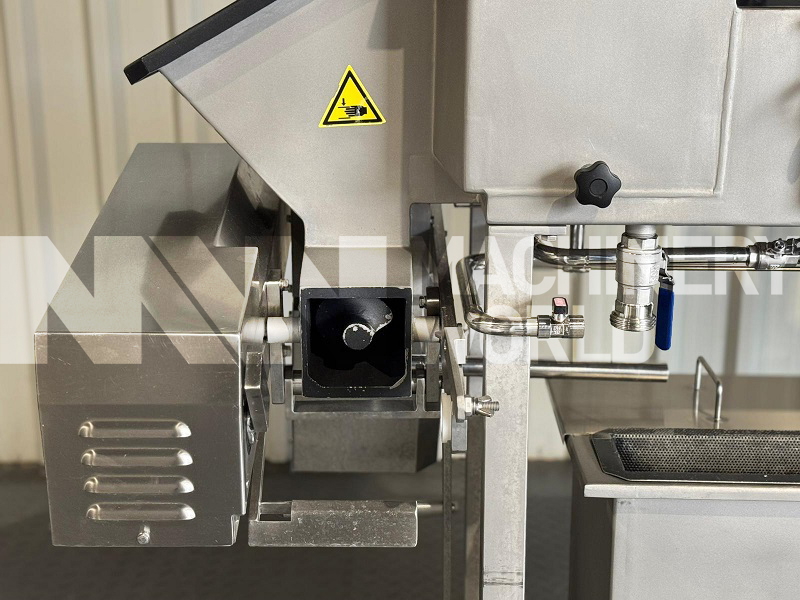

  Curd Slicer, with Curd tank, Vertical Cutting Disc supporting adjustable knives & automatic cleaning system with piping and spray nozzle.
  Cooking section, with an Auger with variable speed.
  Stretching section, with two Stretching Arms with variable speed.
  Automatic Moulding Section (Moulds NOT Included)
• Material of Construction: 304 Grade Stainless Steel
• Product Contact Parts: Stainless Steel with special coating of Teflon Duroflon K3 (Black Teflon)

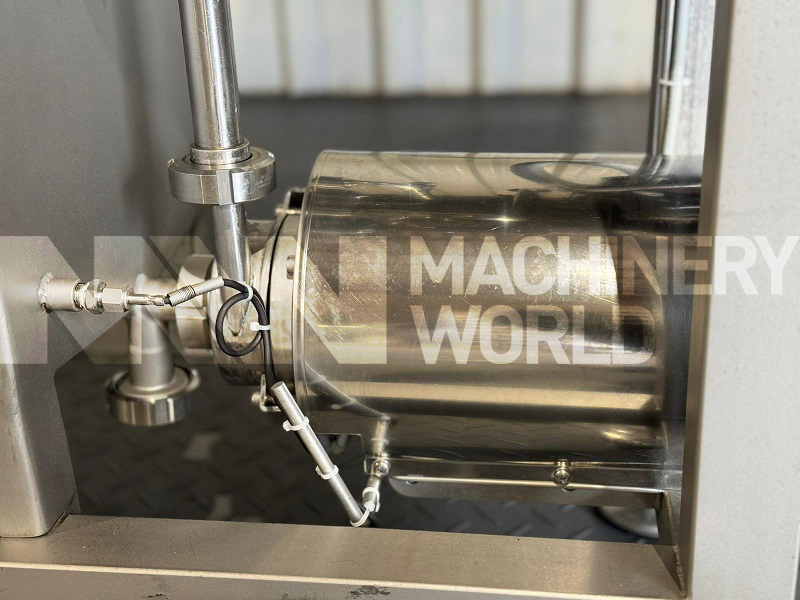

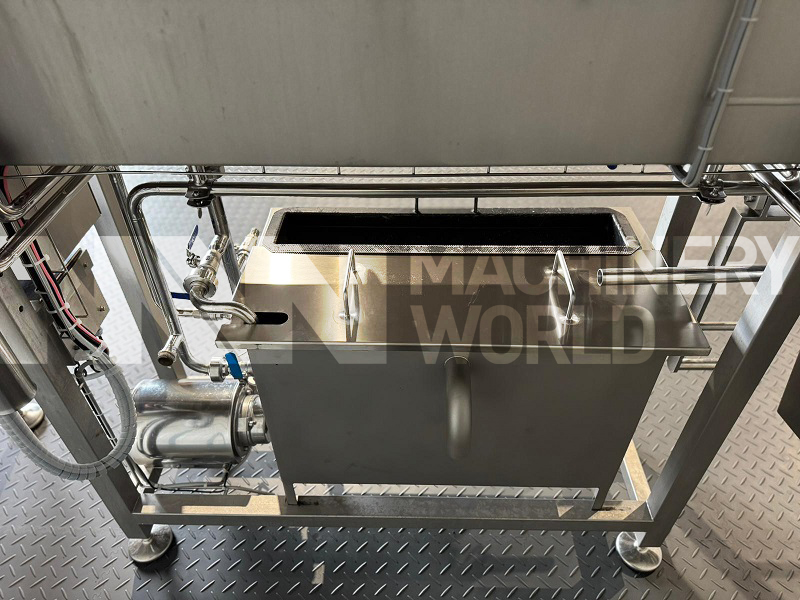

• Heating: Hot Water Preparation and Circulation Unit, with steam heating, to heat the water which is necessary for the cooking and stretching operation. (Please note that Steam has to be supplied from customer’s external Boiler)

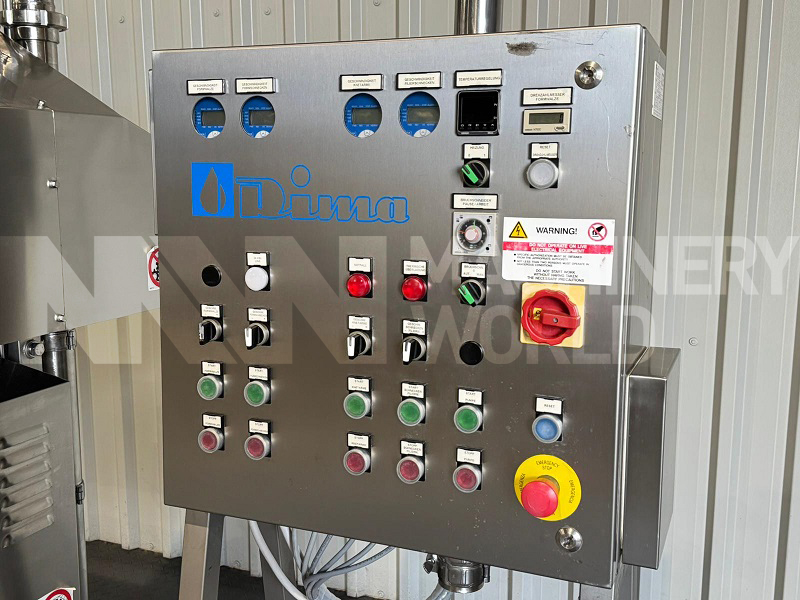

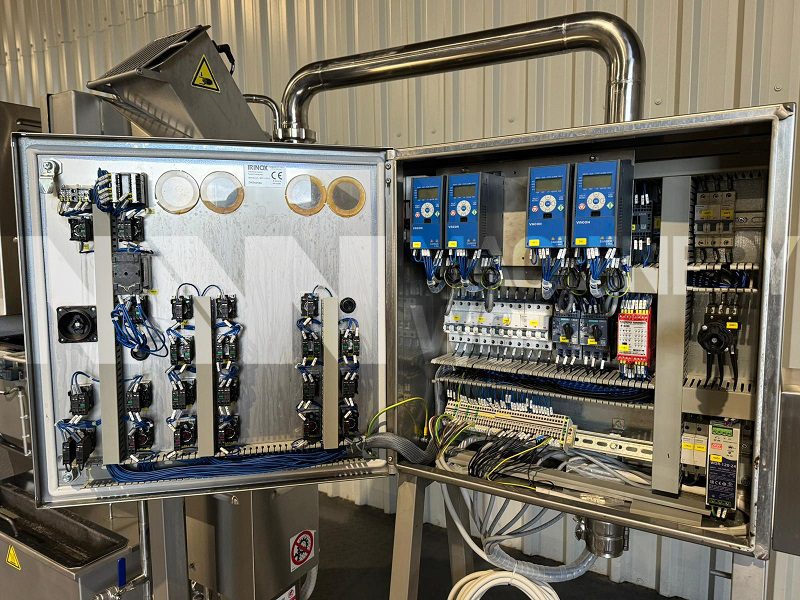

• Control Panel: Comes with Frequency Controlled Inverter for Speed Control of Cooking Section, Stretching Section & Moulding Section.
• NOT INCLUDED: Moulds for the Moulder. However, this can be supplied as an optional extra, based on customer’s actual requirement.

Dimensions

• Length: 1880mm
• Width: 990mm
• Height: 2010mm

Country of Manufacture

Italy
