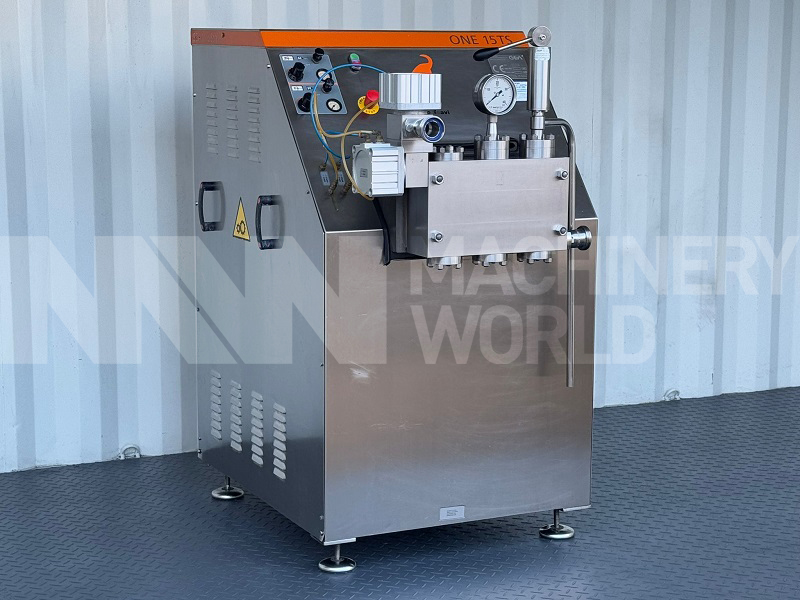

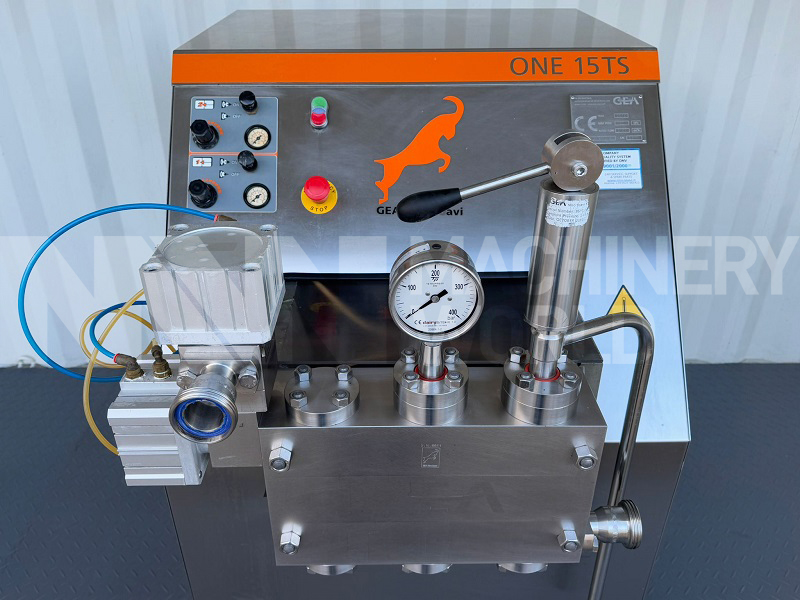

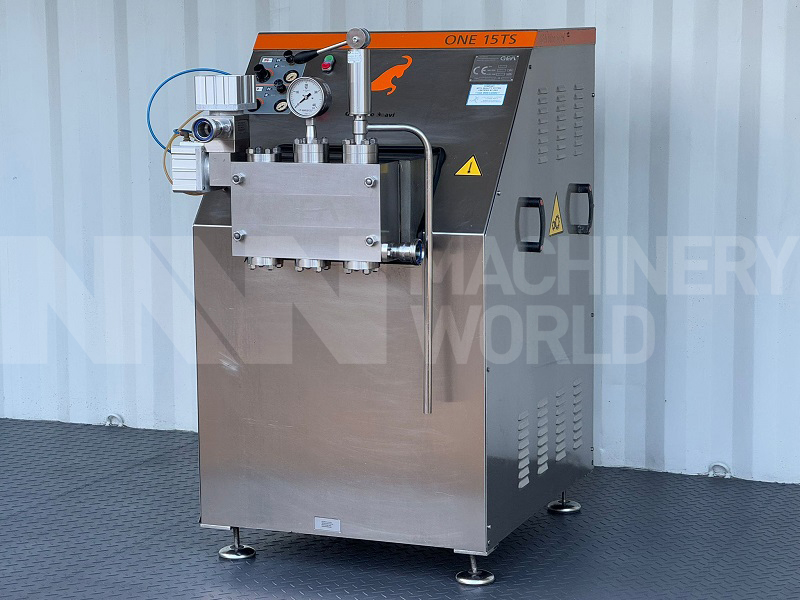

2,100 LPH GEA Niro Soavi One 15TS (200 Bar) High Pressure Homogeniser

Description

This is a used GEA Niro Soavi One 15TS Homogeniser. This GEA Niro Soavi One 15TS Homogeniser has 2-Stages and has a capacity of approx 2,100 LPH rated at a maximum pressure 200 bar (2,900 PSI). GEA Niro Soavi One 15TS Homogeniser was previously used at a major ice cream processing facility in the UK and available for immediate sale. Please note that ‘Technical Doc’ attachment shown, is for information purpose only and the actual equipment under offer might vary in specification.

Specification

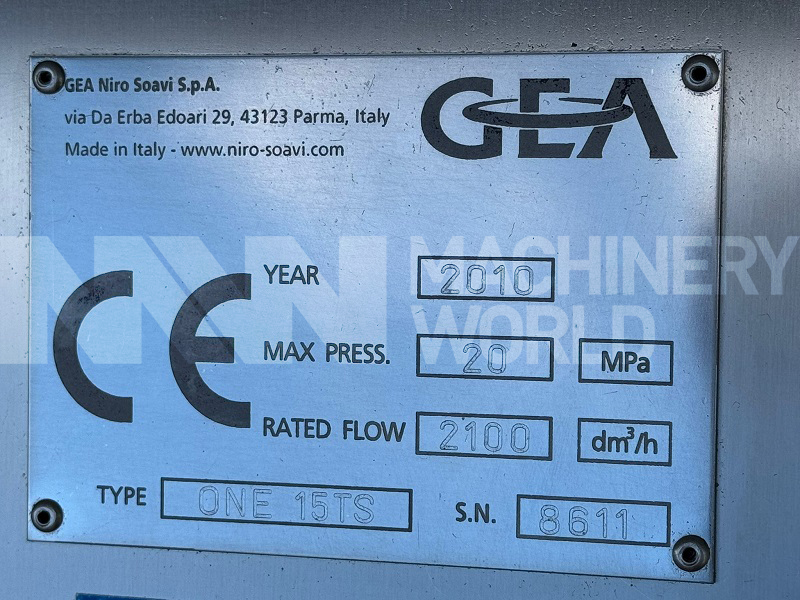

• Make: GEA Mechanical Equipment, Italy
• Type: One Homogenizer 15 TS
• Serial Number: 8611
• Function: High Pressure Homogeniser
• Year of Manufacture: 2010
• Max Operating Pressure: 200 bar (2,900 psi)
• Capacity: Approx 2,100 Litres Per Hour
• Number of Stages: 2 Stage Homogeniser

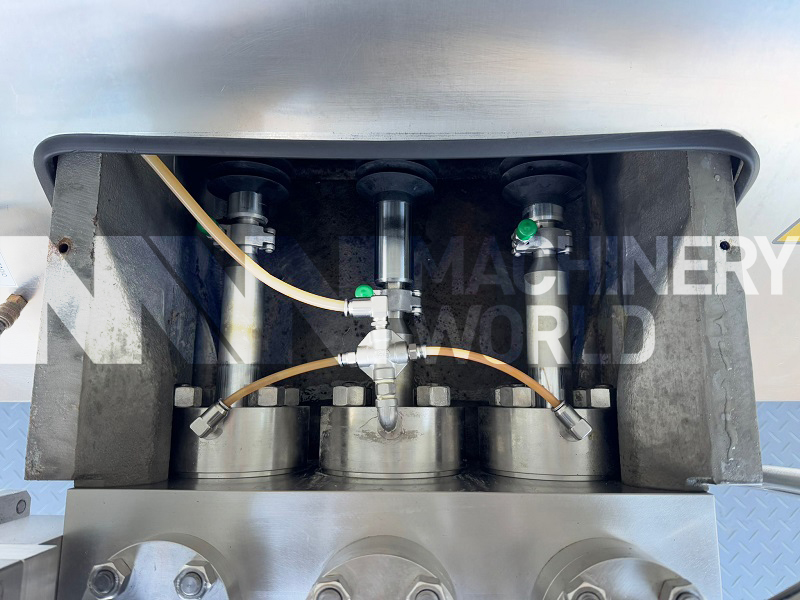

• Number of Pistons: 3 Pistons
• Finish: Stainless Steel
• Electrical Power: 15kw, 50Hz, 3-Ph
• See ‘Technical Doc’ link for GEA Homogeniser Brochure

Dimensions

• Depth: 1175mm
• Width: 910mm
• Height: 1385mm
• Weight: 1100kgs
